Ignition Coil: Components

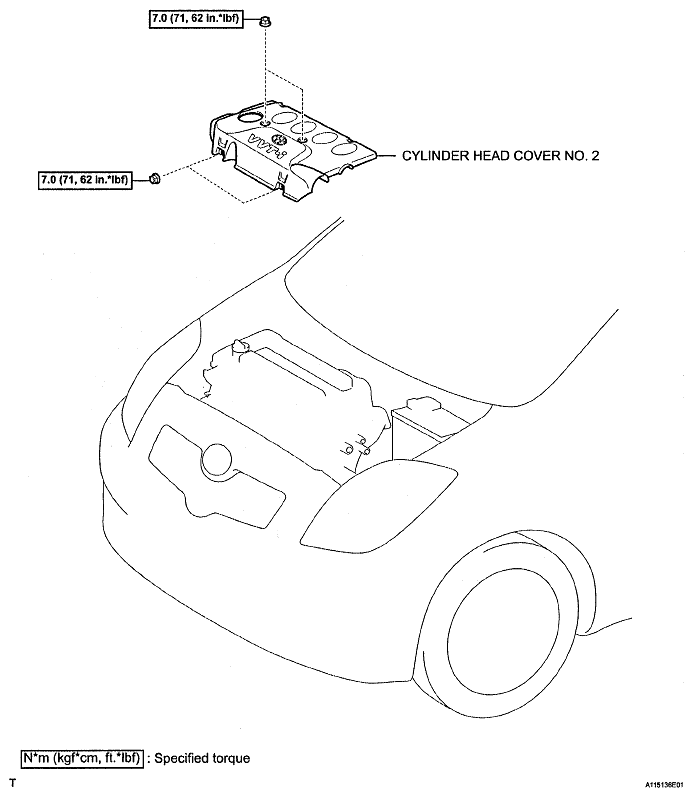

Fig 1: Ignition Coil Replacement Components With Torque Specifications (1 Of 2)
G04828372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

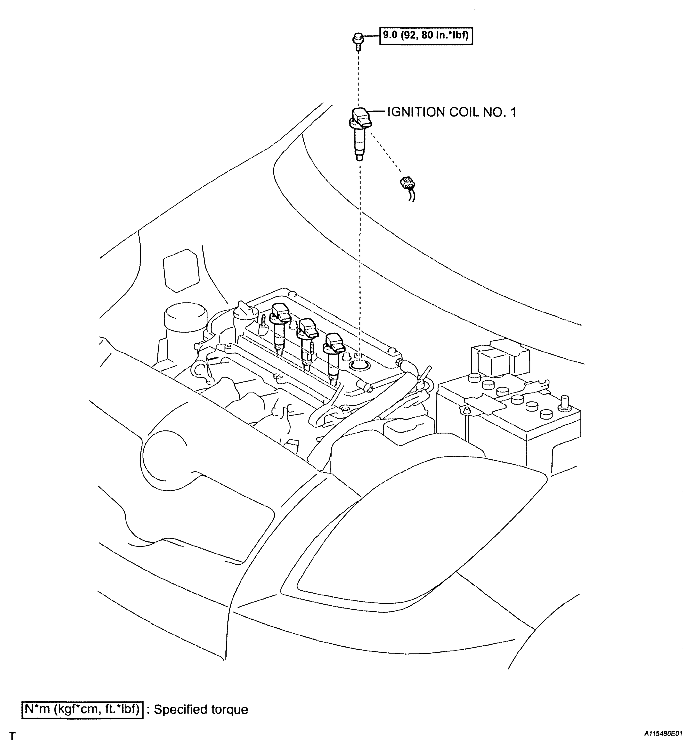

Fig 2: Ignition Coil Replacement Components With Torque Specifications (2 Of 2)
G04828519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
