OEM System Circuits: Horn: Notes

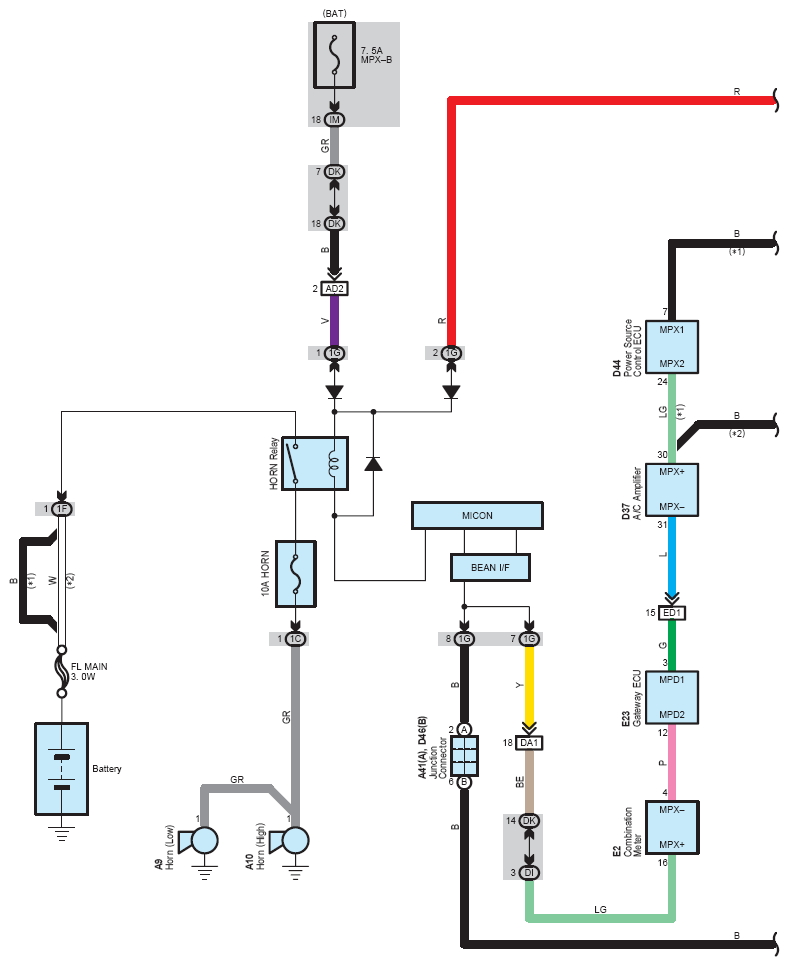

Fig 1: Horn - Circuit Diagram (1 Of 2)
G07556260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

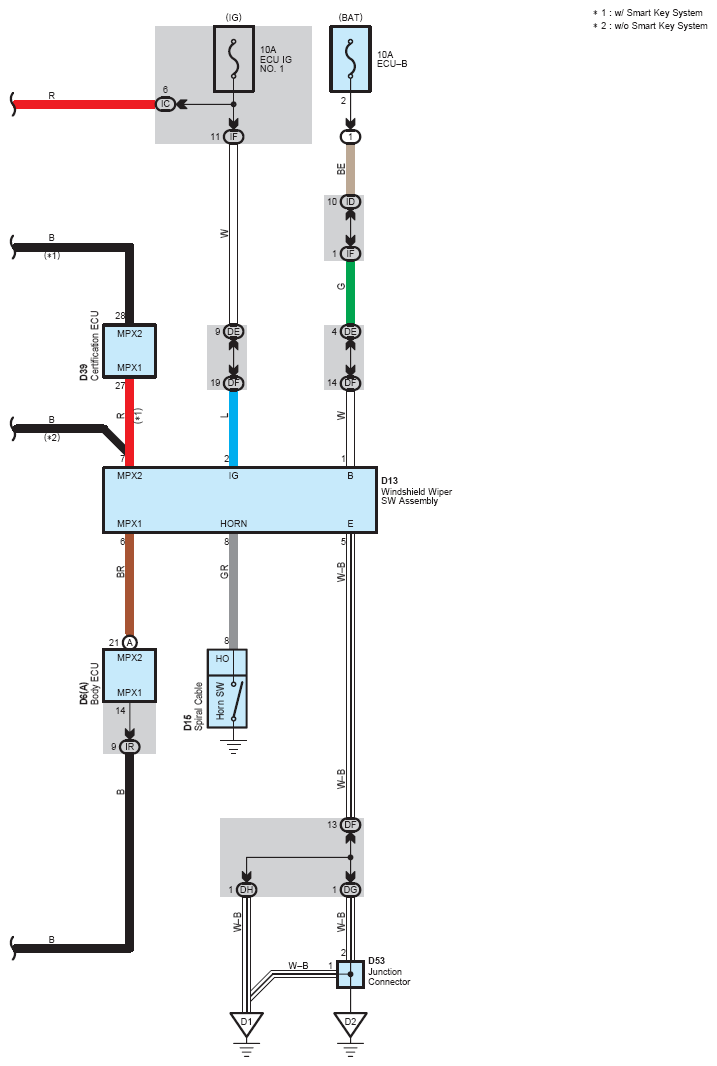

Fig 2: Horn - Circuit Diagram (2 Of 2)
G07556261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
