Stop Light (TMC Made): Notes

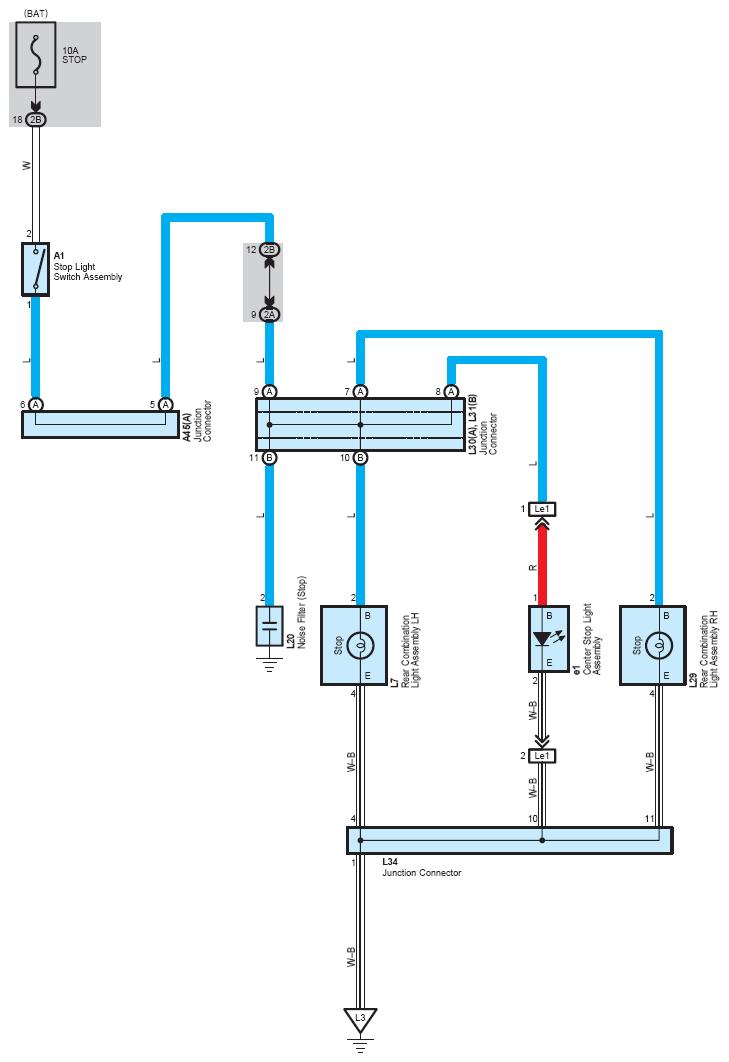

Fig 1: Stop Light (TMC Made) - Circuit Diagram
G07551103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
