Cruise Control (TMC Made): Notes

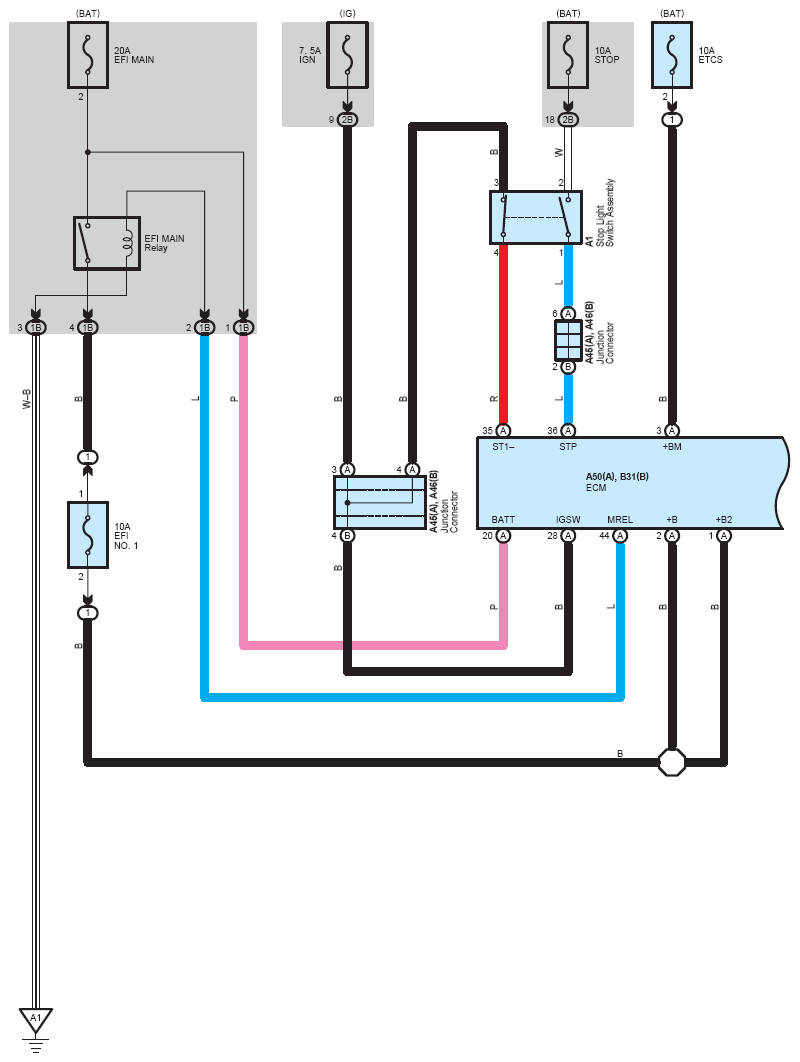

Fig 1: Cruise Control (TMC Made) - Circuit Diagram (1 Of 5)
G07551146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

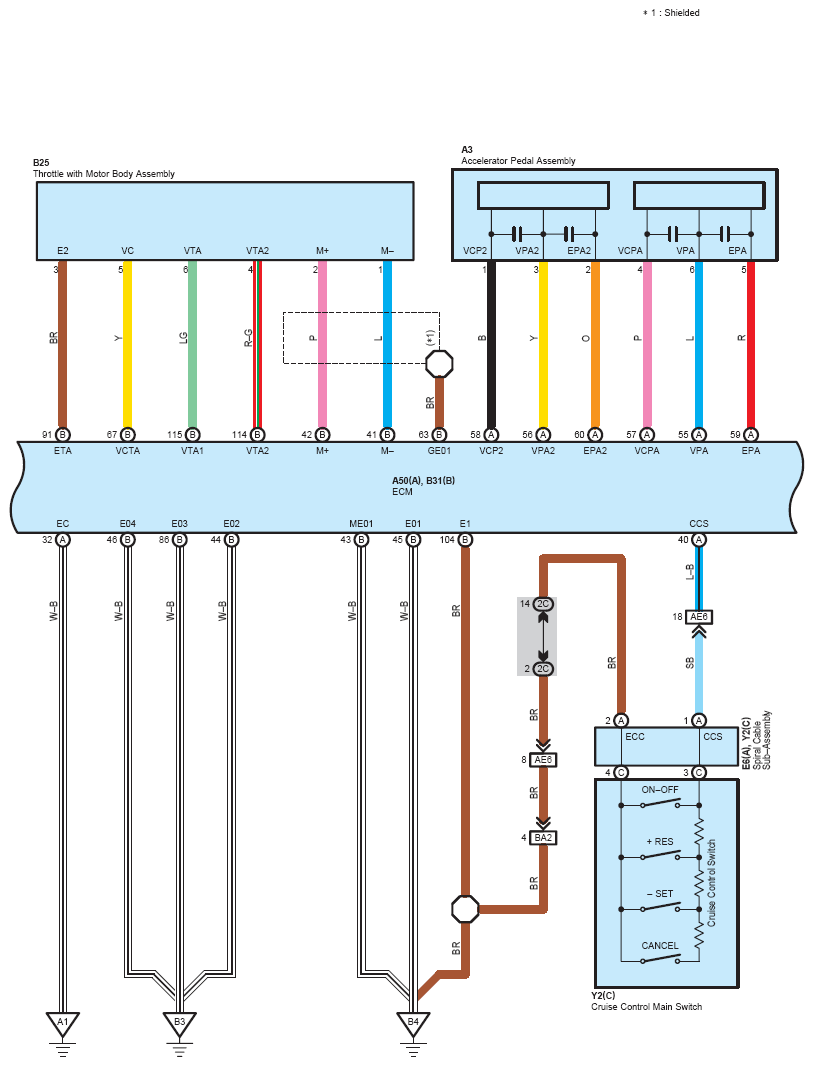

Fig 2: Cruise Control (TMC Made) - Circuit Diagram (2 Of 5)
G07551147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

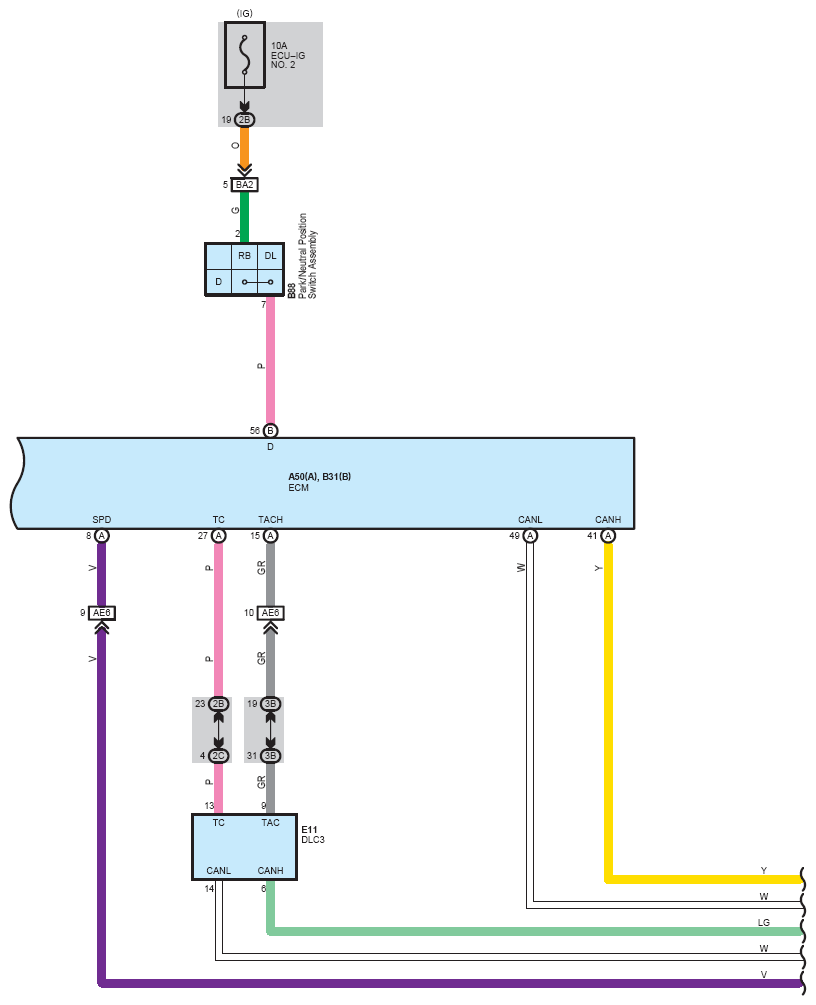

Fig 3: Cruise Control (TMC Made) - Circuit Diagram (3 Of 5)
G07551148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

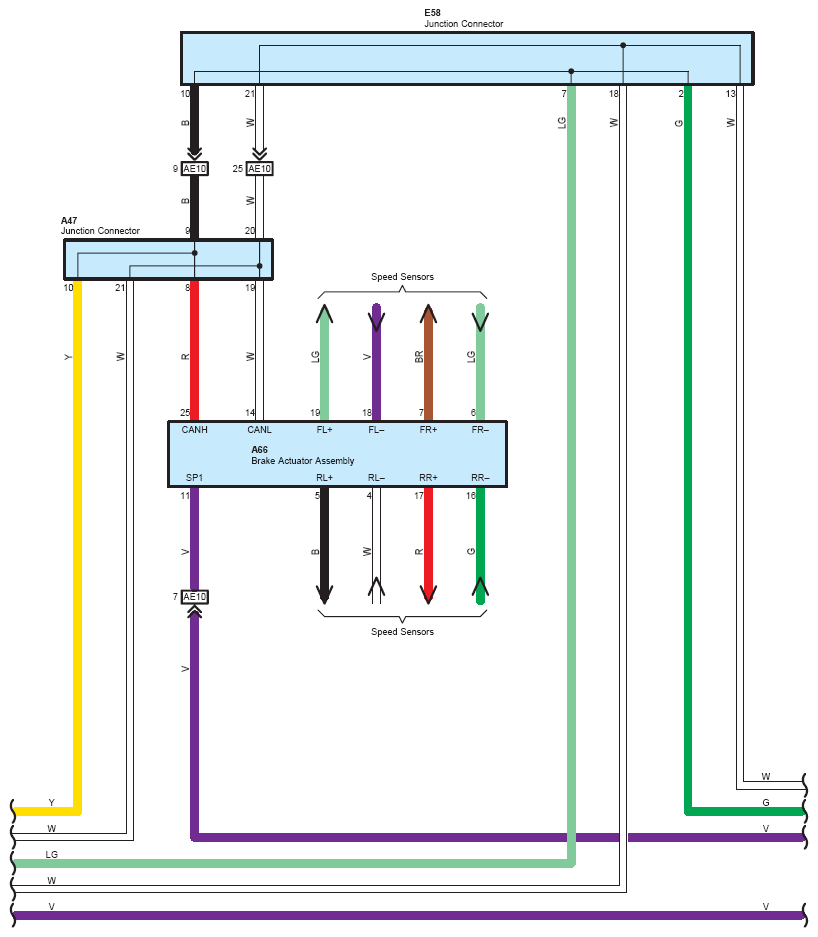

Fig 4: Cruise Control (TMC Made) - Circuit Diagram (4 Of 5)
G07551149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

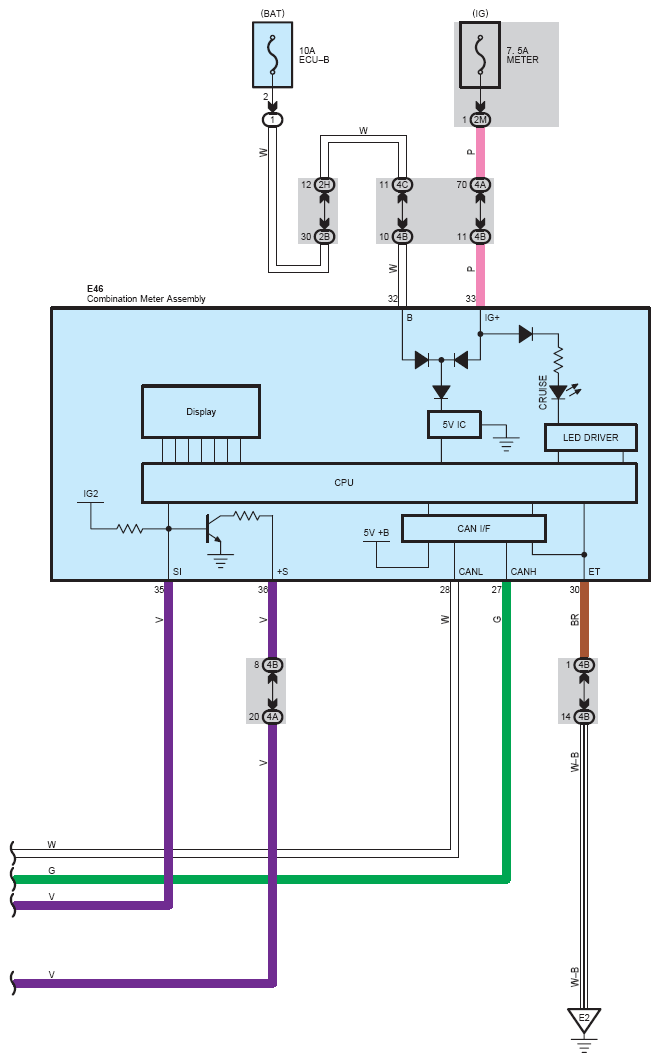

Fig 5: Cruise Control (TMC Made) - Circuit Diagram (5 Of 5)
G07551150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
