System Diagram

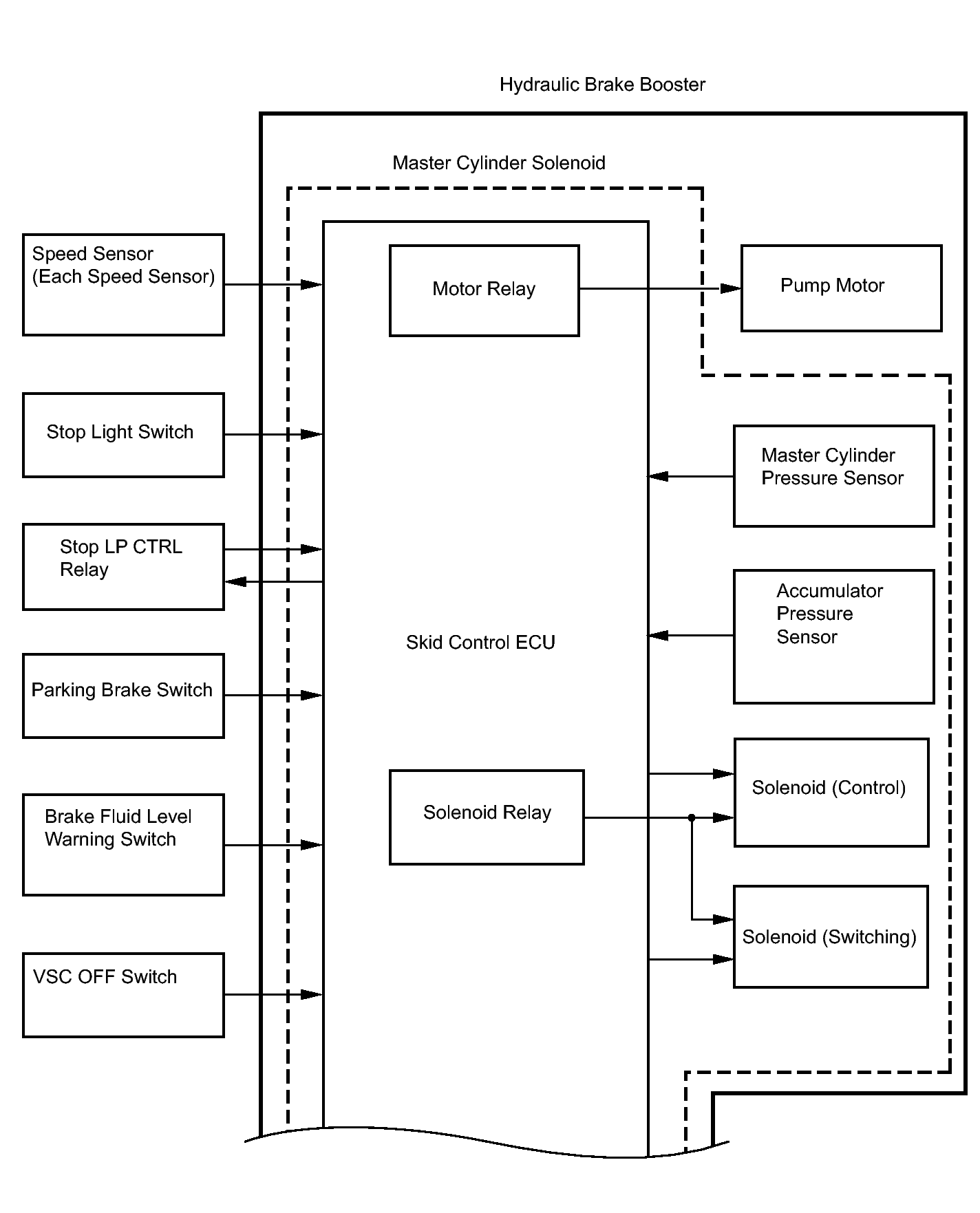

Fig 1: Skid Control ECU System Diagram (1 Of 3)
GTY183070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

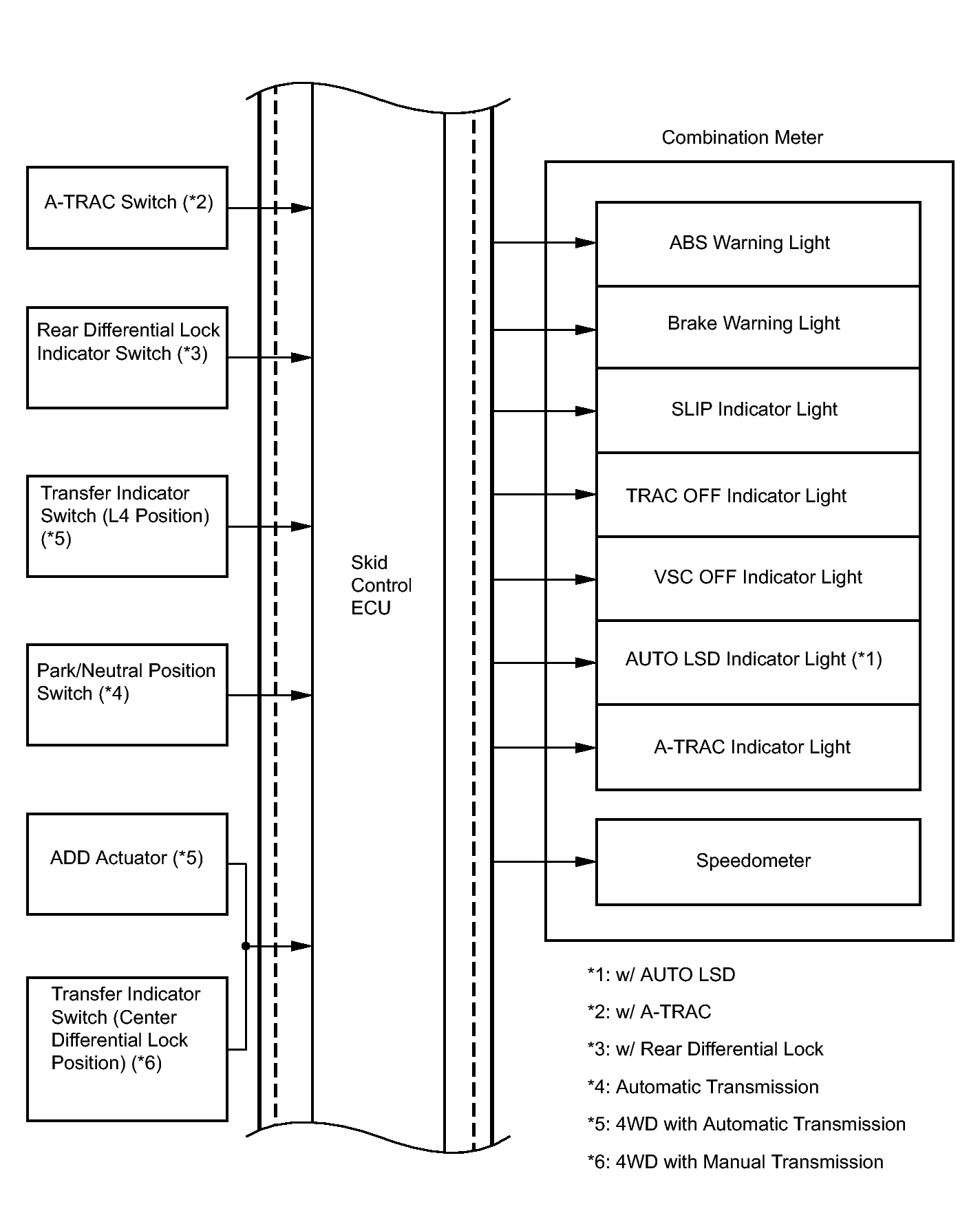

Fig 2: Skid Control ECU System Diagram (2 Of 3)
GTY168429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

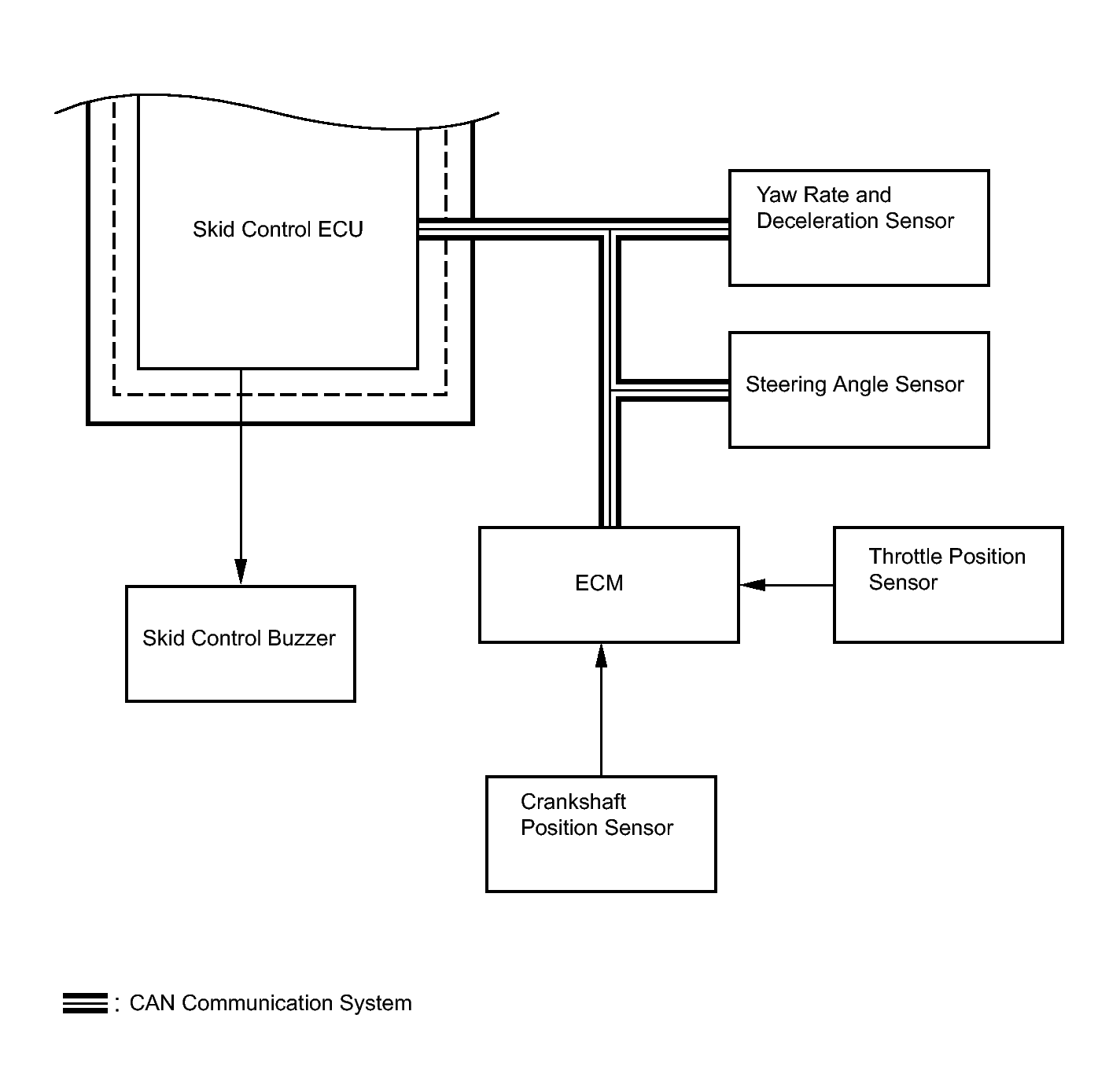

Fig 3: Skid Control ECU System Diagram (3 Of 3)
GTY202373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU (Transmitter) Receiving ECU Signals Communication Method
ECM Skid control ECU Throttle position signal CAN communication system
ECM Skid control ECU Engine speed signal CAN communication system
ECM Skid control ECU Accelerator pedal position signal CAN communication system
ECM Skid control ECU Intake temperature signal CAN communication system
Yaw rate and deceleration sensor Skid control ECU Yaw rate and deceleration signal CAN communication system
Steering angle sensor Skid control ECU Steering angle signal CAN communication system
Skid control ECU ECM Throttle opening angle request signal CAN communication system
