VVT Sensor: Components: Illustration

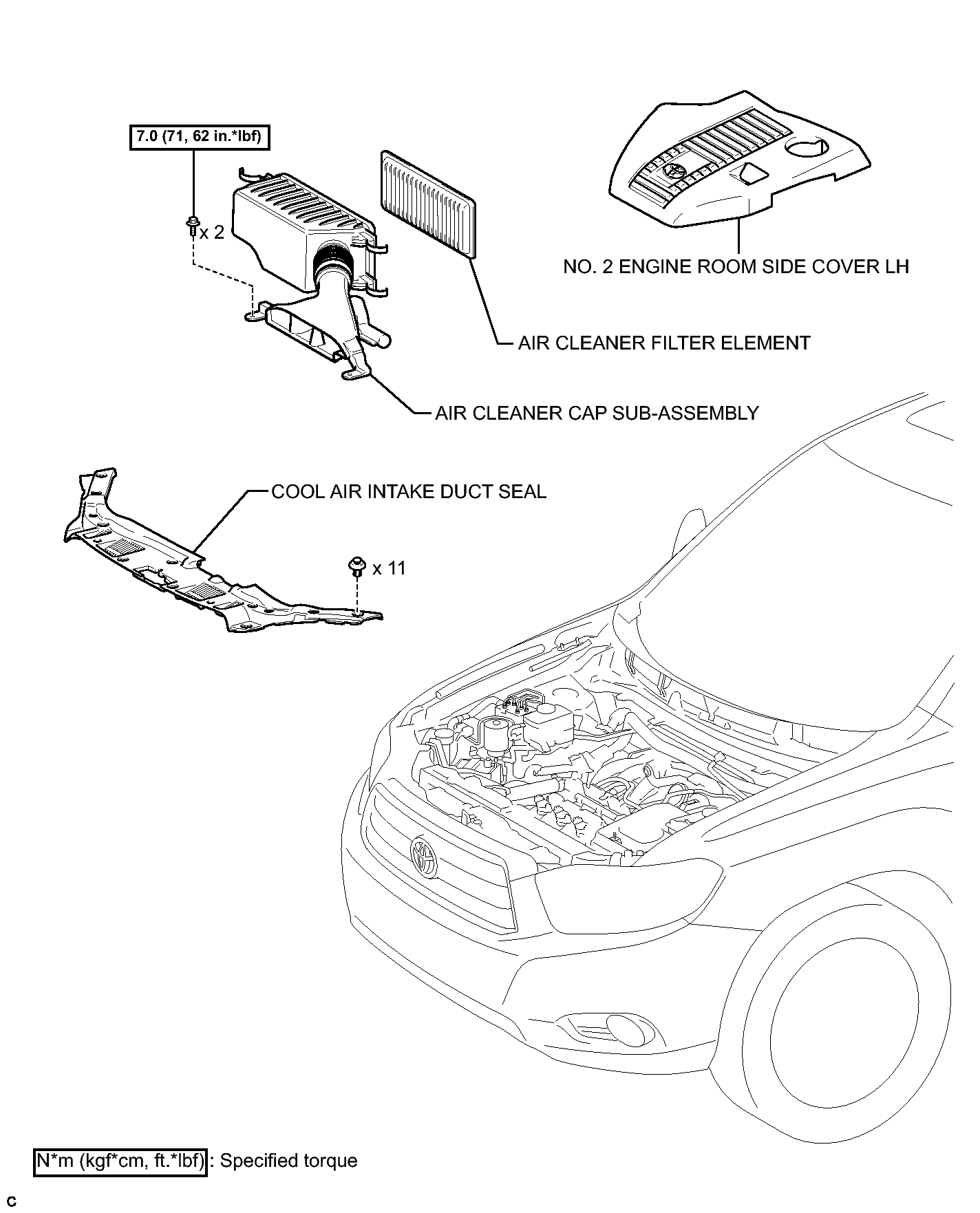

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specification (1 Of 2)
GTY194459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

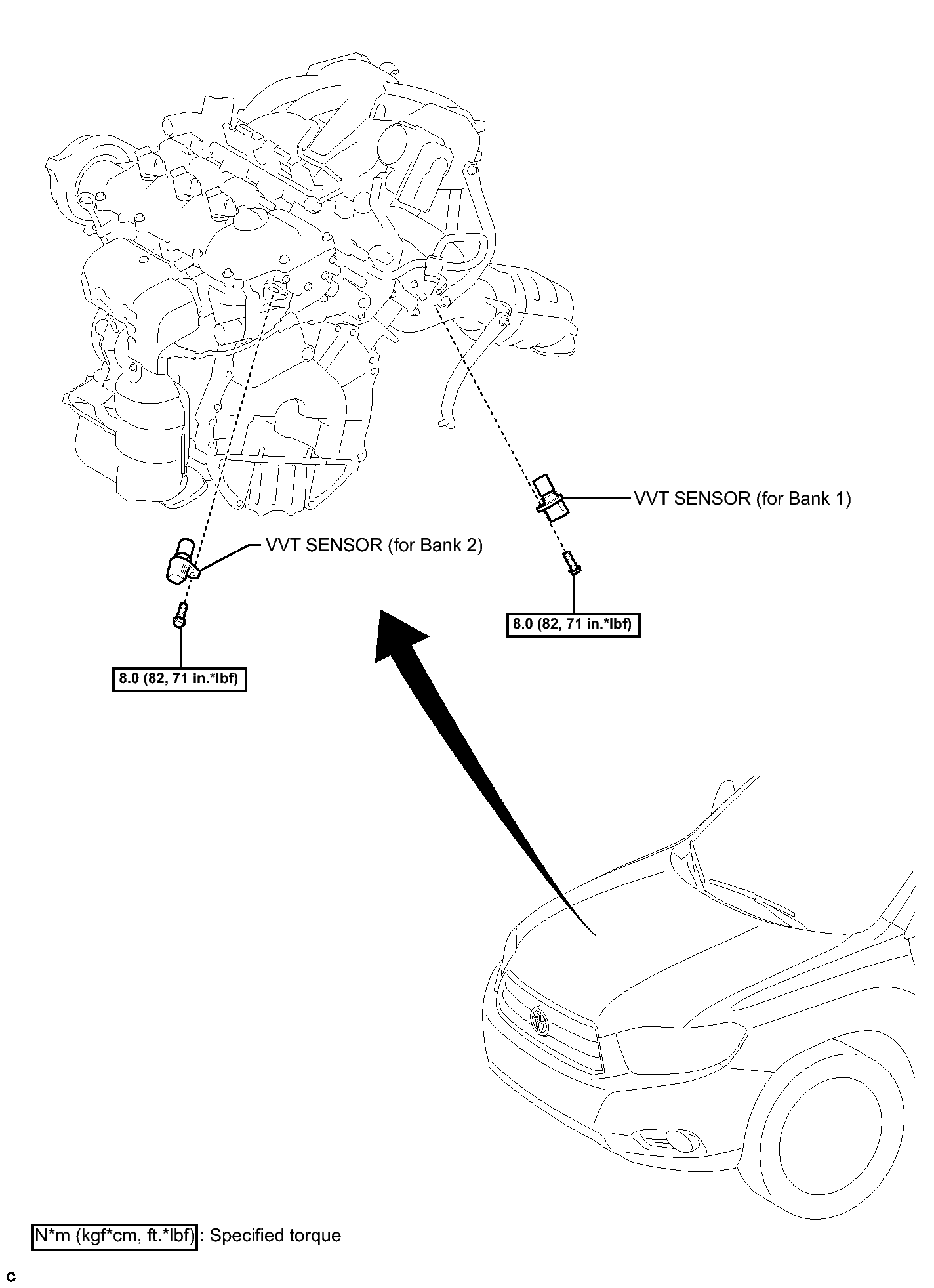

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specification (2 Of 2)
GTY188007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
