VSC Off Switch: Removal: Removal

REMOVE FRONT DOOR SCUFF PLATE LH . Refer to REMOVAL - Step 5
REMOVE COWL SIDE TRIM BOARD LH . Refer to REMOVAL - Step 34
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 33
REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL . Refer to REMOVAL - Step 35
REMOVE VSC OFF SWITCH
1. Disconnect the VSC OFF switch connector.
2. Using a screwdriver, detach the 2 claws and remove the VSC OFF switch from the lower instrument panel finish panel.

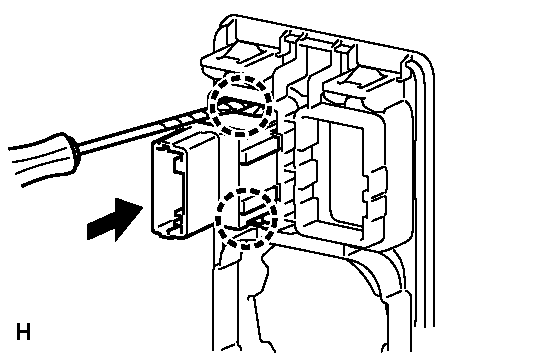

  Fig 1: Detaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
