Engine Control, Cruise Control and Electronically Controlled Transmission and A/T Indicator: Notes

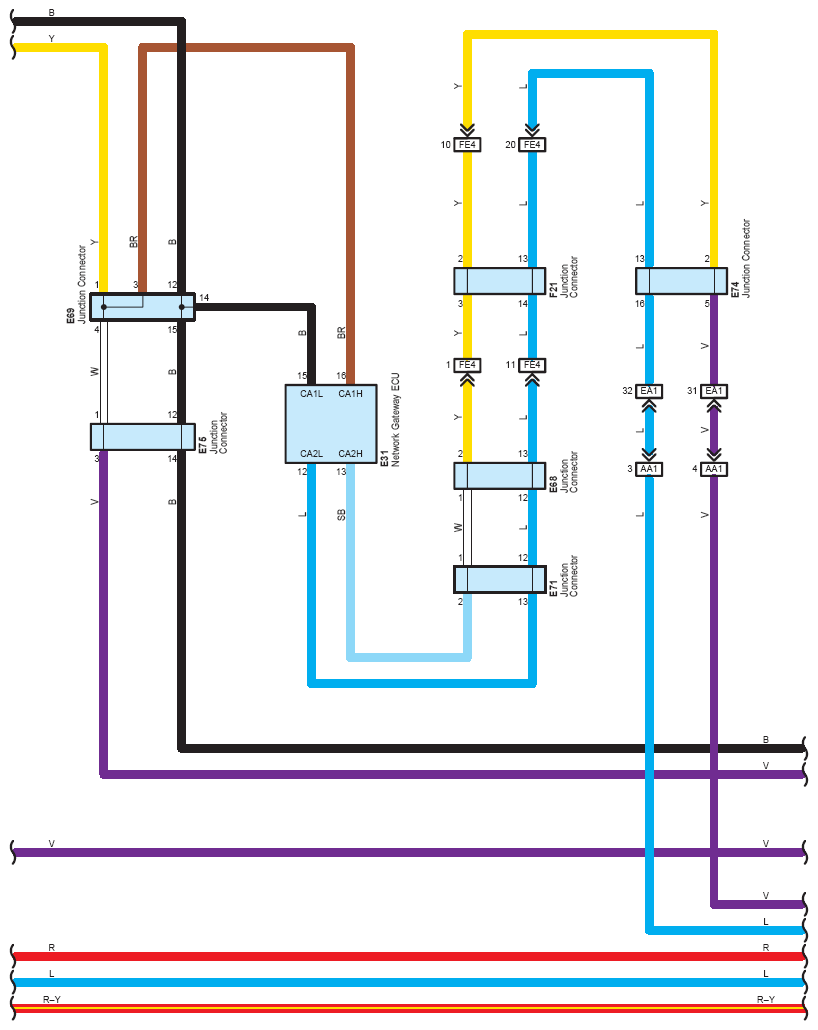

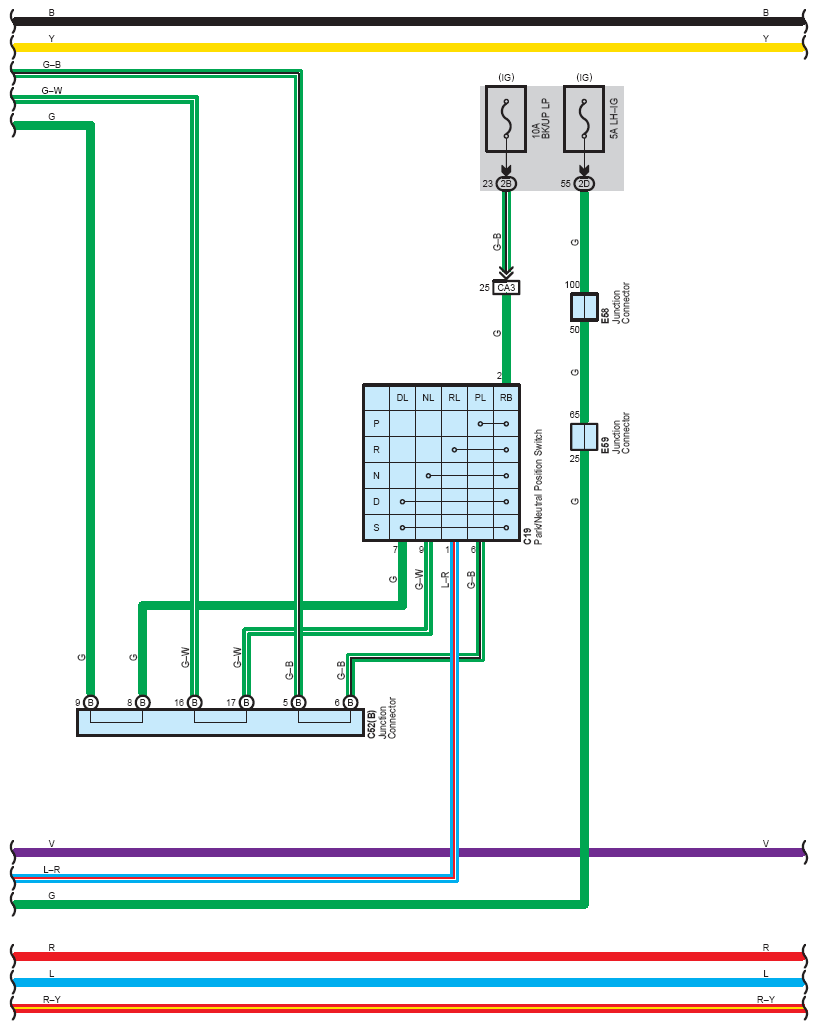

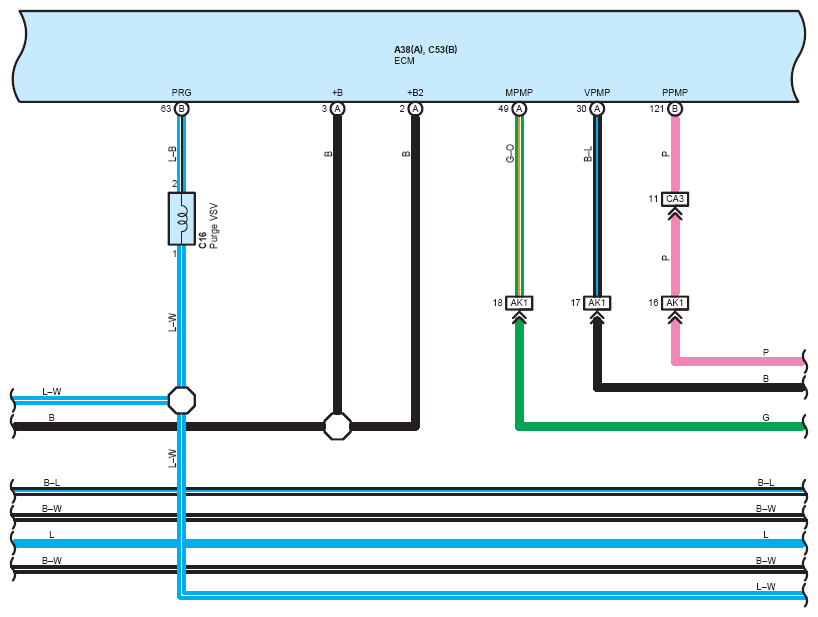

Fig 1: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (1 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

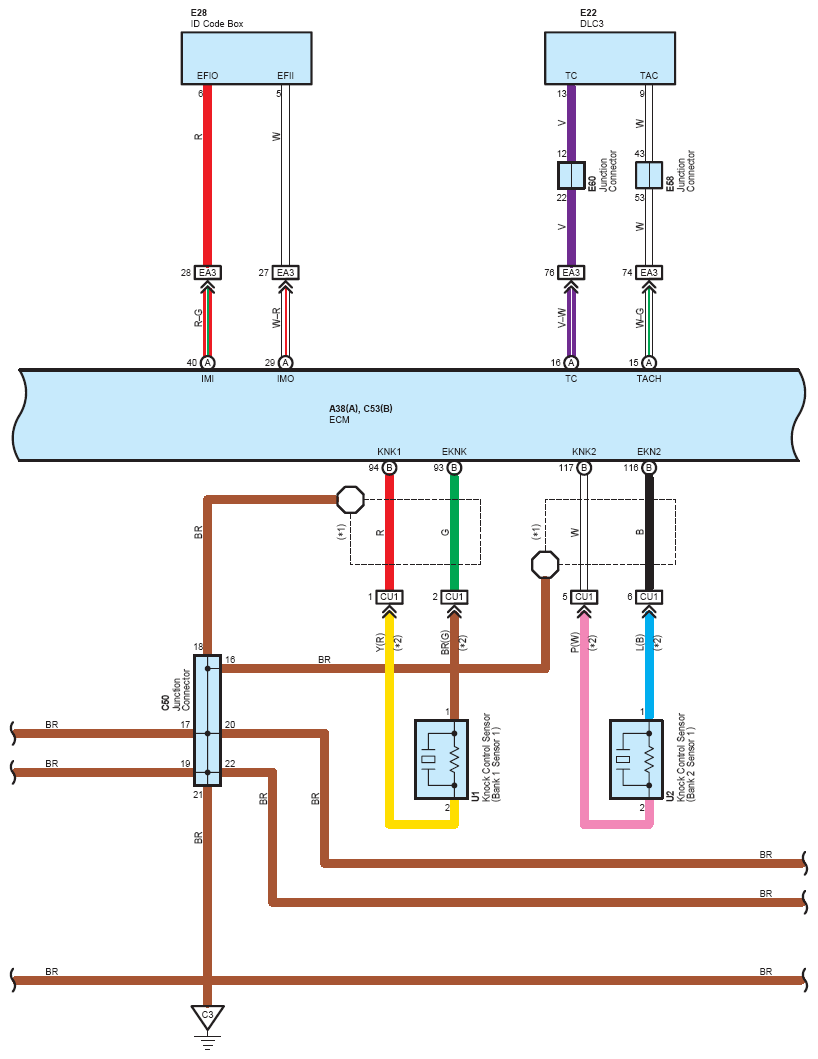

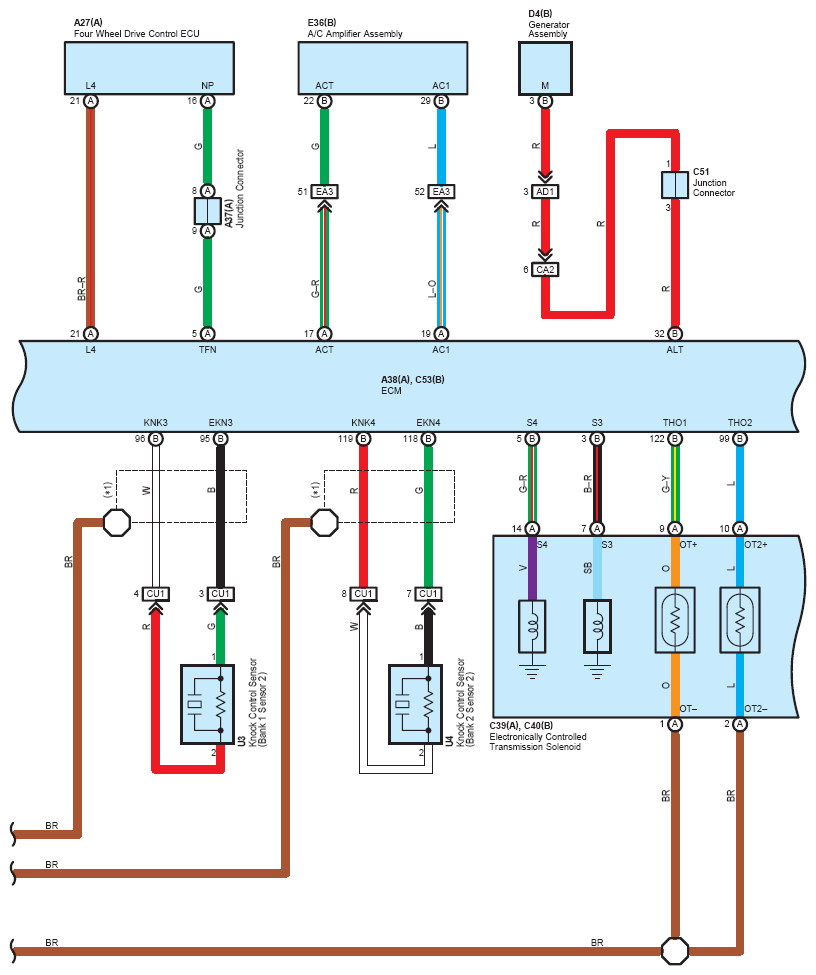

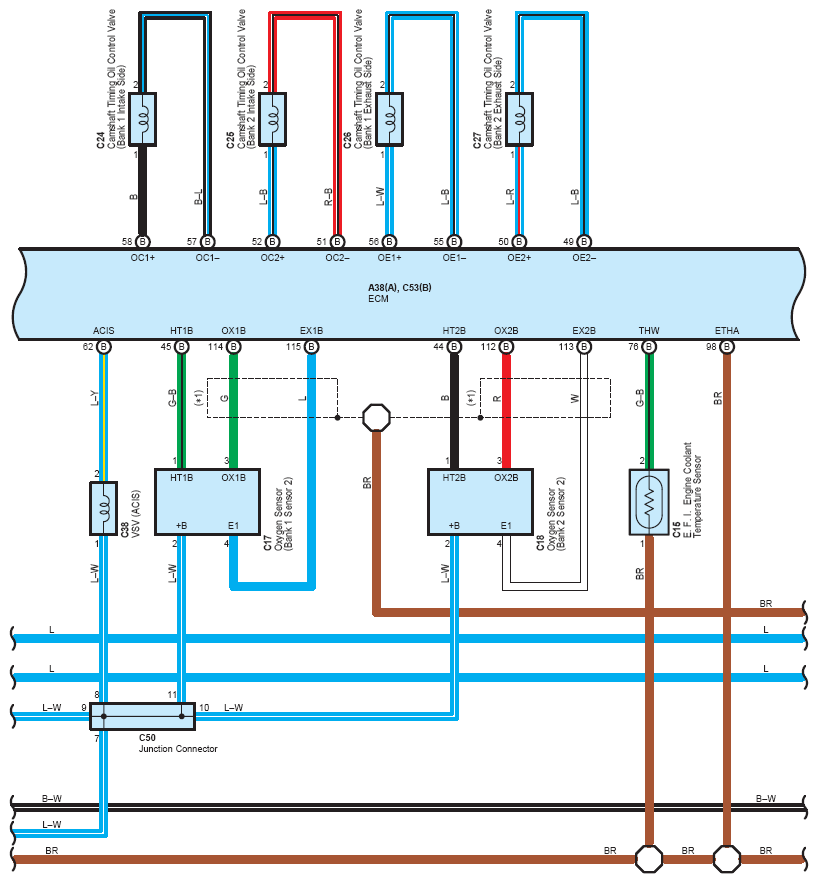

Fig 2: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (2 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

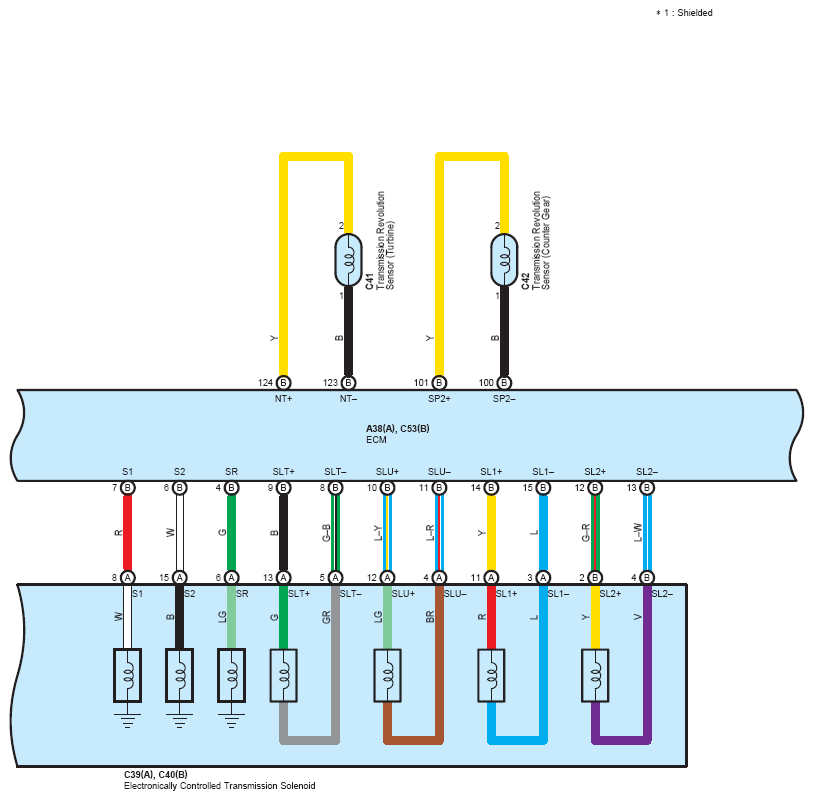

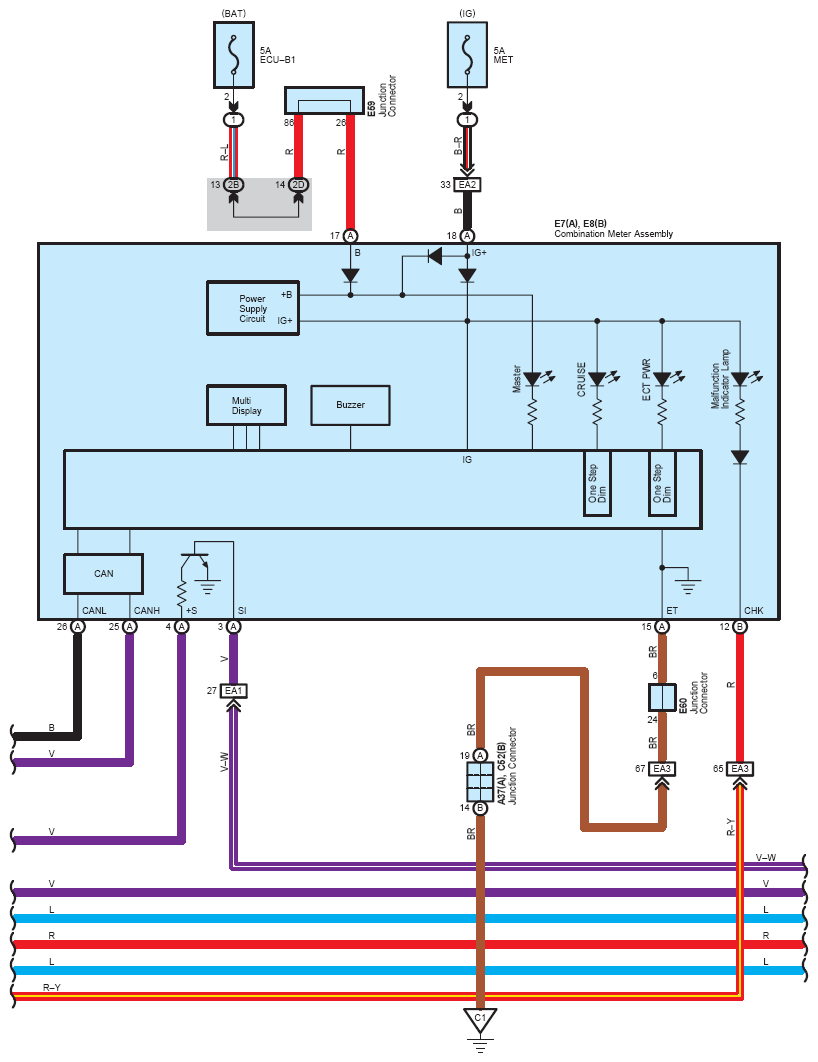

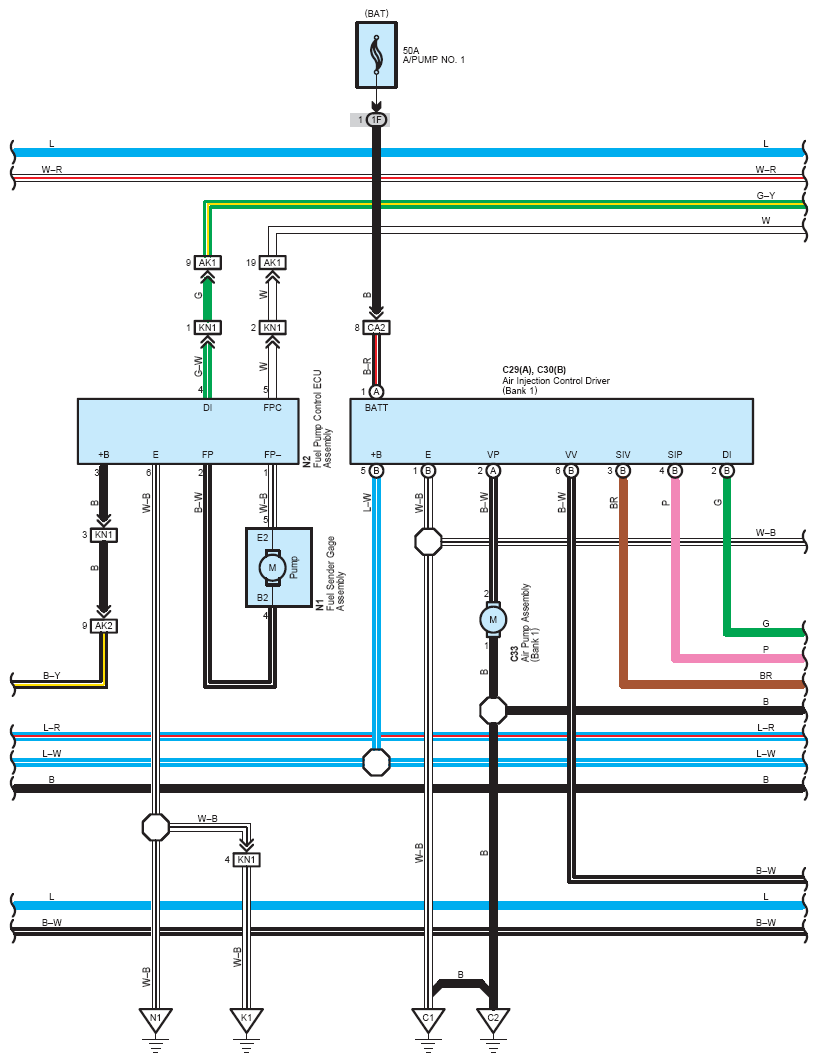

Fig 3: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (3 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

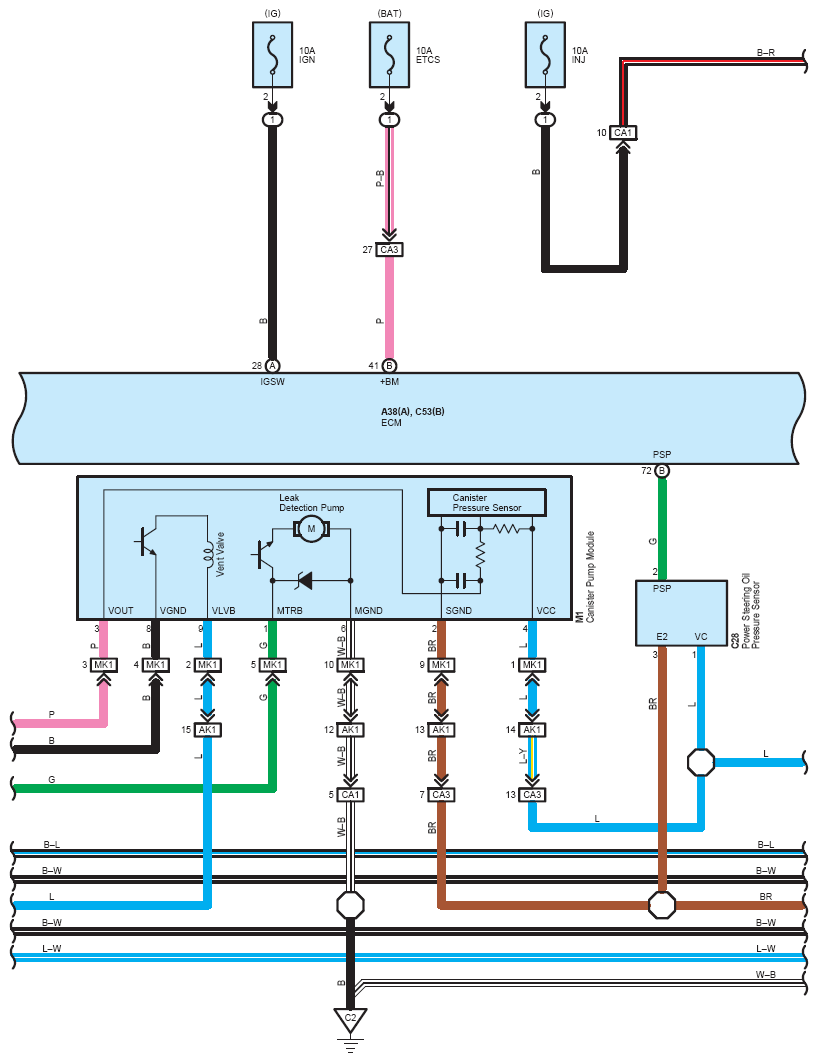

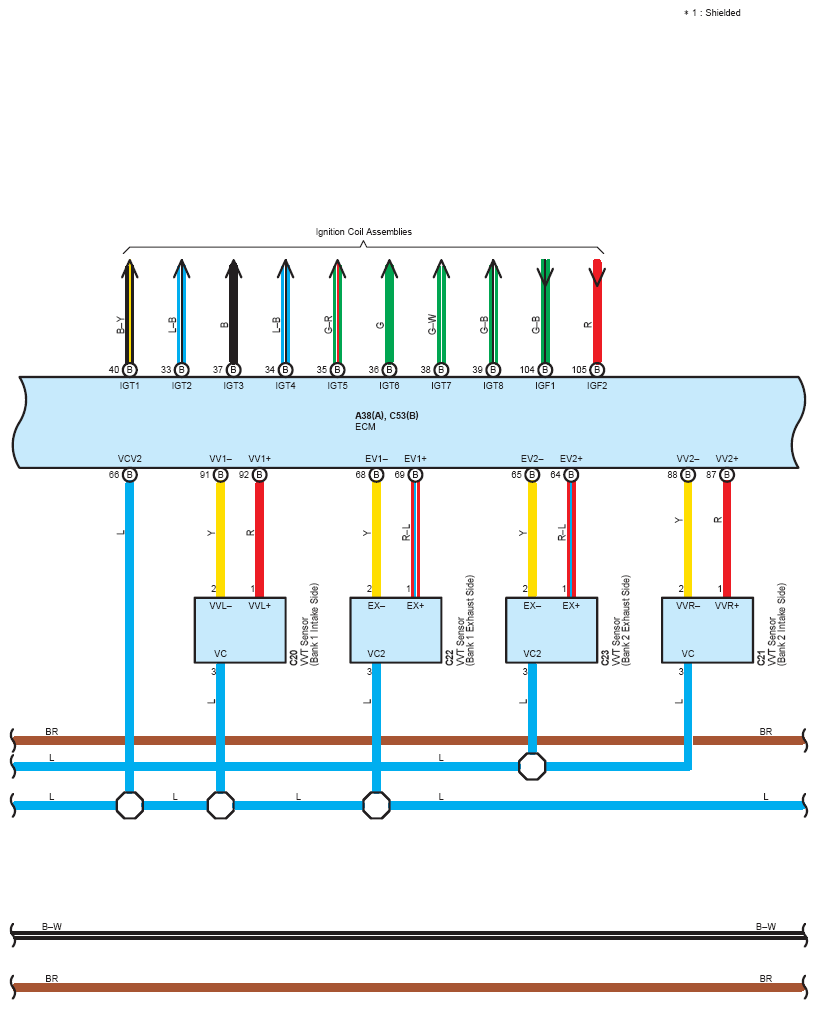

Fig 4: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (4 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

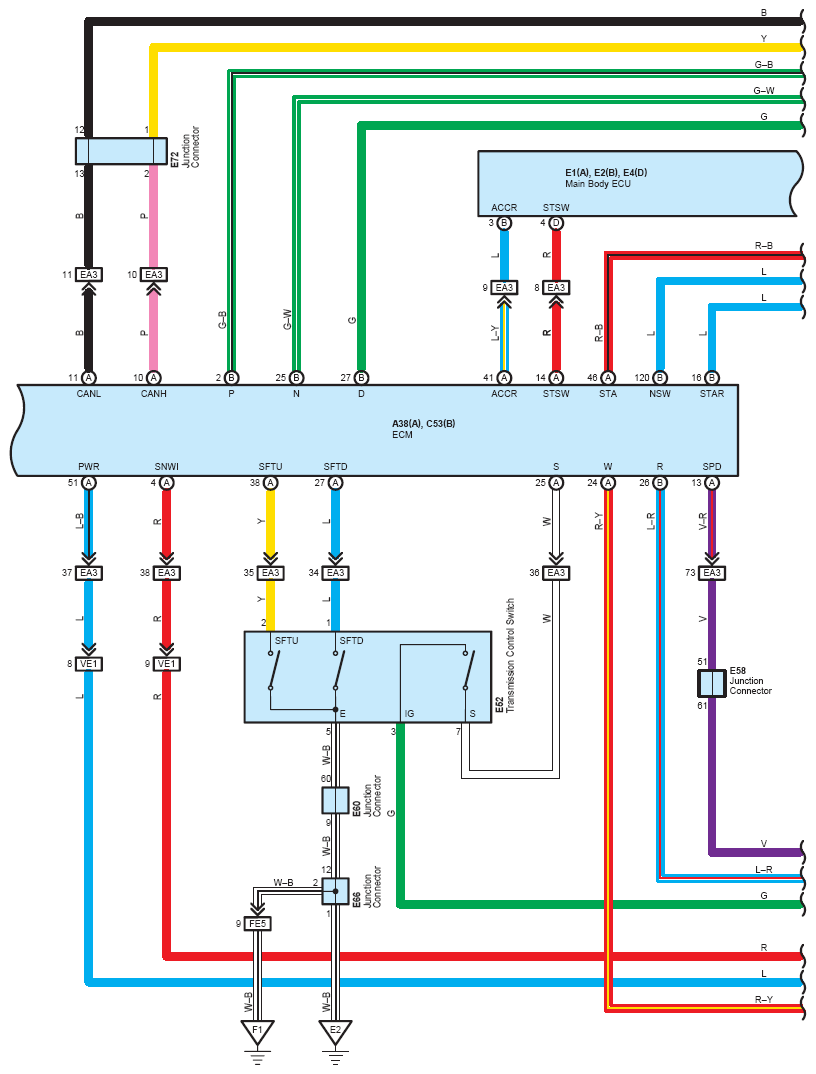

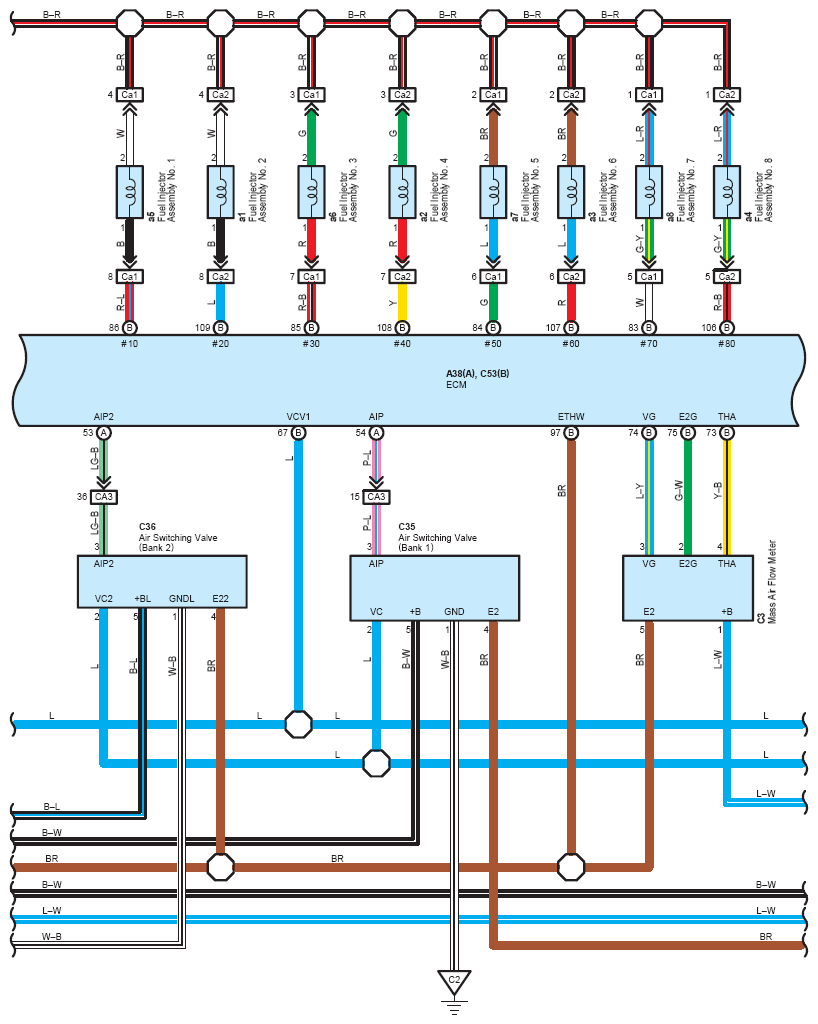

Fig 5: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (5 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

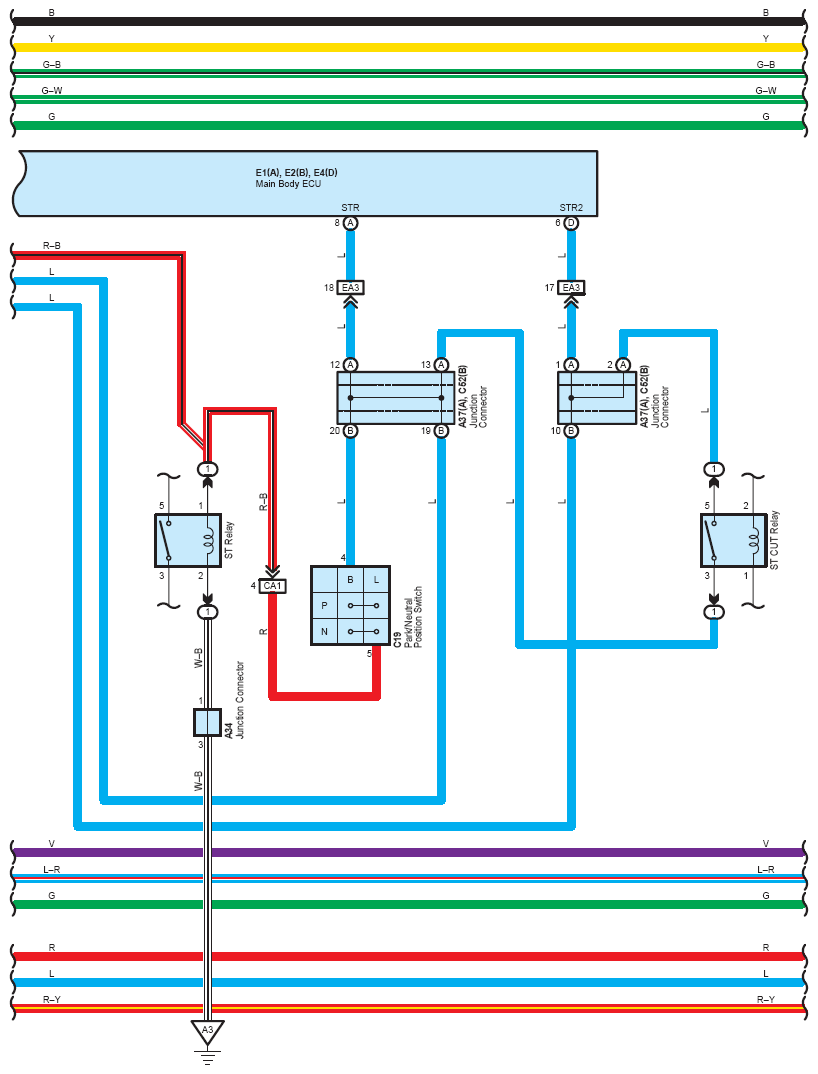

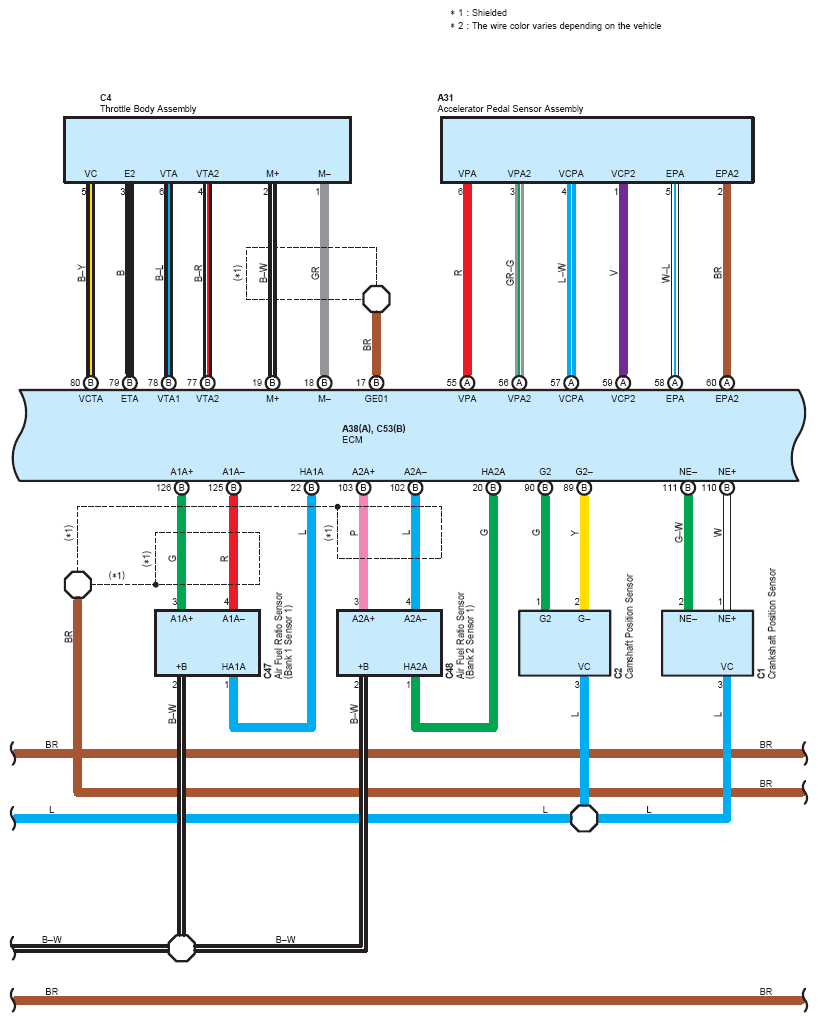

Fig 6: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (6 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

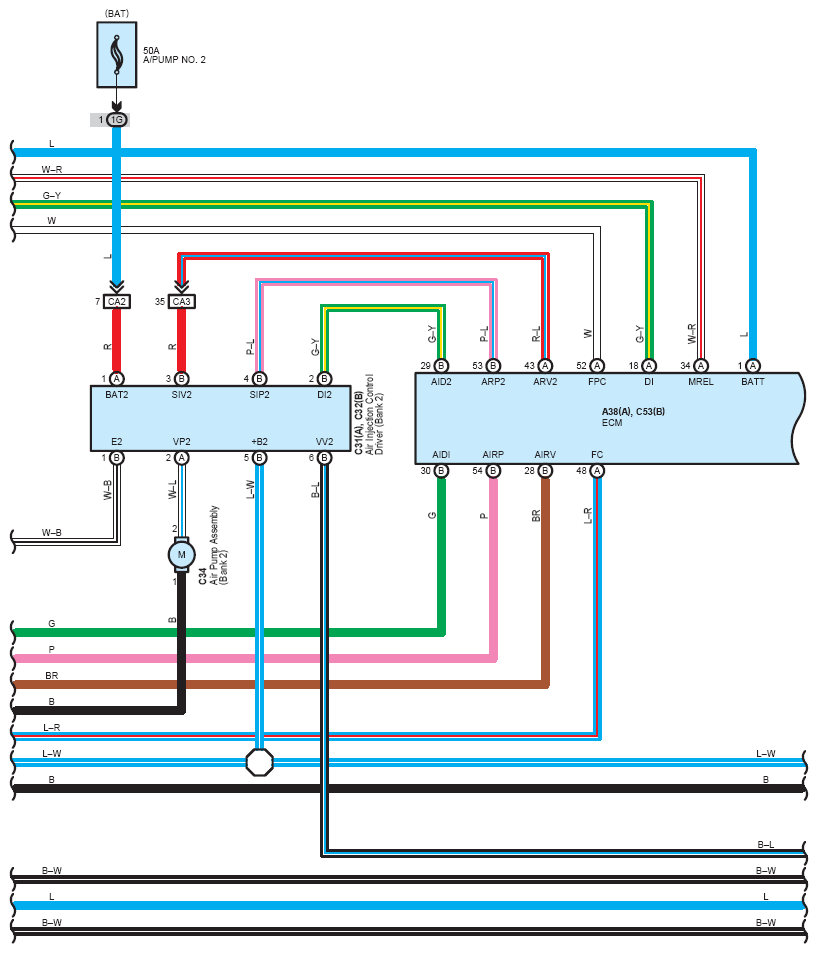

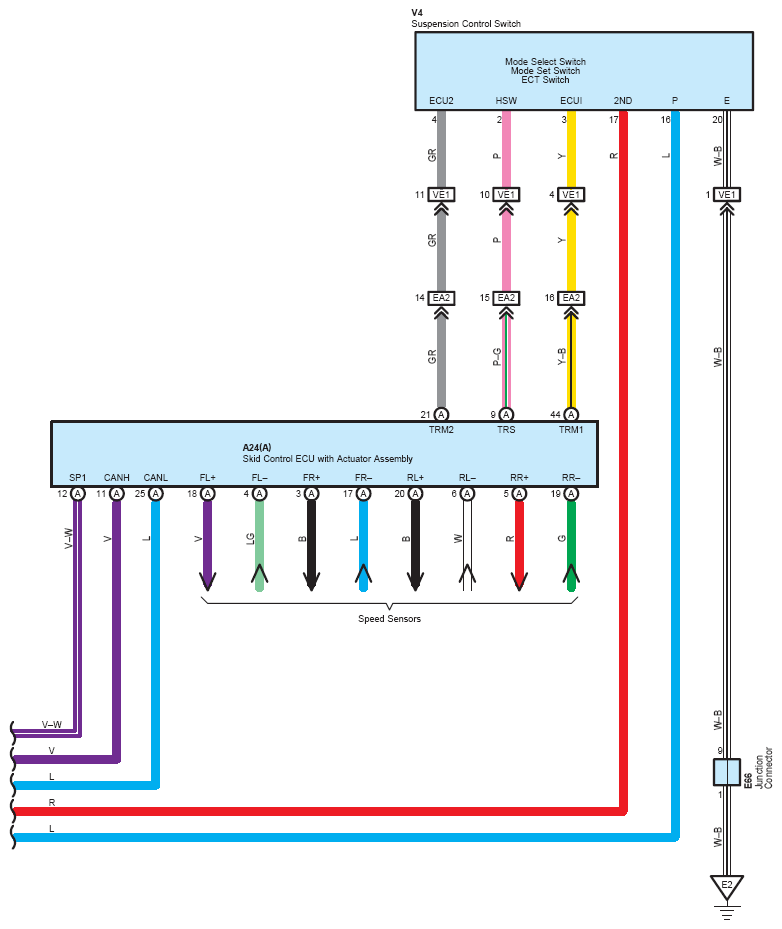

Fig 7: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (7 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

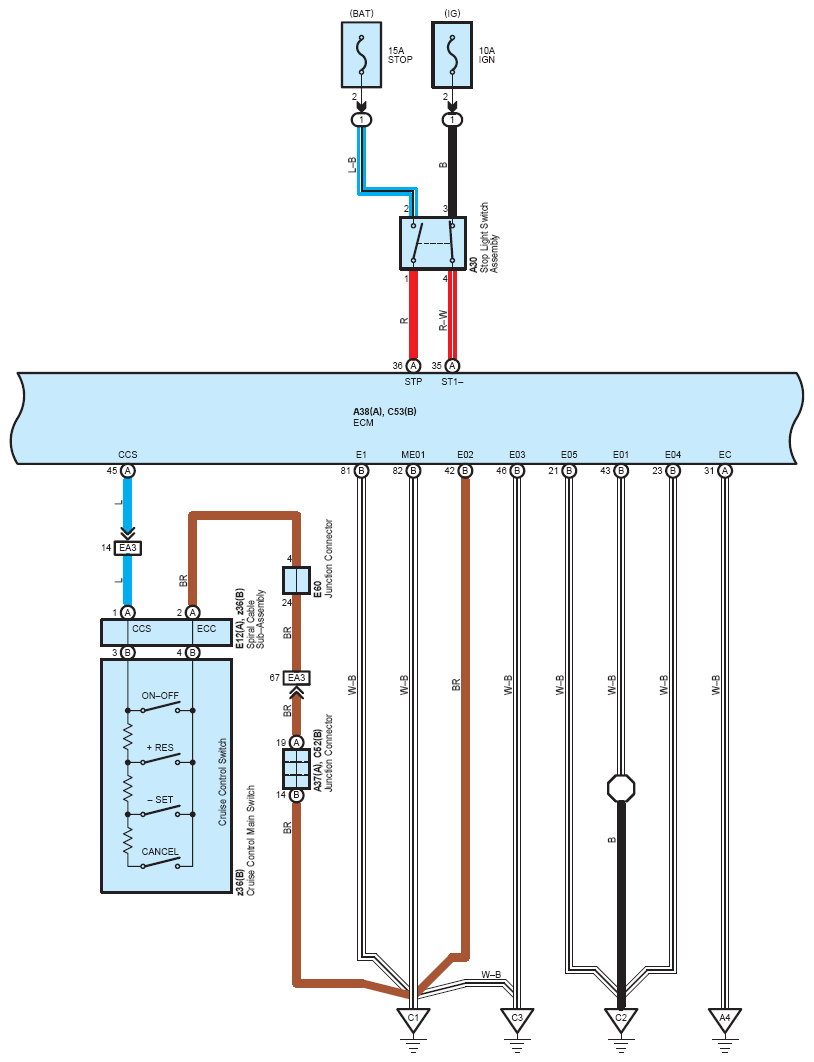

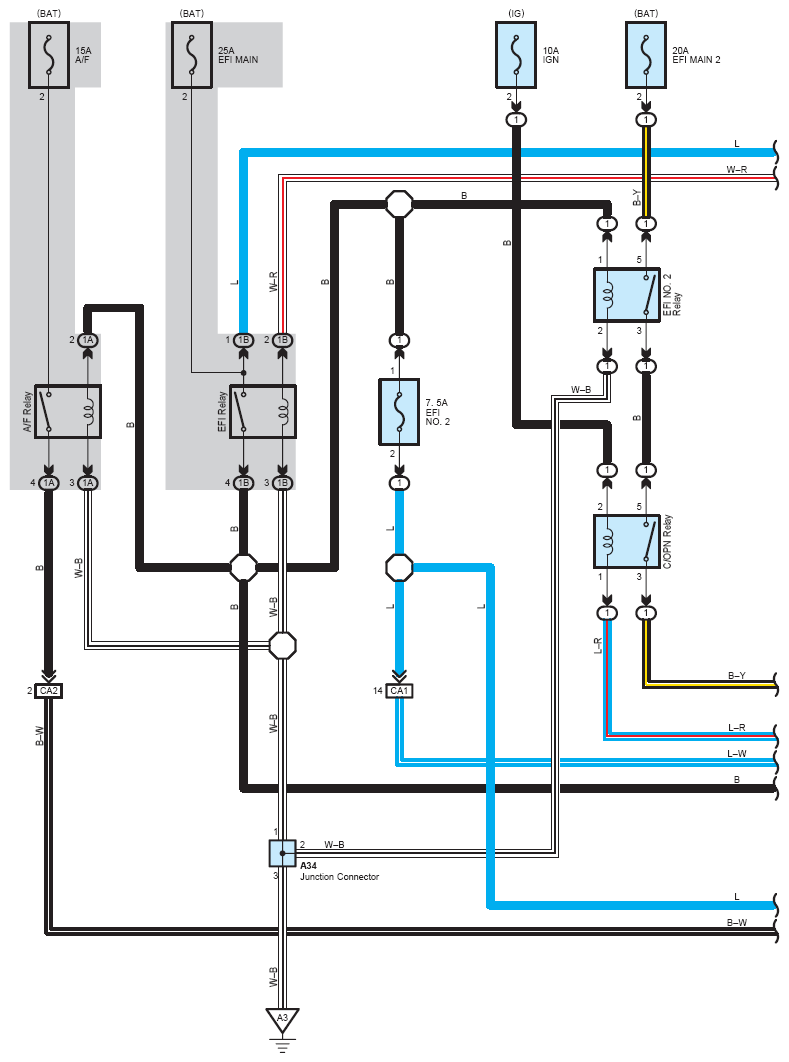

Fig 8: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (8 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (9 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (10 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (11 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (12 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (13 Of 19)

Fig 14: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (14 Of 19)

Fig 15: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (15 Of 19)

Fig 16: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (16 Of 19)

Fig 17: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (17 Of 19)

Fig 18: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (18 Of 19)

Fig 19: Engine Control, Cruise Control And Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (19 Of 19)
