System Diagram

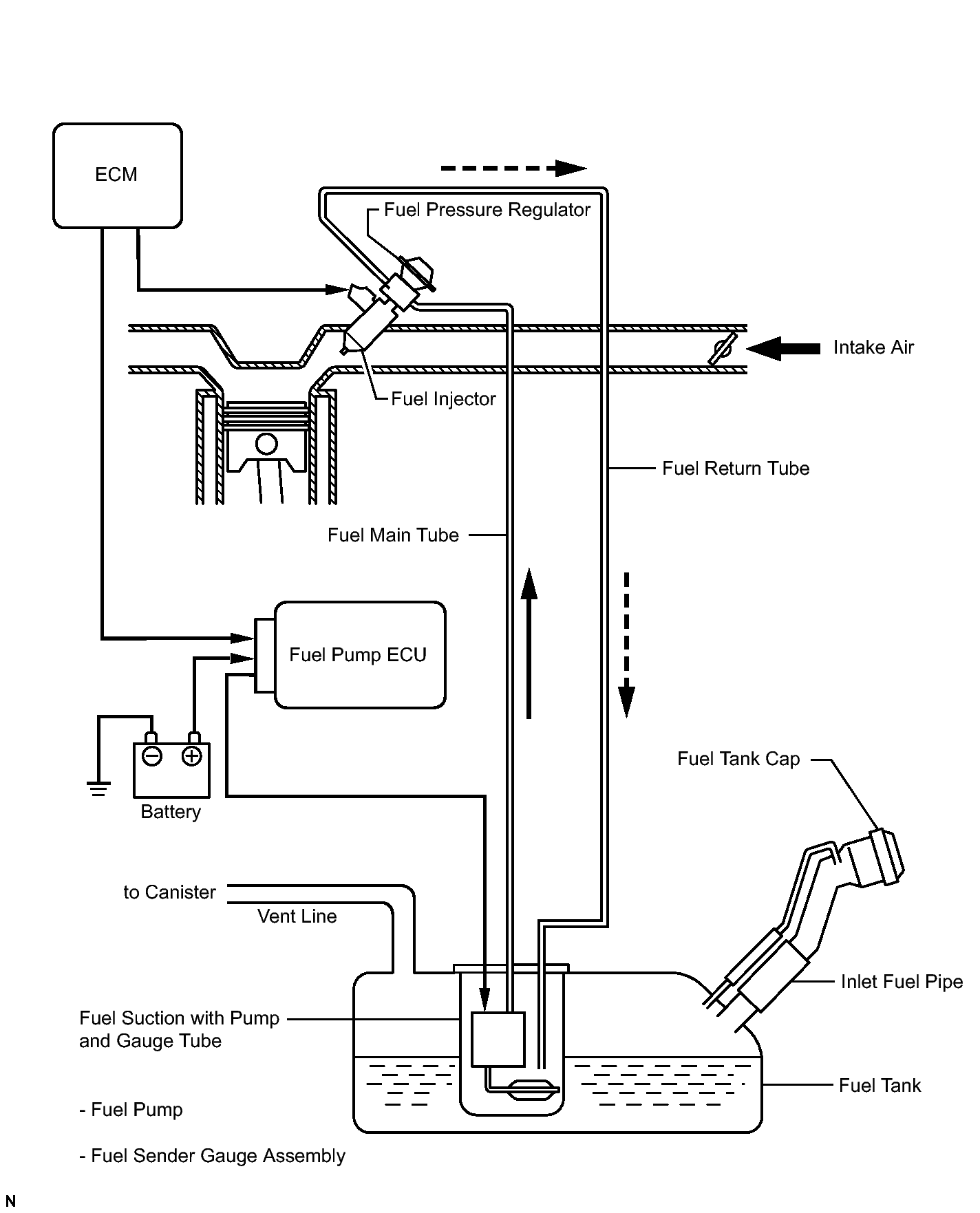

  1. FUEL FLOW DIAGRAM
    Fig 1: Fuel Flow Diagram
    GTY228242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

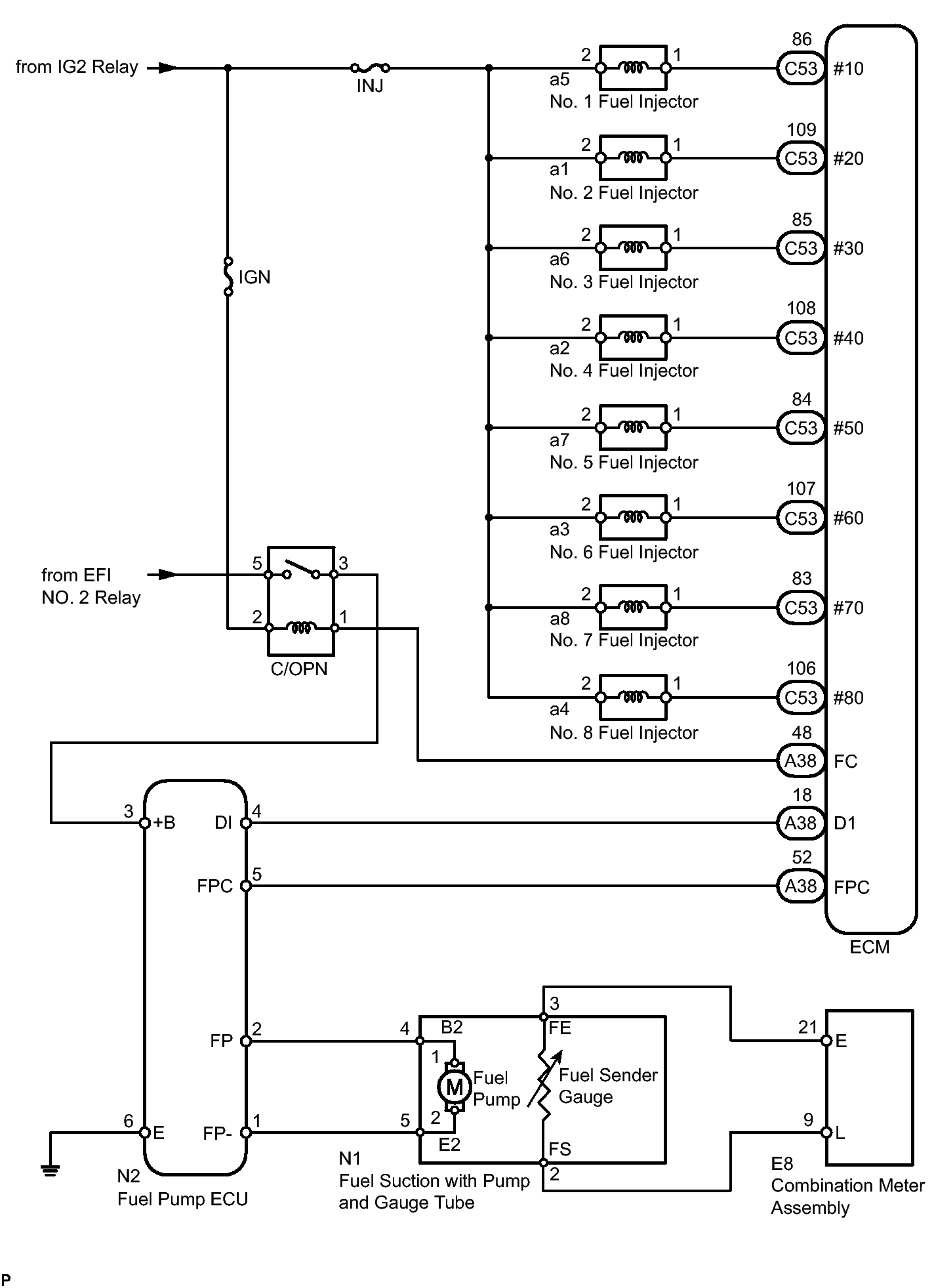

  2. ELECTRICAL CONTROL DIAGRAM
    Fig 2: Electrical Control Diagram
    GTY215985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
