Timing Cover

TIMING CHAIN COVER SUB-ASSEMBLY

Install the chain cover within 3 minutes after applying seal packing.

Do not start the engine for at least 2 hours after installing the timing chain cover sub-assembly.

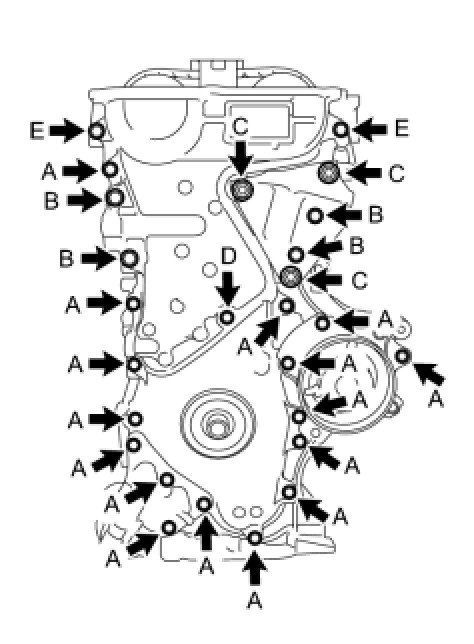

Bolt Length:

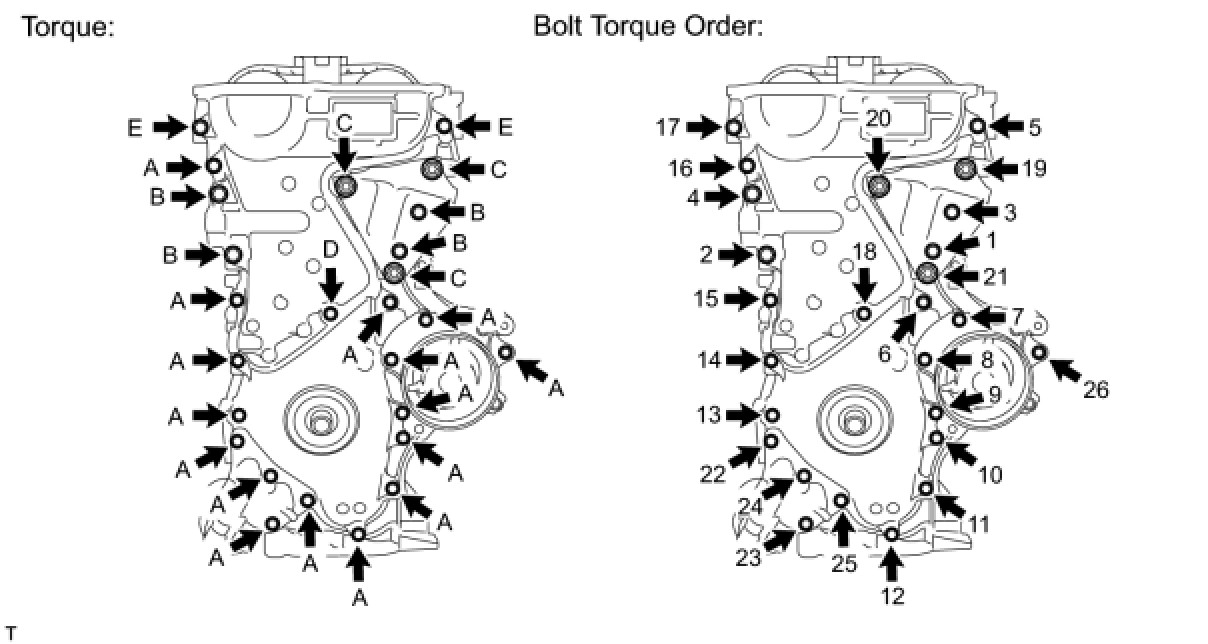

Fully tighten the timing chain cover sub-assembly with the 26 bolts as shown in the illustration.






Bolt A, E - Torque 26 Nm (260 kgf-cm, 19 ft-lbf)

Bolt B, C - Torque 51 Nm (520 kgf-cm, 37 ft-lbf)

Bolt D - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
