OEM System Circuits (Except PHV): DLC3: Notes

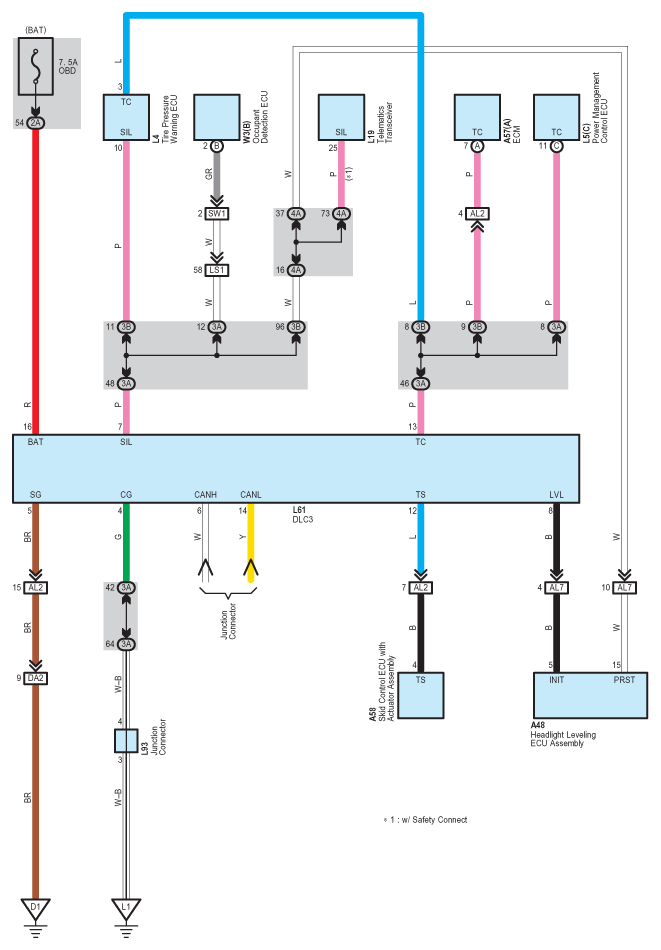

Fig 1: DLC3 - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
