Engine Control and Cruise Control or Dynamic Radar Cruise Control: Notes

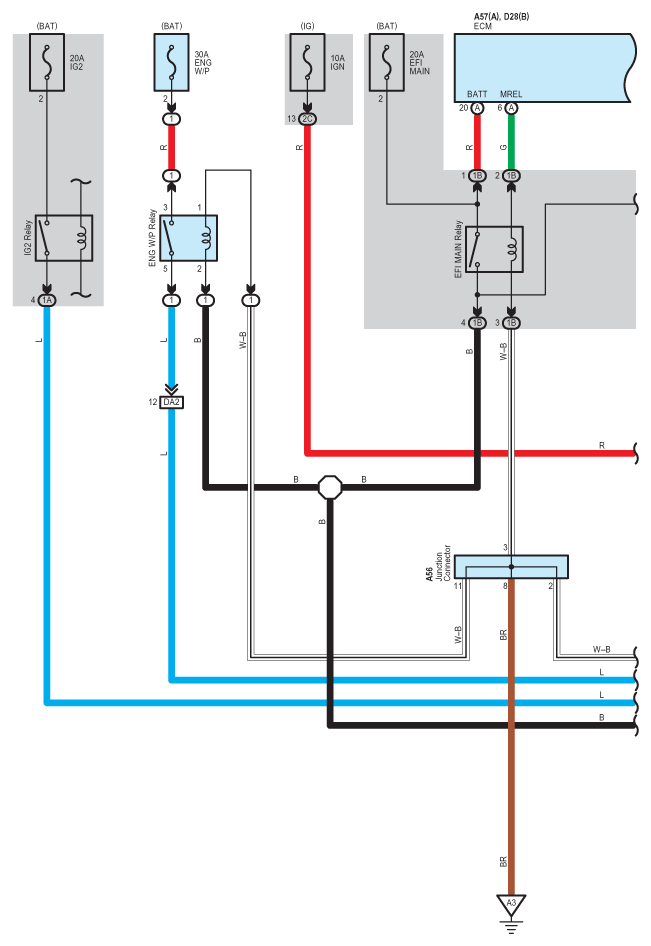

Fig 1: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (1 Of 31)
G07570697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

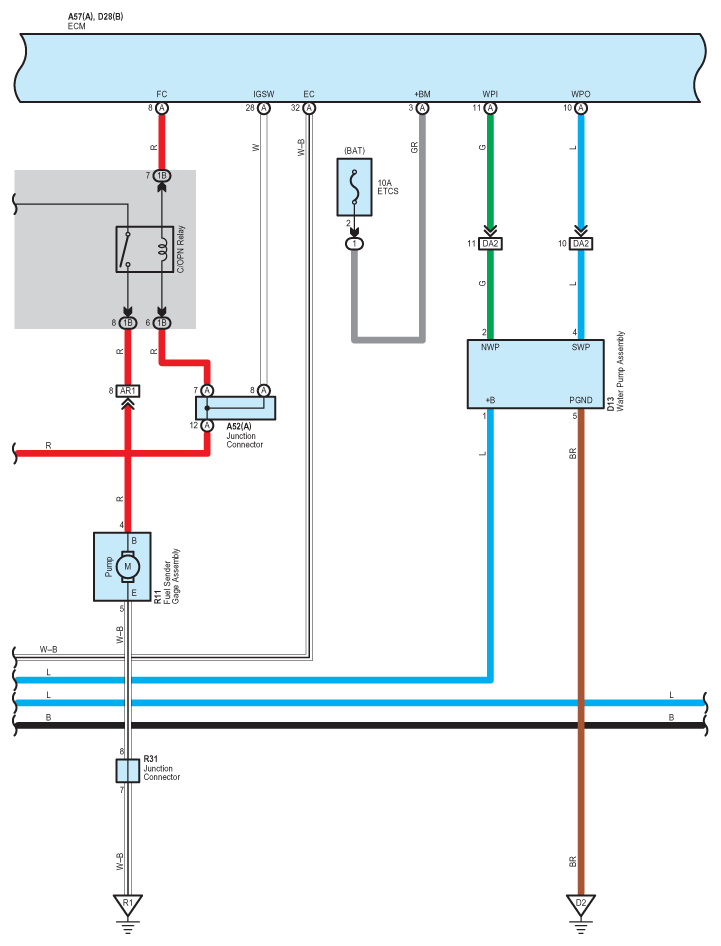

Fig 2: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (2 Of 31)
G07570698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

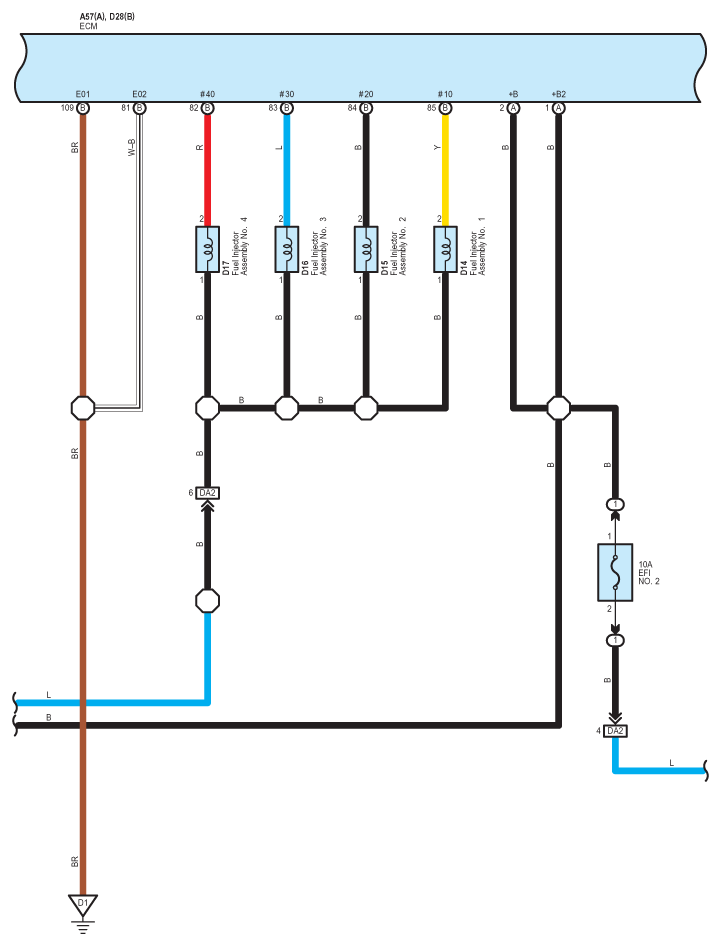

Fig 3: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (3 Of 31)
G07570699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

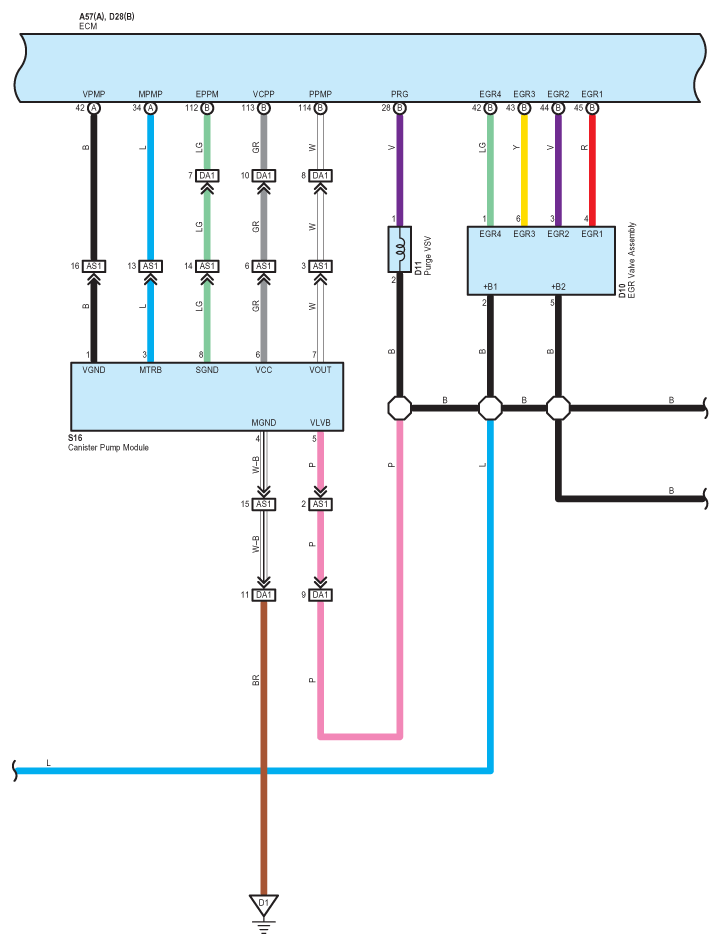

Fig 4: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (4 Of 31)
G07570700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

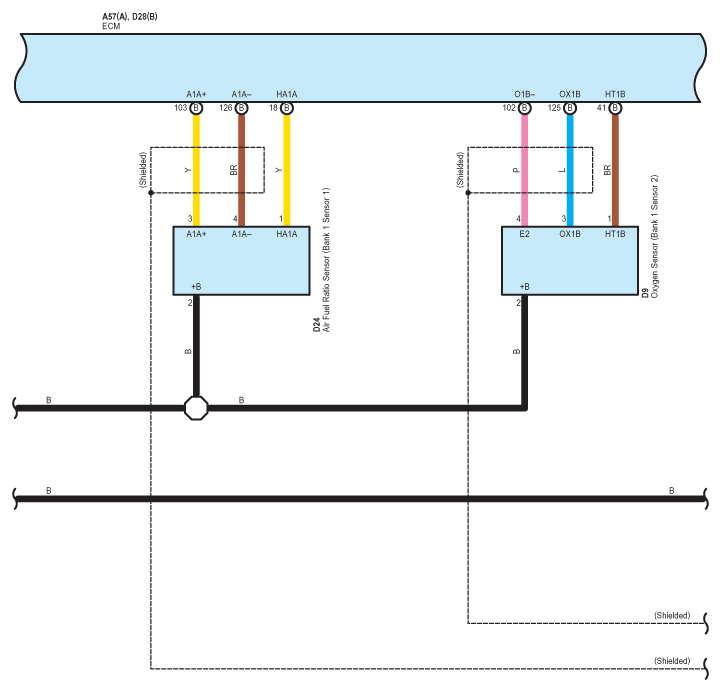

Fig 5: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (5 Of 31)
G07570701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

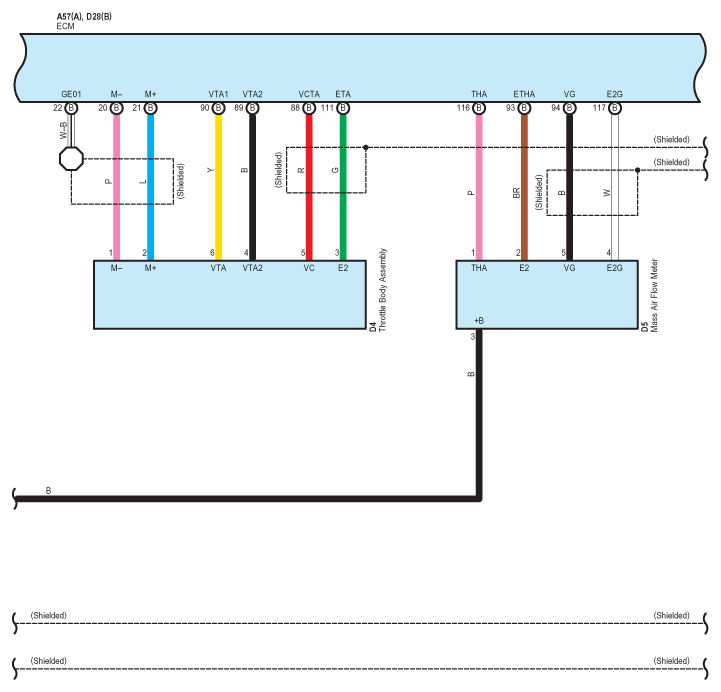

Fig 6: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (6 Of 31)
G07570702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

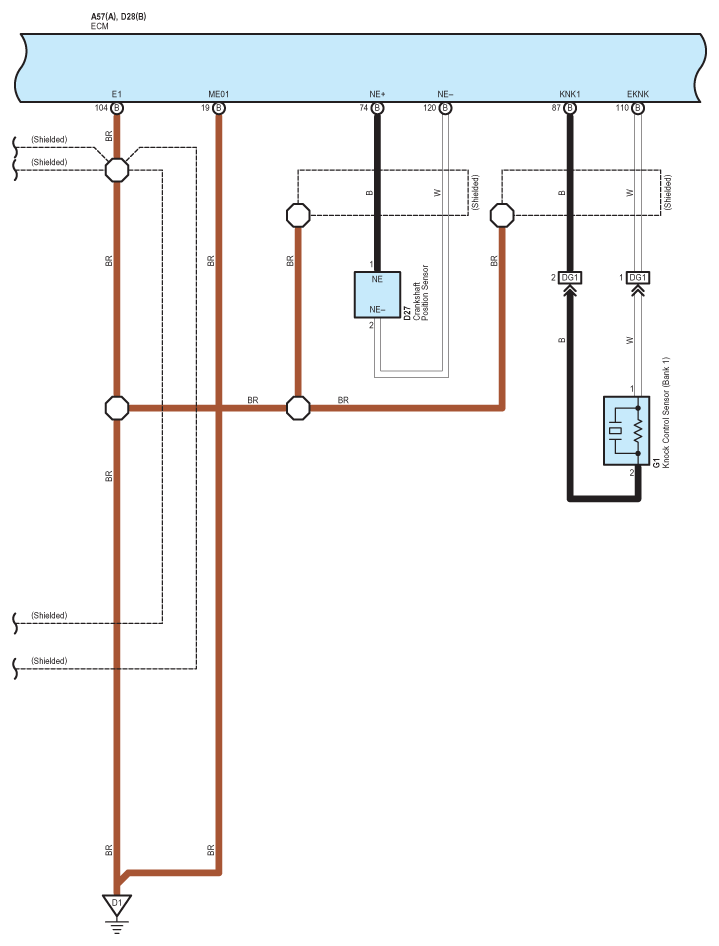

Fig 7: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (7 Of 31)
G07570703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

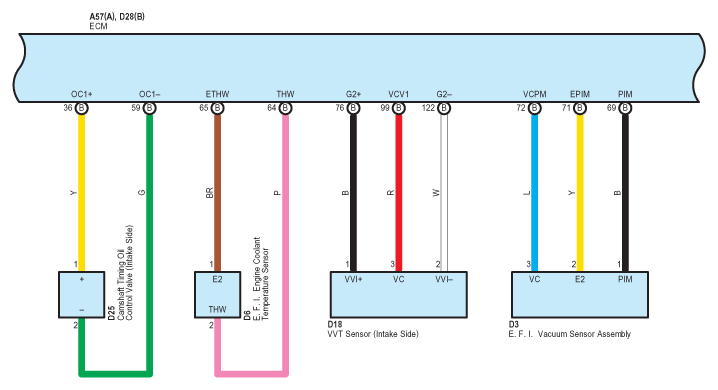

Fig 8: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (8 Of 31)
G07570704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

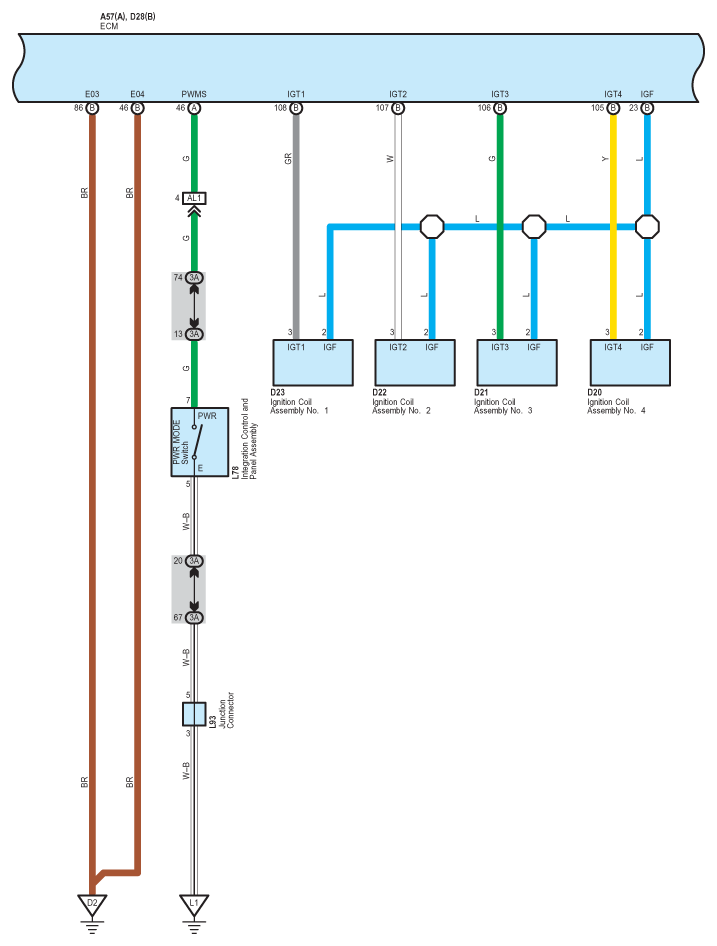

Fig 9: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (9 Of 31)
G07570705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (10 Of 31)
G07570706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

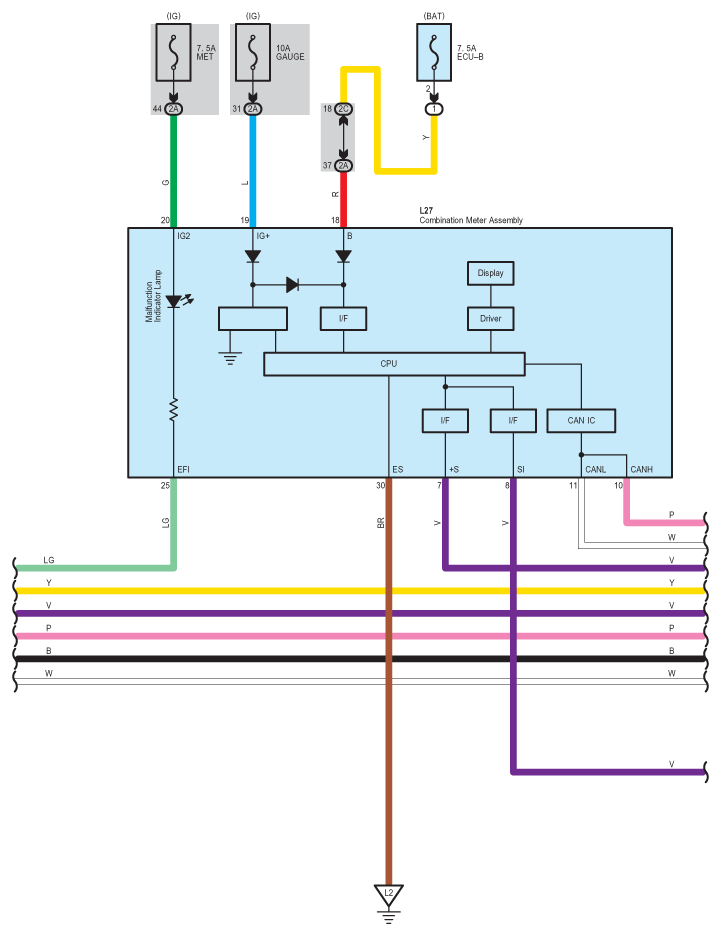

Fig 11: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (11 Of 31)
G07570707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

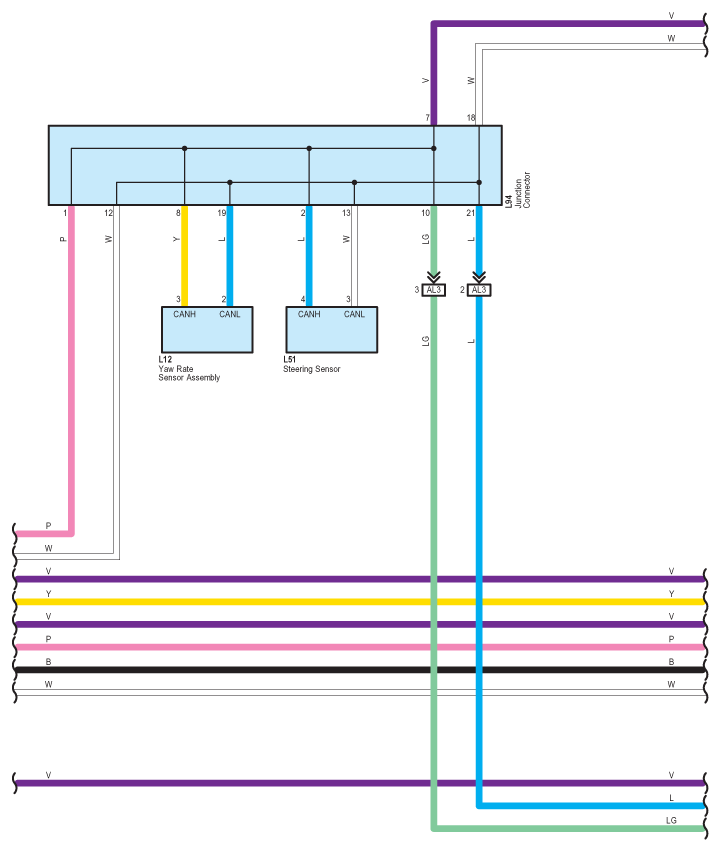

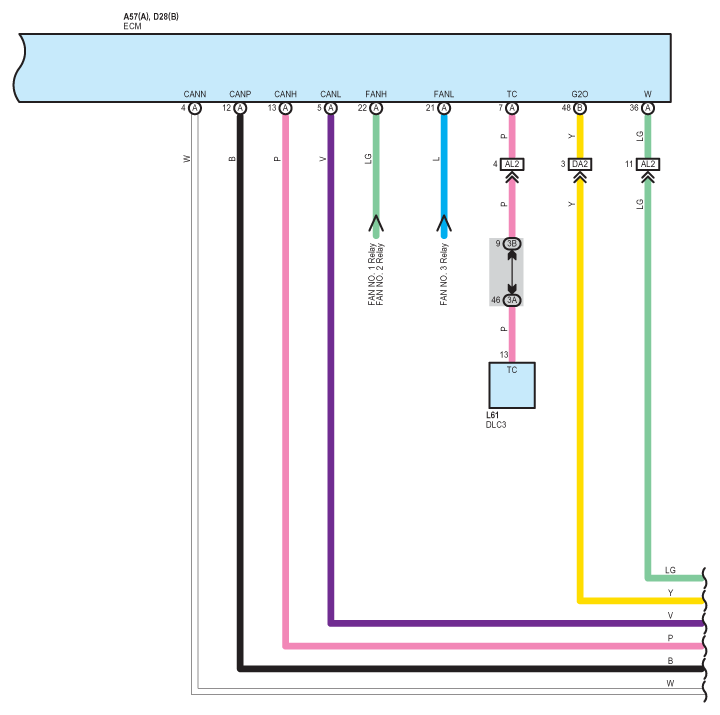

Fig 12: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (12 Of 31)
G07570708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

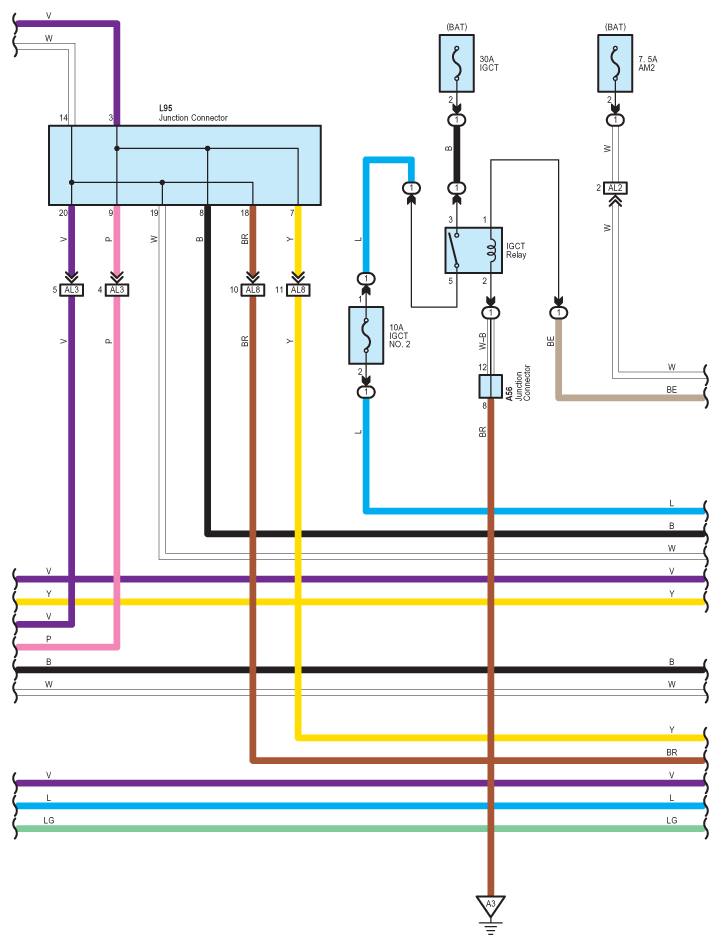

Fig 13: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (13 Of 31)
G07570709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

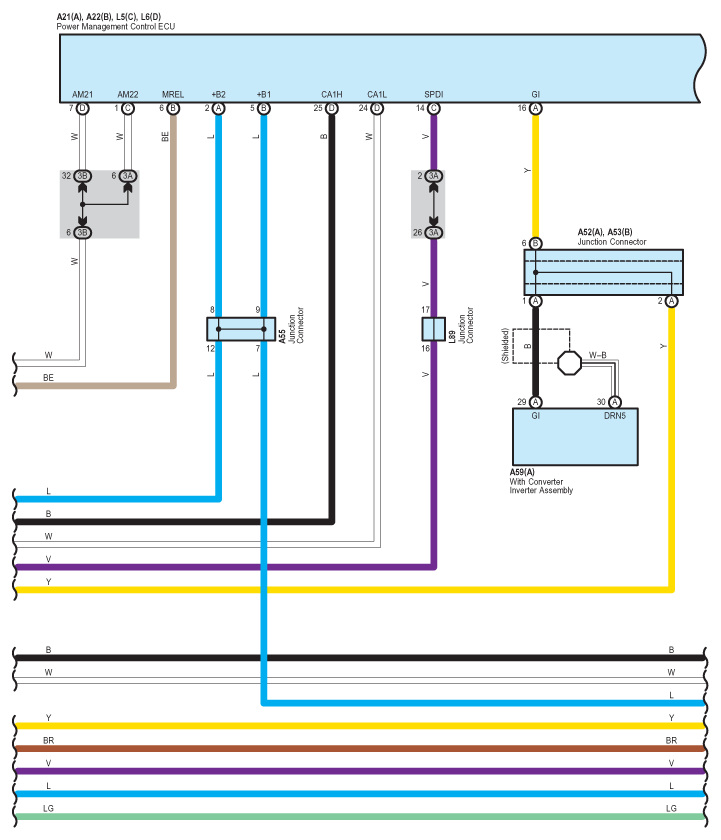

Fig 14: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (14 Of 31)
G07570710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

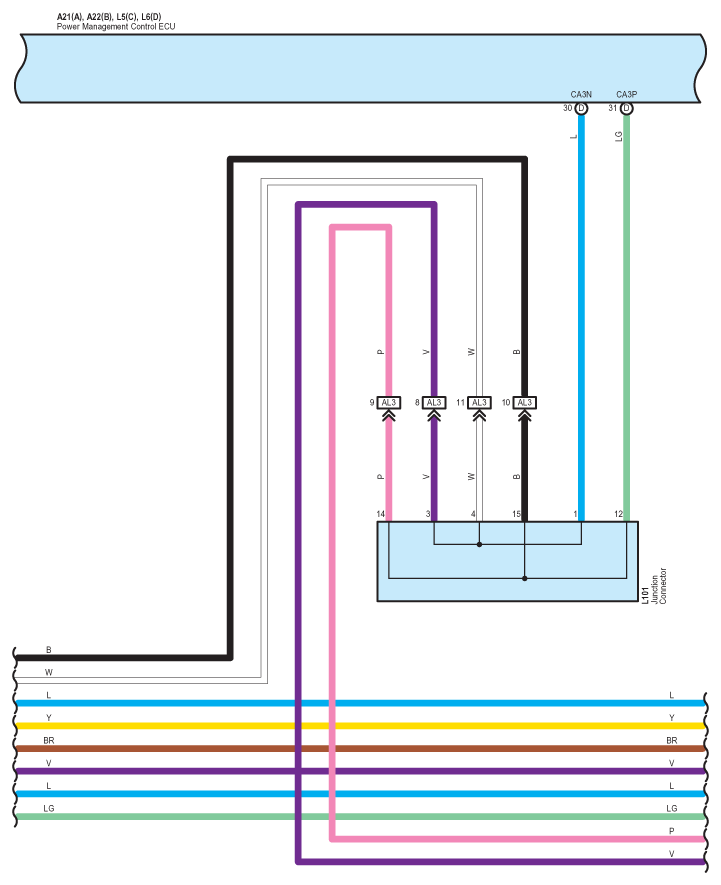

Fig 15: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (15 Of 31)
G07570711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

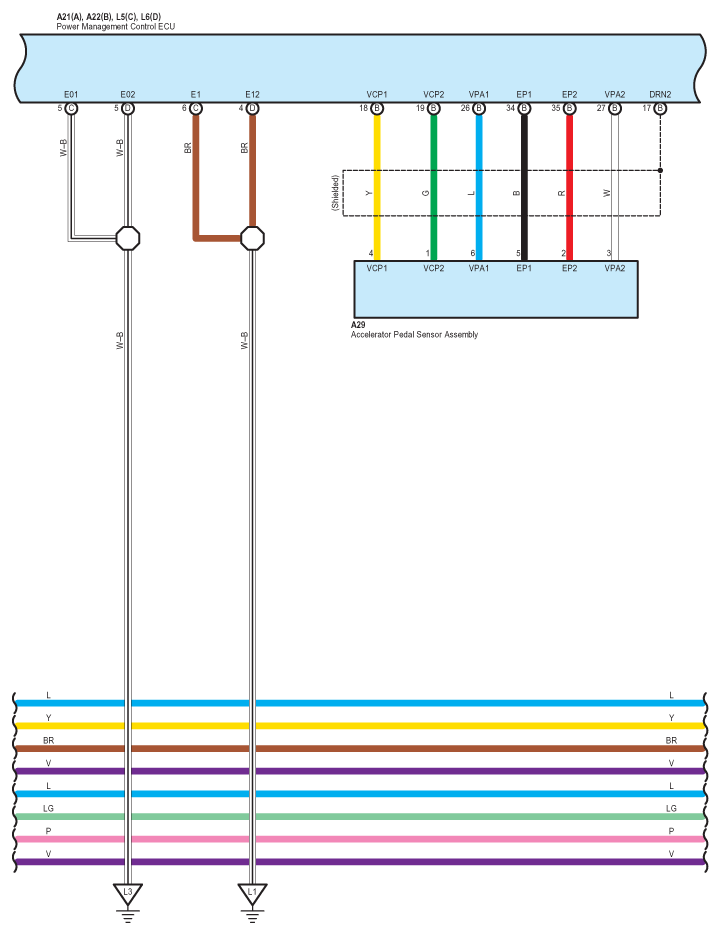

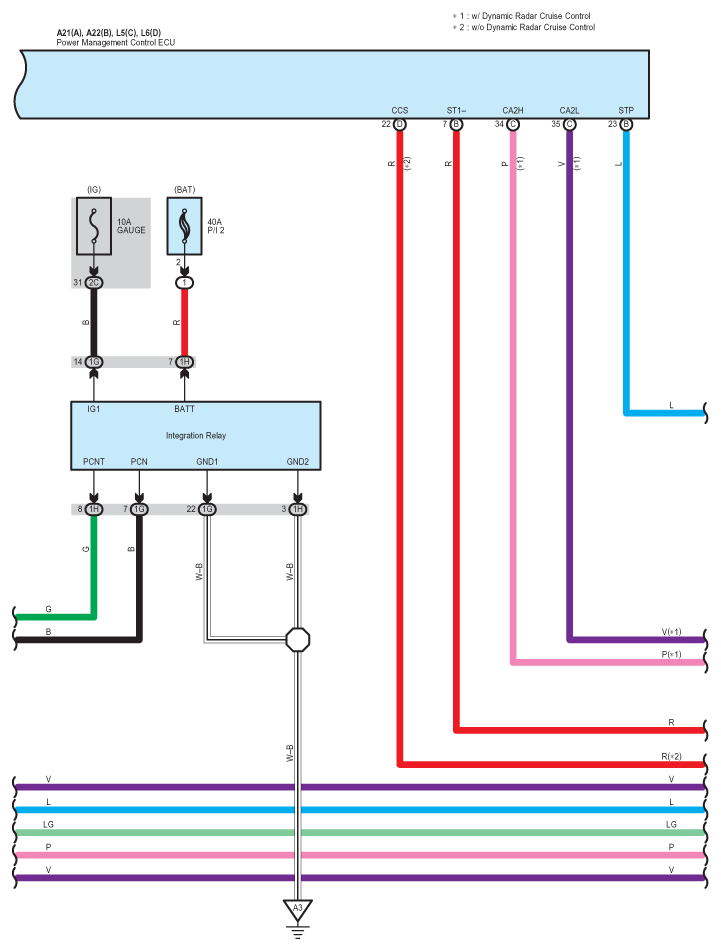

Fig 16: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (16 Of 31)
G07570712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

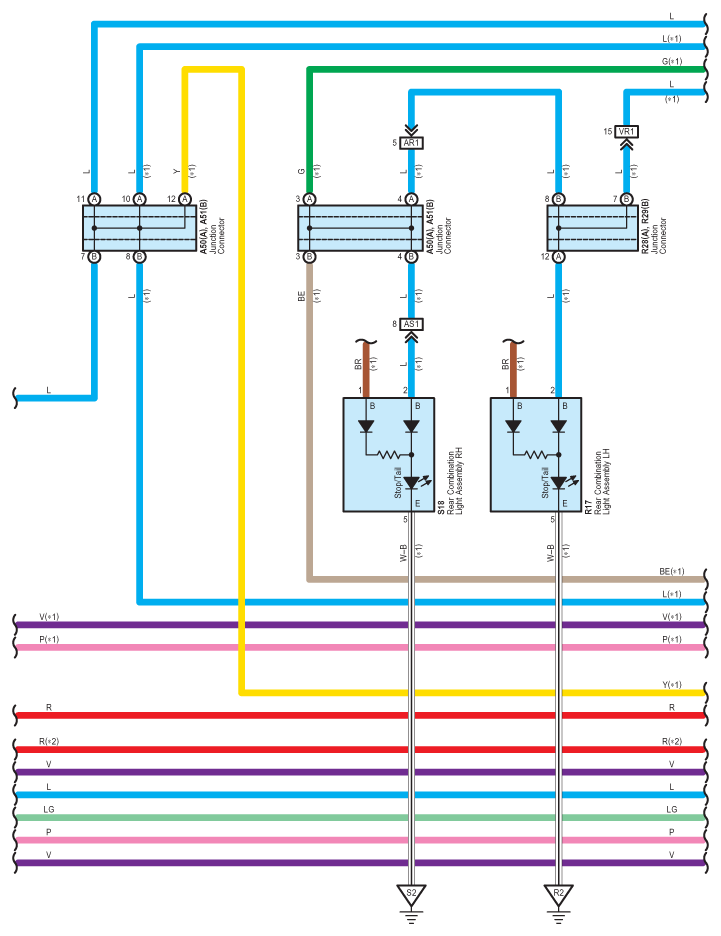

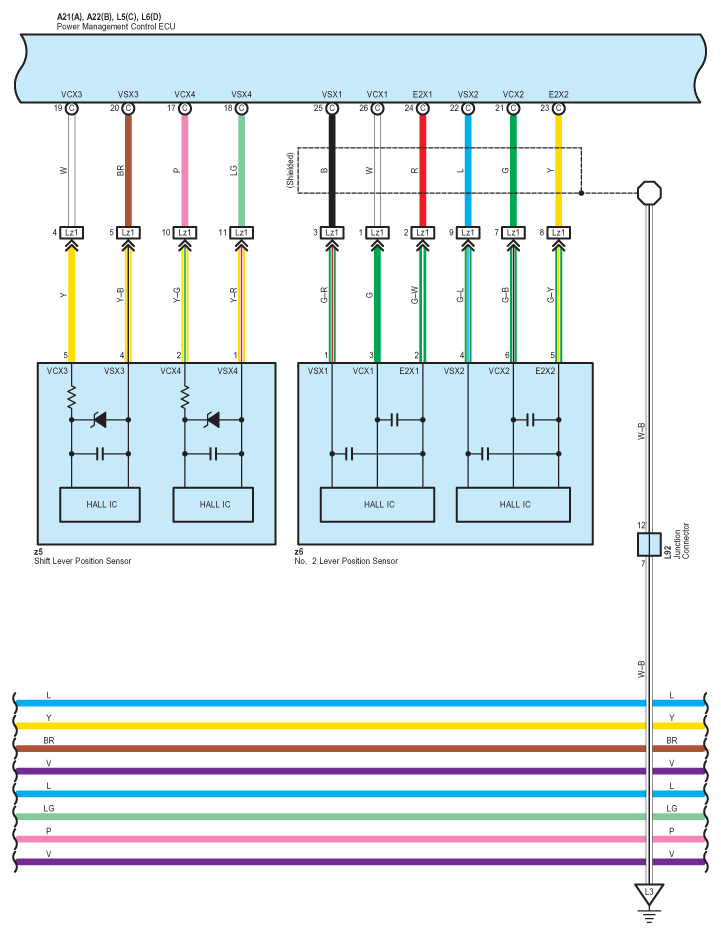

Fig 17: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (17 Of 31)
G07570713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

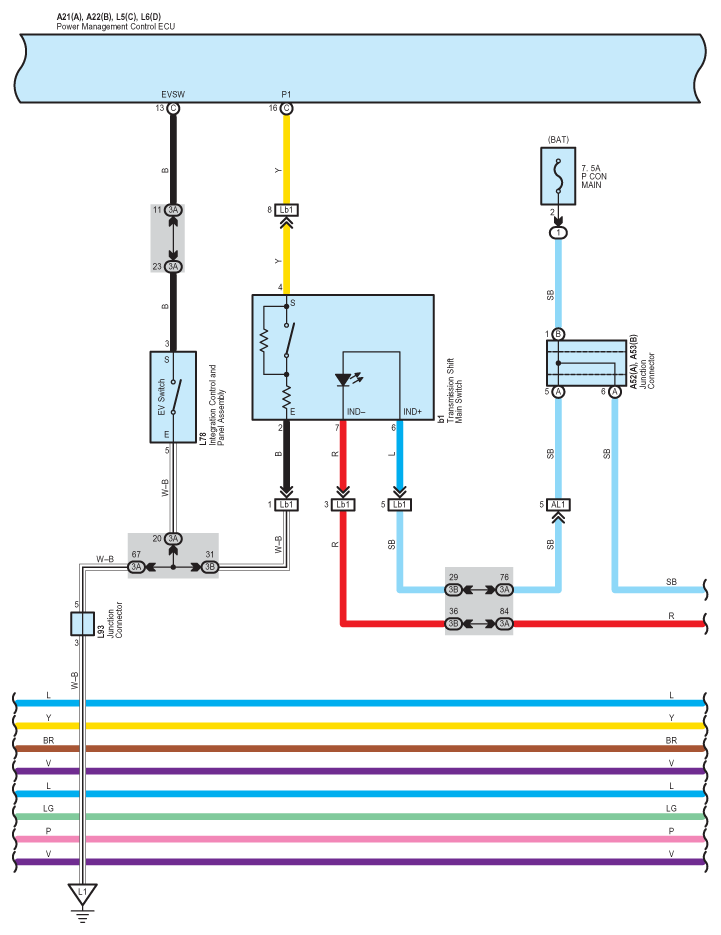

Fig 18: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (18 Of 31)
G07570714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

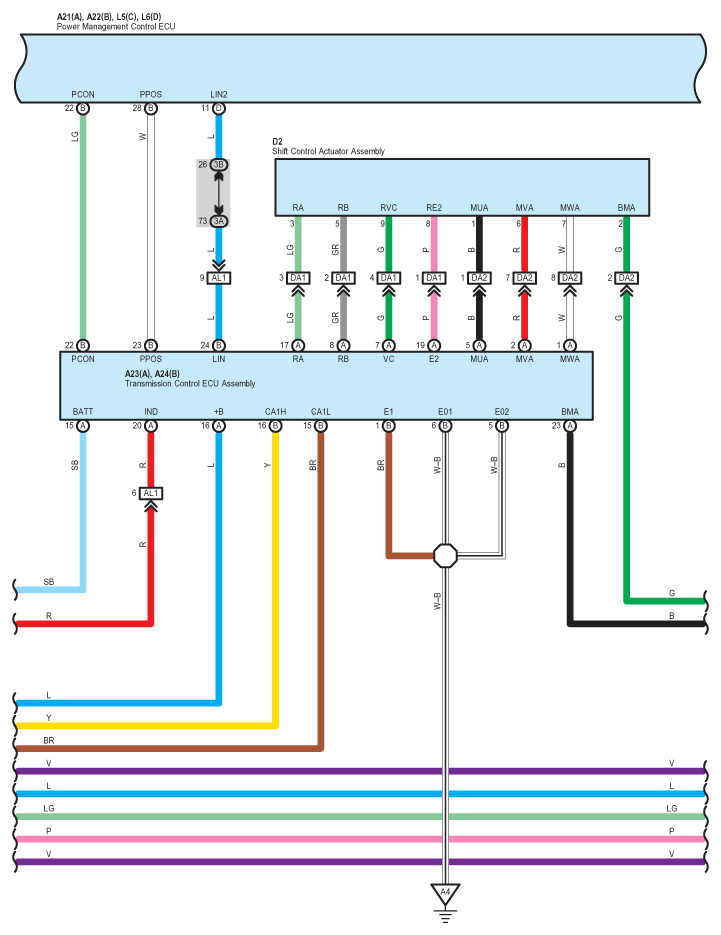

Fig 19: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (19 Of 31)
G07570715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (20 Of 31)
G07570716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 21: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (21 Of 31)
G07570717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

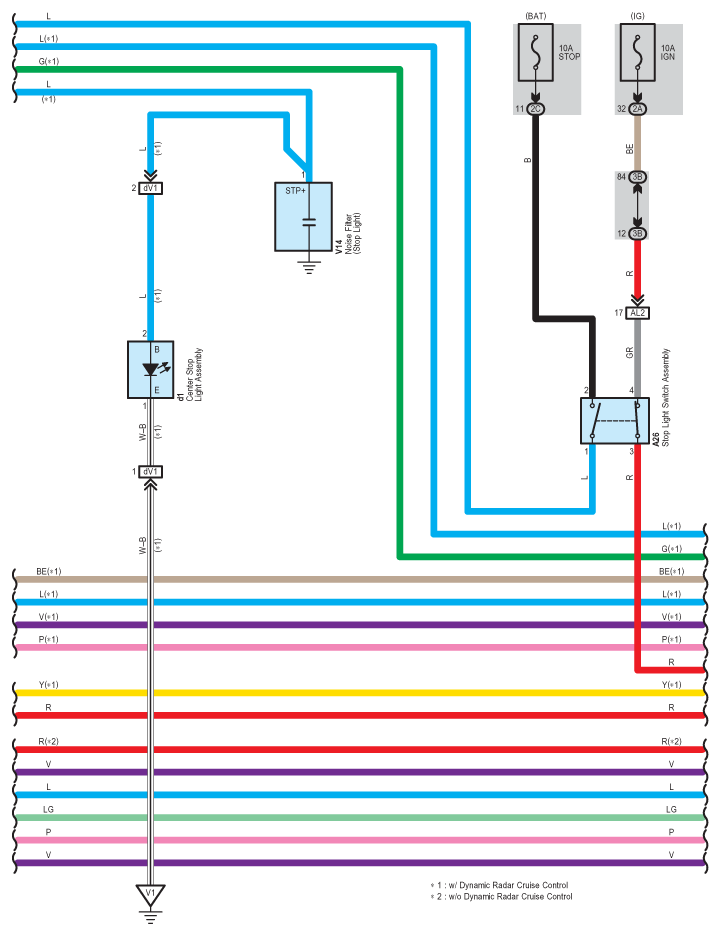

Fig 22: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (22 Of 31)
G07570718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

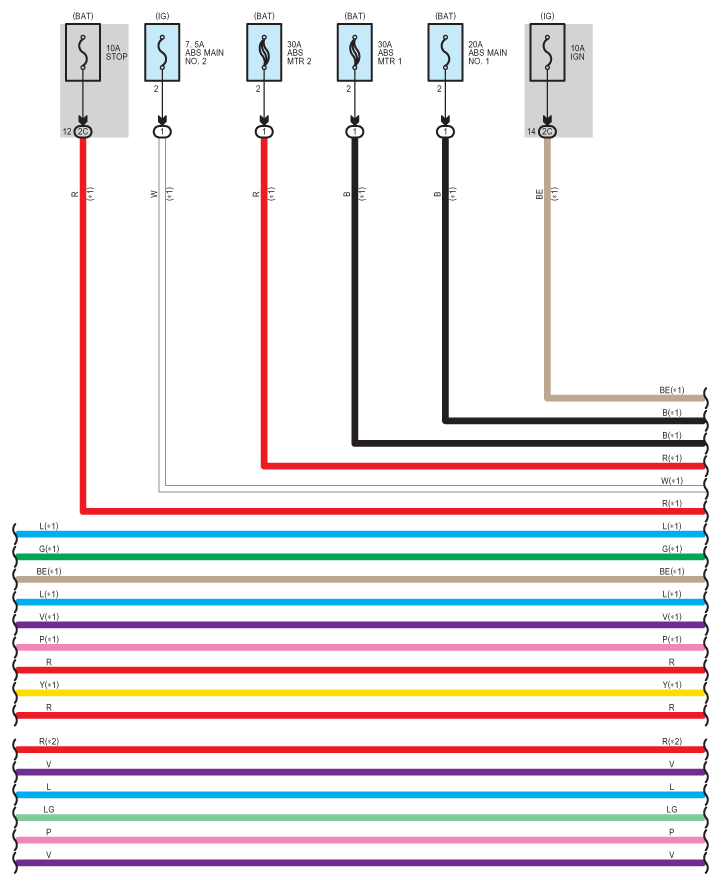

Fig 23: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (23 Of 31)
G07570719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

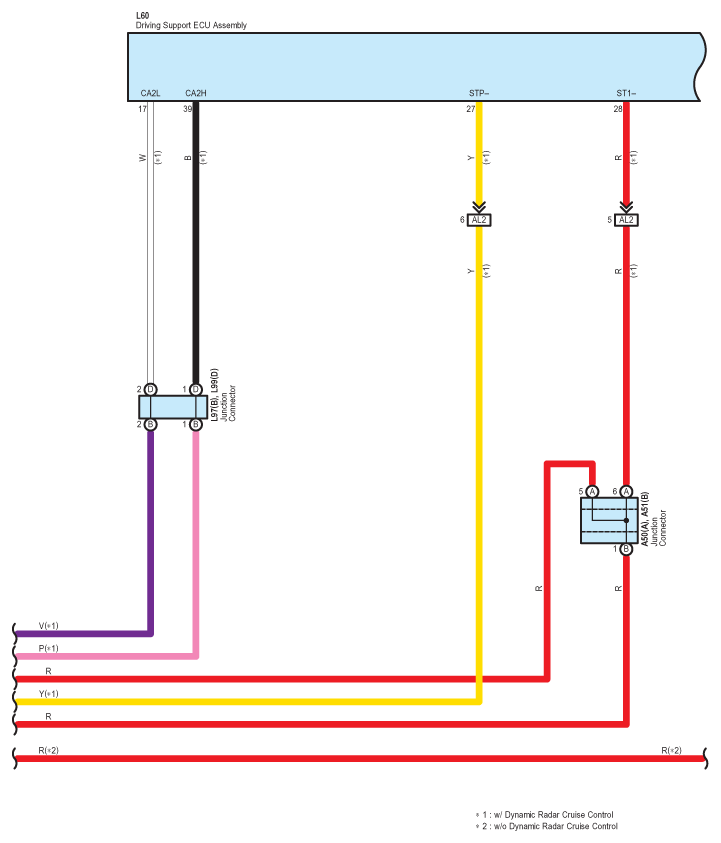

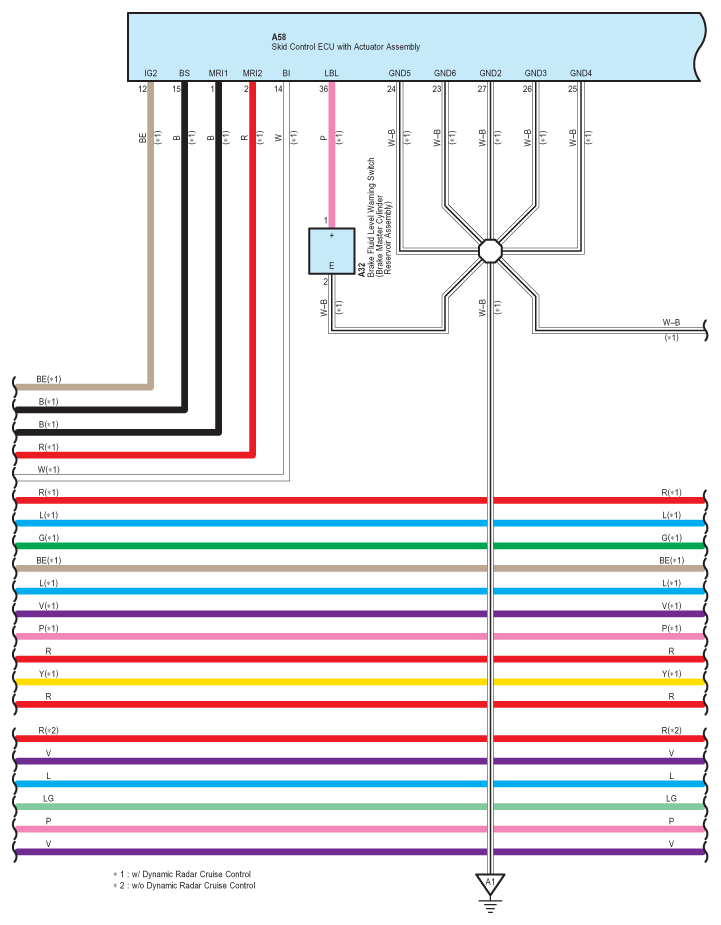

Fig 24: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (24 Of 31)
G07570720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

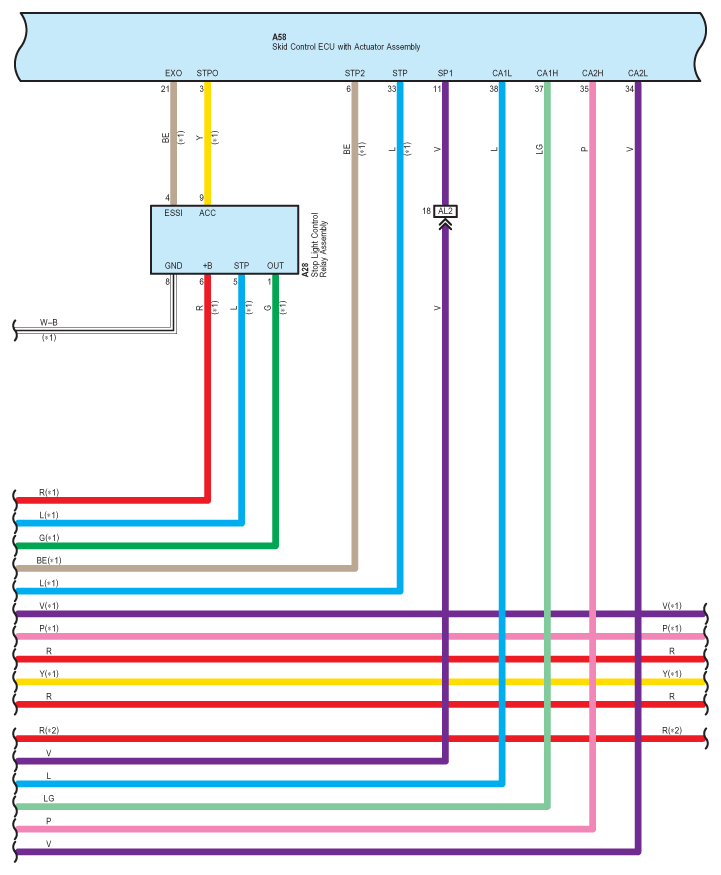

Fig 25: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (25 Of 31)
G07570721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

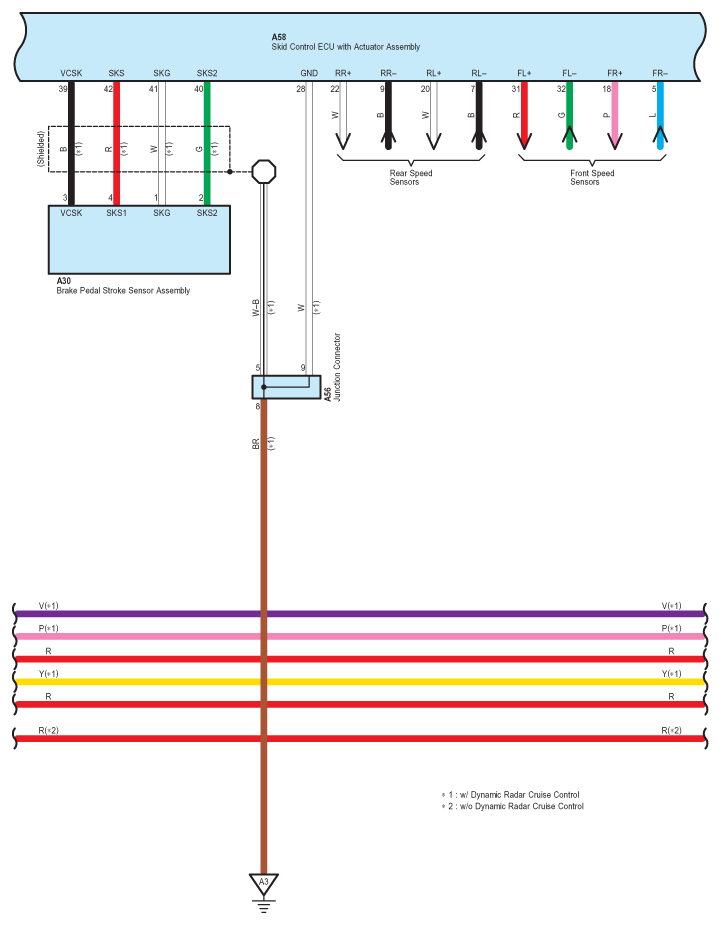

Fig 26: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (26 Of 31)
G07570722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

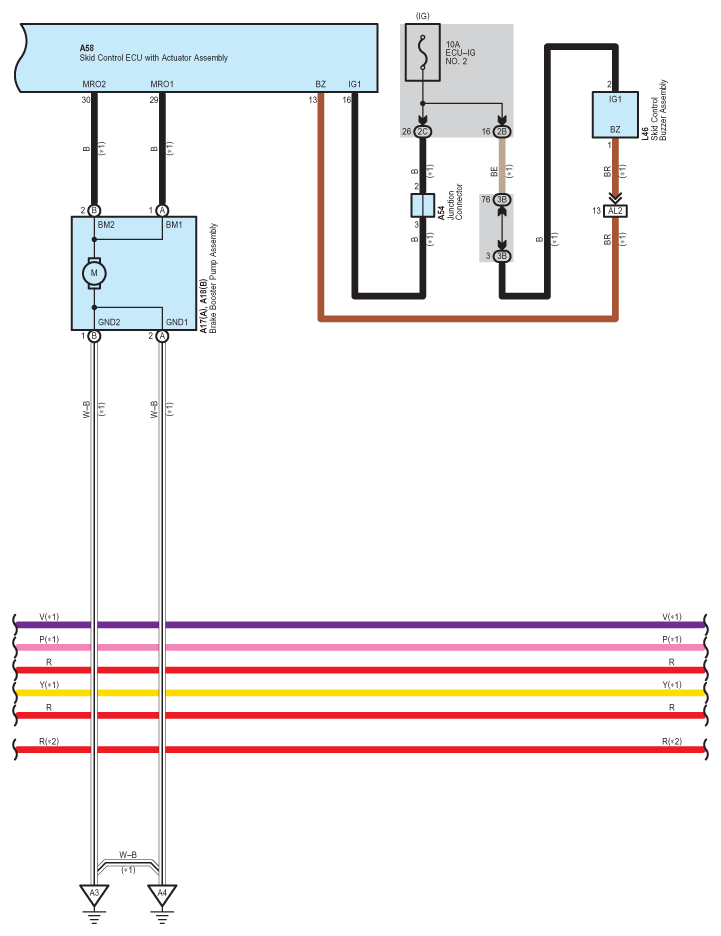

Fig 27: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (27 Of 31)
G07570723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 28: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (28 Of 31)
G07570724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 29: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (29 Of 31)
G07570725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

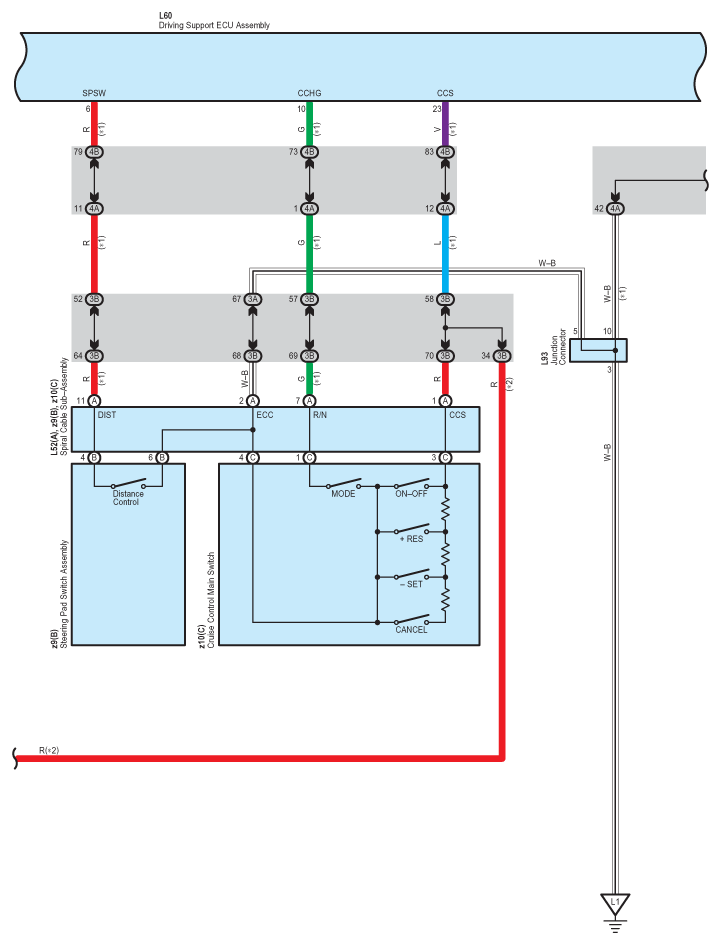

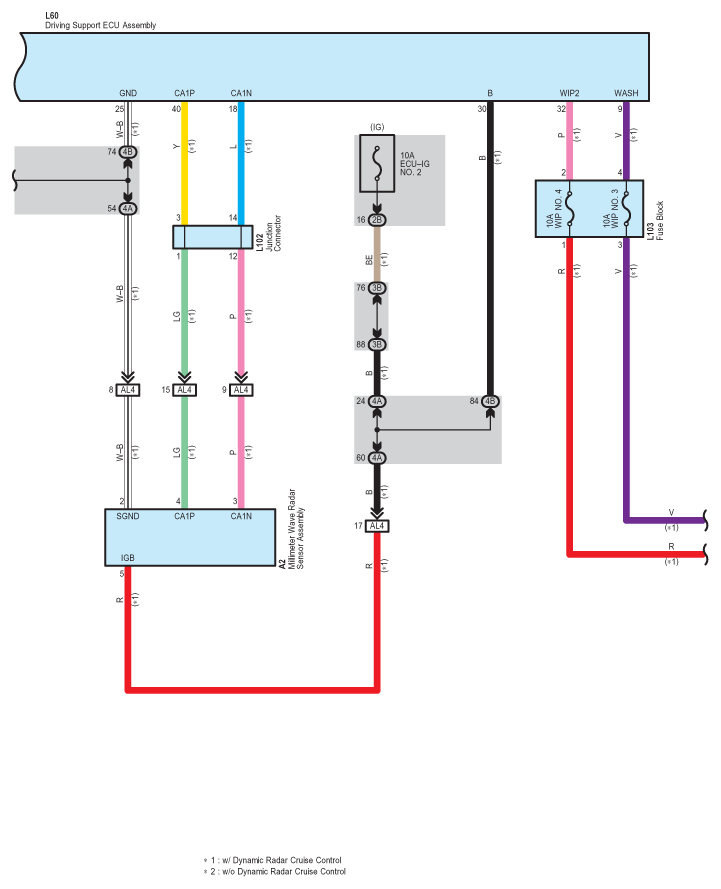

Fig 30: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (30 Of 31)
G07570726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

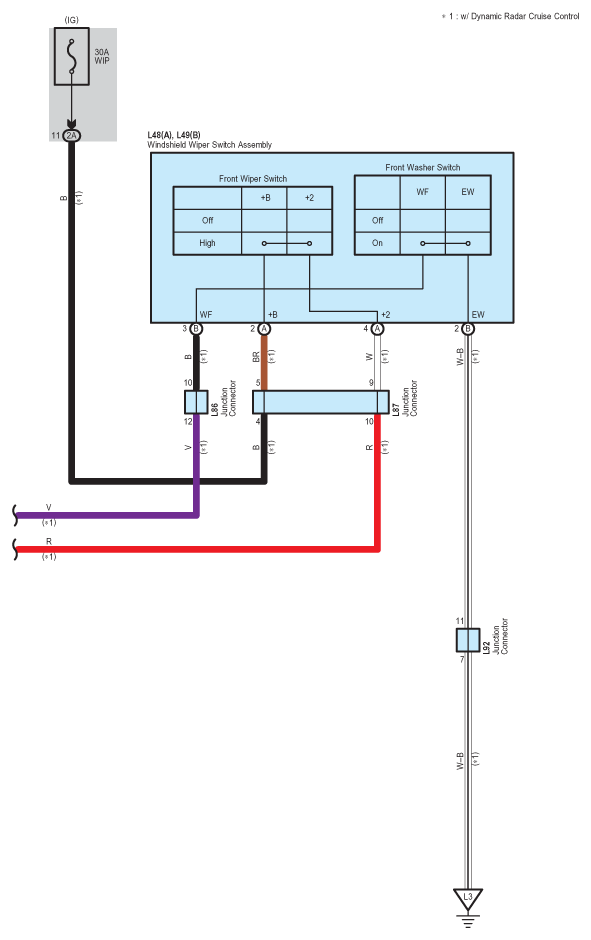

Fig 31: Engine Control And Cruise Control Or Dynamic Radar Cruise Control - Circuit Diagram (31 Of 31)
G07570727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
