Power Window: Notes

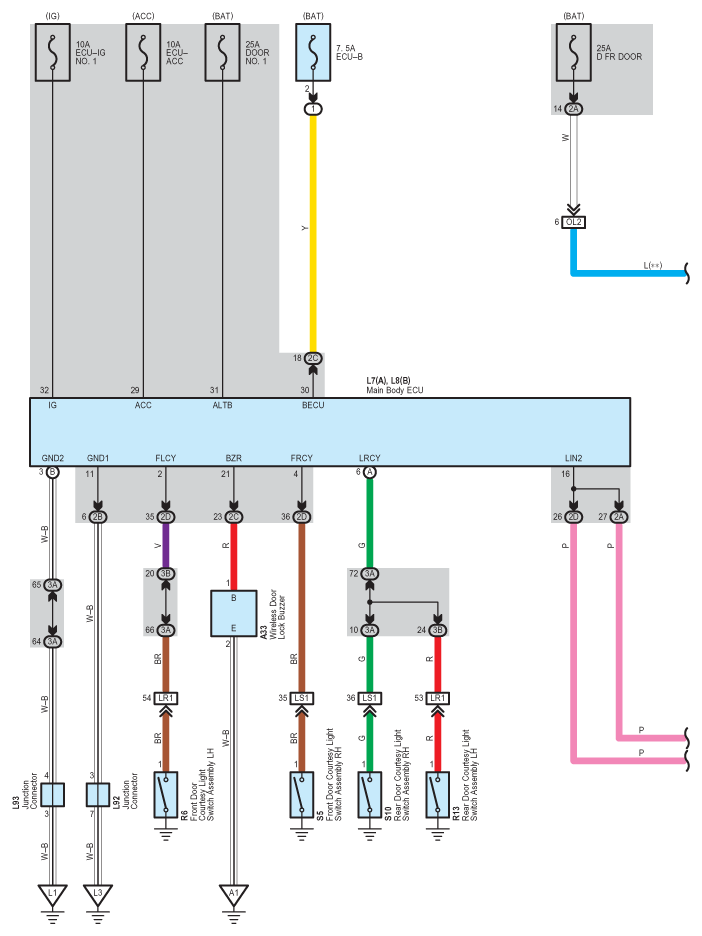

Fig 1: Power Window - Circuit Diagram (1 Of 5)
G07570824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

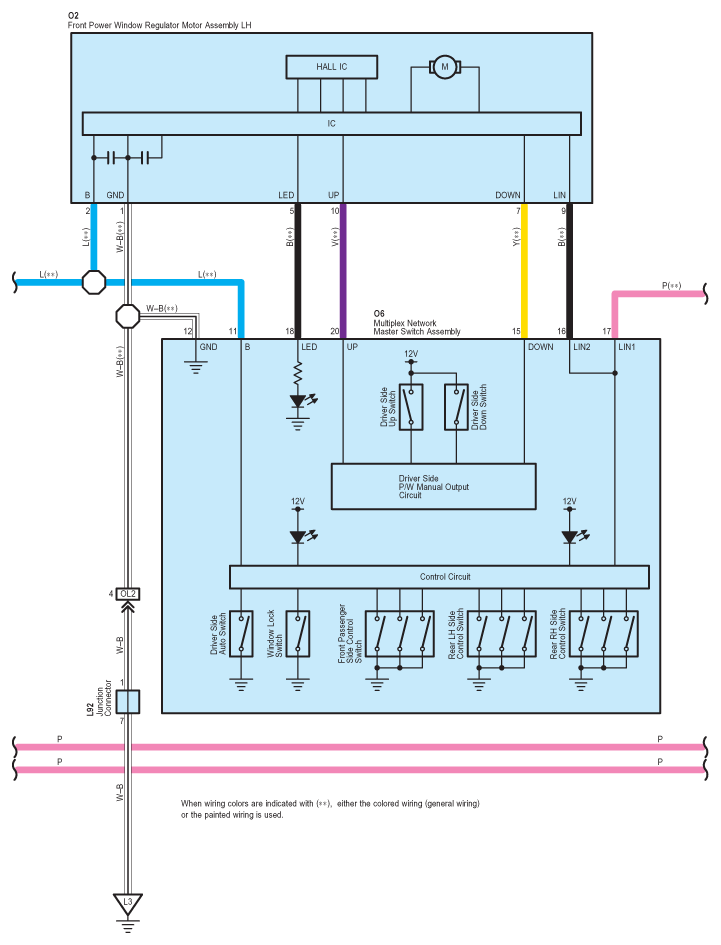

Fig 2: Power Window - Circuit Diagram (2 Of 5)
G07570825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

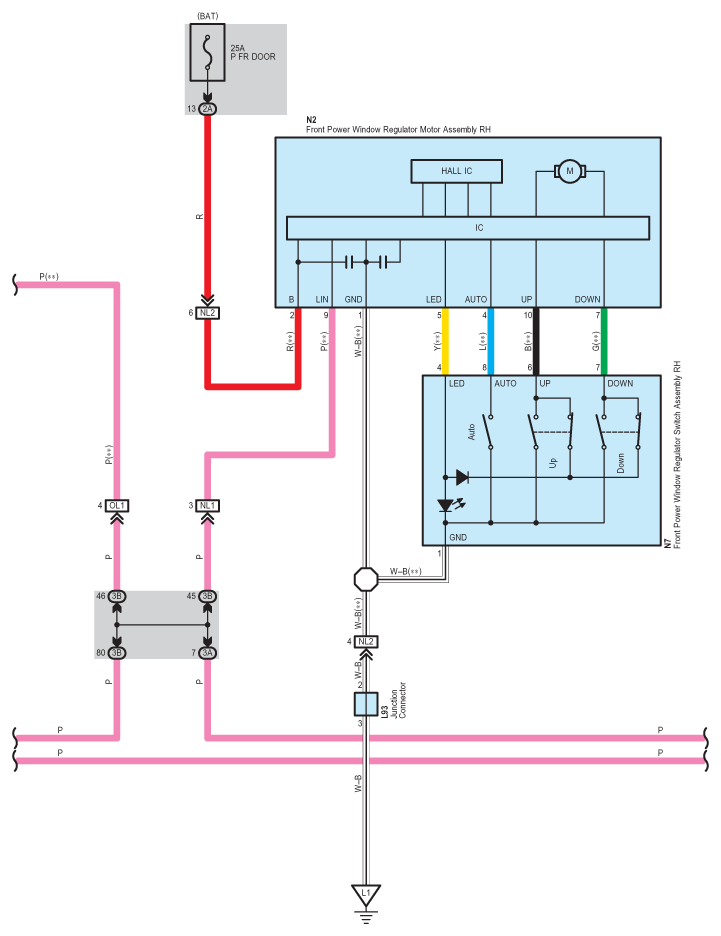

Fig 3: Power Window - Circuit Diagram (3 Of 5)
G07570826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

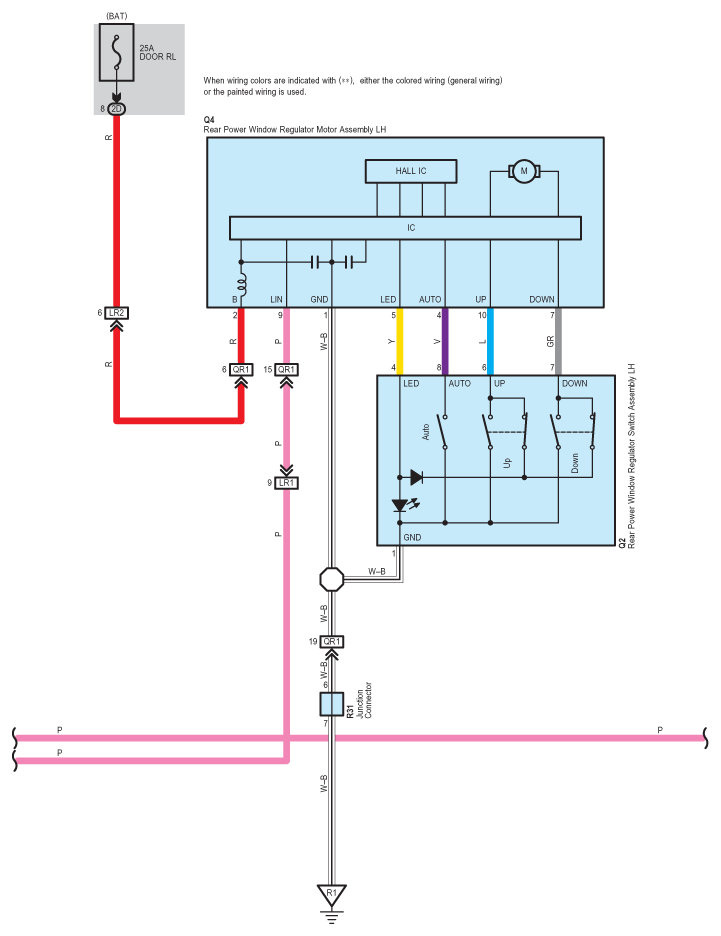

Fig 4: Power Window - Circuit Diagram (4 Of 5)
G07570827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

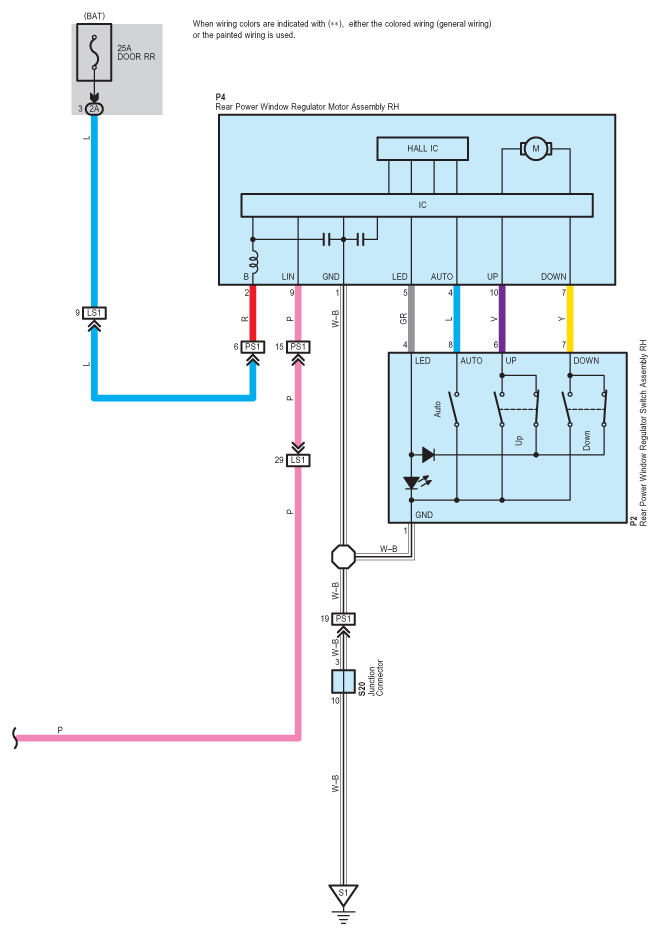

Fig 5: Power Window - Circuit Diagram (5 Of 5)
G07570828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
