Remote Air Conditioning System: Notes

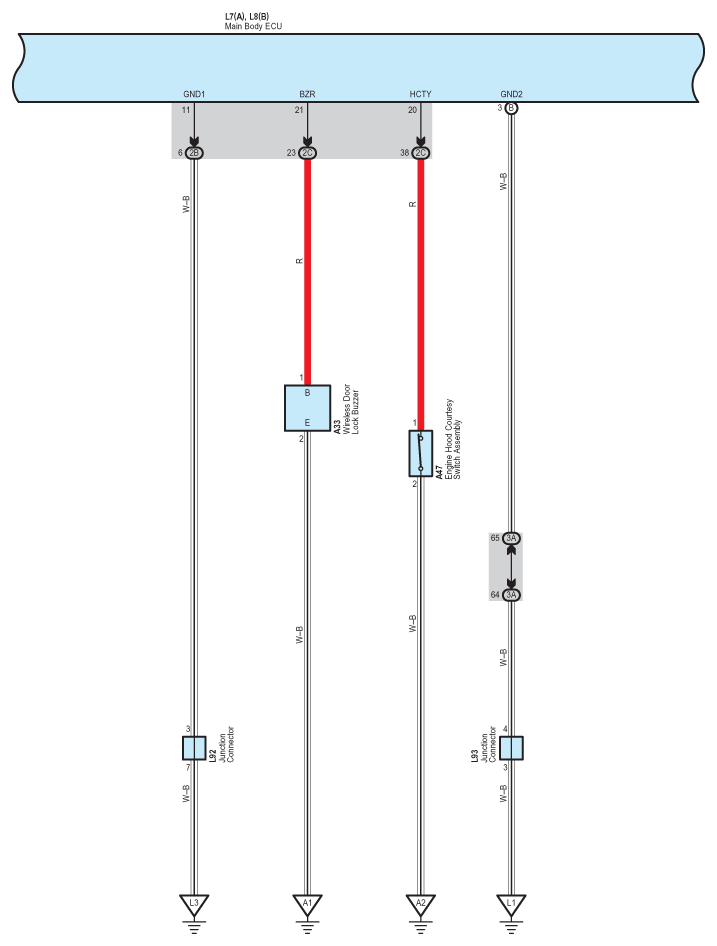

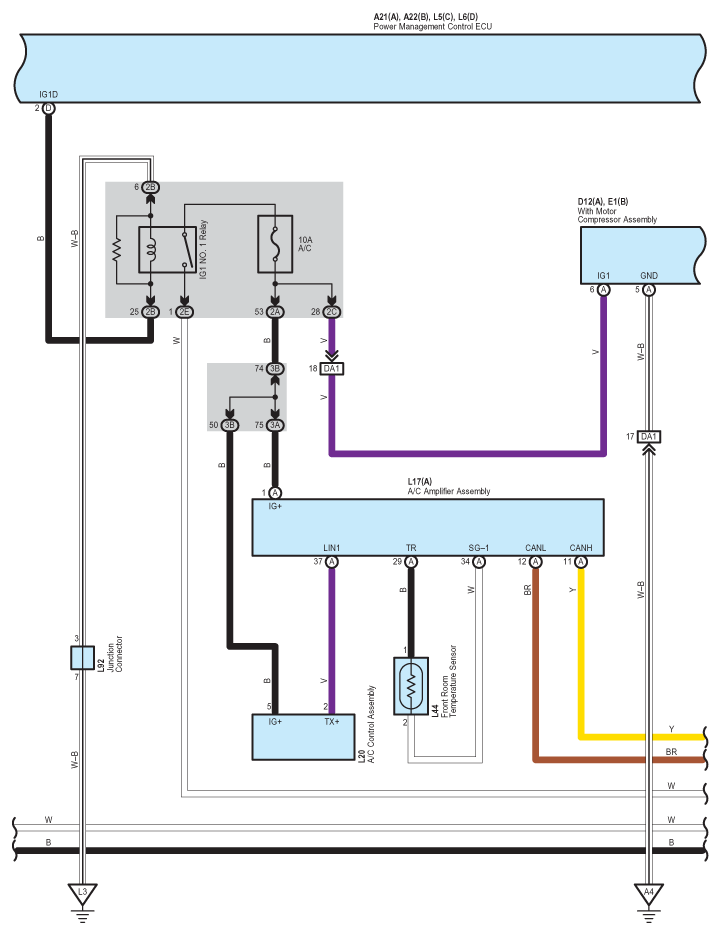

Fig 1: Remote Air Conditioning System - Circuit Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

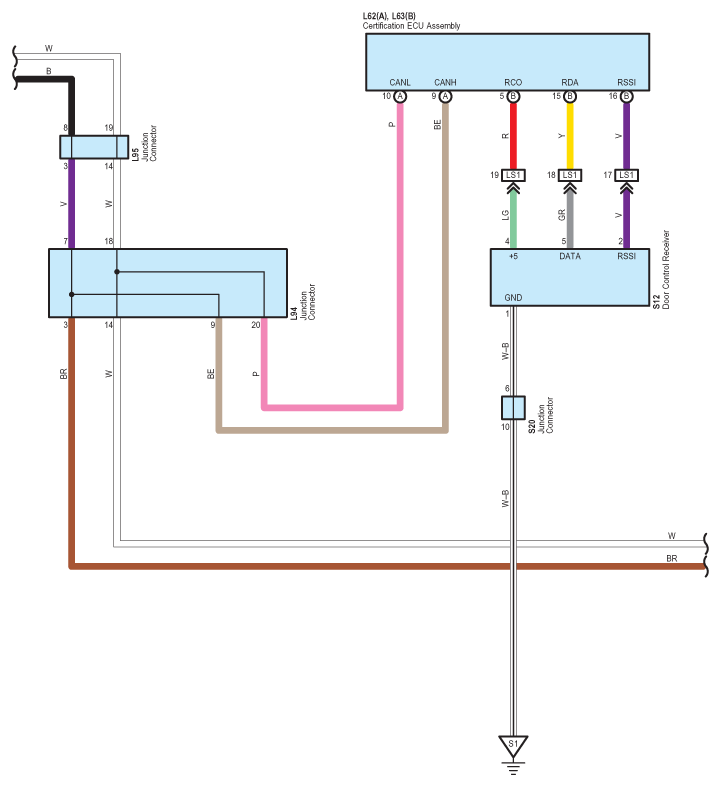

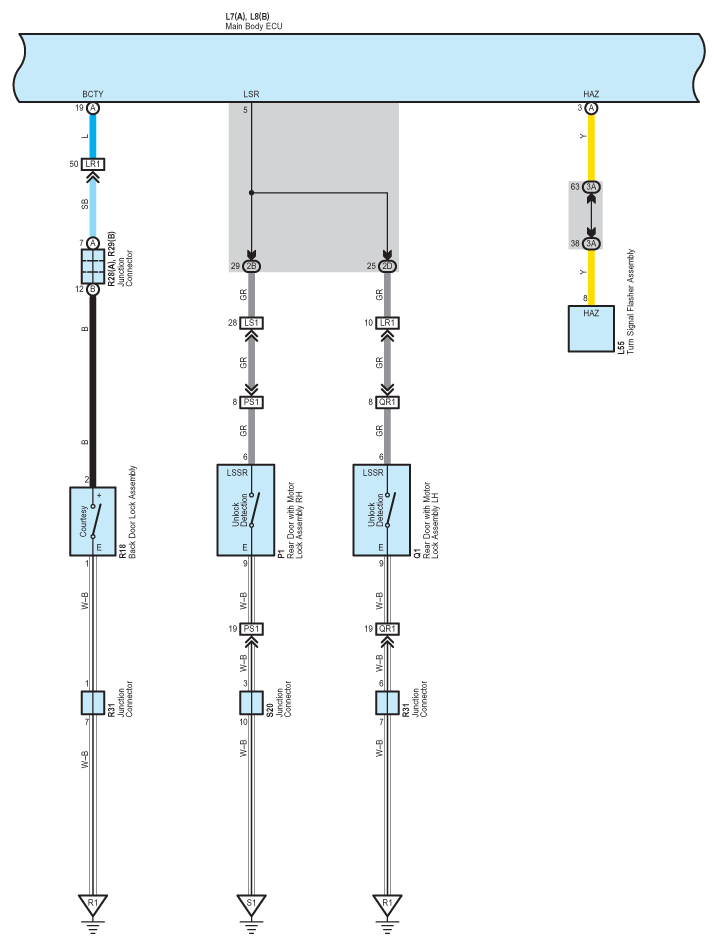

Fig 2: Remote Air Conditioning System - Circuit Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

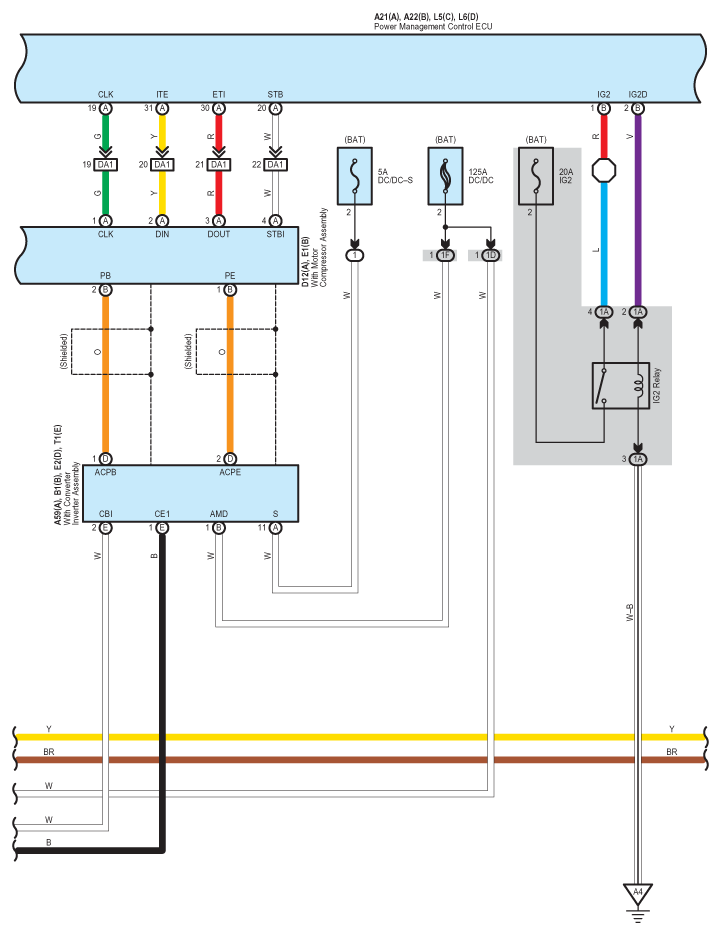

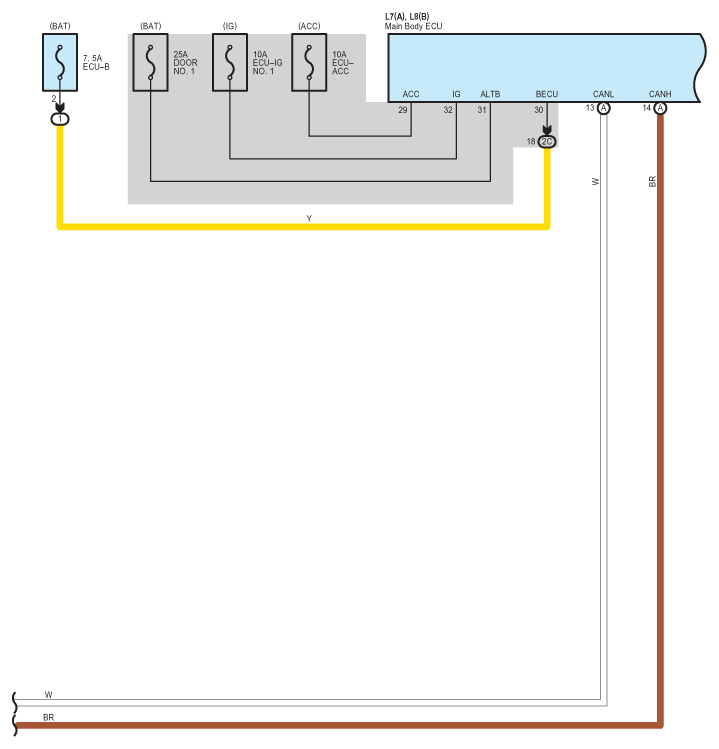

Fig 3: Remote Air Conditioning System - Circuit Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

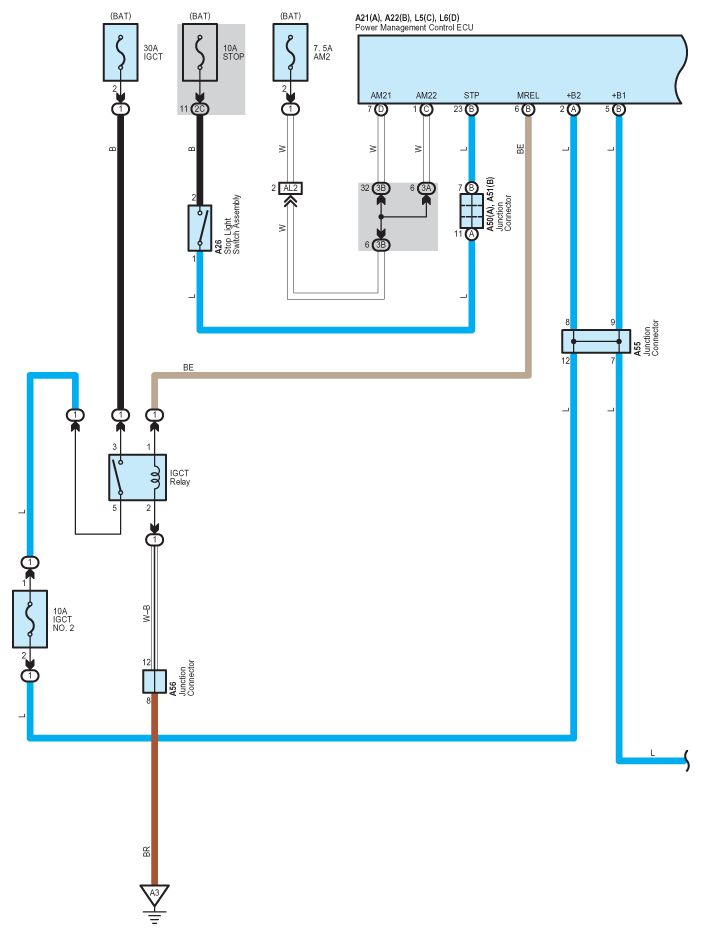

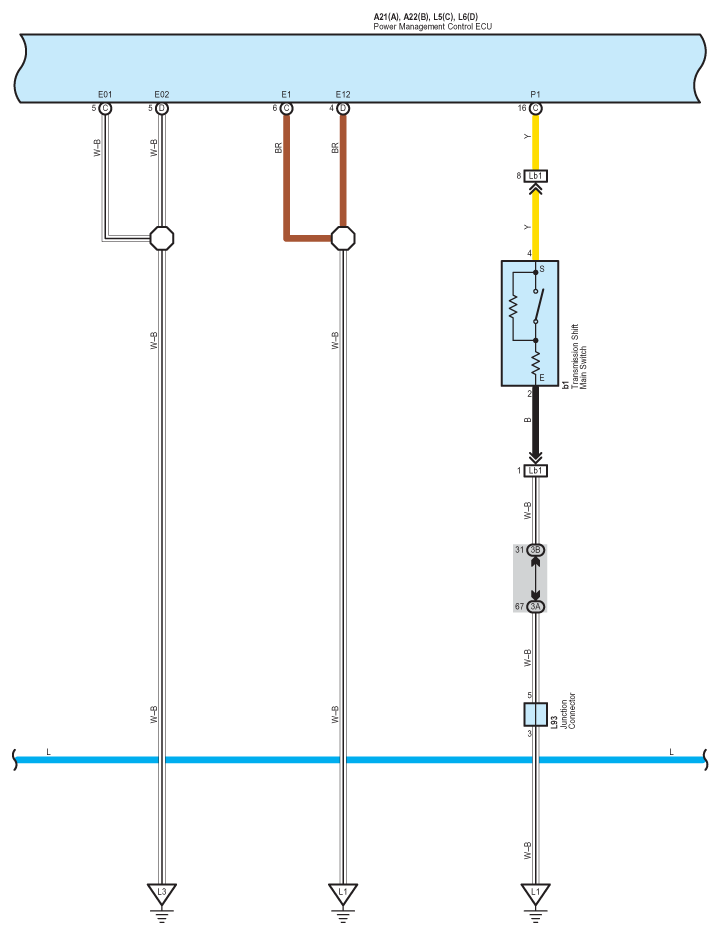

Fig 4: Remote Air Conditioning System - Circuit Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

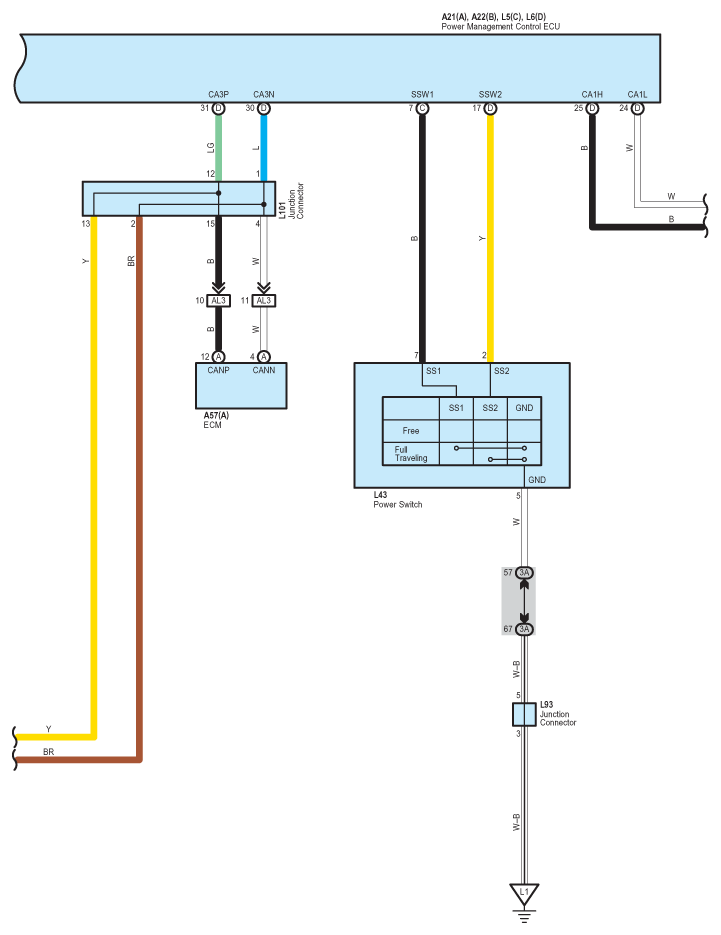

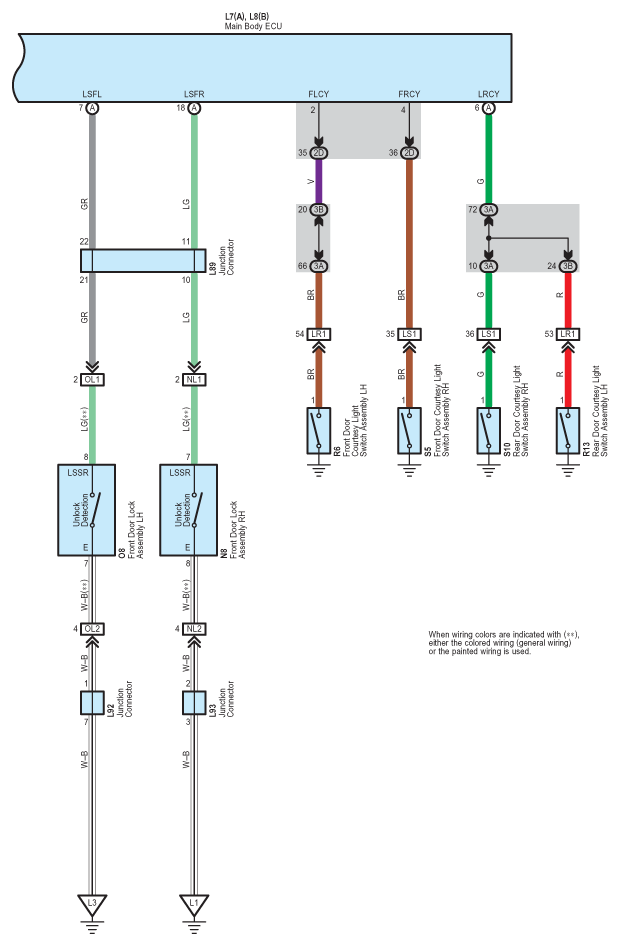

Fig 5: Remote Air Conditioning System - Circuit Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

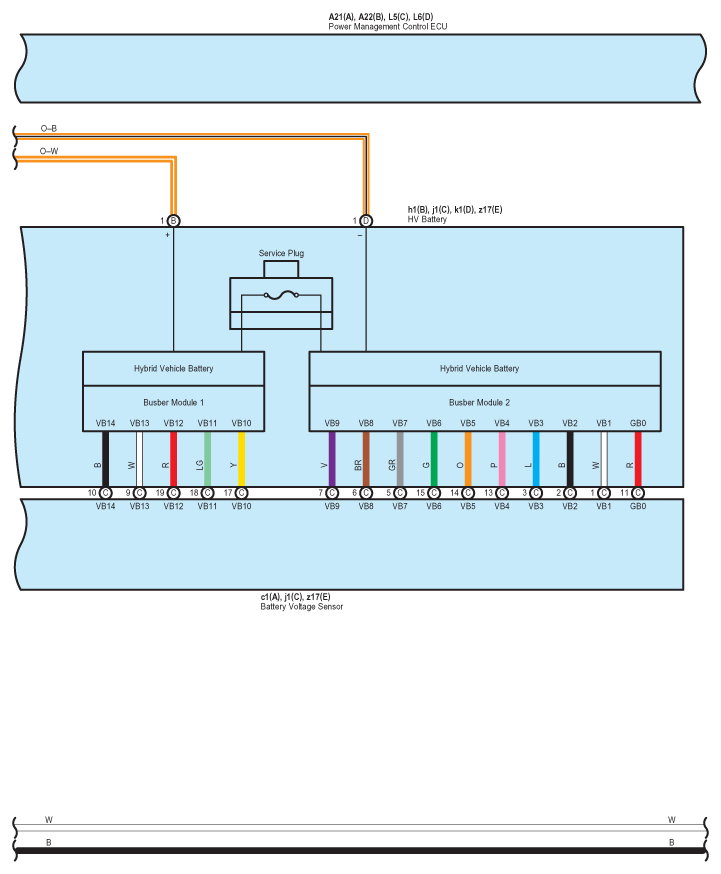

Fig 6: Remote Air Conditioning System - Circuit Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

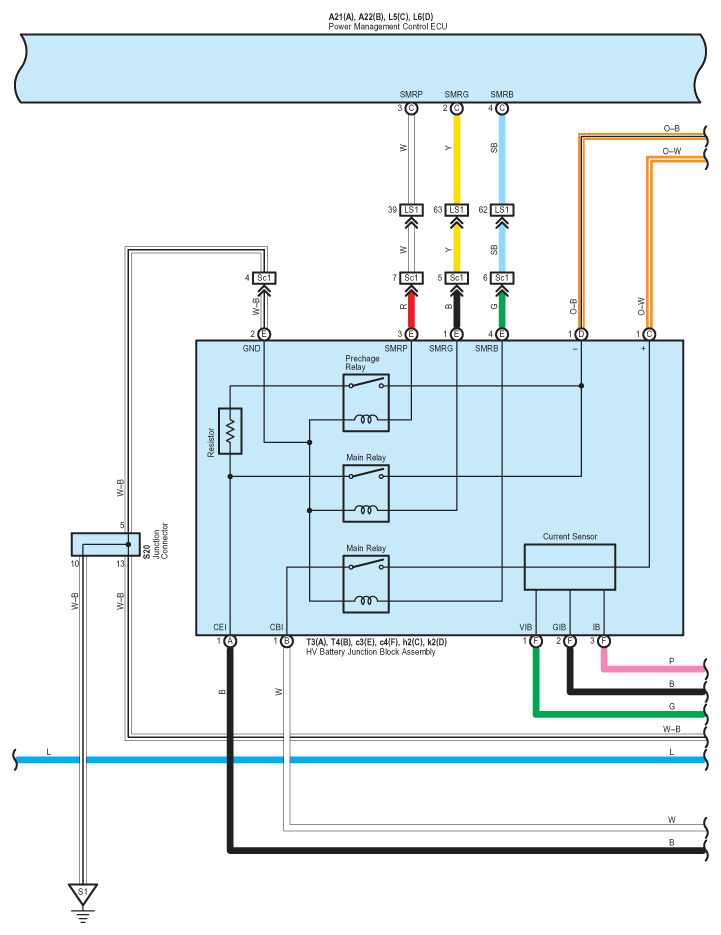

Fig 7: Remote Air Conditioning System - Circuit Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

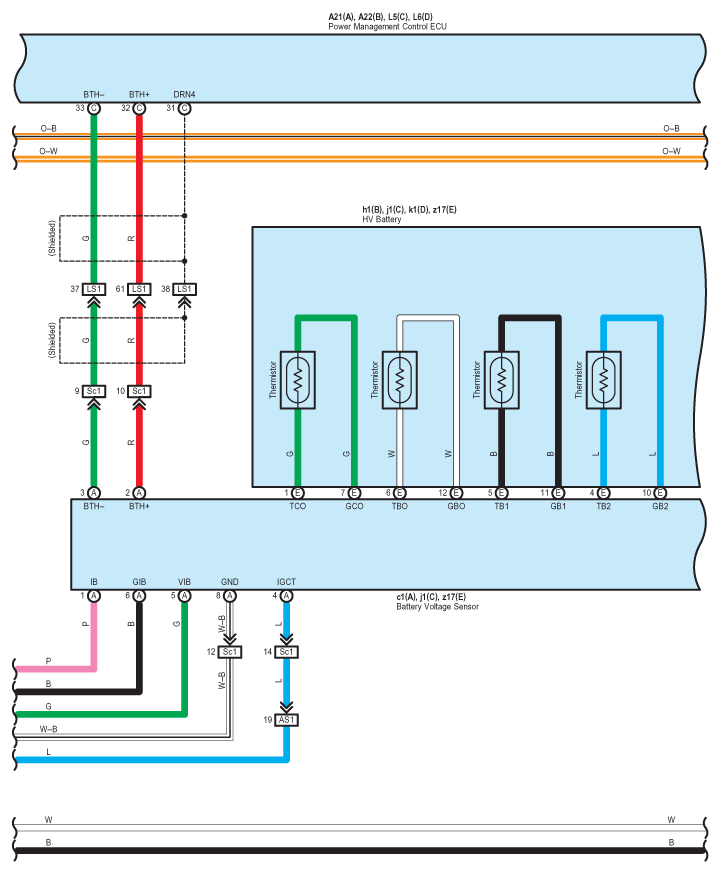

Fig 8: Remote Air Conditioning System - Circuit Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Remote Air Conditioning System - Circuit Diagram (9 Of 13)

Fig 10: Remote Air Conditioning System - Circuit Diagram (10 Of 13)

Fig 11: Remote Air Conditioning System - Circuit Diagram (11 Of 13)

Fig 12: Remote Air Conditioning System - Circuit Diagram (12 Of 13)

Fig 13: Remote Air Conditioning System - Circuit Diagram (13 Of 13)
