Smart Key System and Back Door Opener: Notes

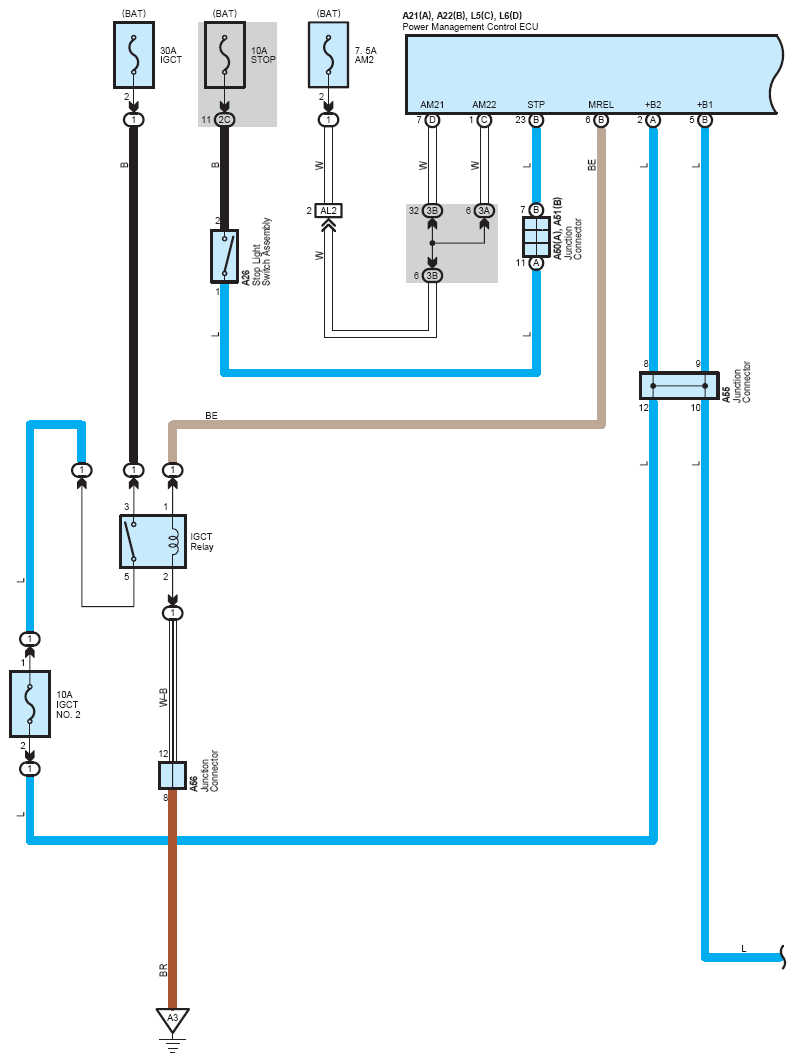

Fig 1: Smart Key System And Back Door Opener - Circuit Diagram (1 Of 21)

G07612822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

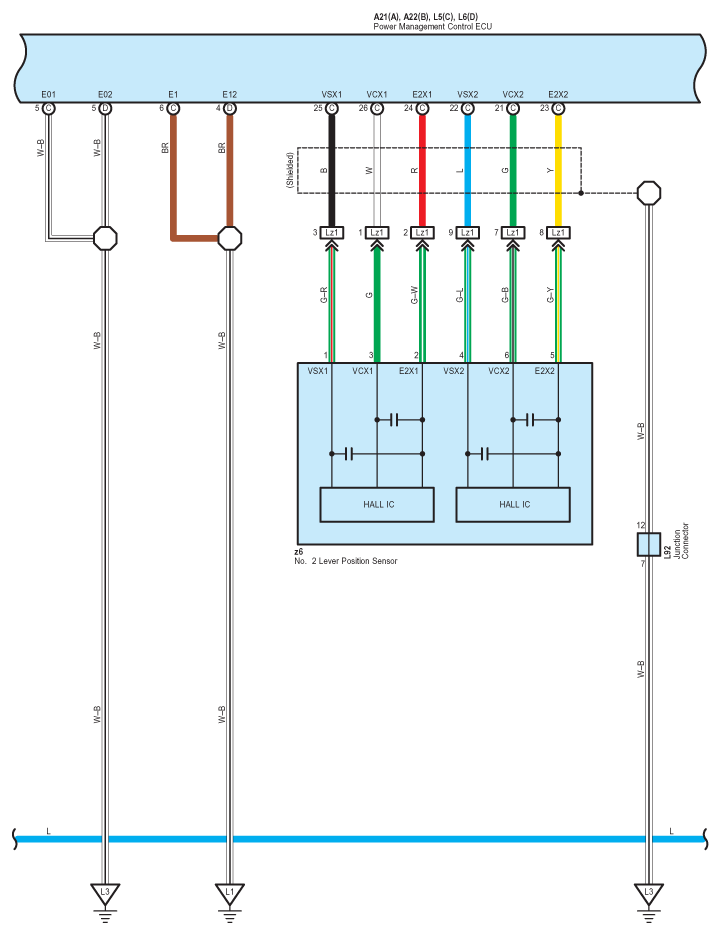

Fig 2: Smart Key System And Back Door Opener - Circuit Diagram (2 Of 21)

G07570677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

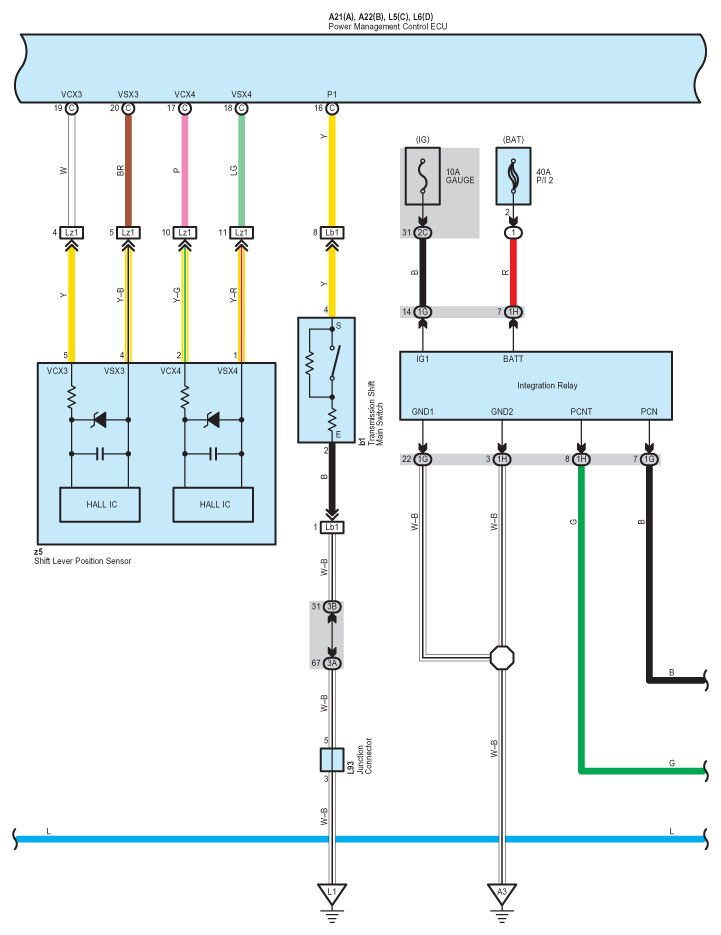

Fig 3: Smart Key System And Back Door Opener - Circuit Diagram (3 Of 21)

G07570678

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

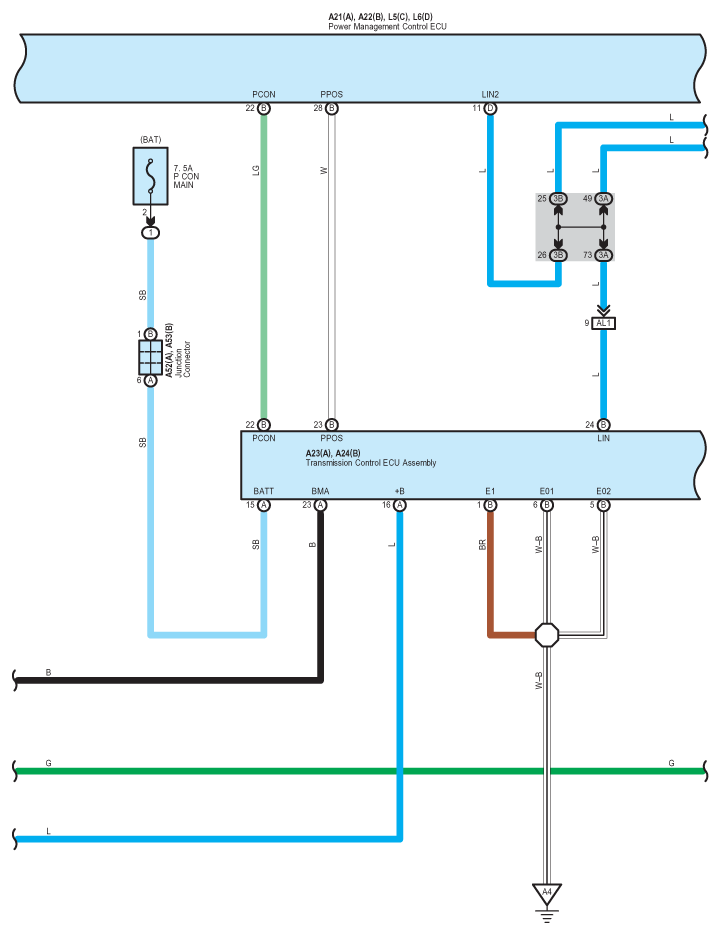

Fig 4: Smart Key System And Back Door Opener - Circuit Diagram (4 Of 21)

G07570679

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

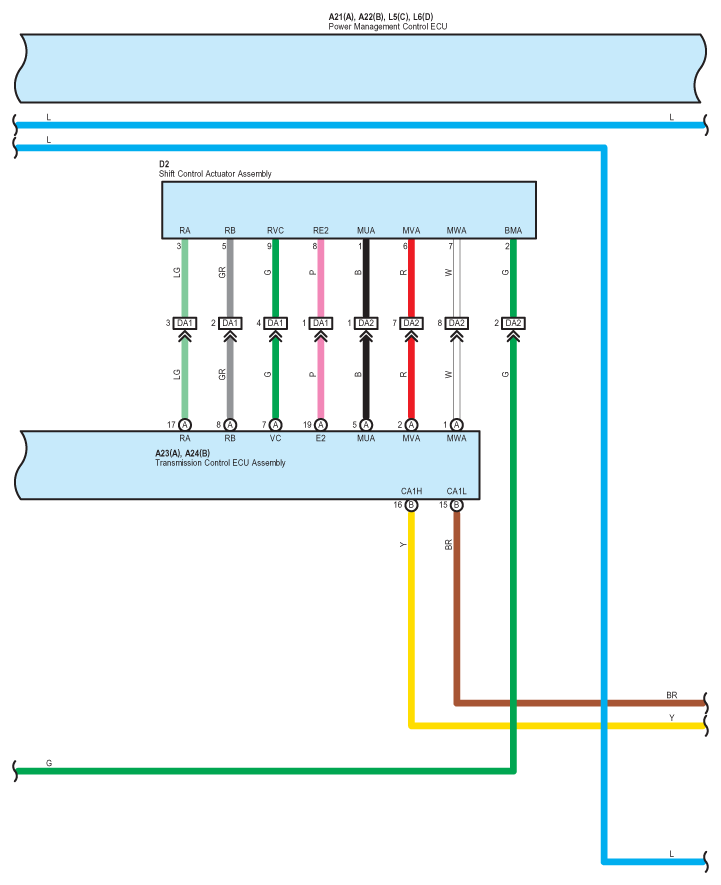

Fig 5: Smart Key System And Back Door Opener - Circuit Diagram (5 Of 21)

G07570680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

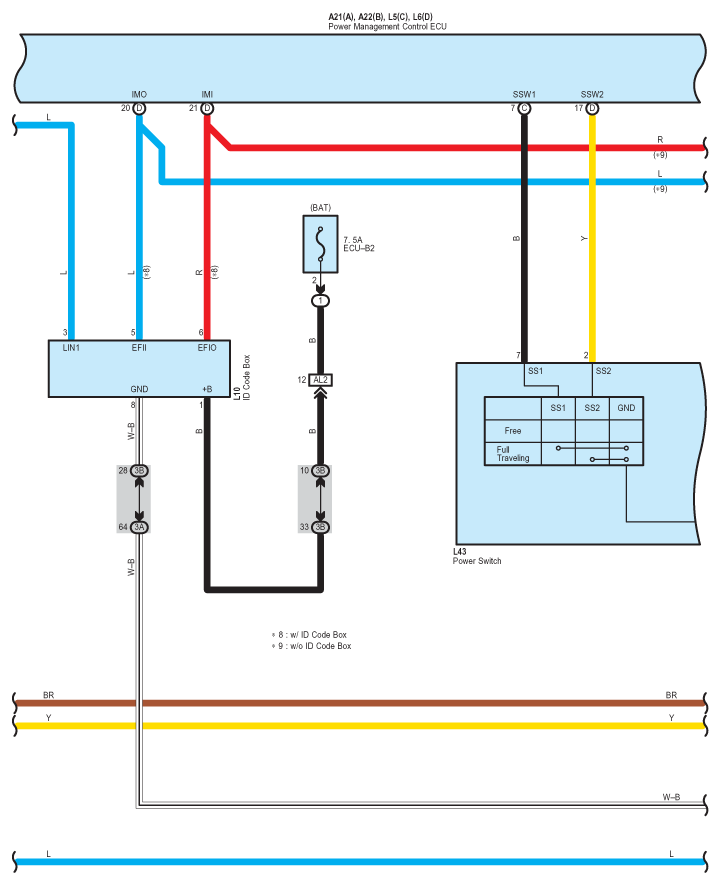

Fig 6: Smart Key System And Back Door Opener - Circuit Diagram (6 Of 21)

G07570681

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

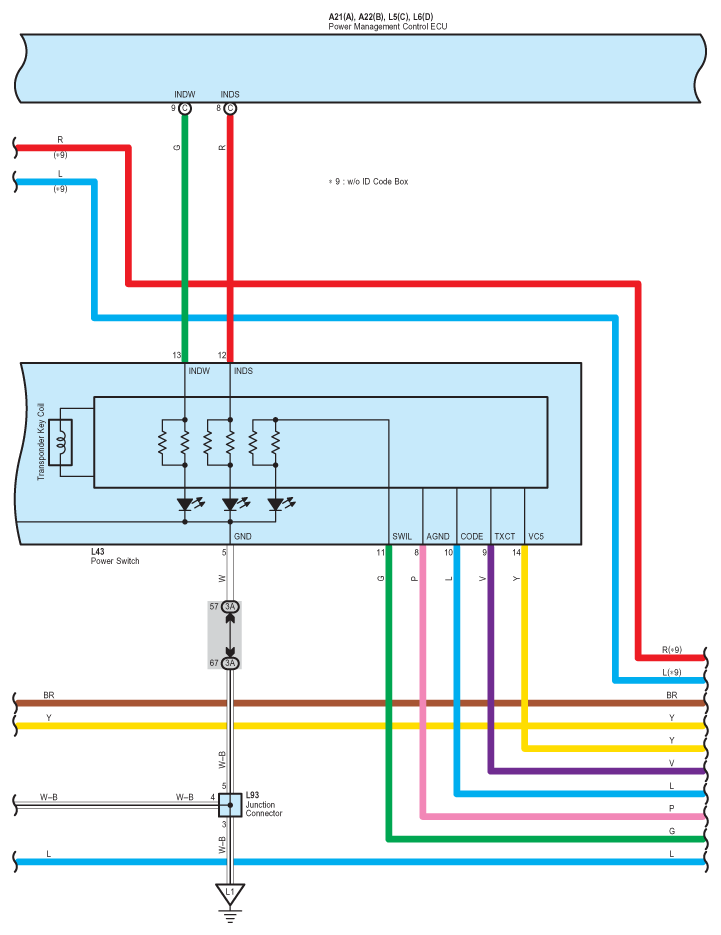

Fig 7: Smart Key System And Back Door Opener - Circuit Diagram (7 Of 21)

G07570682

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

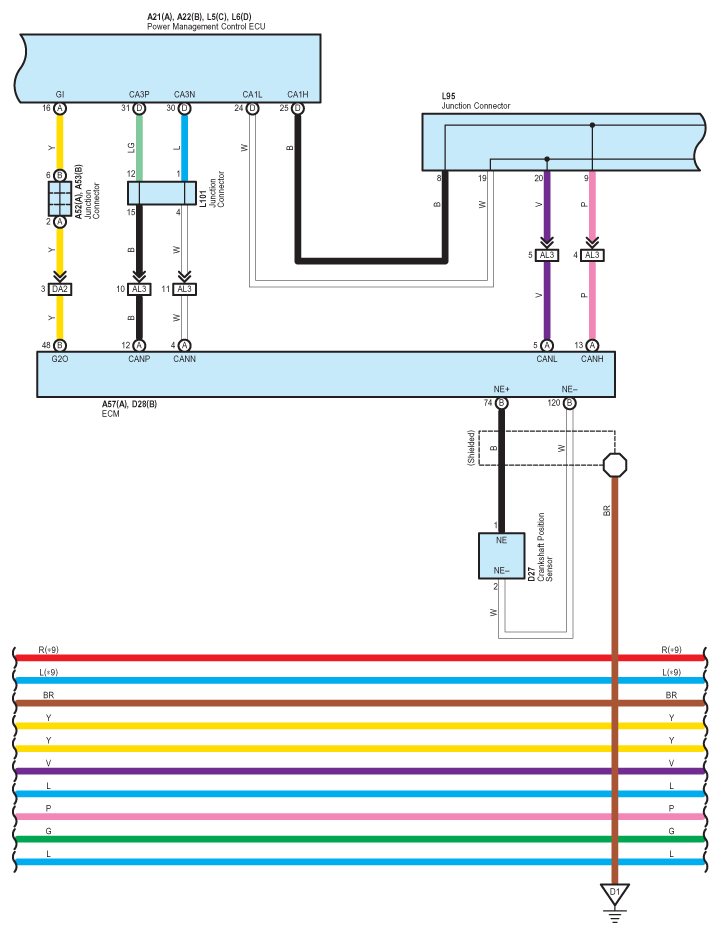

Fig 8: Smart Key System And Back Door Opener - Circuit Diagram (8 Of 21)

G07570683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

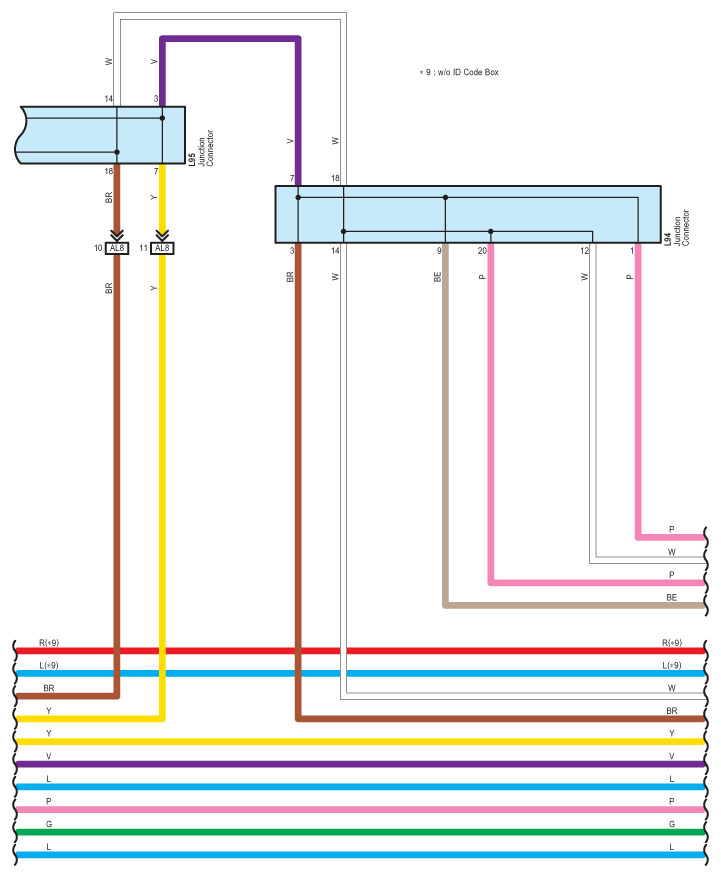

Fig 9: Smart Key System And Back Door Opener - Circuit Diagram (9 Of 21)

G07570684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

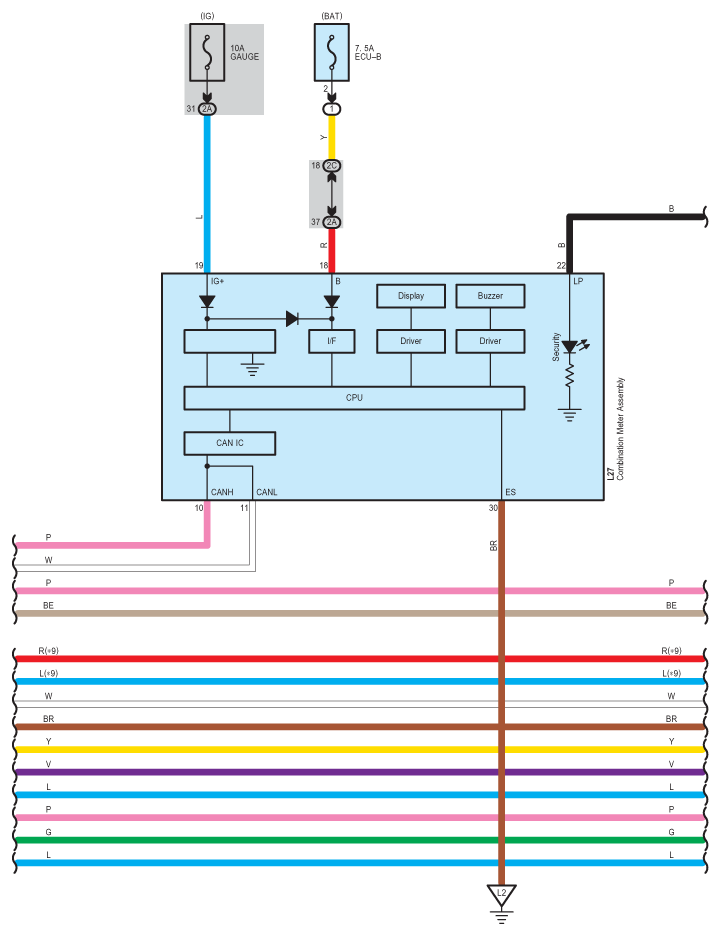

Fig 10: Smart Key System And Back Door Opener - Circuit Diagram (10 Of 21)

G07570685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

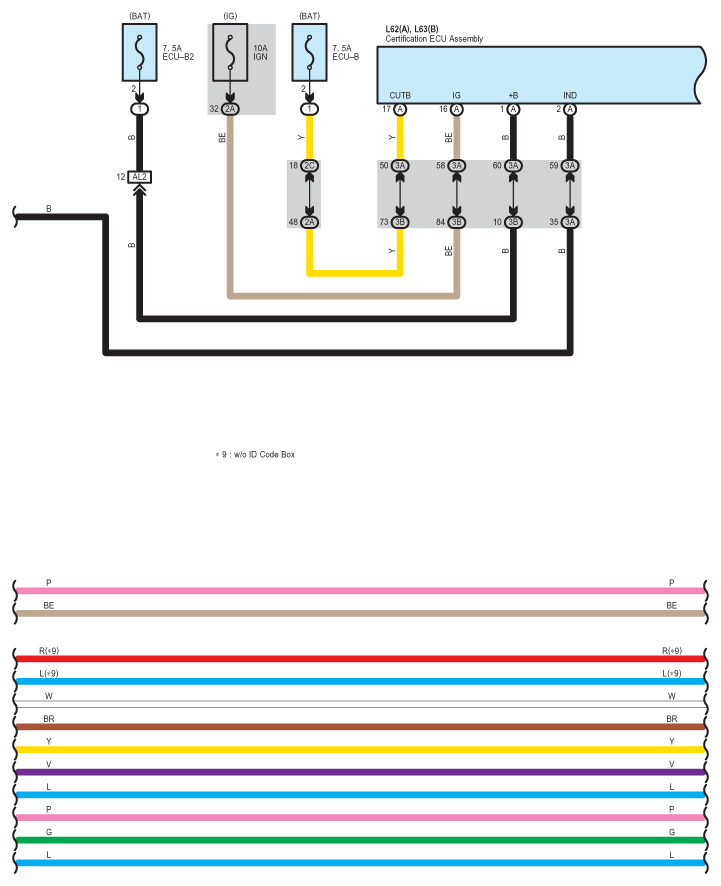

Fig 11: Smart Key System And Back Door Opener - Circuit Diagram (11 Of 21)

G07570686

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

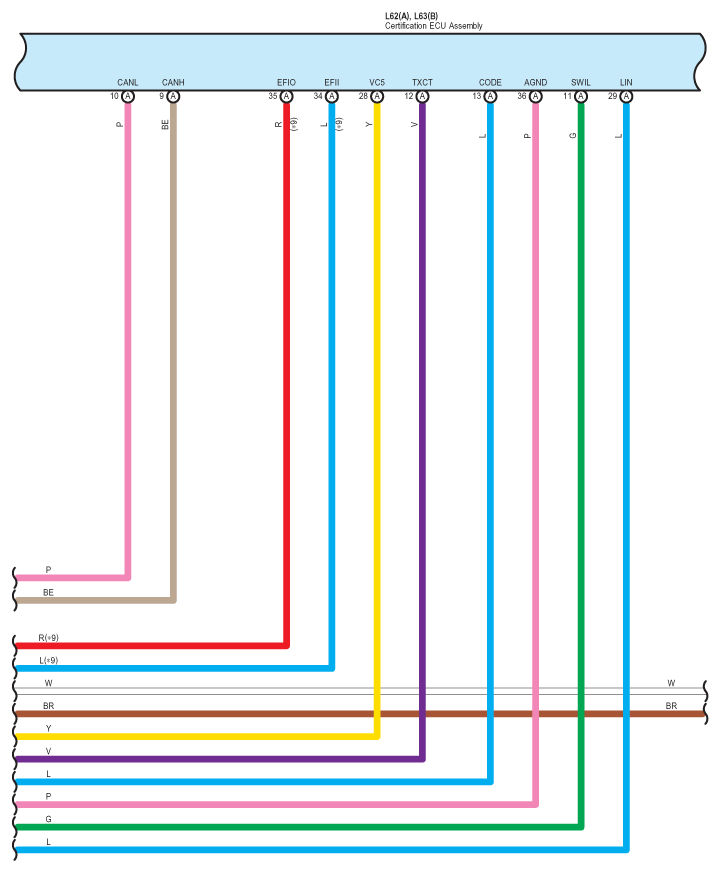

Fig 12: Smart Key System And Back Door Opener - Circuit Diagram (12 Of 21)

G07570687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

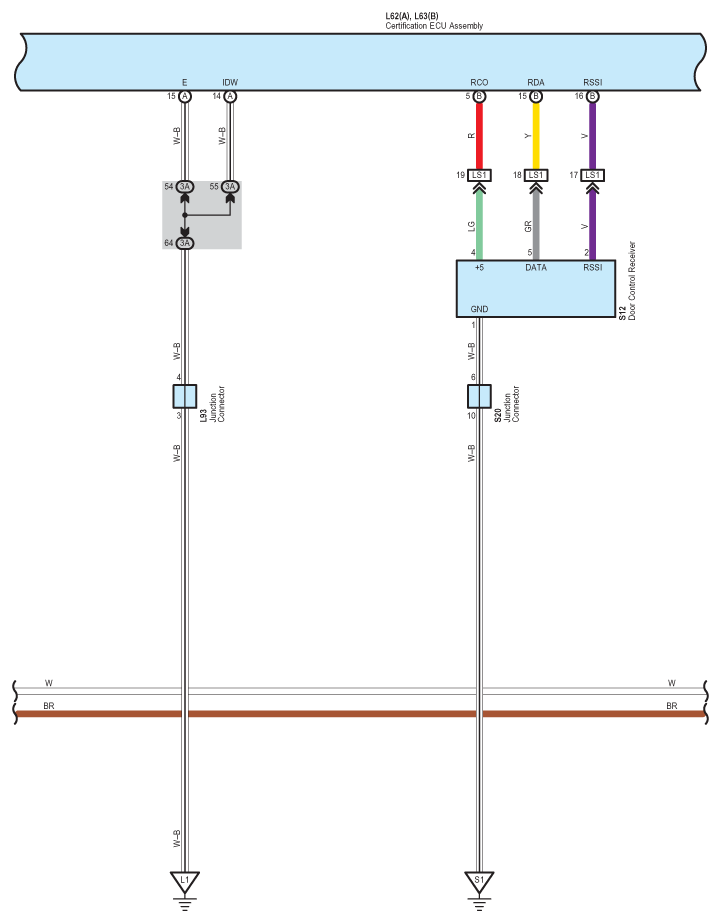

Fig 13: Smart Key System And Back Door Opener - Circuit Diagram (13 Of 21)

G07570688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

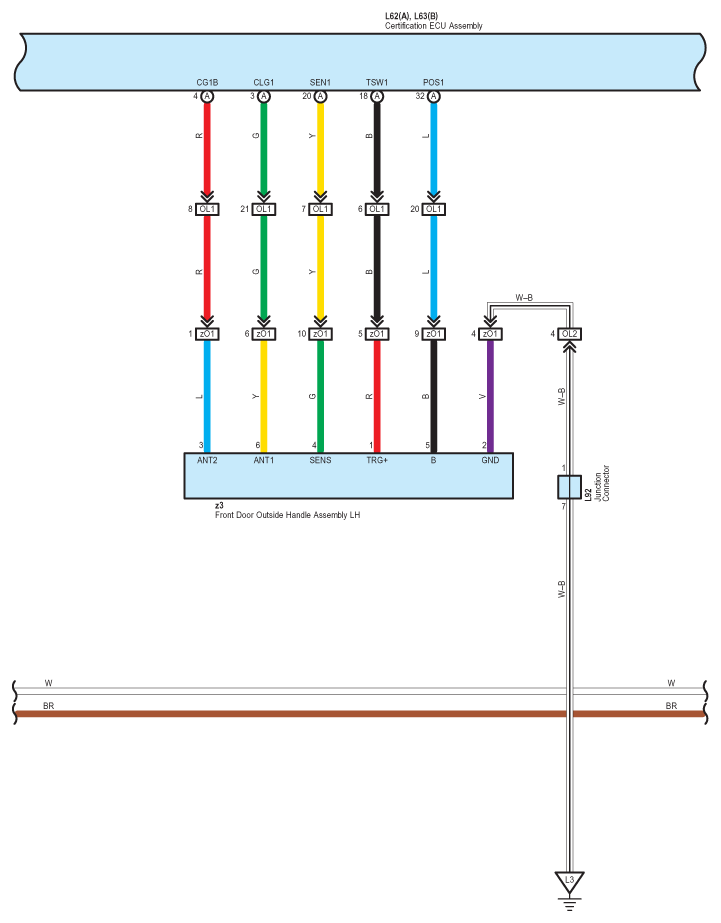

Fig 14: Smart Key System And Back Door Opener - Circuit Diagram (14 Of 21)

G07570689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

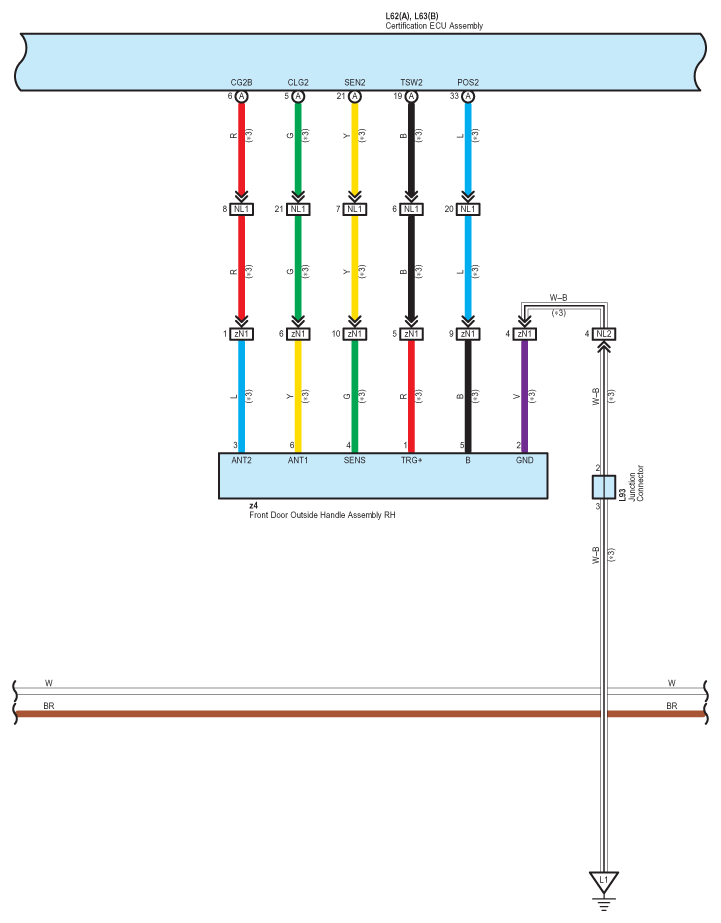

Fig 15: Smart Key System And Back Door Opener - Circuit Diagram (15 Of 21)

G07570690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

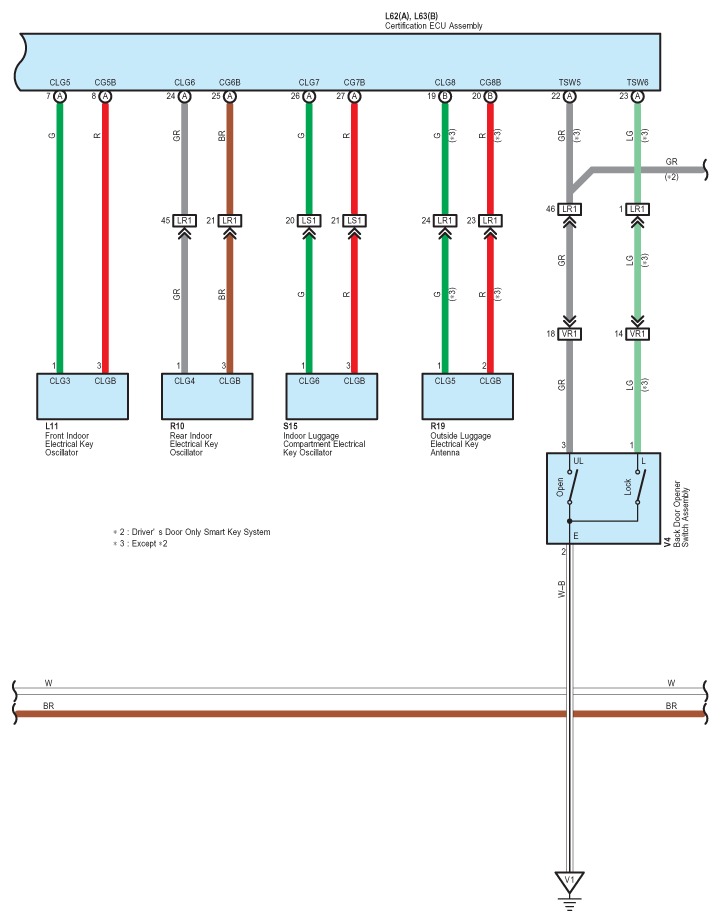

Fig 16: Smart Key System And Back Door Opener - Circuit Diagram (16 Of 21)

G07570691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

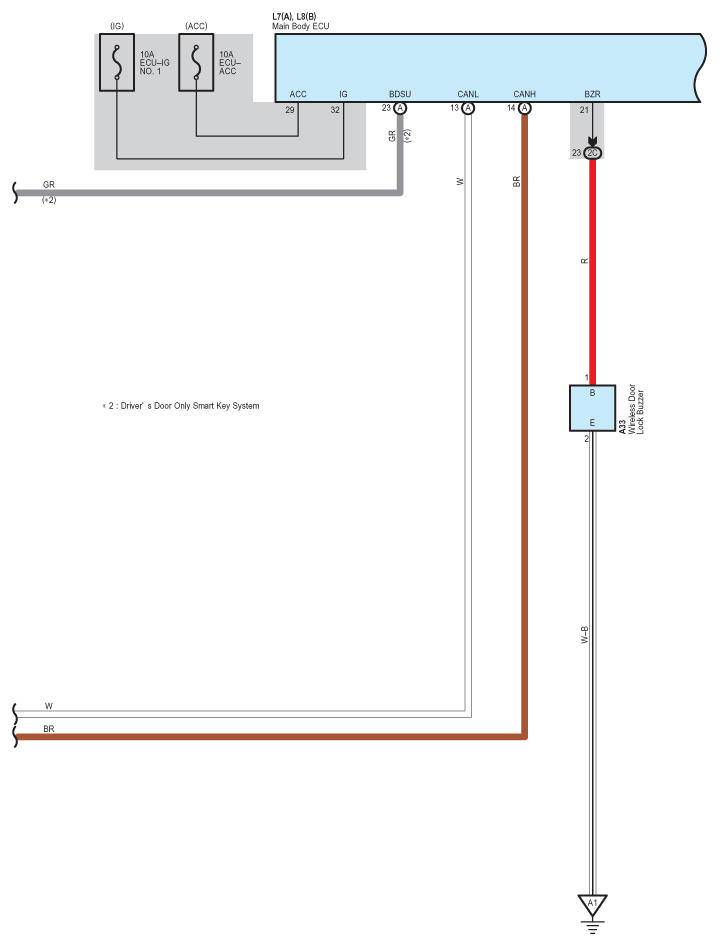

Fig 17: Smart Key System And Back Door Opener - Circuit Diagram (17 Of 21)

G07570692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

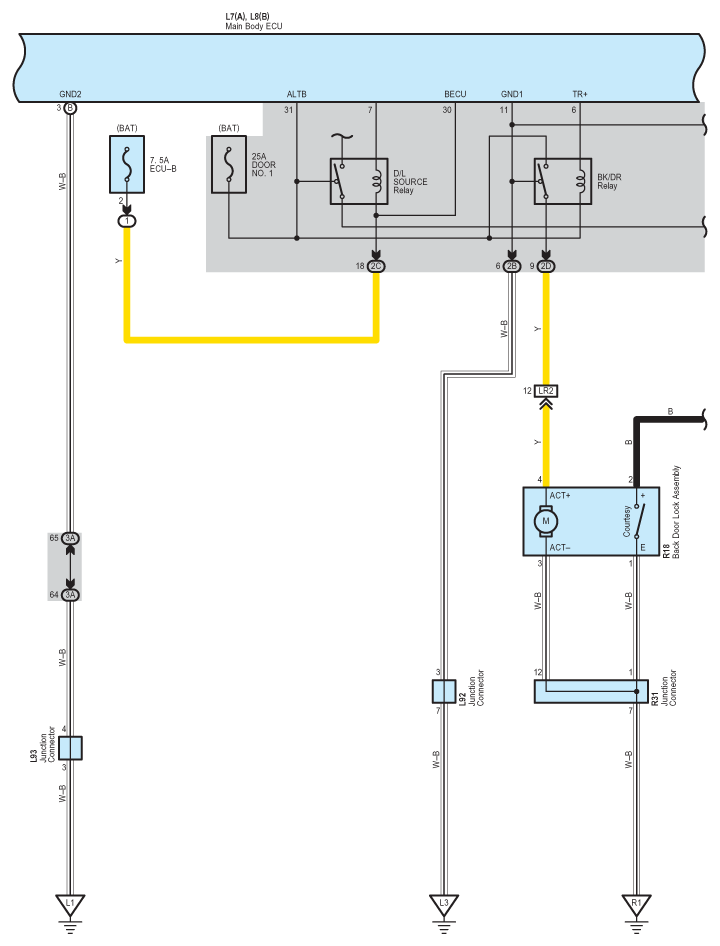

Fig 18: Smart Key System And Back Door Opener - Circuit Diagram (18 Of 21)

G07570693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

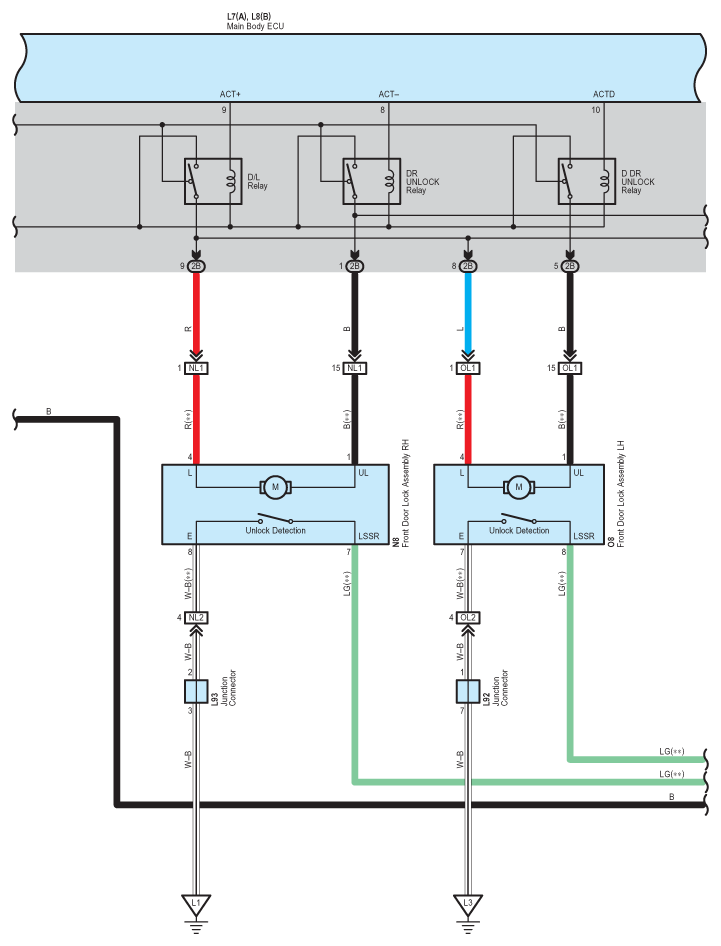

Fig 19: Smart Key System And Back Door Opener - Circuit Diagram (19 Of 21)

G07570694

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

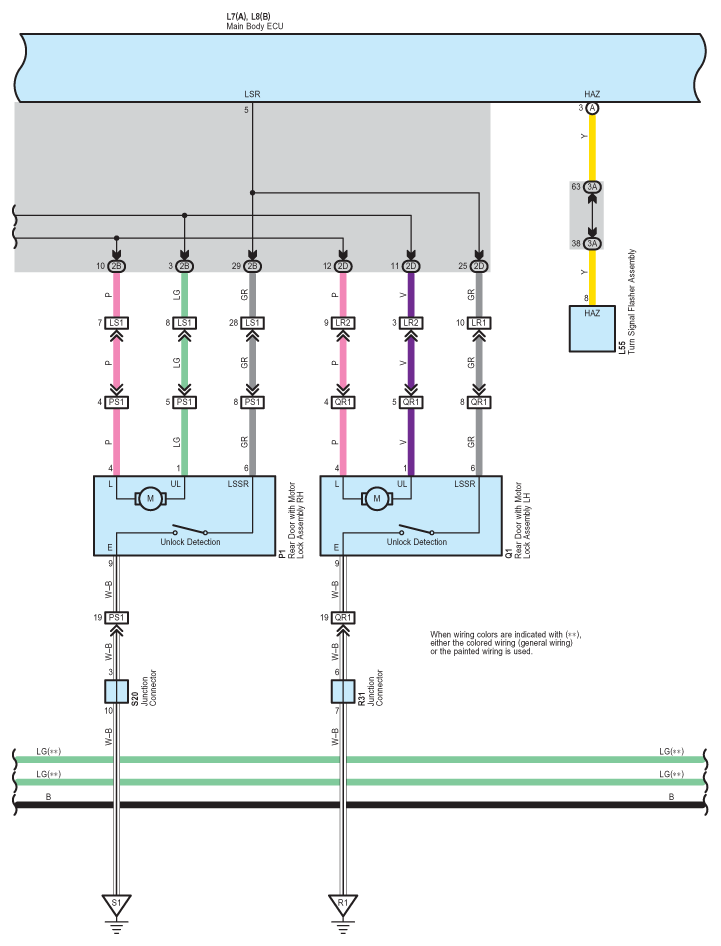

Fig 20: Smart Key System And Back Door Opener - Circuit Diagram (20 Of 21)

G07570695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

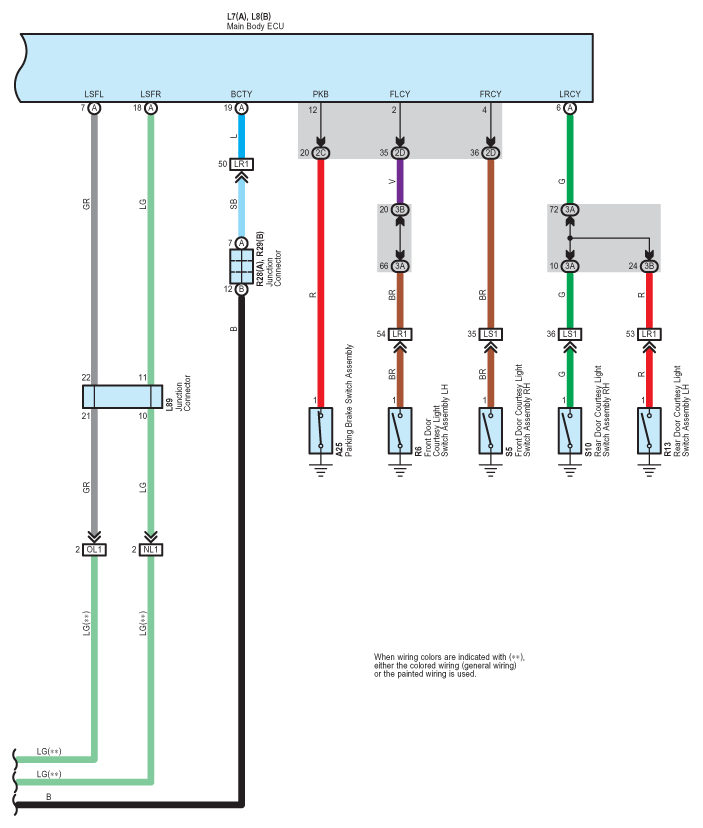

Fig 21: Smart Key System And Back Door Opener - Circuit Diagram (21 Of 21)

G07570696

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
