Solar Ventilation System: Notes

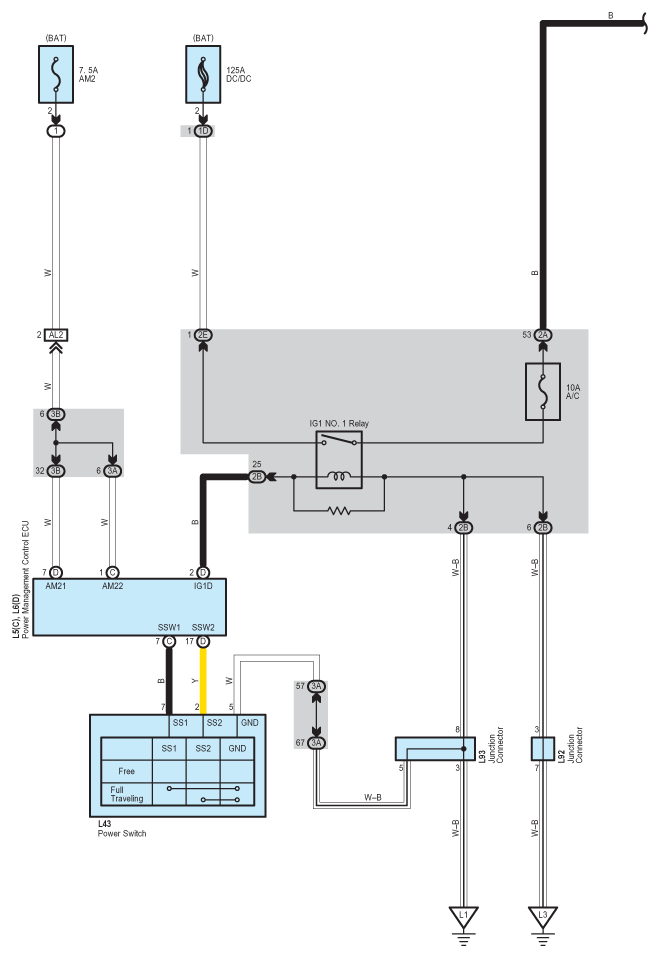

Fig 1: Solar Ventilation System - Circuit Diagram (1 Of 3)
G07570919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

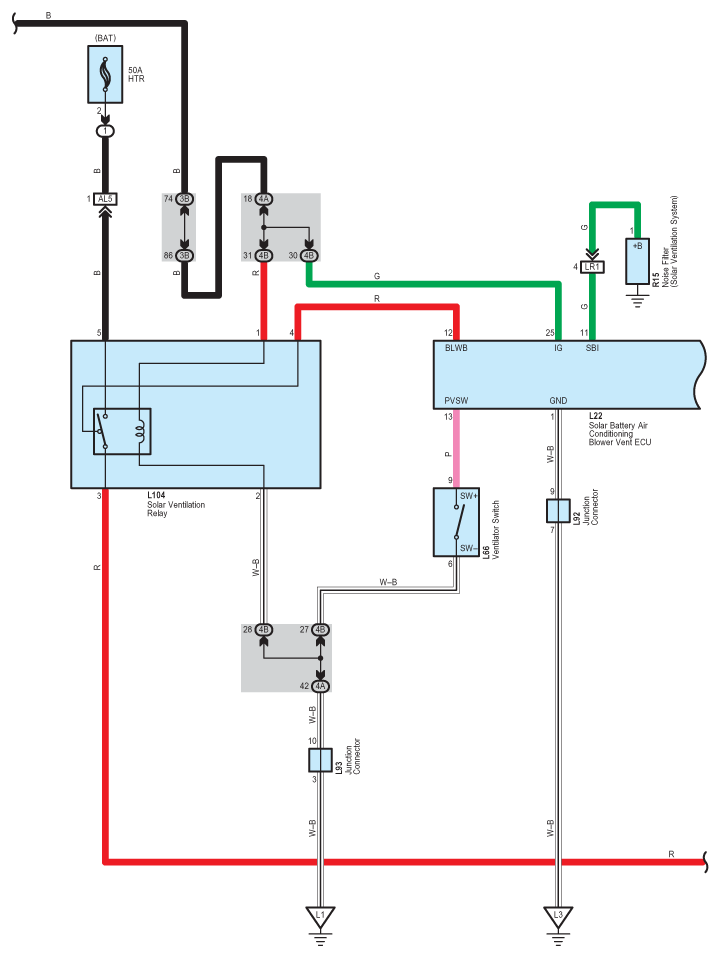

Fig 2: Solar Ventilation System - Circuit Diagram (2 Of 3)
G07570920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

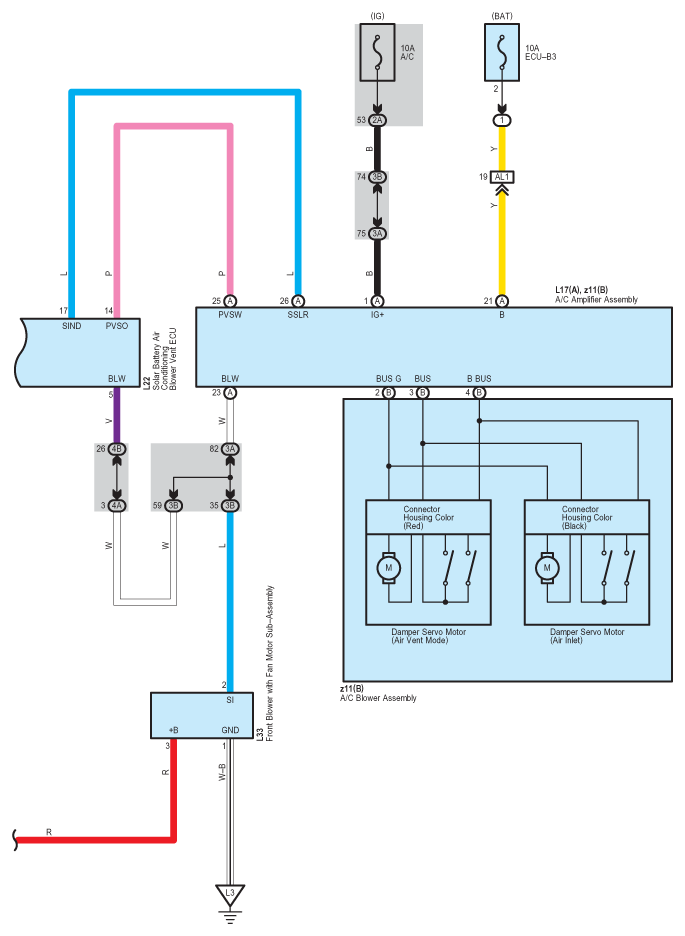

Fig 3: Solar Ventilation System - Circuit Diagram (3 Of 3)
G07570921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
