Remote Air Conditioning System: Notes

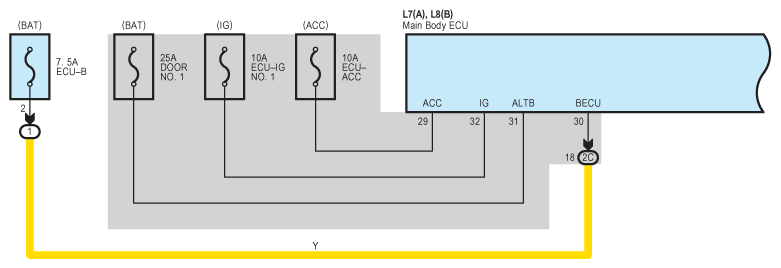

Fig 1: Remote Air Conditioning System - Circuit Diagram (1 Of 33)

G07624819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

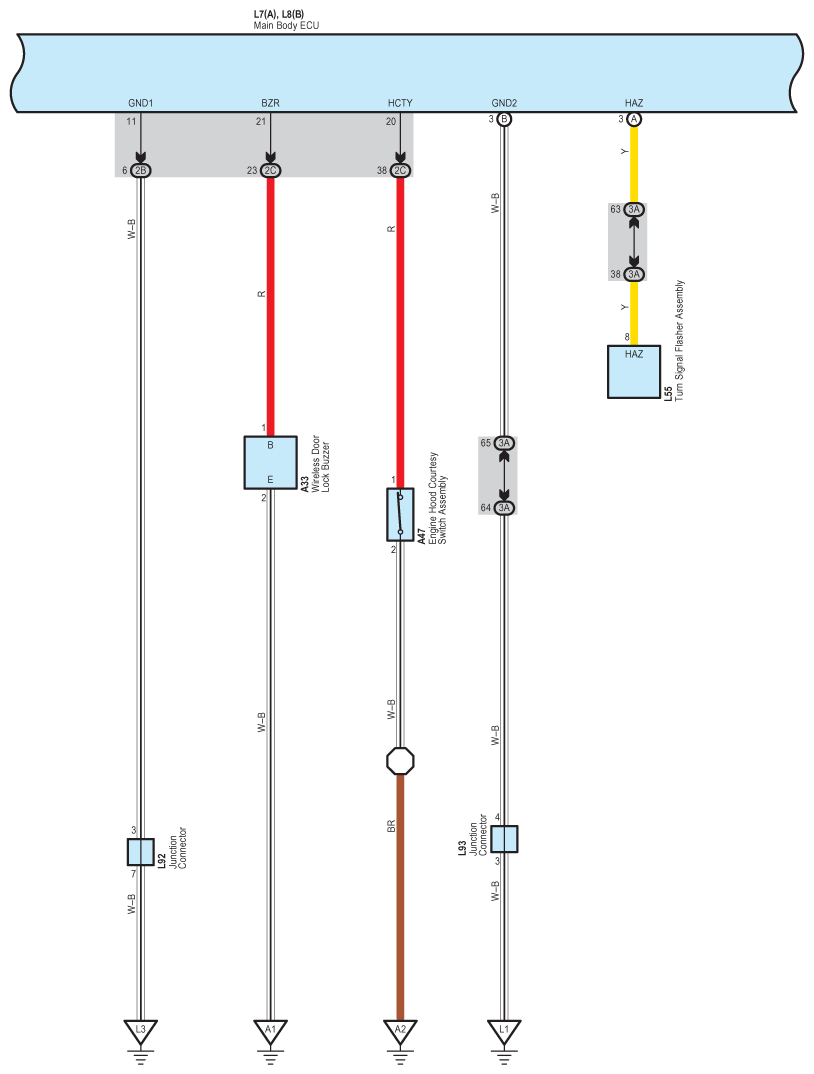

Fig 2: Remote Air Conditioning System - Circuit Diagram (2 Of 33)

G07624820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

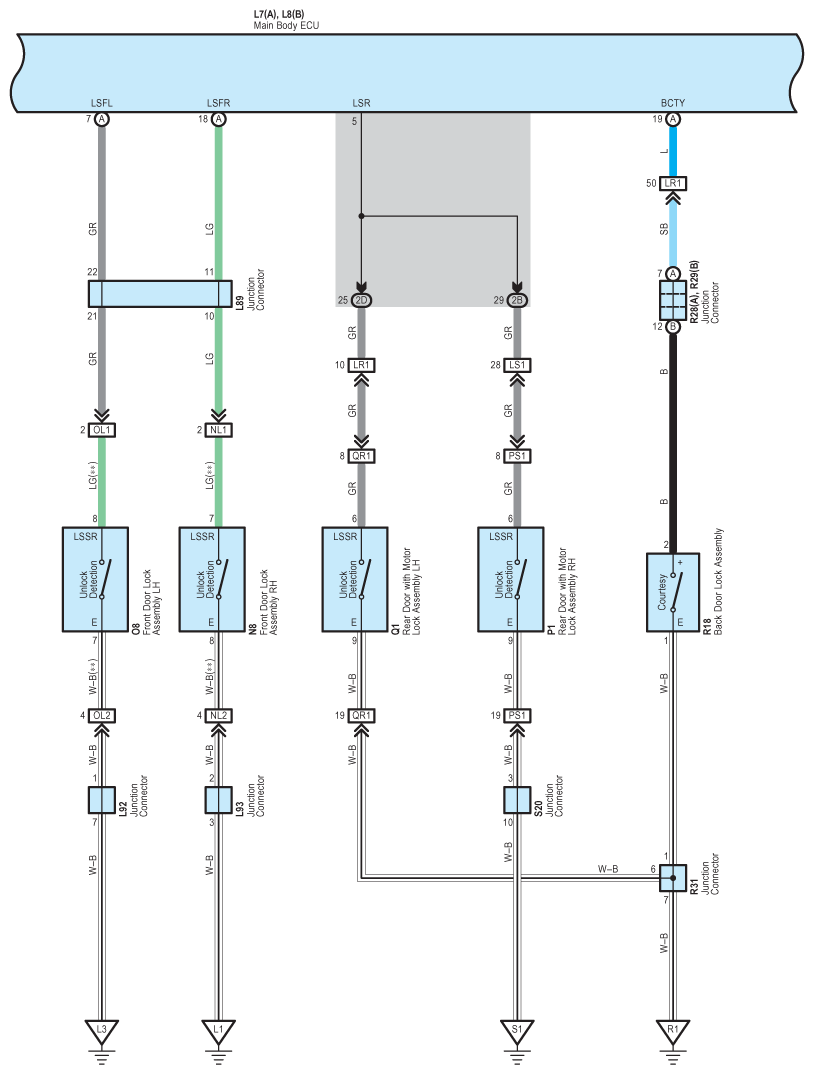

Fig 3: Remote Air Conditioning System - Circuit Diagram (3 Of 33)

G07624821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

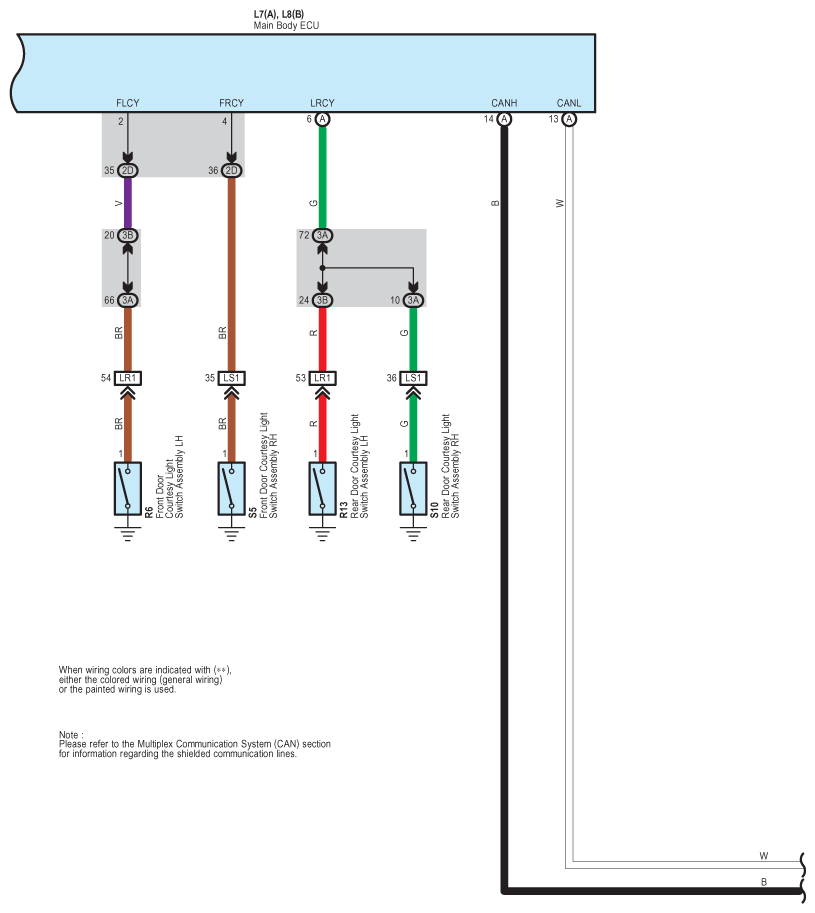

Fig 4: Remote Air Conditioning System - Circuit Diagram (4 Of 33)

G07624822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

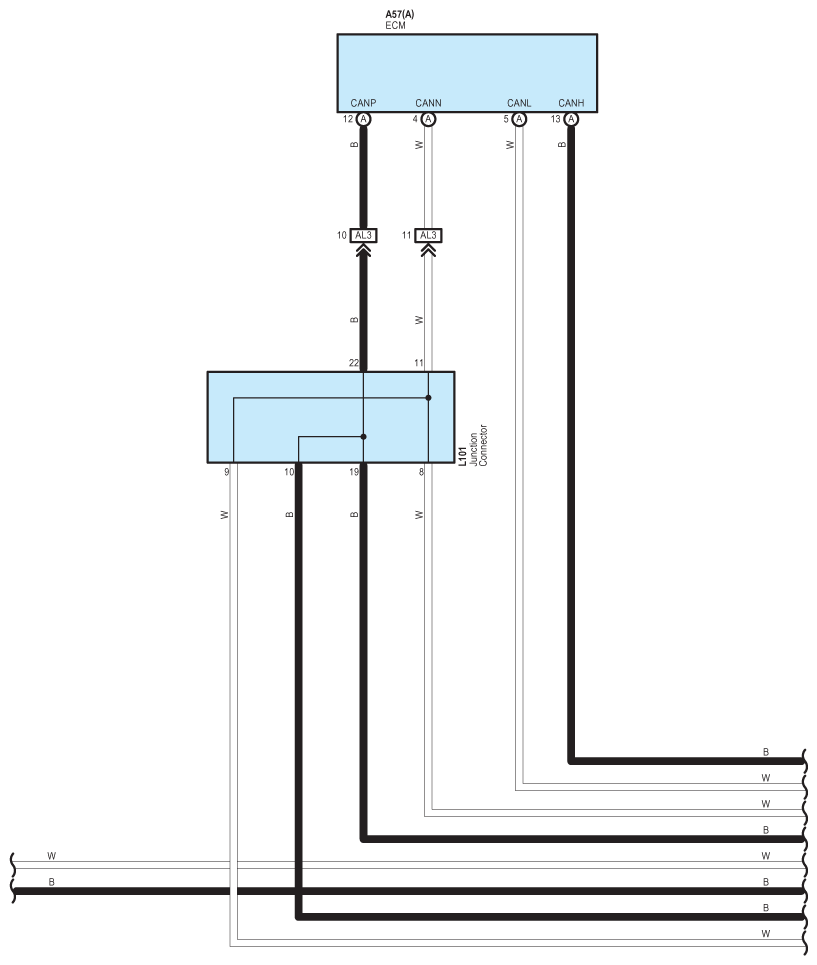

Fig 5: Remote Air Conditioning System - Circuit Diagram (5 Of 33)

G07624823

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

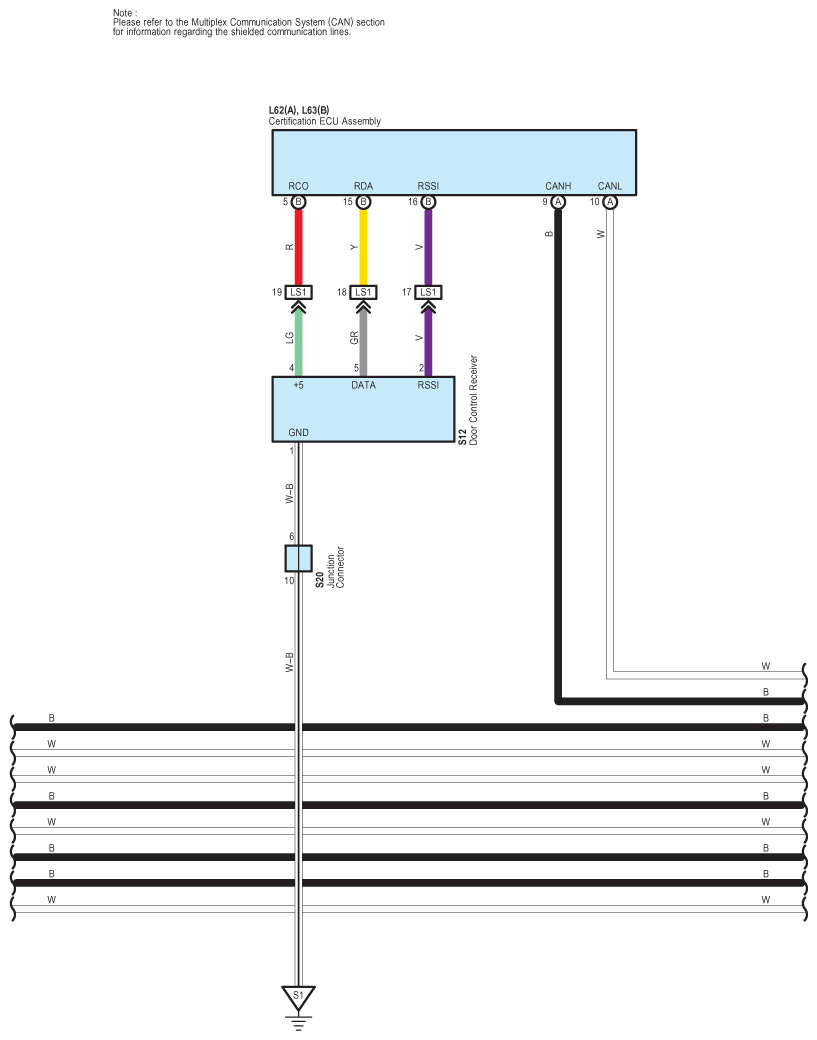

Fig 6: Remote Air Conditioning System - Circuit Diagram (6 Of 33)

G07624824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

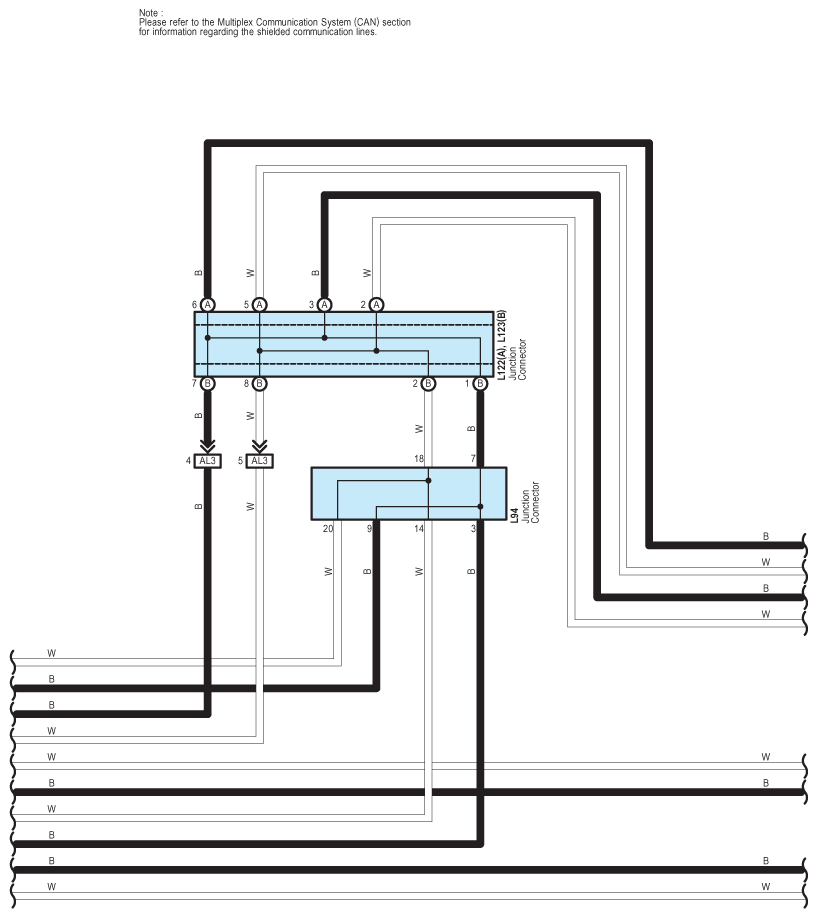

Fig 7: Remote Air Conditioning System - Circuit Diagram (7 Of 33)

G07624825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

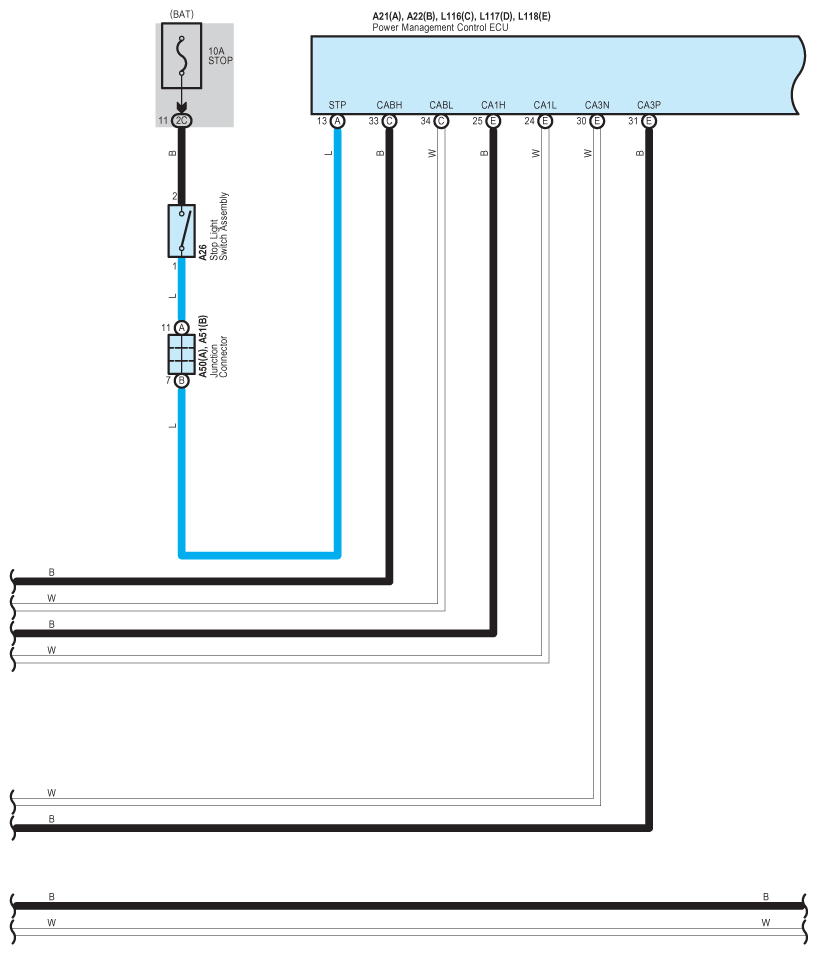

Fig 8: Remote Air Conditioning System - Circuit Diagram (8 Of 33)

G07624826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

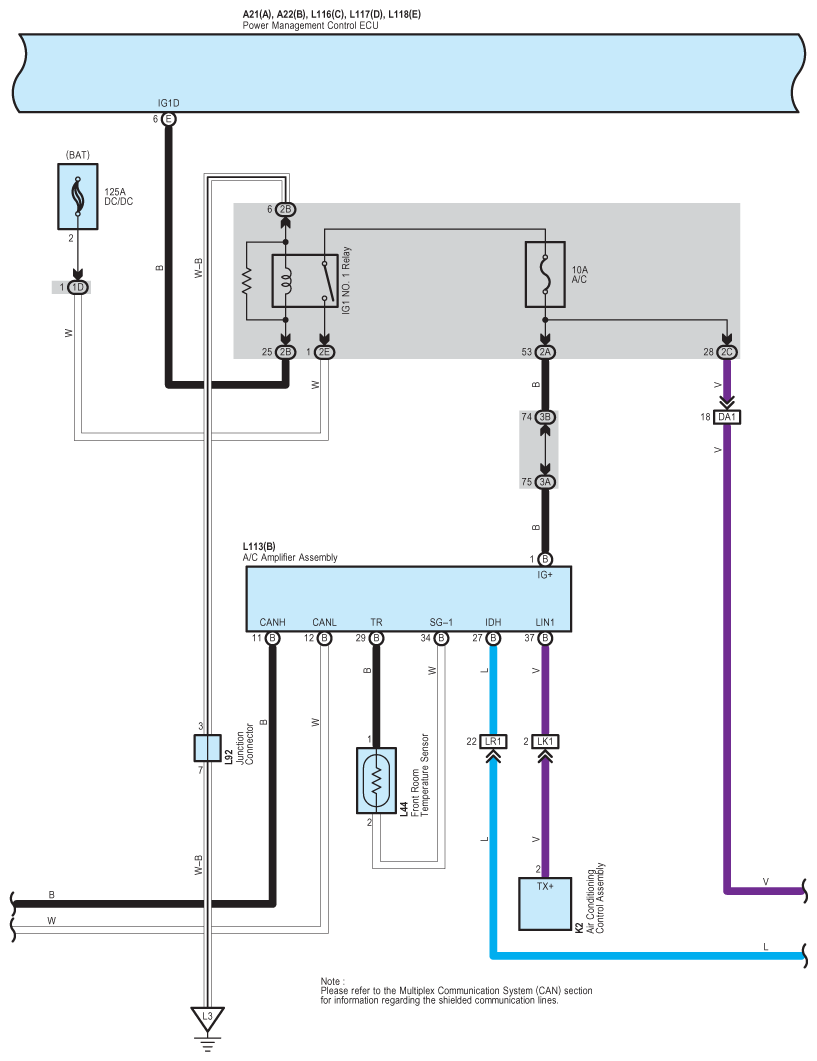

Fig 9: Remote Air Conditioning System - Circuit Diagram (9 Of 33)

G07624827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

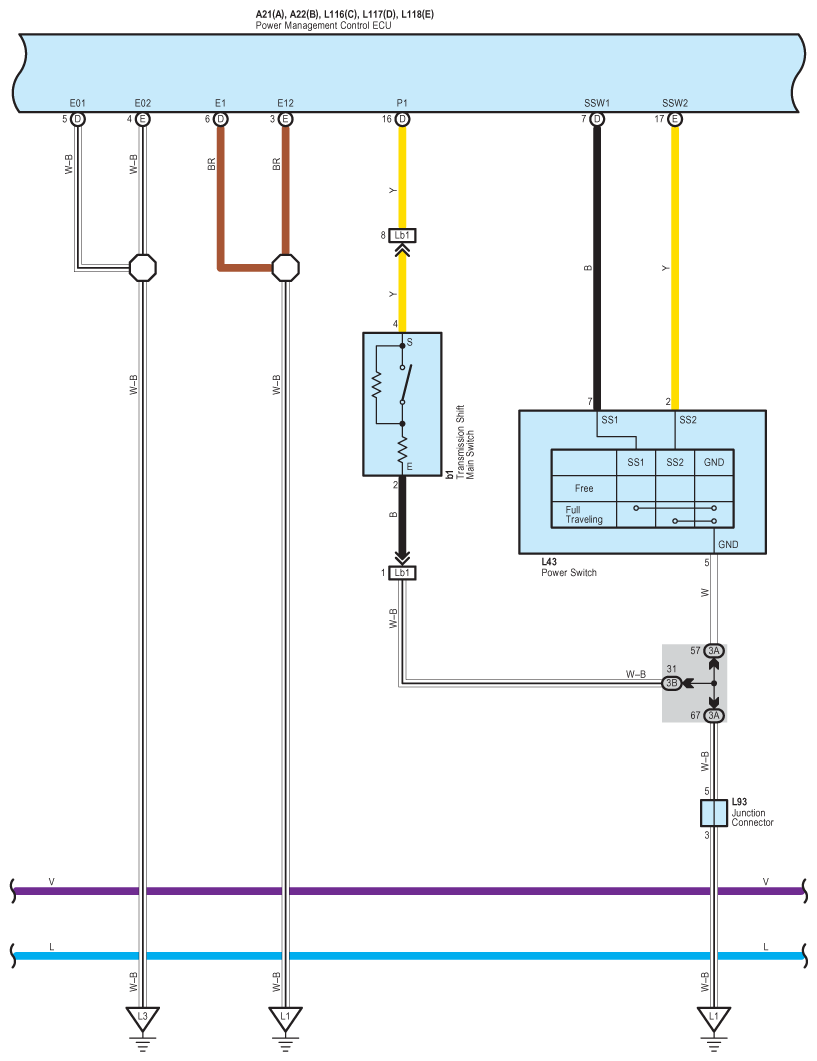

Fig 10: Remote Air Conditioning System - Circuit Diagram (10 Of 33)

G07624828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

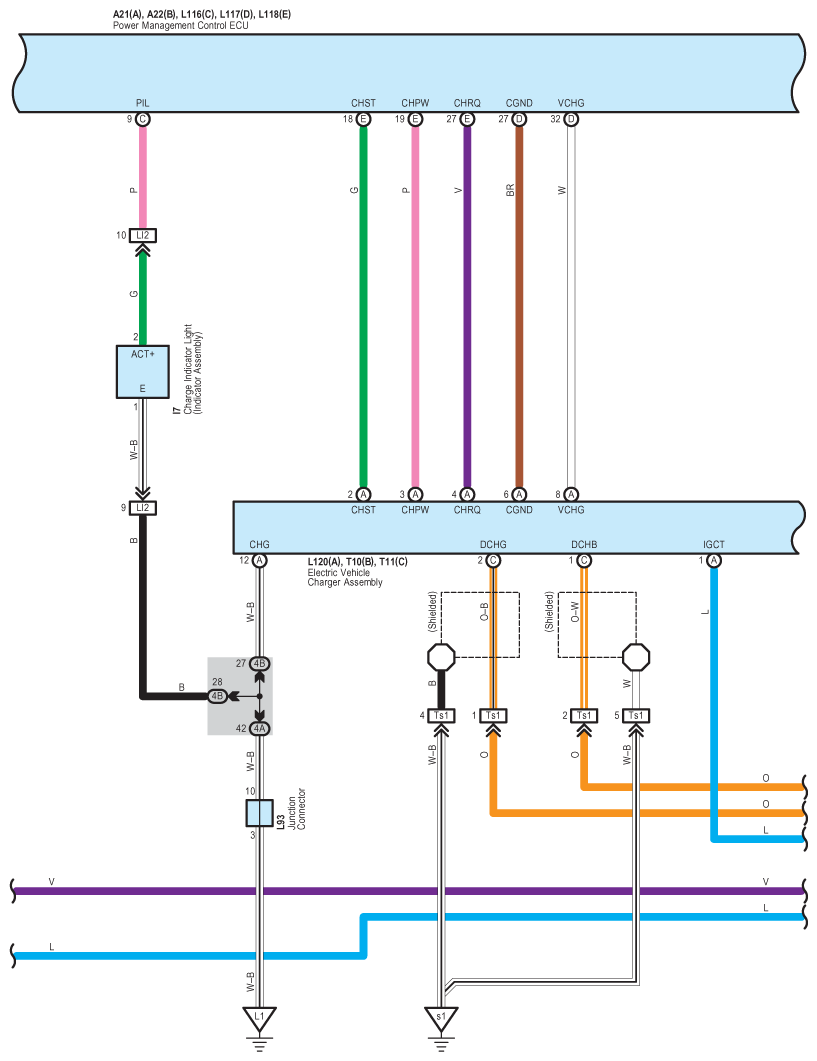

Fig 11: Remote Air Conditioning System - Circuit Diagram (11 Of 33)

G07624829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

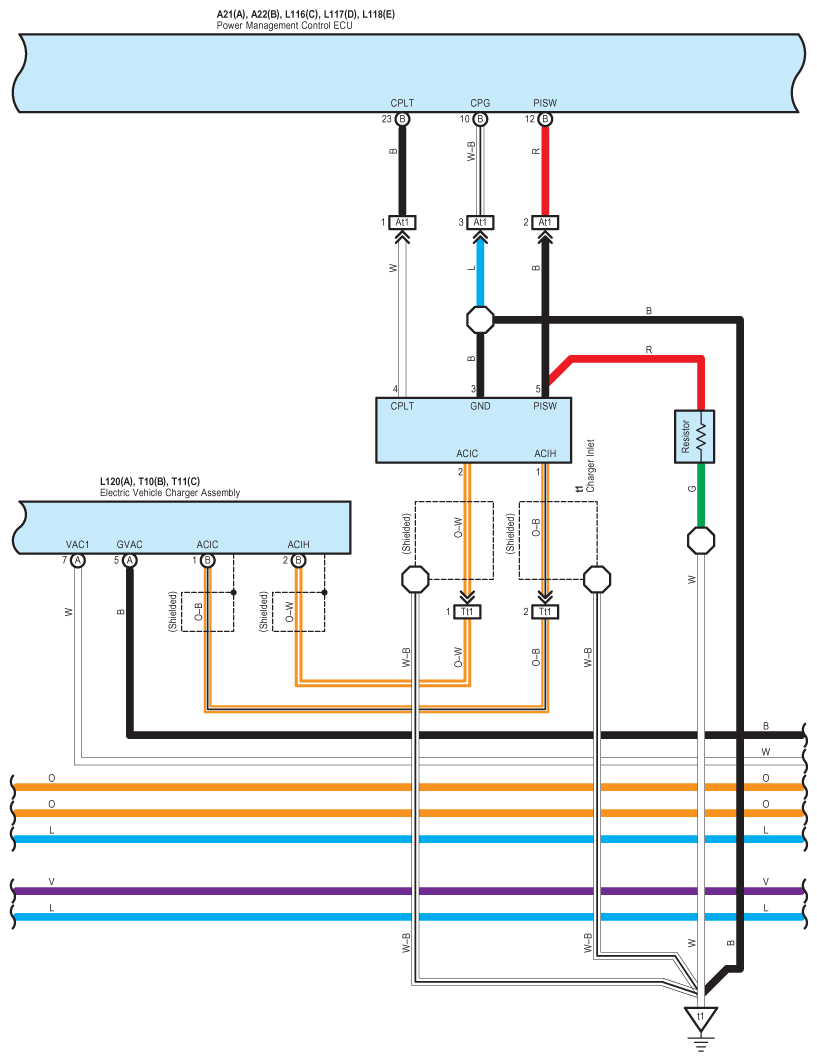

Fig 12: Remote Air Conditioning System - Circuit Diagram (12 Of 33)

G07624830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

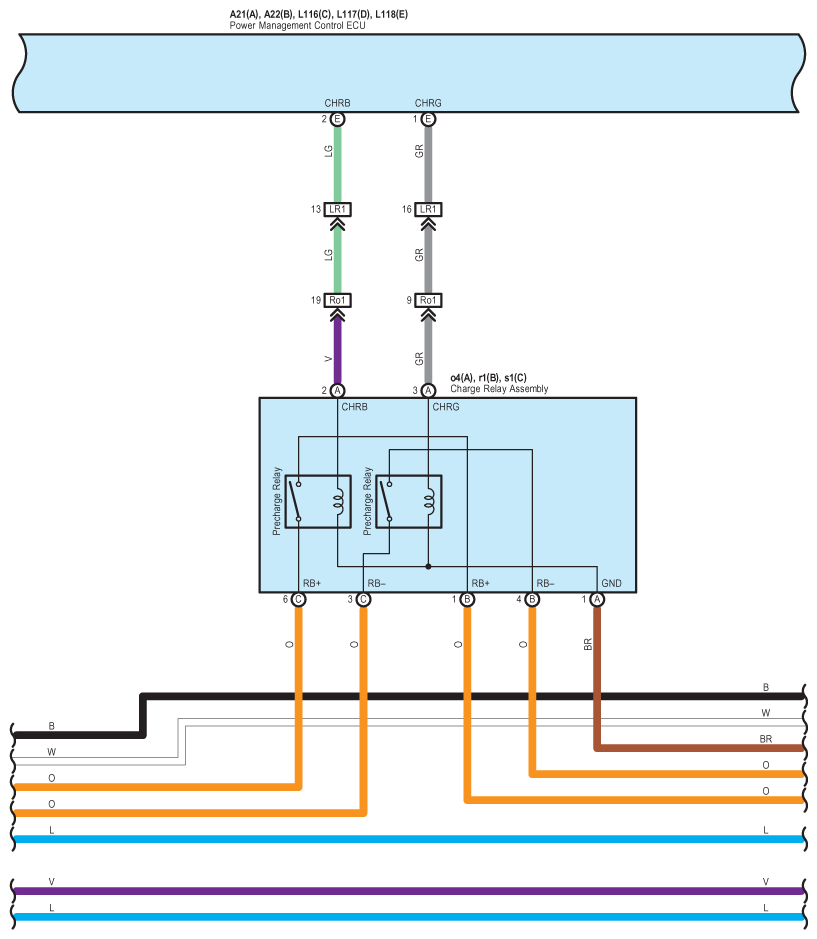

Fig 13: Remote Air Conditioning System - Circuit Diagram (13 Of 33)

G07624831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

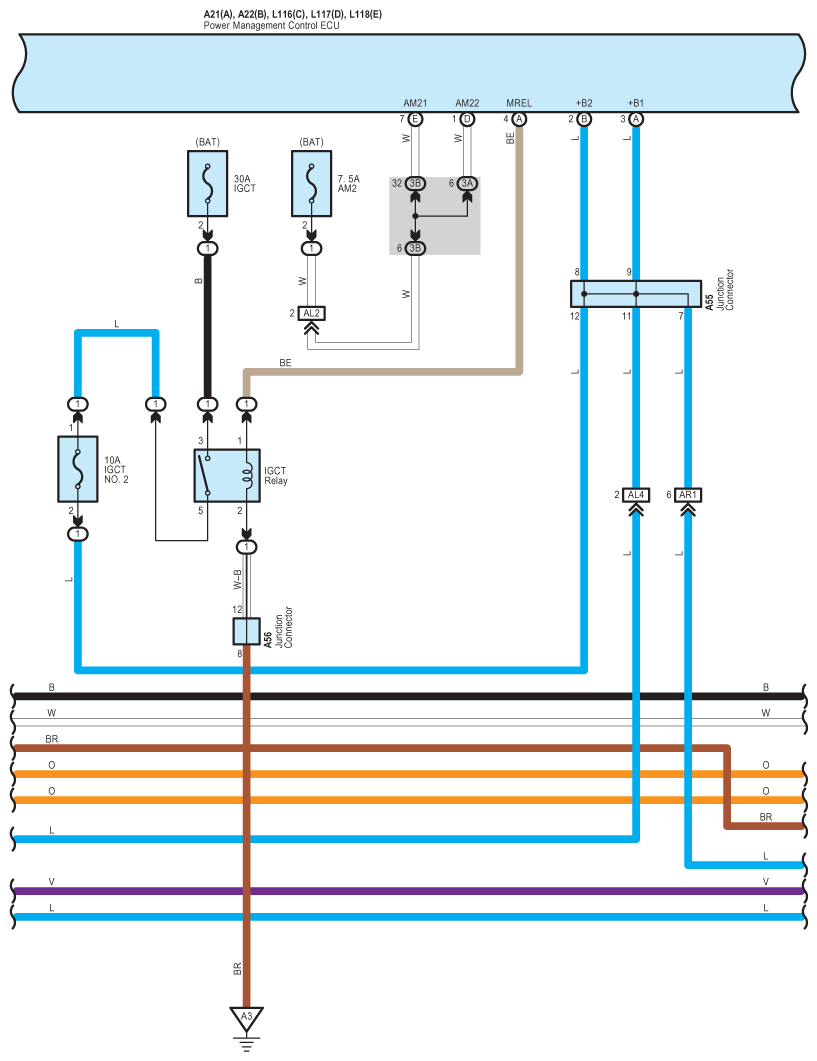

Fig 14: Remote Air Conditioning System - Circuit Diagram (14 Of 33)

G07624832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

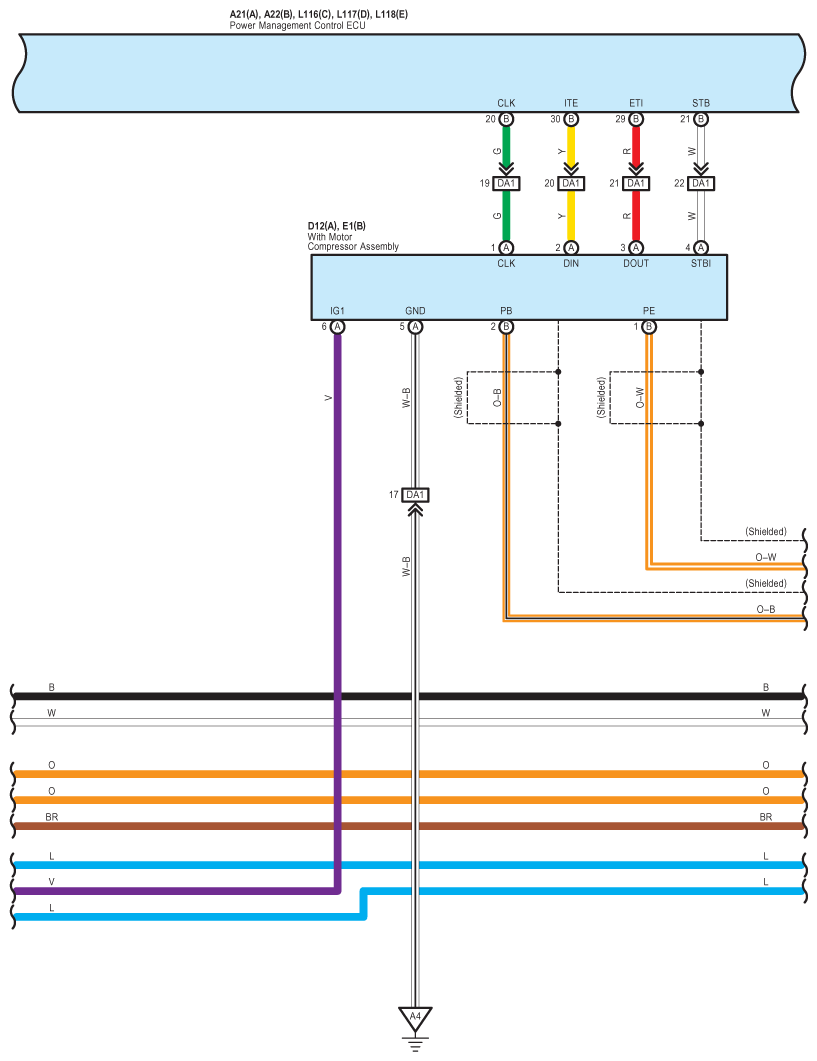

Fig 15: Remote Air Conditioning System - Circuit Diagram (15 Of 33)

G07624833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

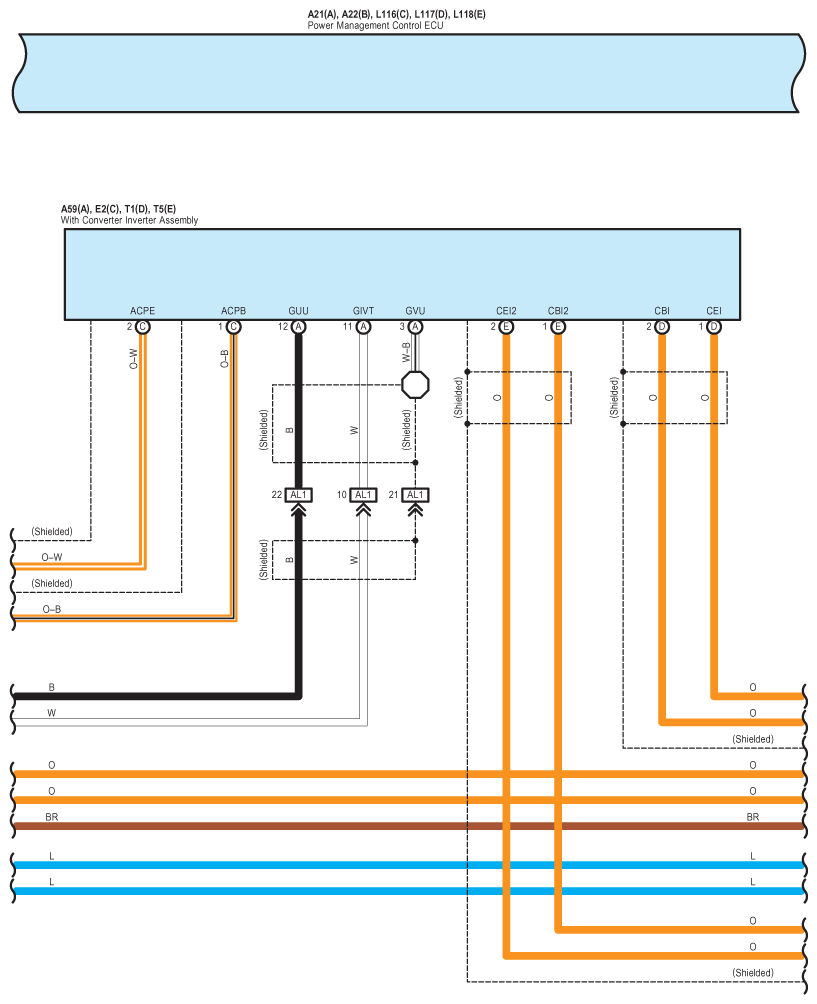

Fig 16: Remote Air Conditioning System - Circuit Diagram (16 Of 33)

G07624834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

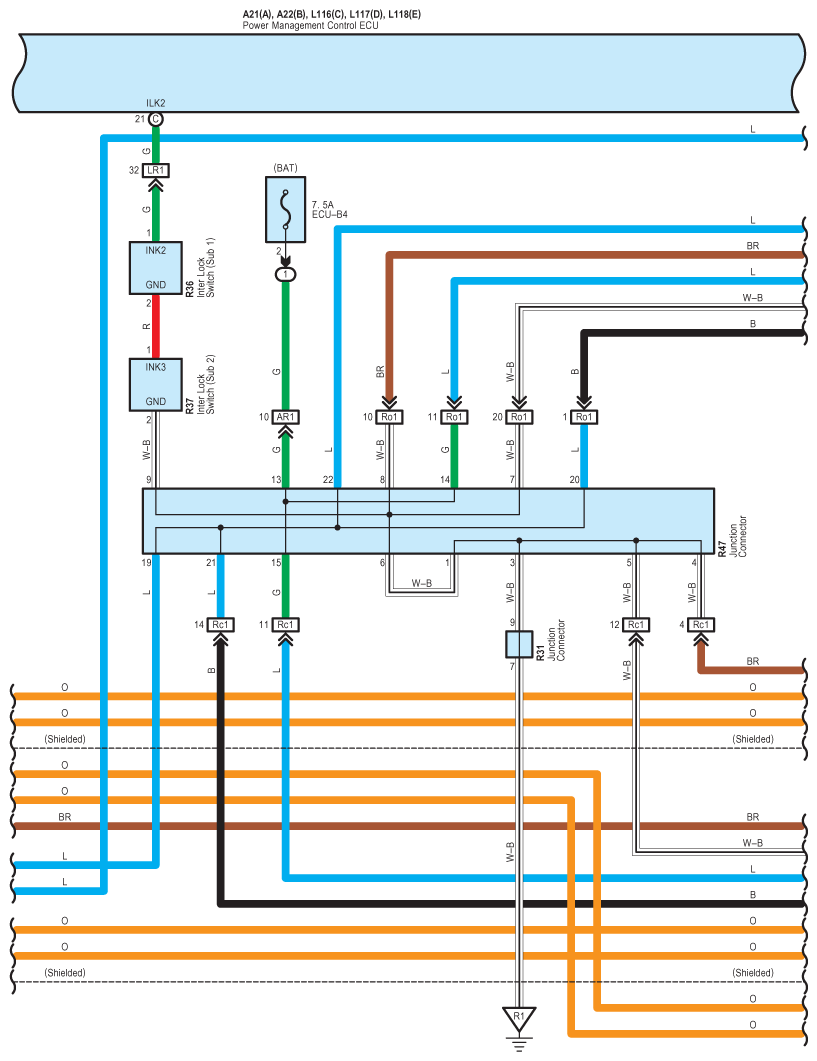

Fig 17: Remote Air Conditioning System - Circuit Diagram (17 Of 33)

G07624835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

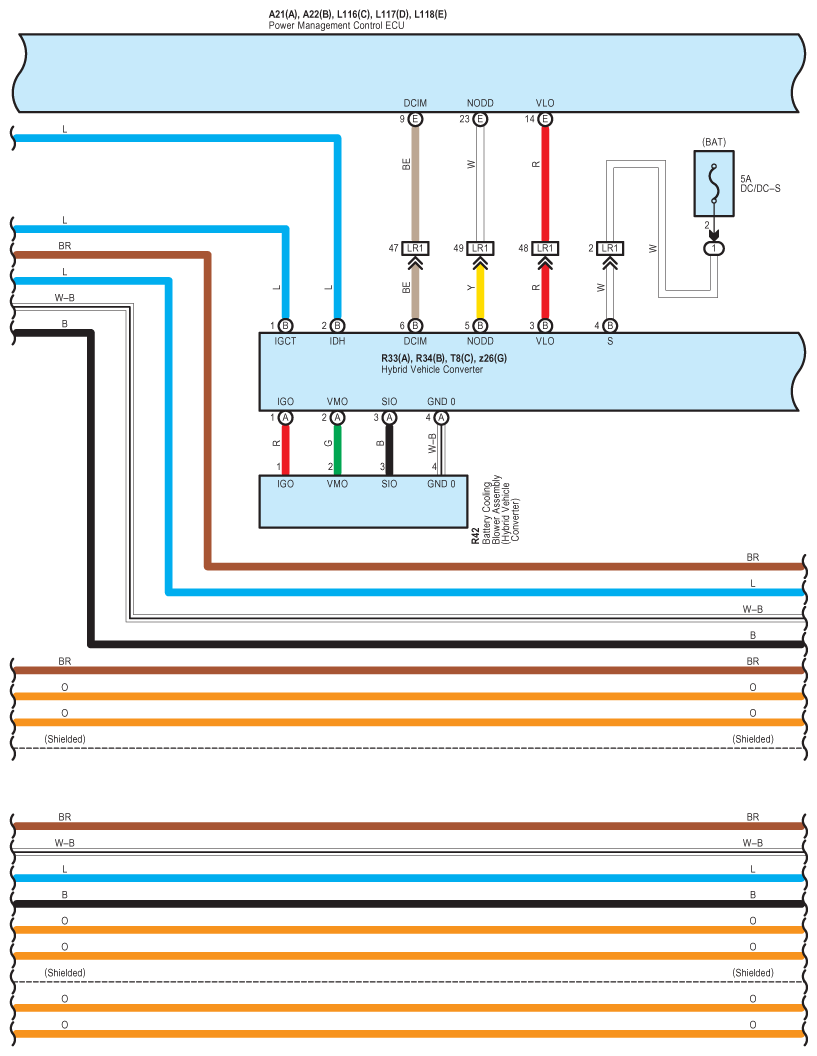

Fig 18: Remote Air Conditioning System - Circuit Diagram (18 Of 33)

G07624836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

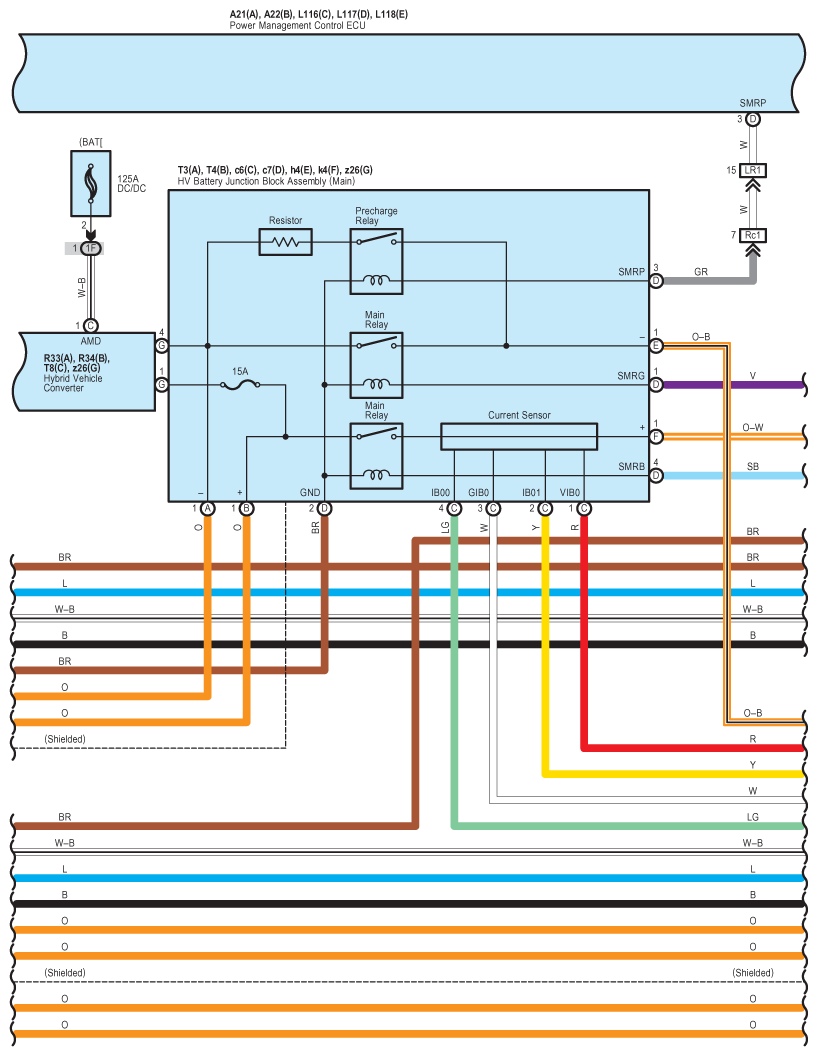

Fig 19: Remote Air Conditioning System - Circuit Diagram (19 Of 33)

G07624837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

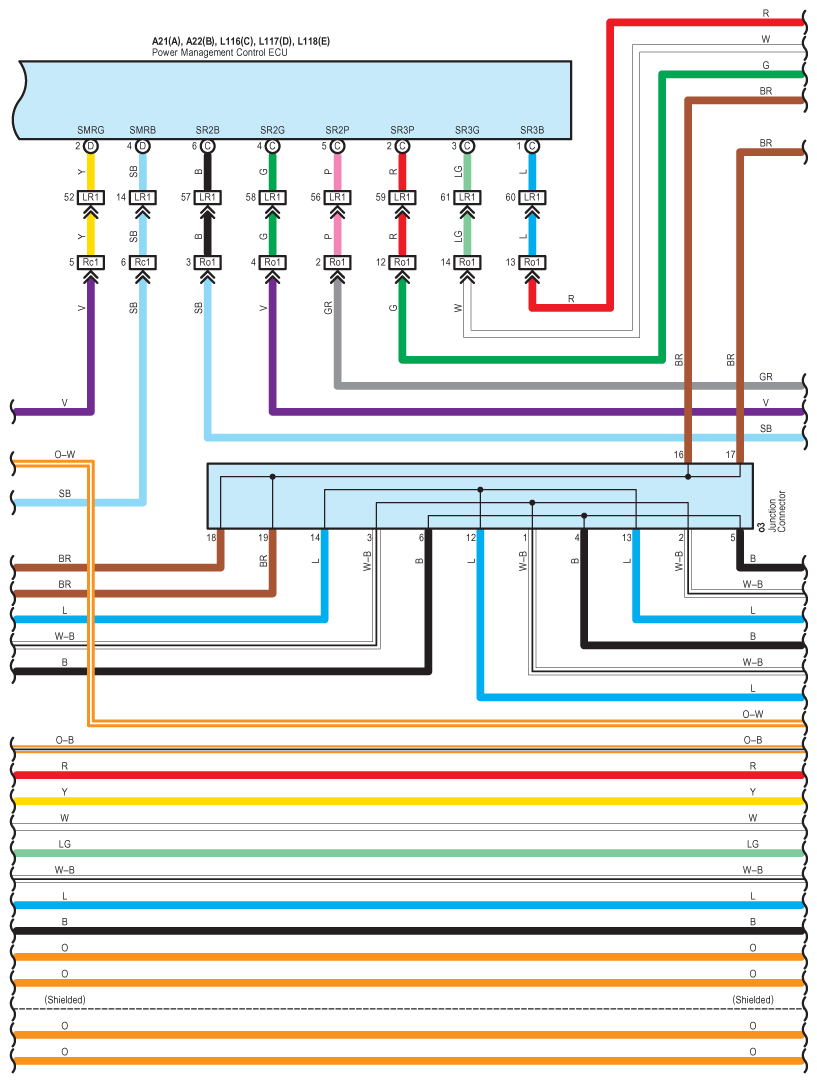

Fig 20: Remote Air Conditioning System - Circuit Diagram (20 Of 33)

G07624838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

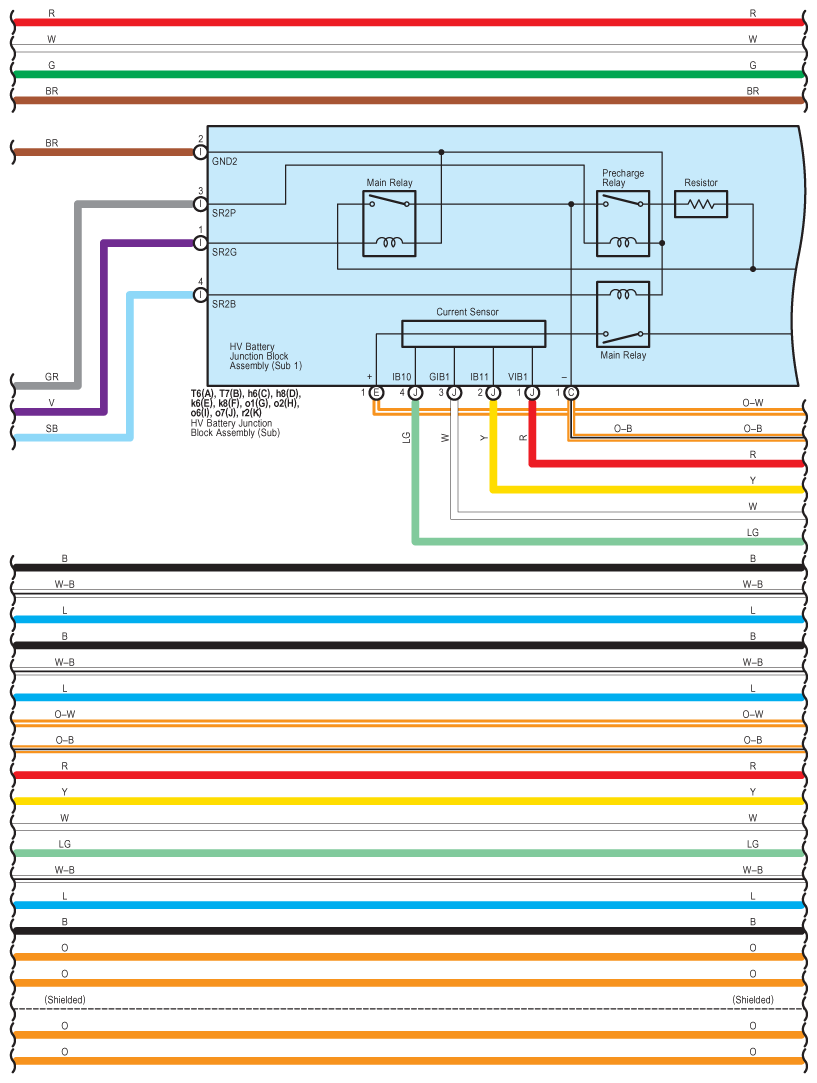

Fig 21: Remote Air Conditioning System - Circuit Diagram (21 Of 33)

G07624839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

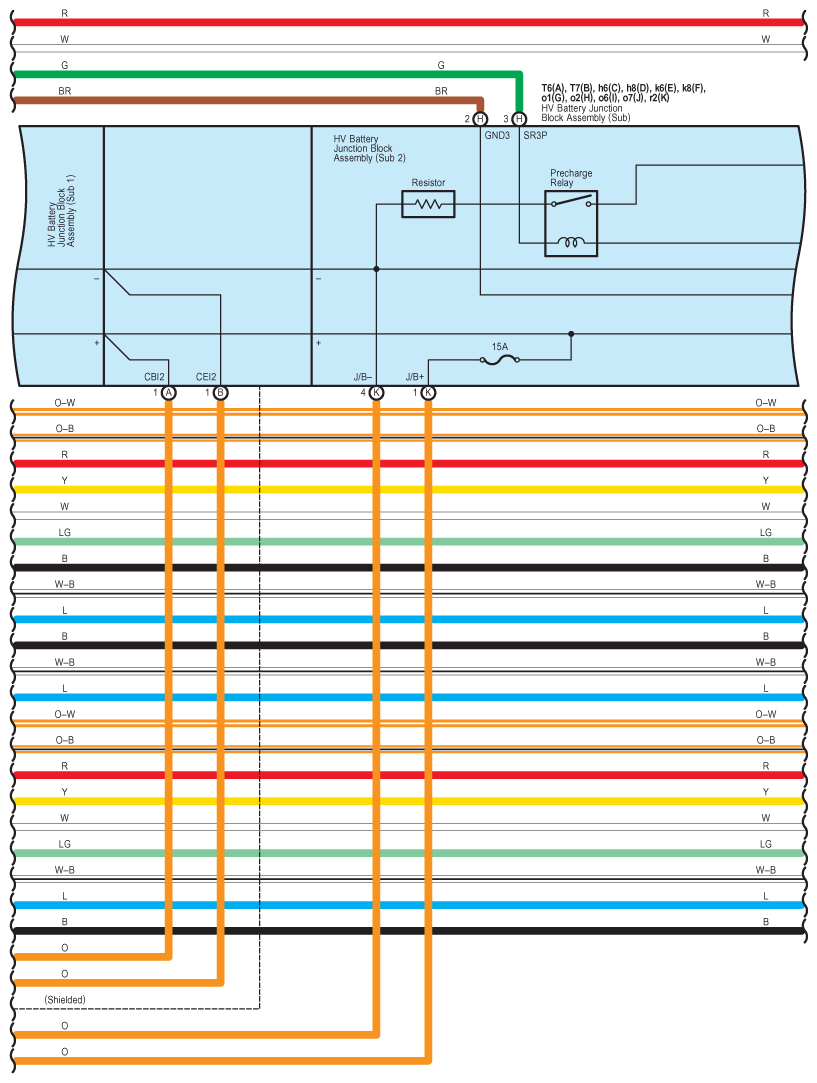

Fig 22: Remote Air Conditioning System - Circuit Diagram (22 Of 33)

G07624840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

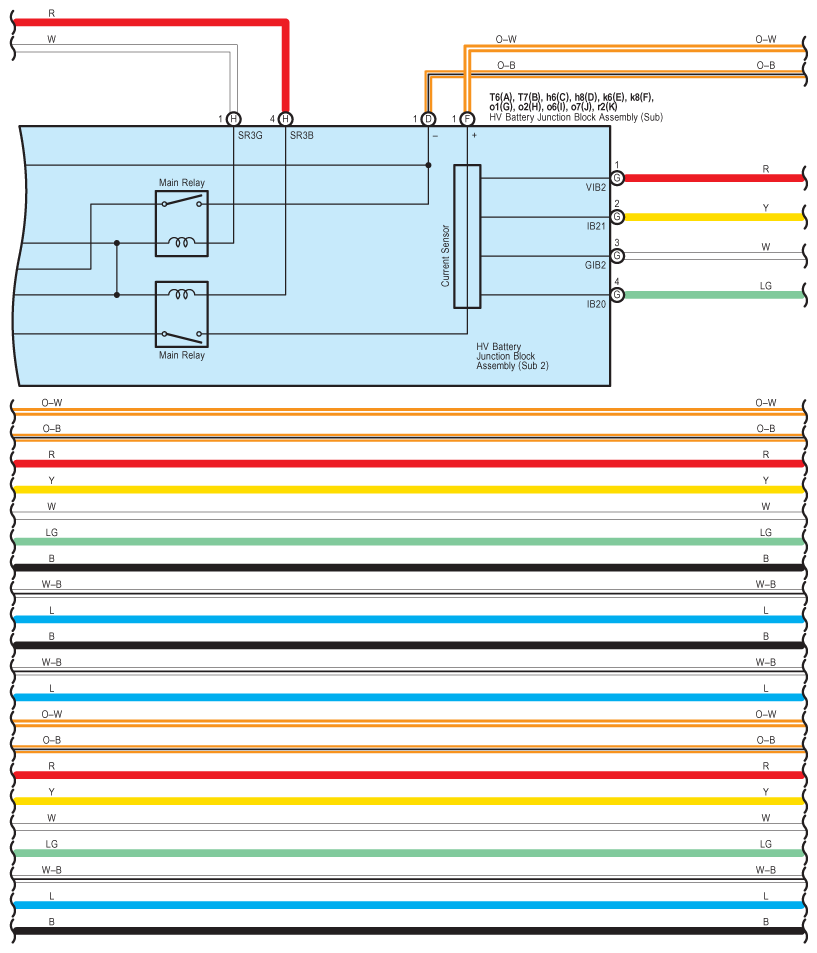

Fig 23: Remote Air Conditioning System - Circuit Diagram (23 Of 33)

G07624841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

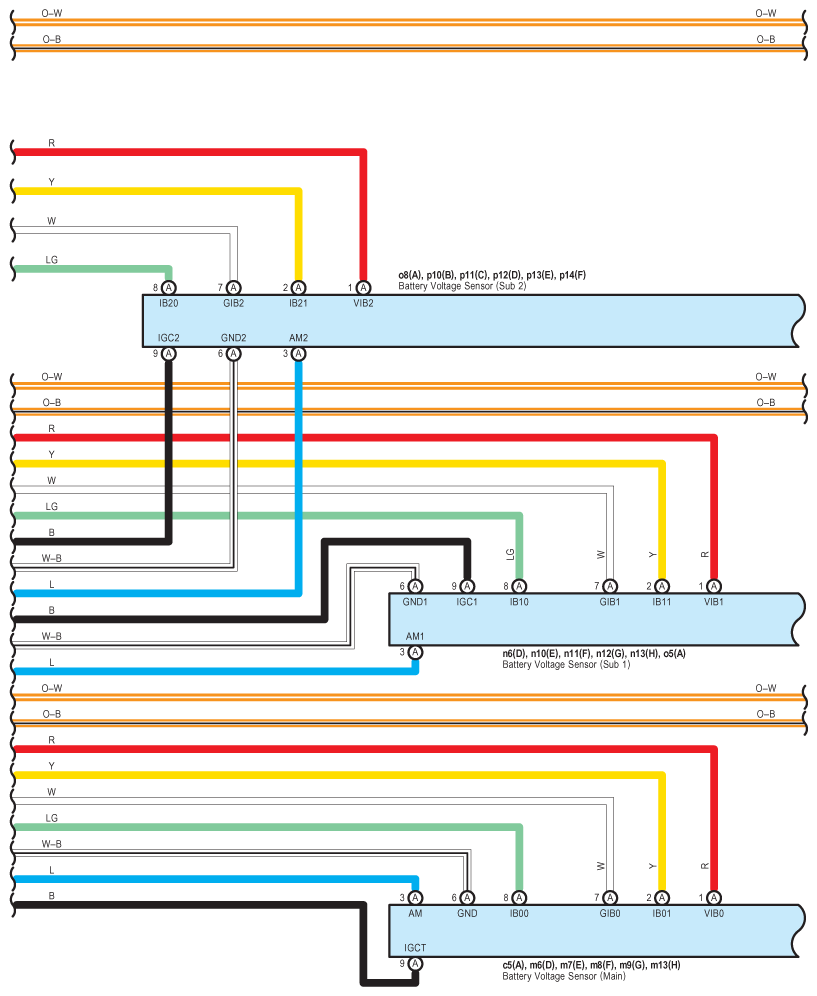

Fig 24: Remote Air Conditioning System - Circuit Diagram (24 Of 33)

G07624842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

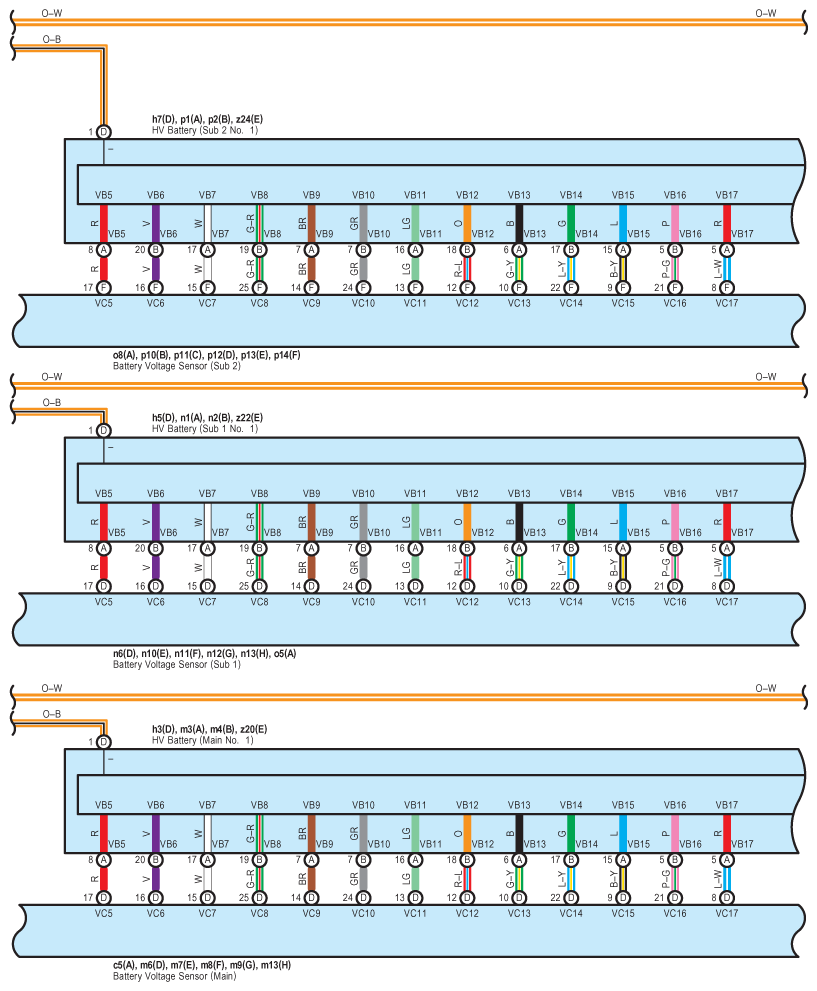

Fig 25: Remote Air Conditioning System - Circuit Diagram (25 Of 33)

G07624843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

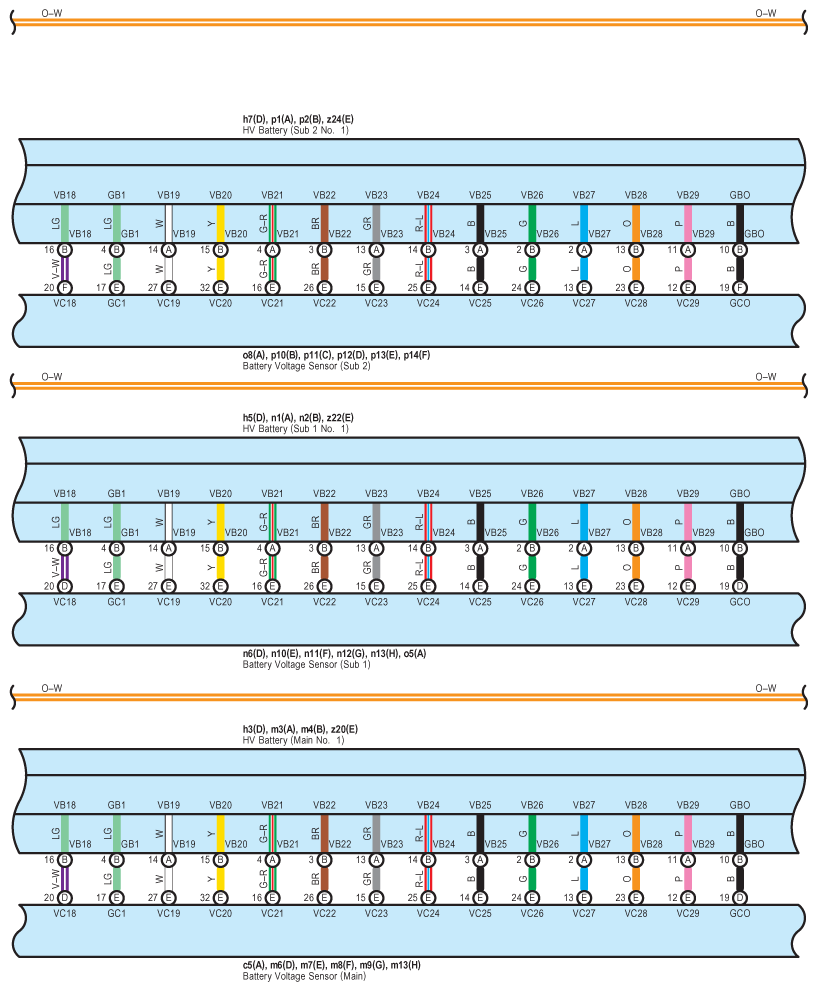

Fig 26: Remote Air Conditioning System - Circuit Diagram (26 Of 33)

G07624844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

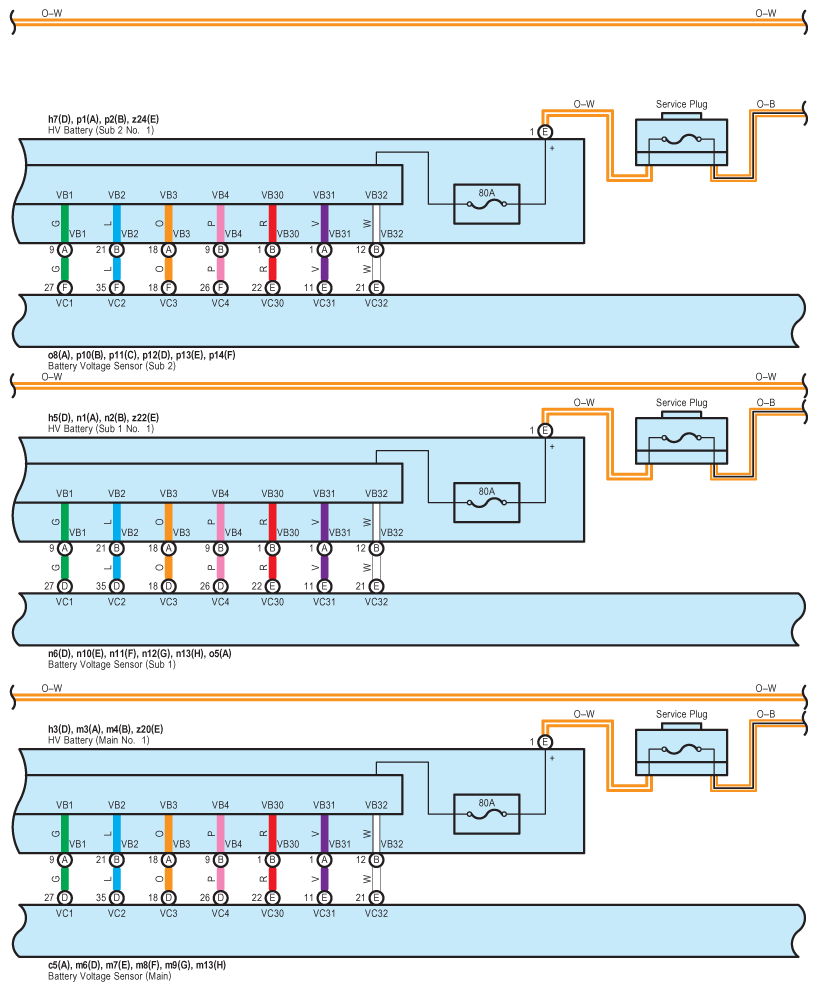

Fig 27: Remote Air Conditioning System - Circuit Diagram (27 Of 33)

G07624845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

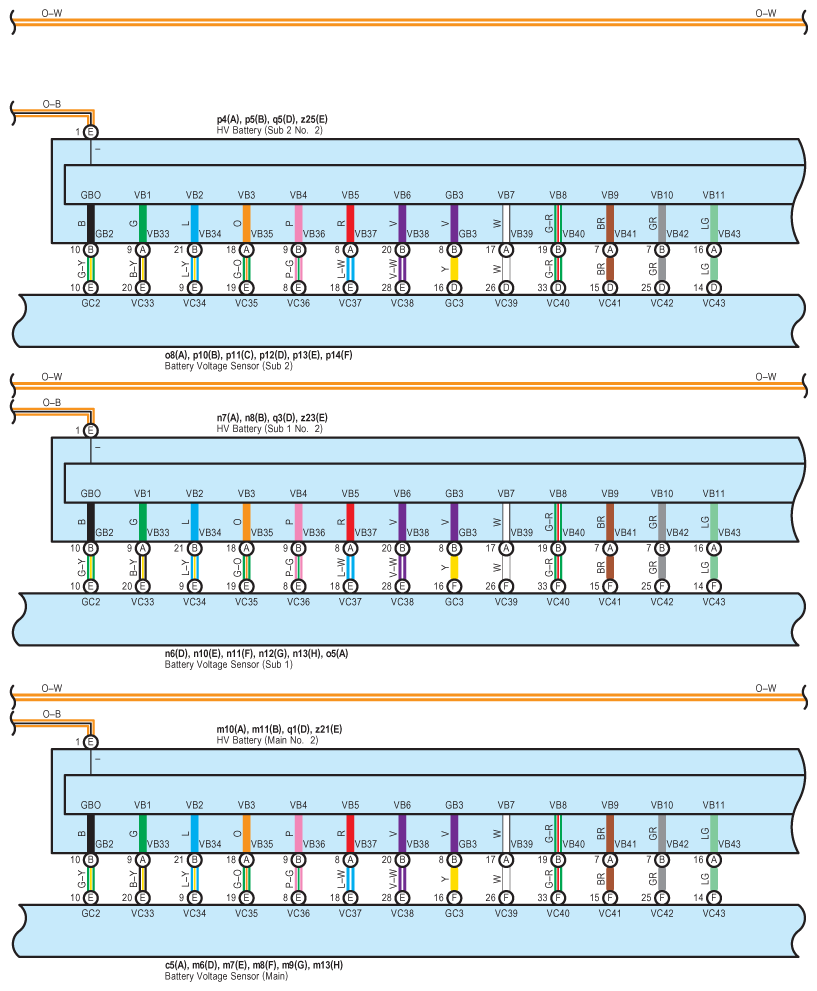

Fig 28: Remote Air Conditioning System - Circuit Diagram (28 Of 33)

G07624846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

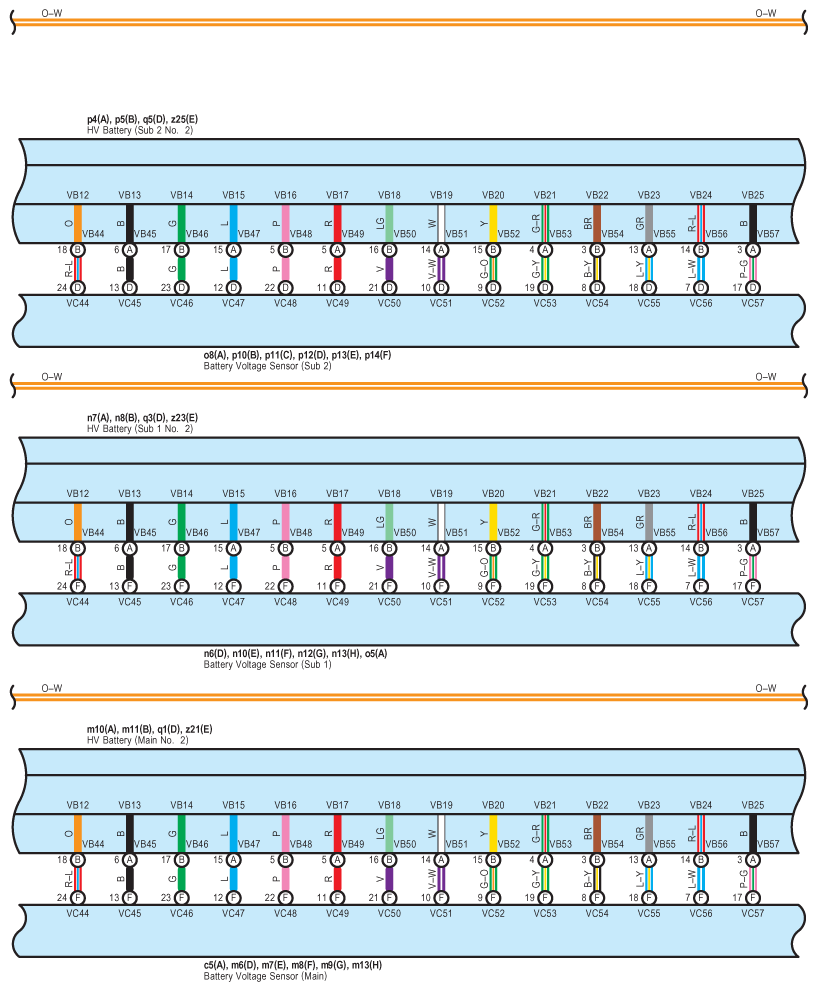

Fig 29: Remote Air Conditioning System - Circuit Diagram (29 Of 33)

G07624847

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

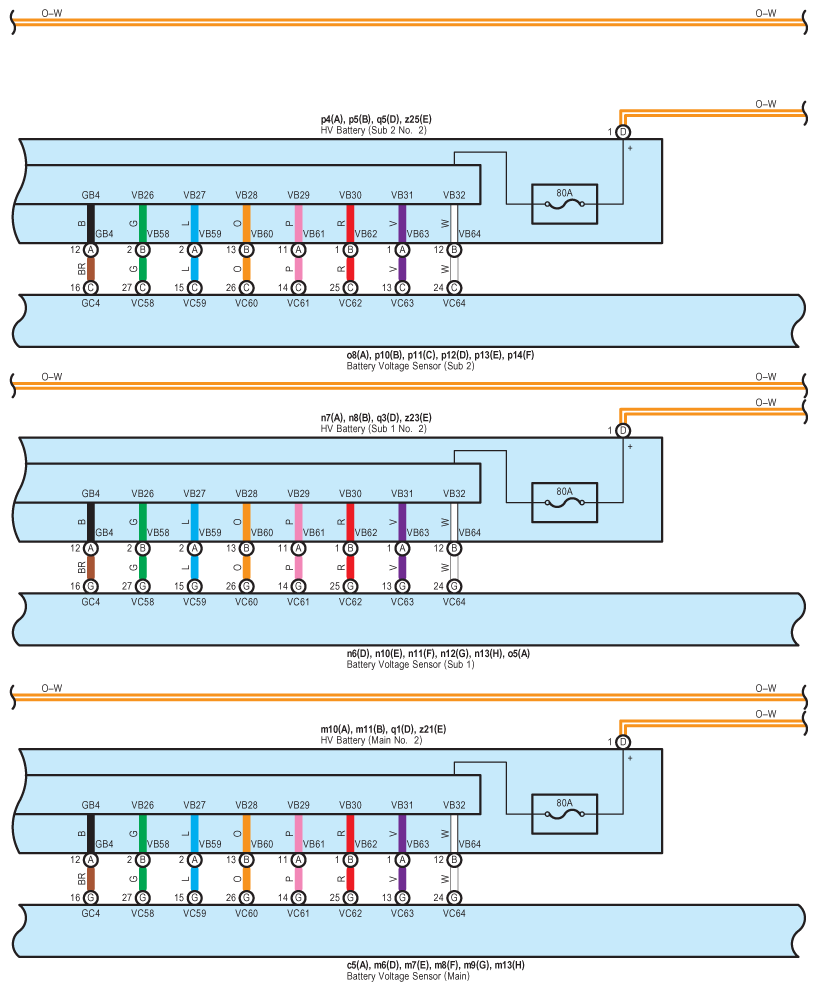

Fig 30: Remote Air Conditioning System - Circuit Diagram (30 Of 33)

G07624848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

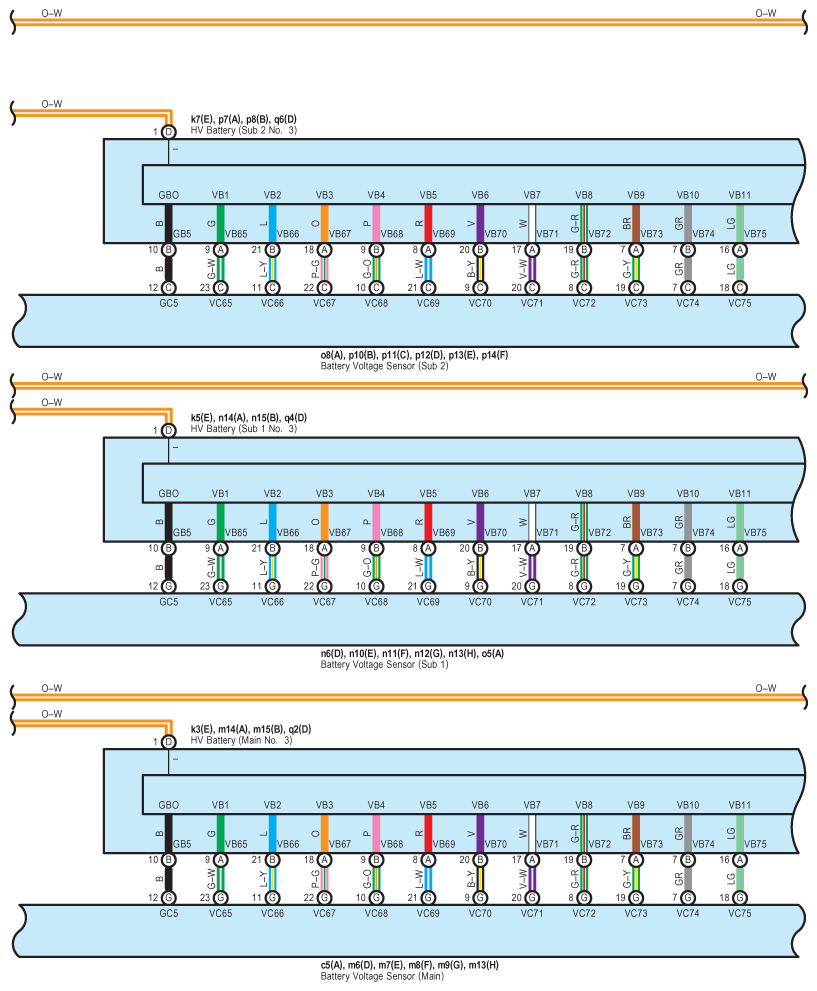

Fig 31: Remote Air Conditioning System - Circuit Diagram (31 Of 33)

G07624849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

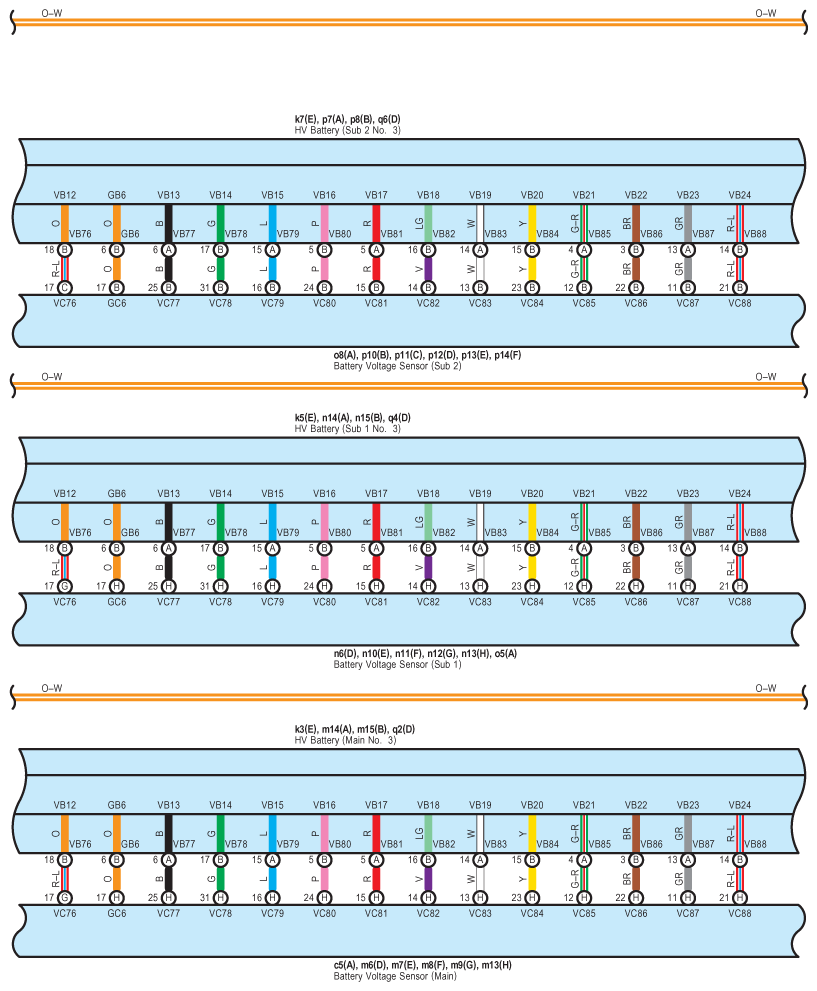

Fig 32: Remote Air Conditioning System - Circuit Diagram (32 Of 33)

G07624850

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

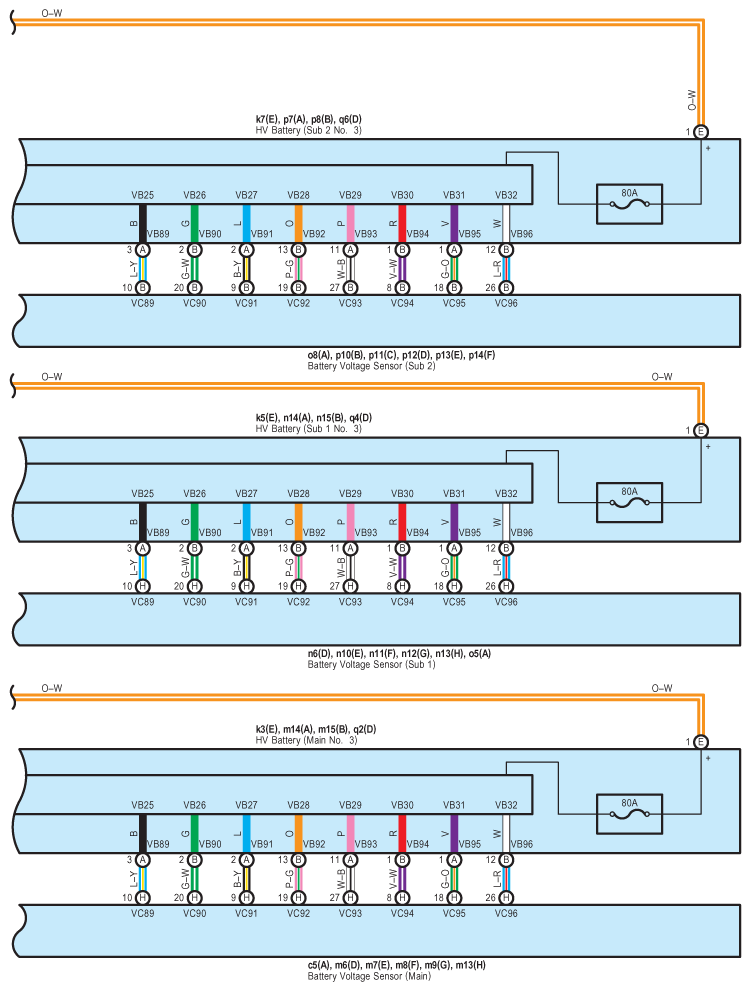

Fig 33: Remote Air Conditioning System - Circuit Diagram (33 Of 33)

G07624851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
