Smart Key System and Back Door Opener: Notes

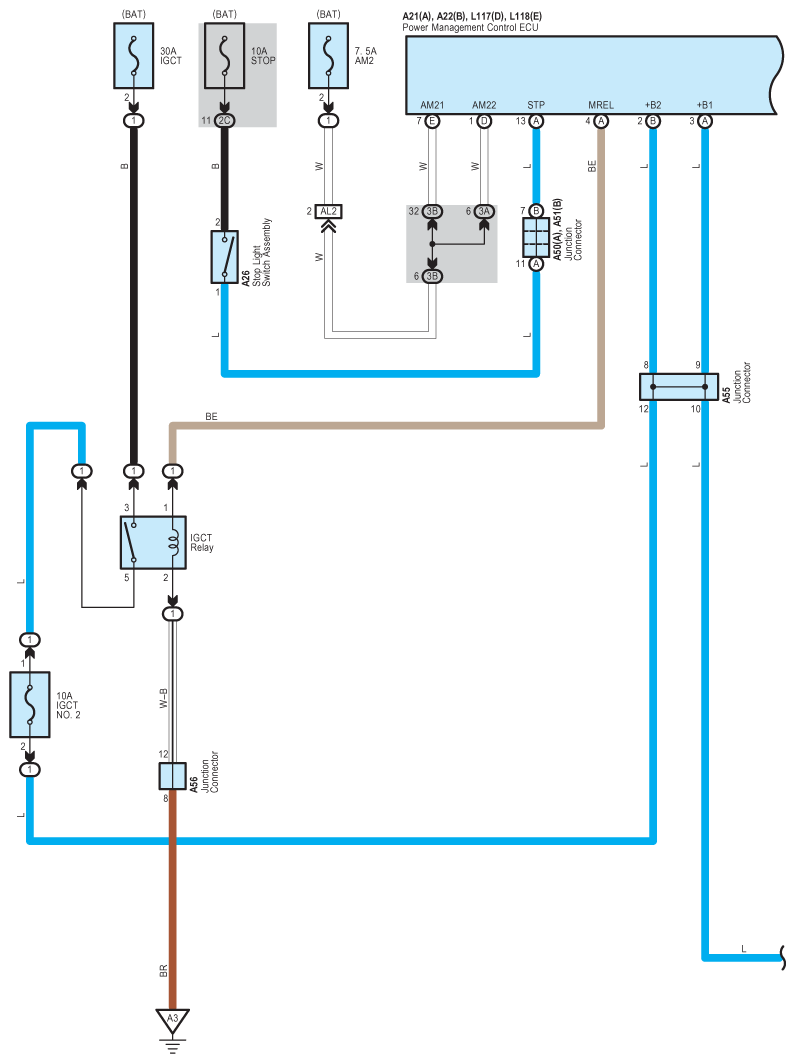

Fig 1: Smart Key System And Back Door Opener - Circuit Diagram (1 Of 21)

G07624661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

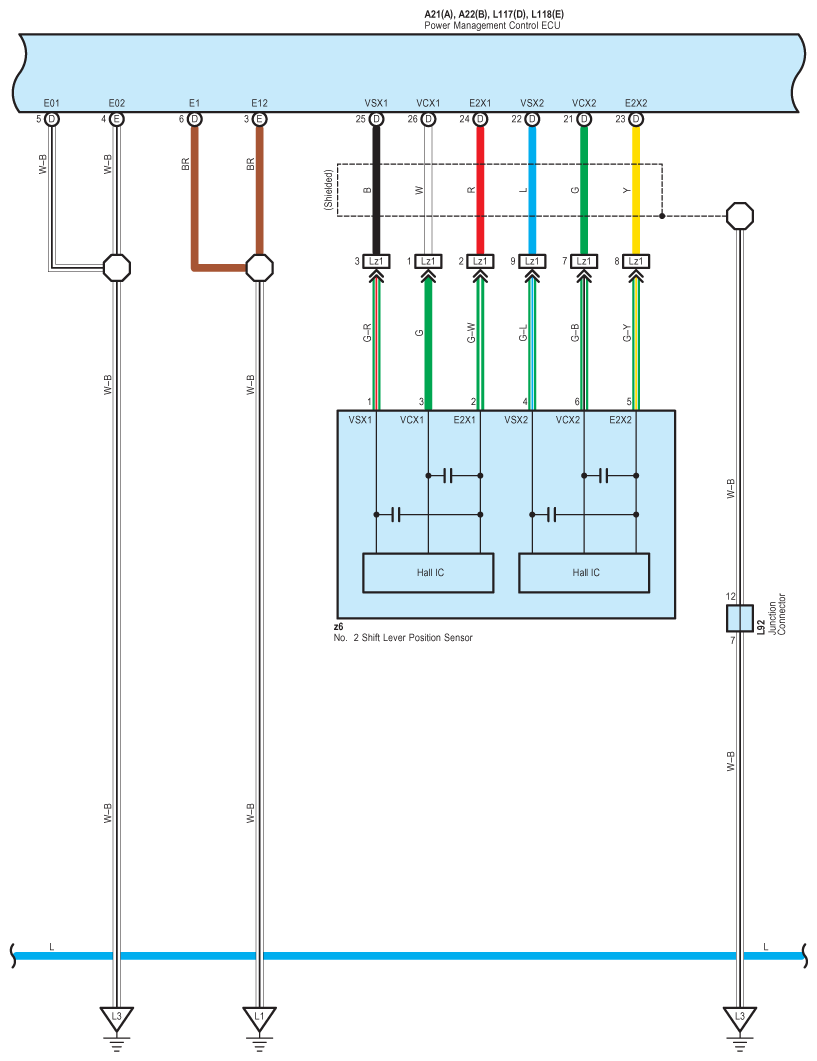

Fig 2: Smart Key System And Back Door Opener - Circuit Diagram (2 Of 21)

G07624662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

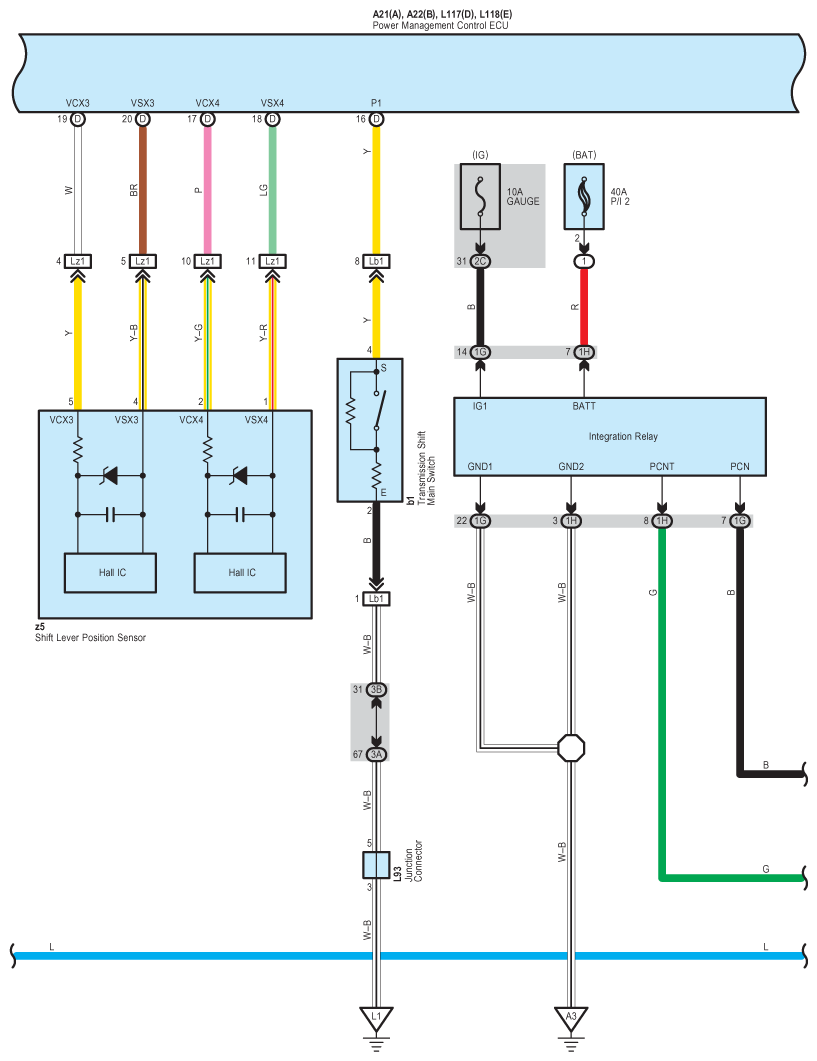

Fig 3: Smart Key System And Back Door Opener - Circuit Diagram (3 Of 21)

G07624663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

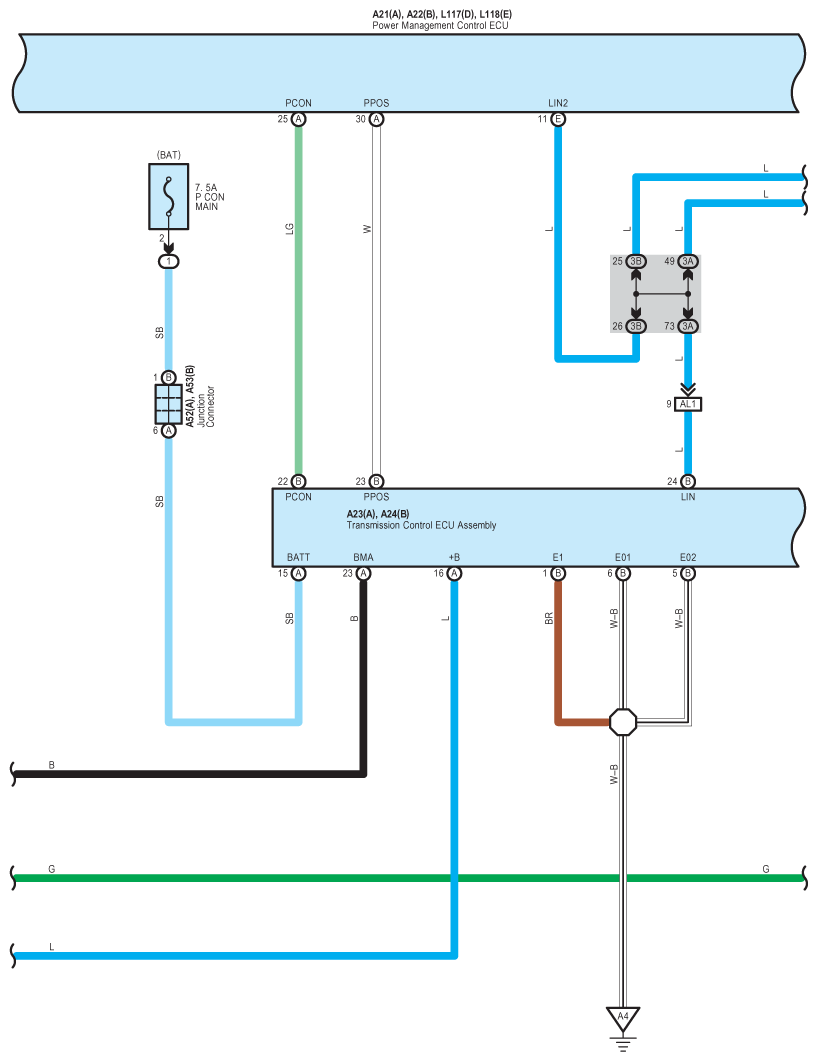

Fig 4: Smart Key System And Back Door Opener - Circuit Diagram (4 Of 21)

G07624664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

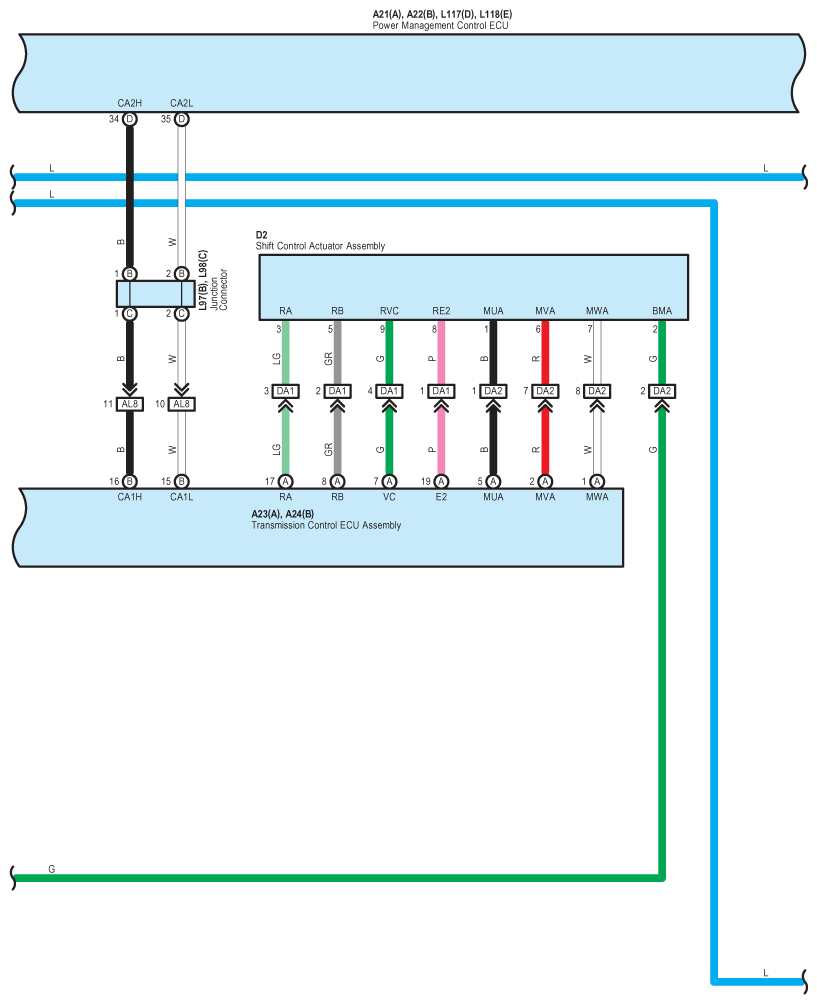

Fig 5: Smart Key System And Back Door Opener - Circuit Diagram (5 Of 21)

G07624665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

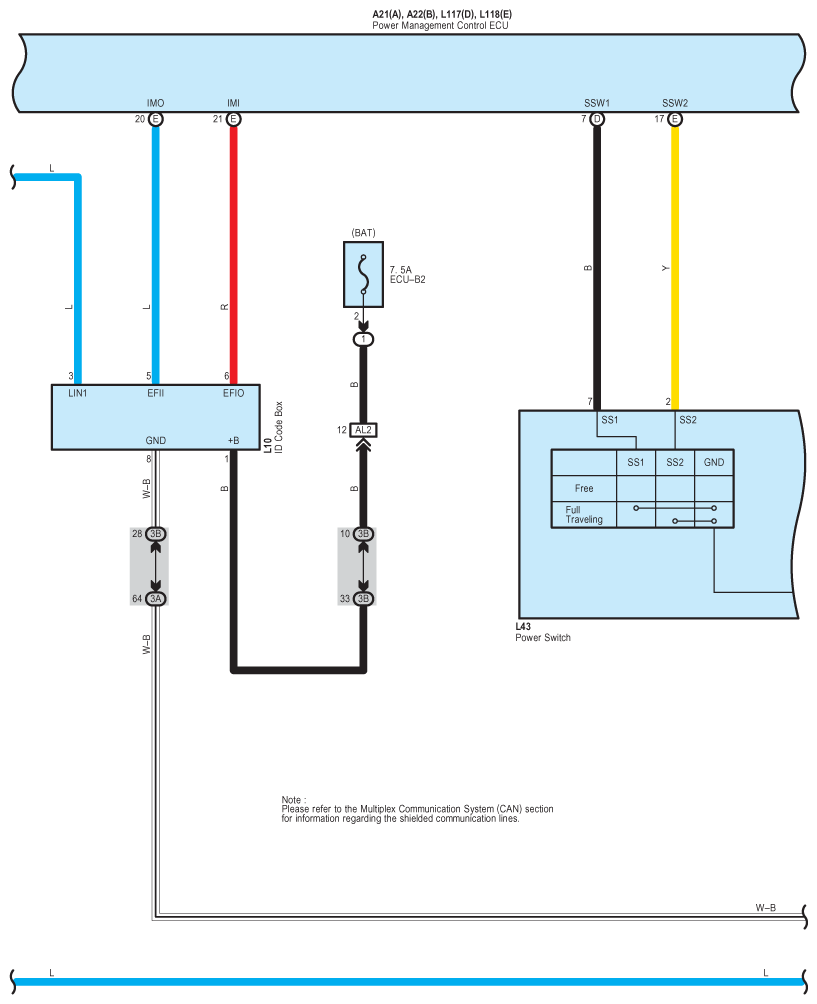

Fig 6: Smart Key System And Back Door Opener - Circuit Diagram (6 Of 21)

G07624666

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

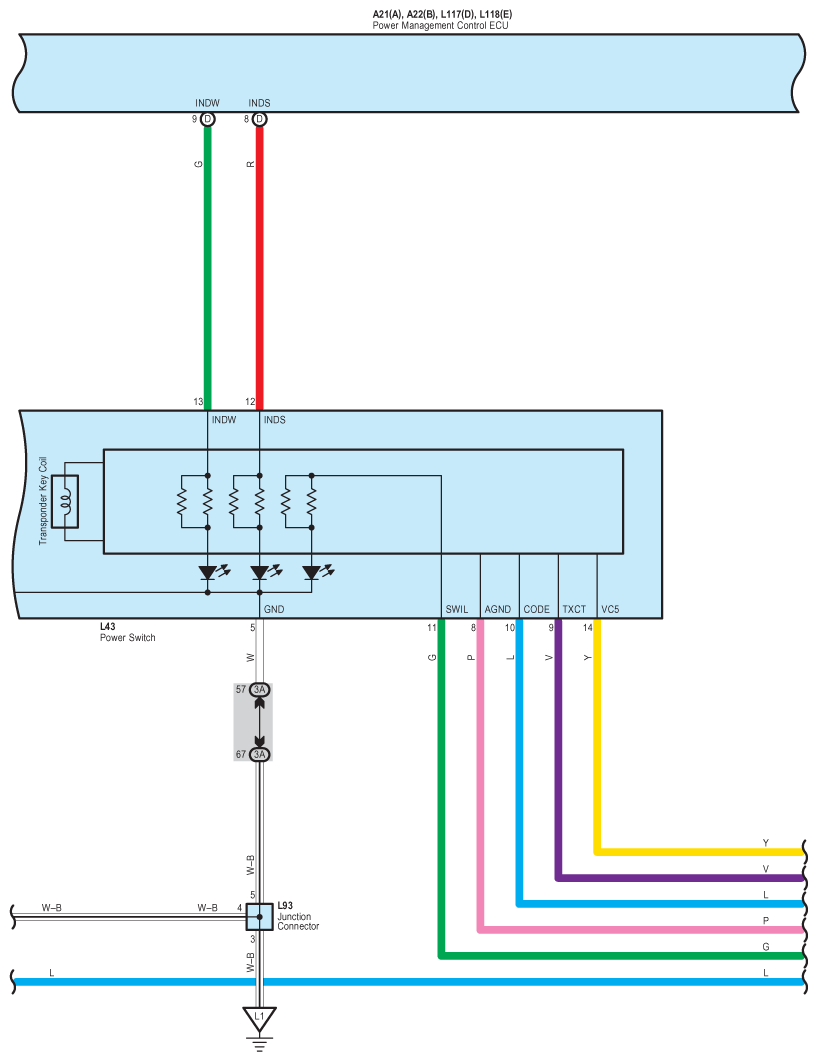

Fig 7: Smart Key System And Back Door Opener - Circuit Diagram (7 Of 21)

G07624667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

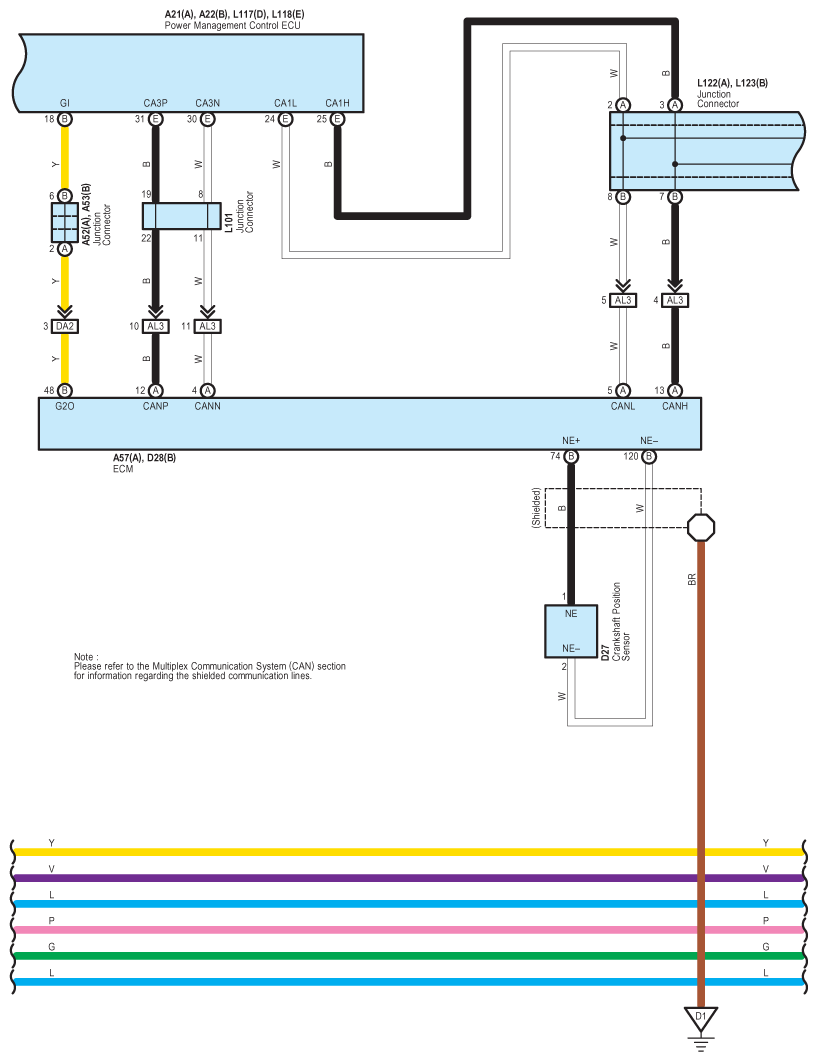

Fig 8: Smart Key System And Back Door Opener - Circuit Diagram (8 Of 21)

G07624668

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

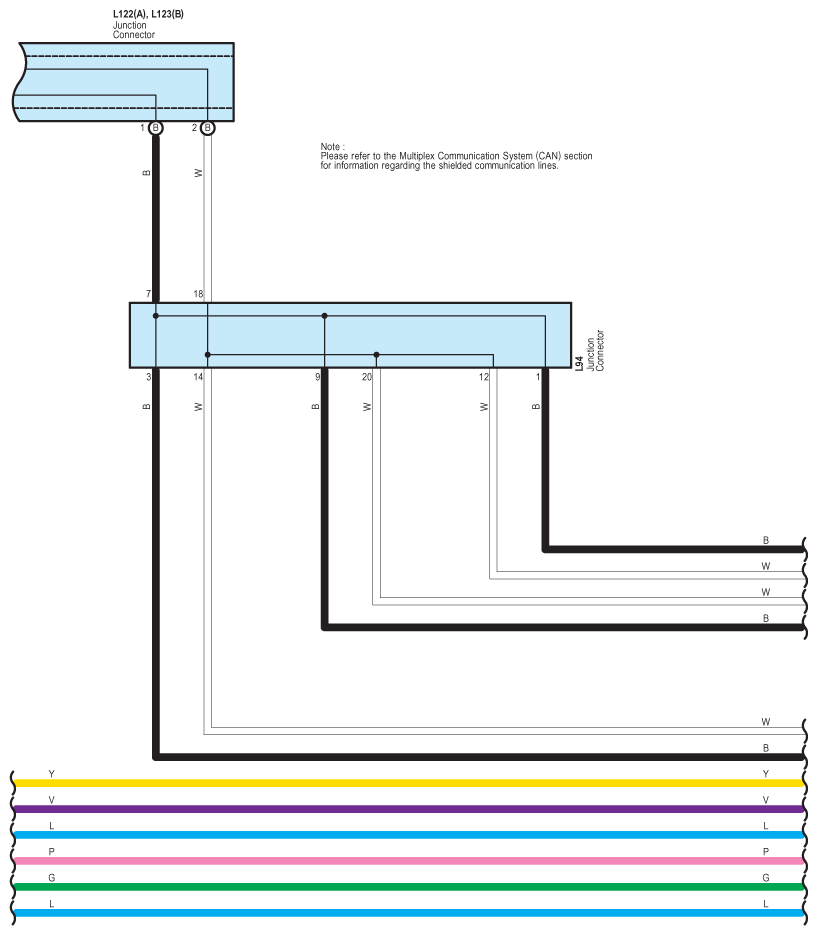

Fig 9: Smart Key System And Back Door Opener - Circuit Diagram (9 Of 21)

G07624669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

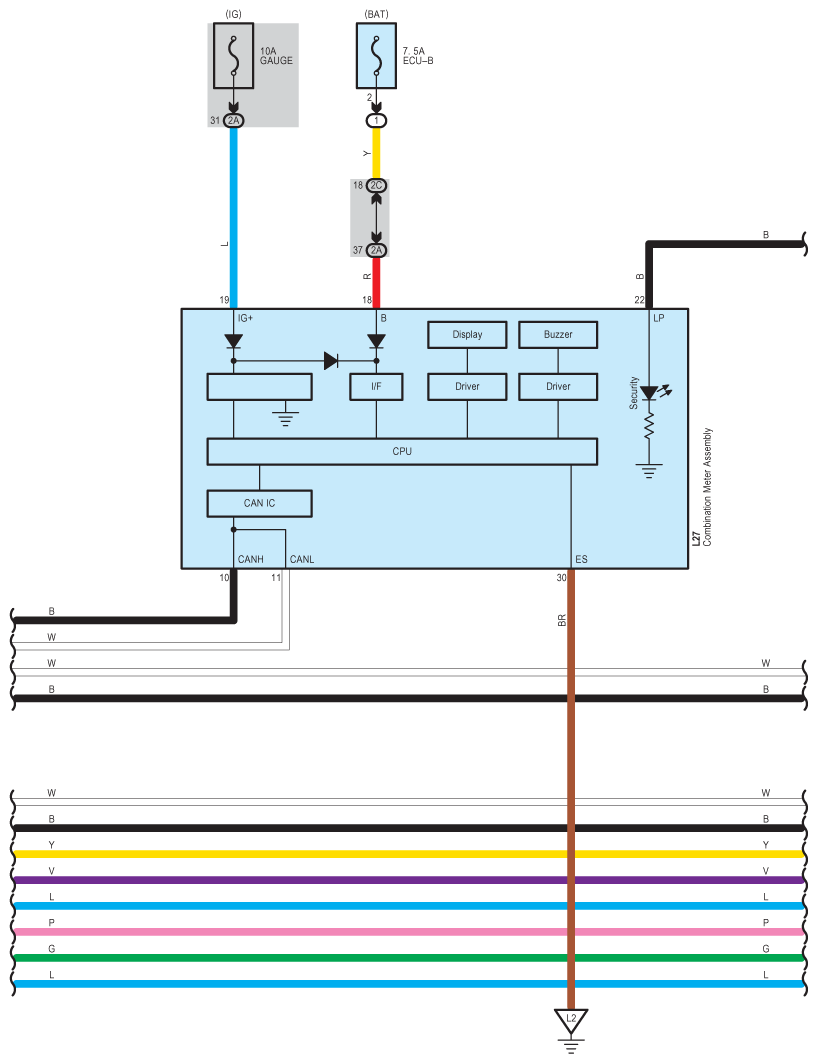

Fig 10: Smart Key System And Back Door Opener - Circuit Diagram (10 Of 21)

G07624670

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

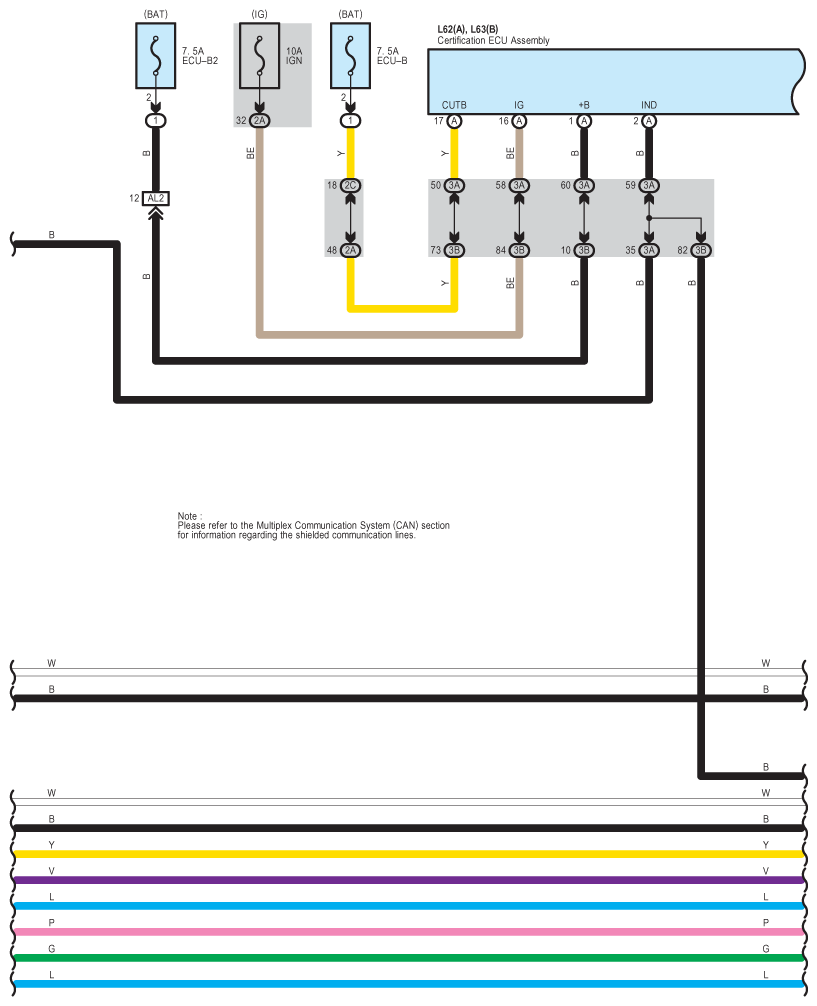

Fig 11: Smart Key System And Back Door Opener - Circuit Diagram (11 Of 21)

G07624671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

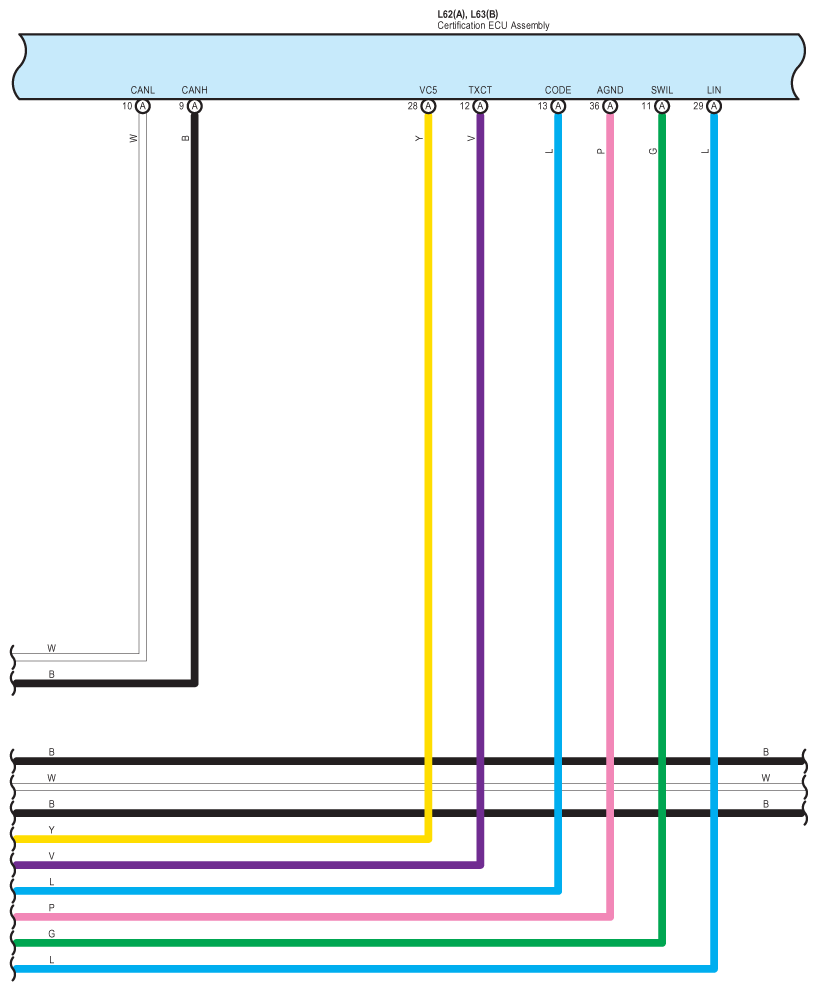

Fig 12: Smart Key System And Back Door Opener - Circuit Diagram (12 Of 21)

G07624672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

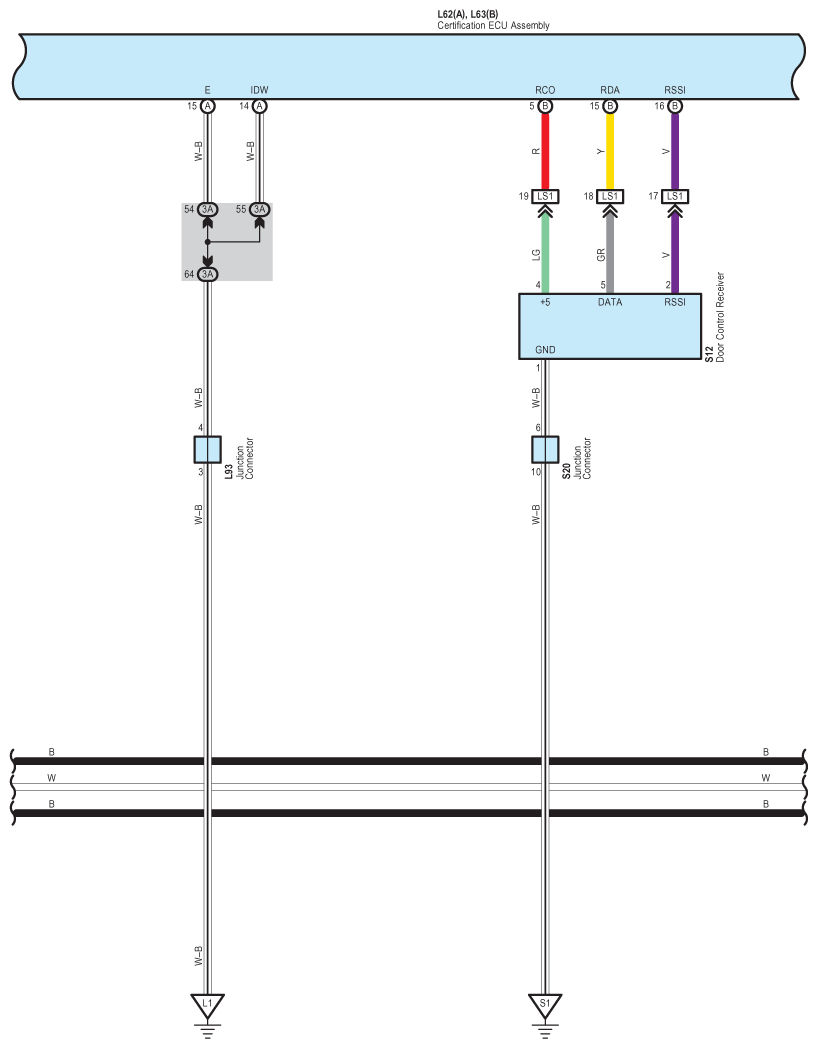

Fig 13: Smart Key System And Back Door Opener - Circuit Diagram (13 Of 21)

G07624673

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

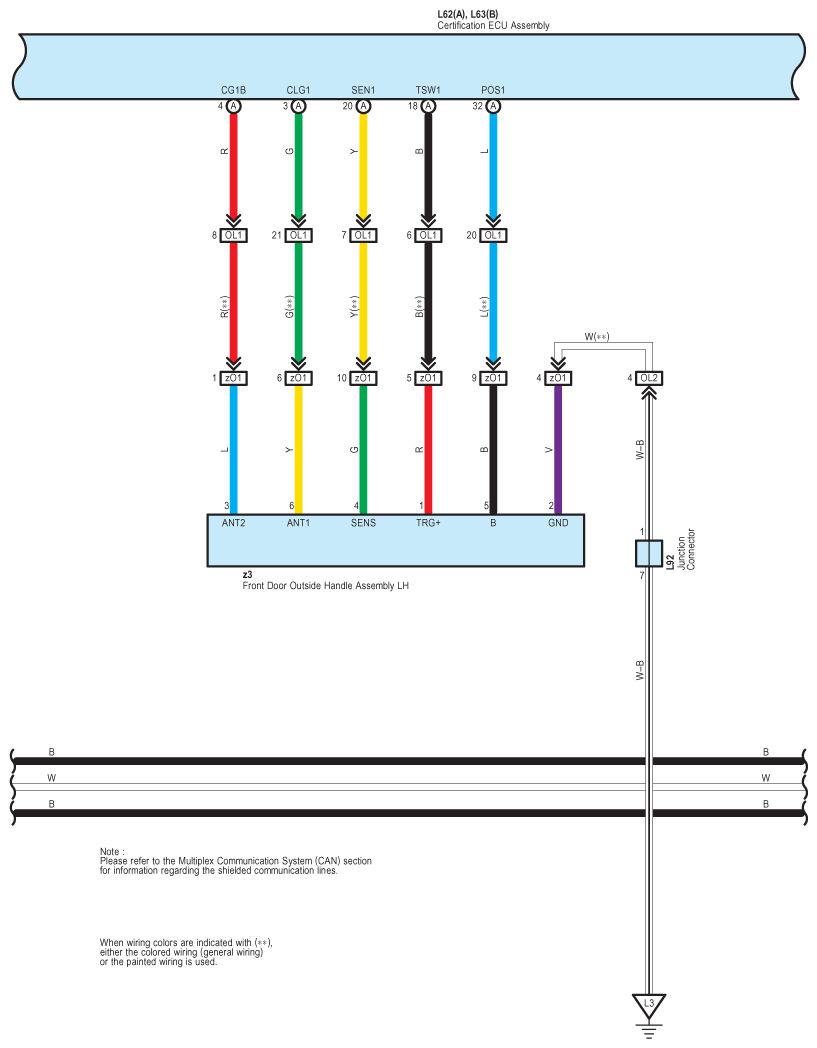

Fig 14: Smart Key System And Back Door Opener - Circuit Diagram (14 Of 21)

G07624674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

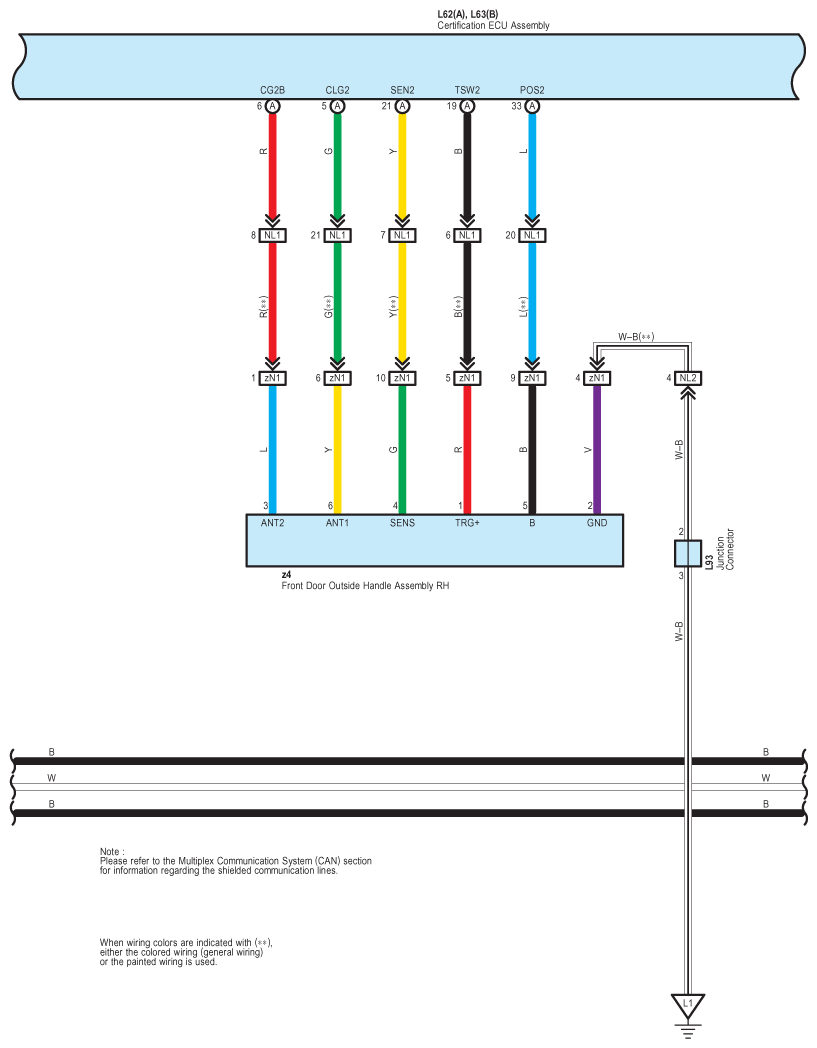

Fig 15: Smart Key System And Back Door Opener - Circuit Diagram (15 Of 21)

G07624675

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

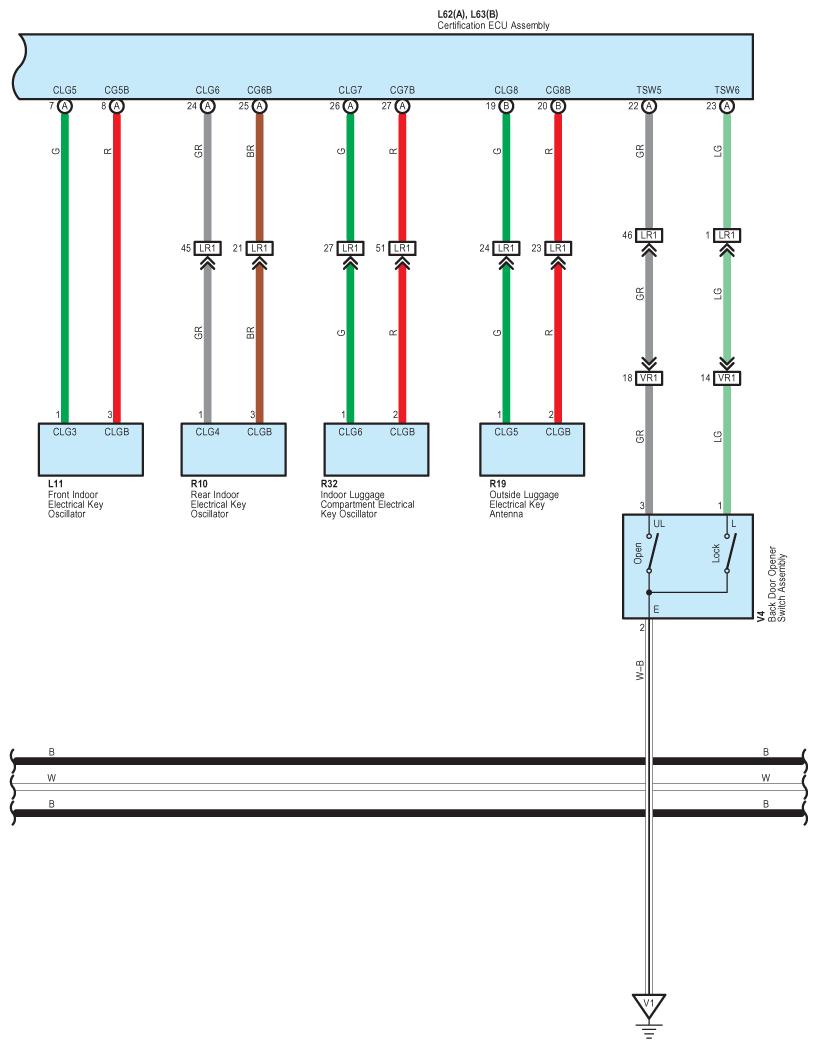

Fig 16: Smart Key System And Back Door Opener - Circuit Diagram (16 Of 21)

G07624676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

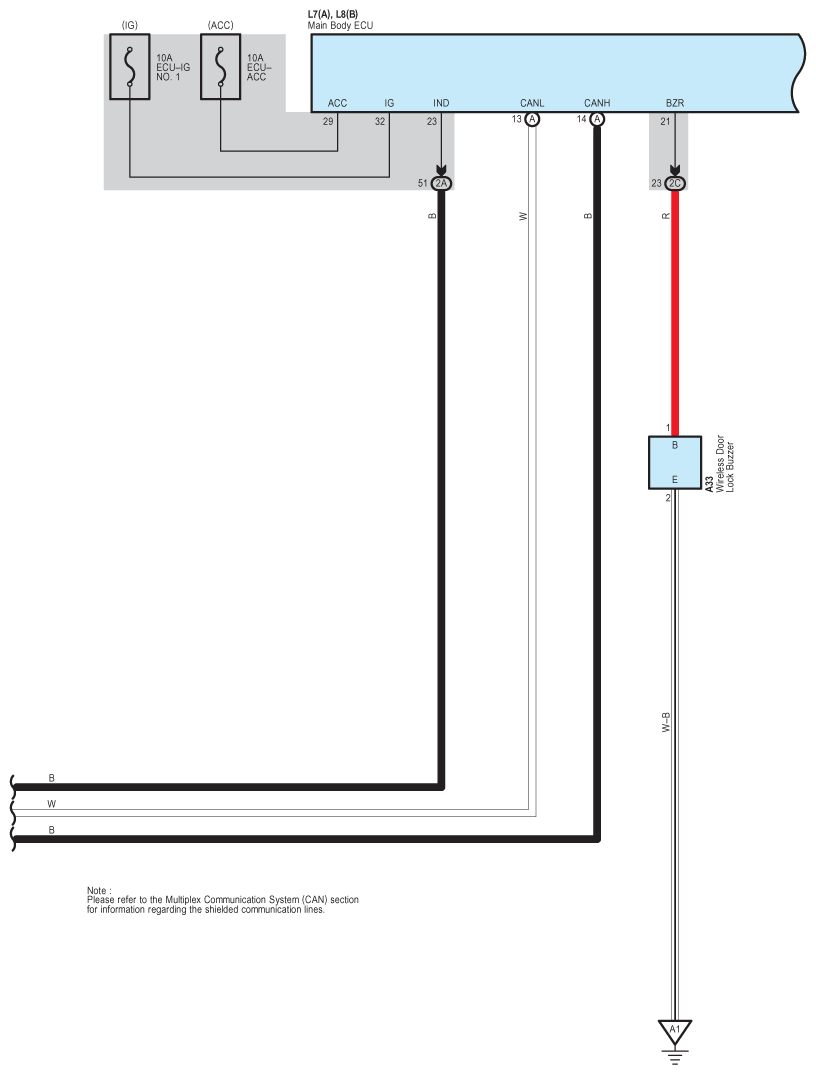

Fig 17: Smart Key System And Back Door Opener - Circuit Diagram (17 Of 21)

G07624677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

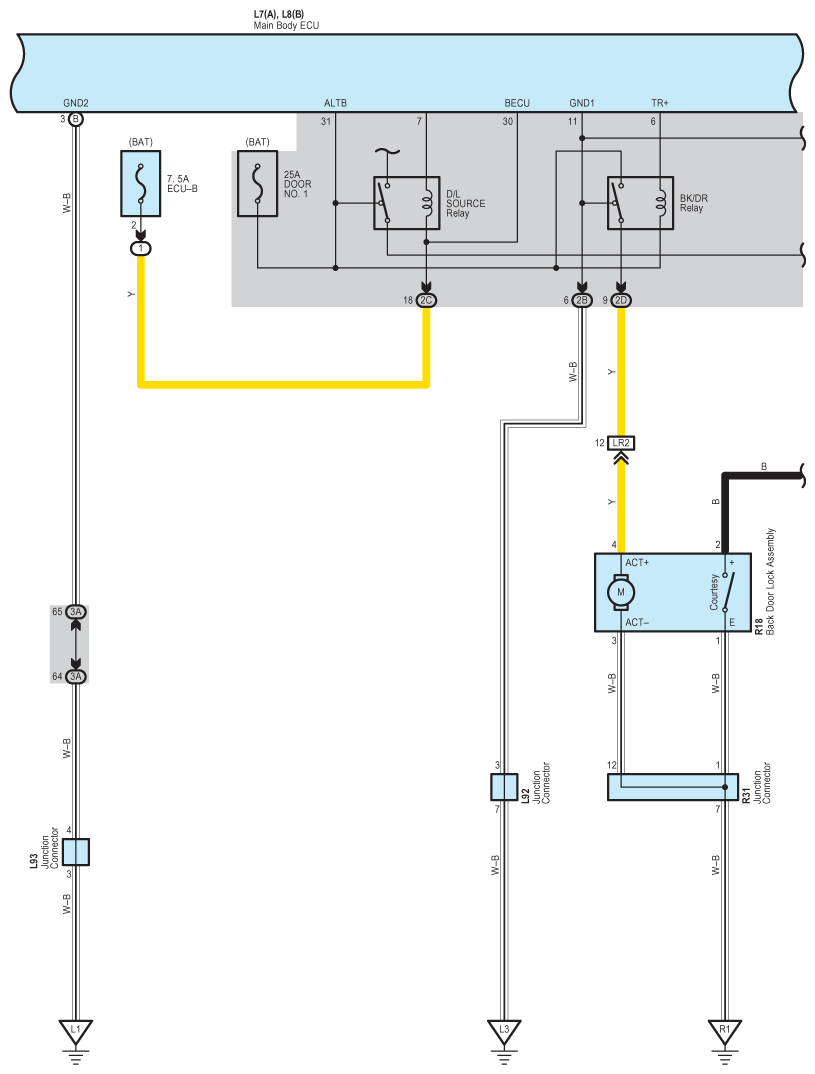

Fig 18: Smart Key System And Back Door Opener - Circuit Diagram (18 Of 21)

G07624678

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

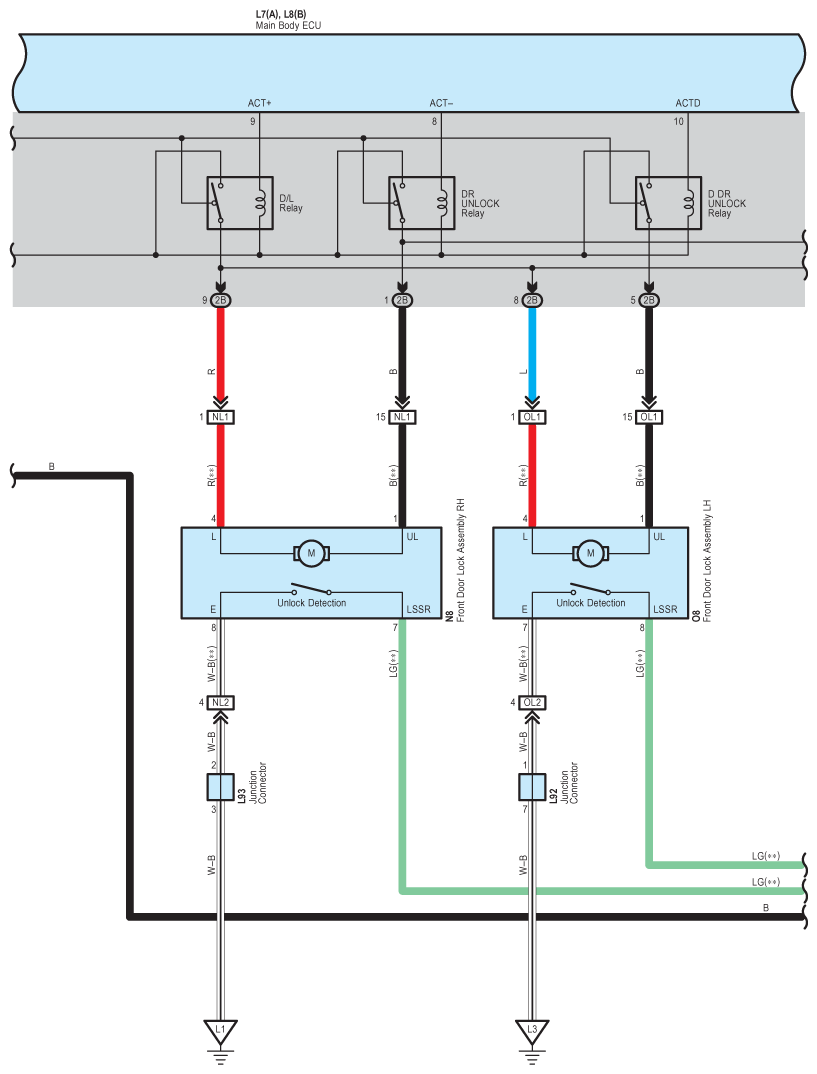

Fig 19: Smart Key System And Back Door Opener - Circuit Diagram (19 Of 21)

G07624679

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

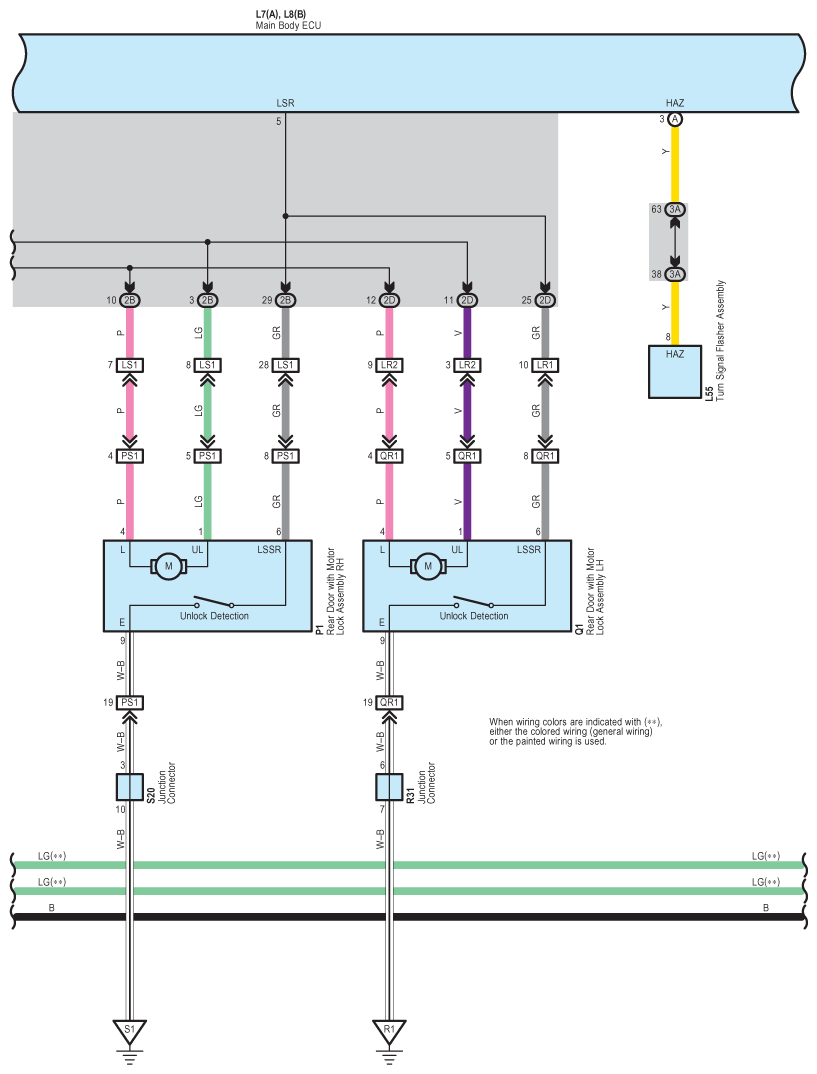

Fig 20: Smart Key System And Back Door Opener - Circuit Diagram (20 Of 21)

G07624680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

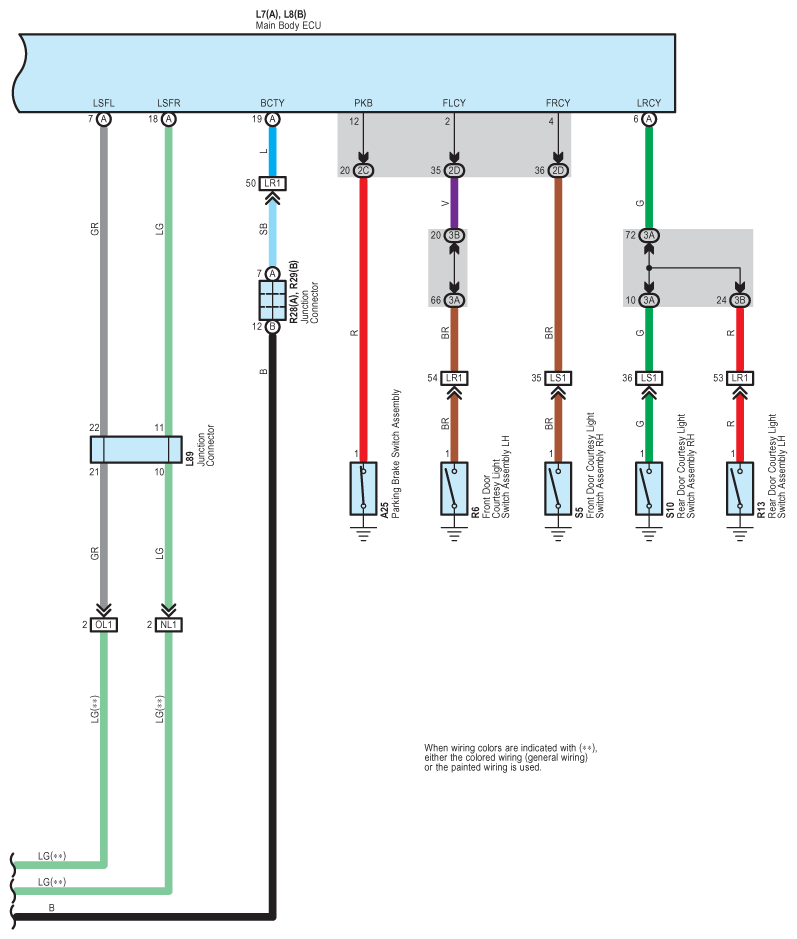

Fig 21: Smart Key System And Back Door Opener - Circuit Diagram (21 Of 21)

G07624681

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
