Accelerator Pedal: Components: Illustration

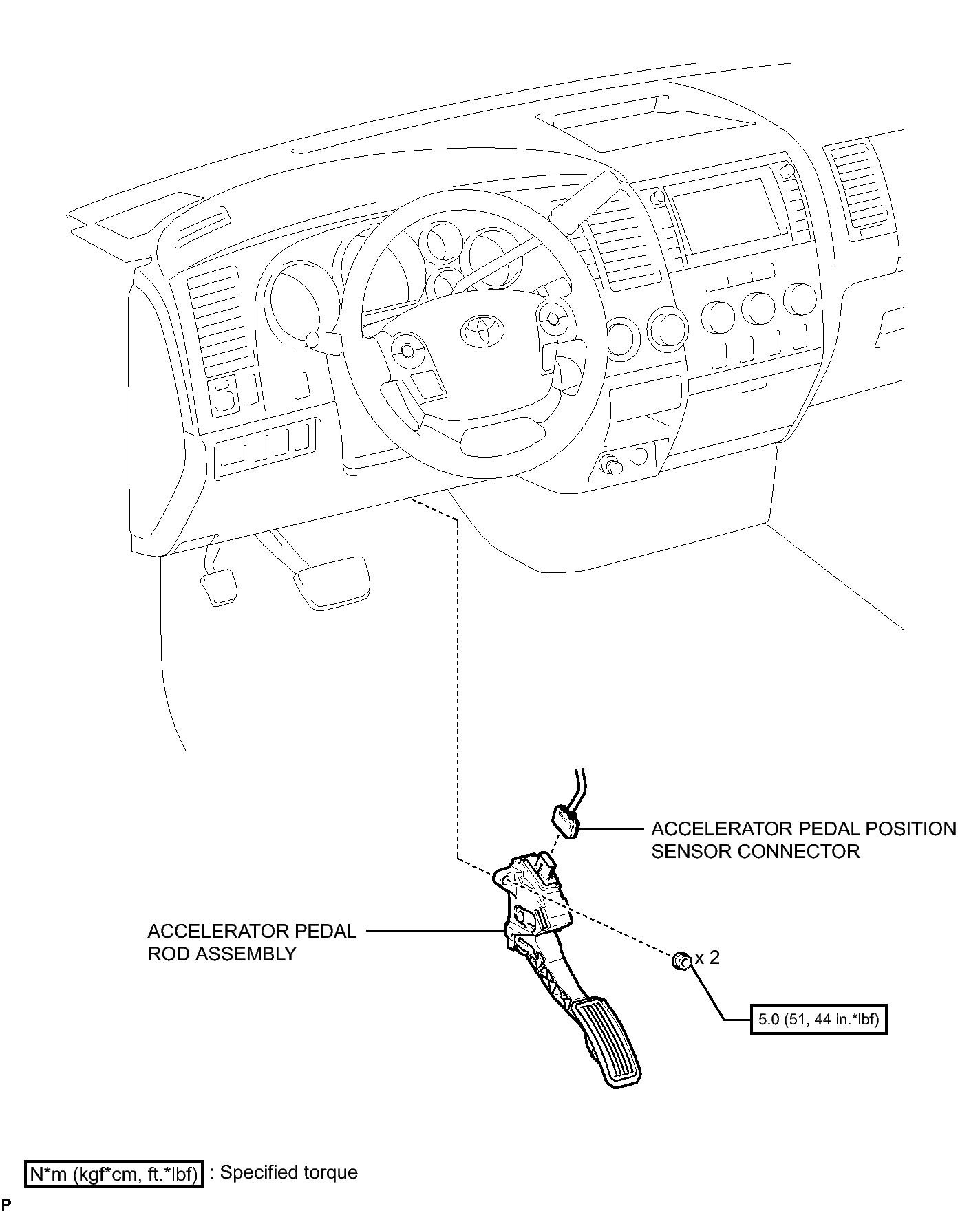

Fig 1: Identifying Accelerator Pedal Replacement Components With Torque Specifications
GTY169637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
