Combination Meter (TMC Made): Notes

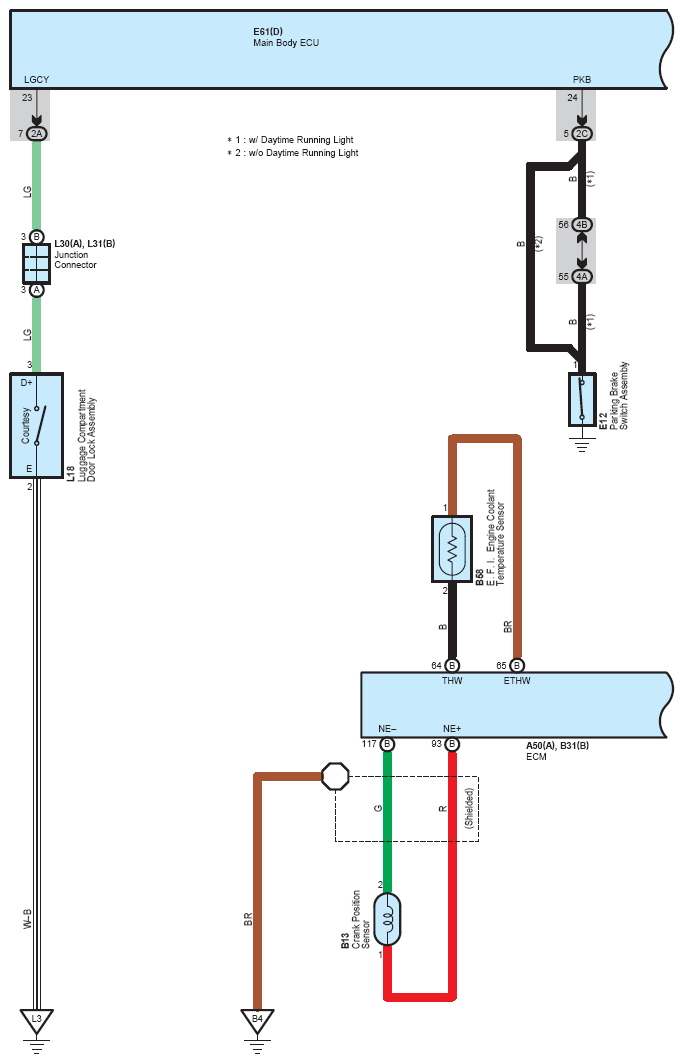

Fig 1: Combination Meter (TMC Made) System Wiring Diagram (1 Of 6)
G07115068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

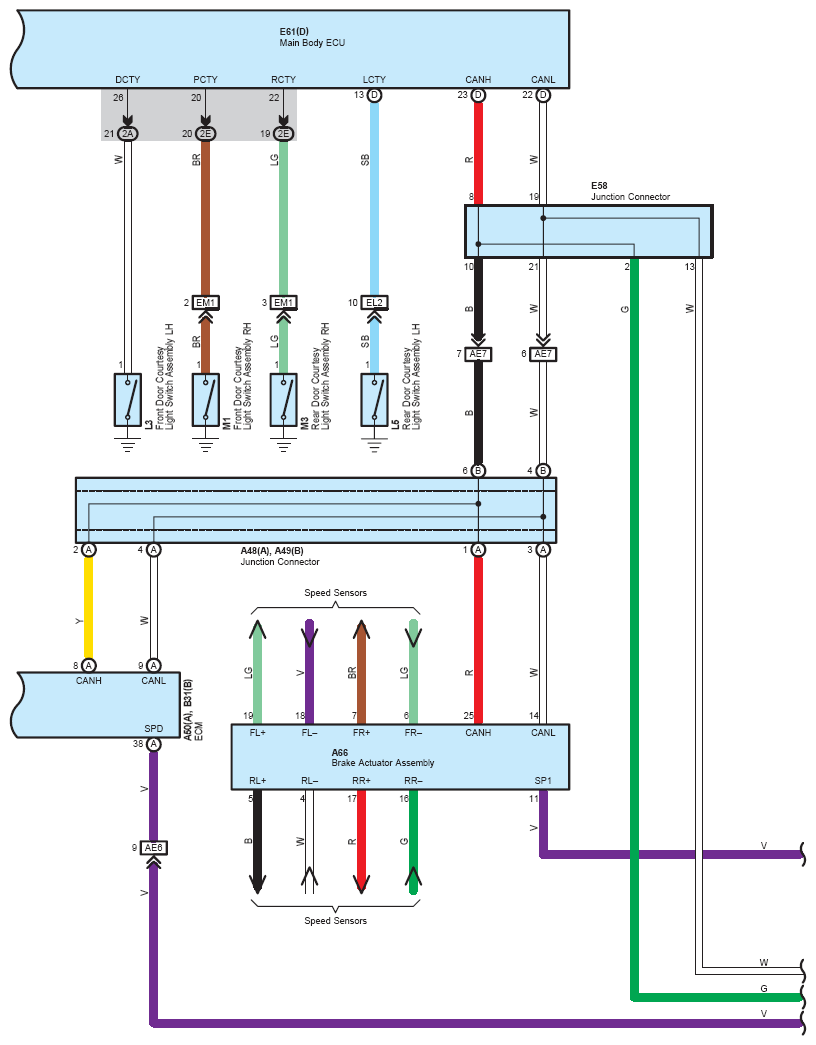

Fig 2: Combination Meter (TMC Made) System Wiring Diagram (2 Of 6)
G07115069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

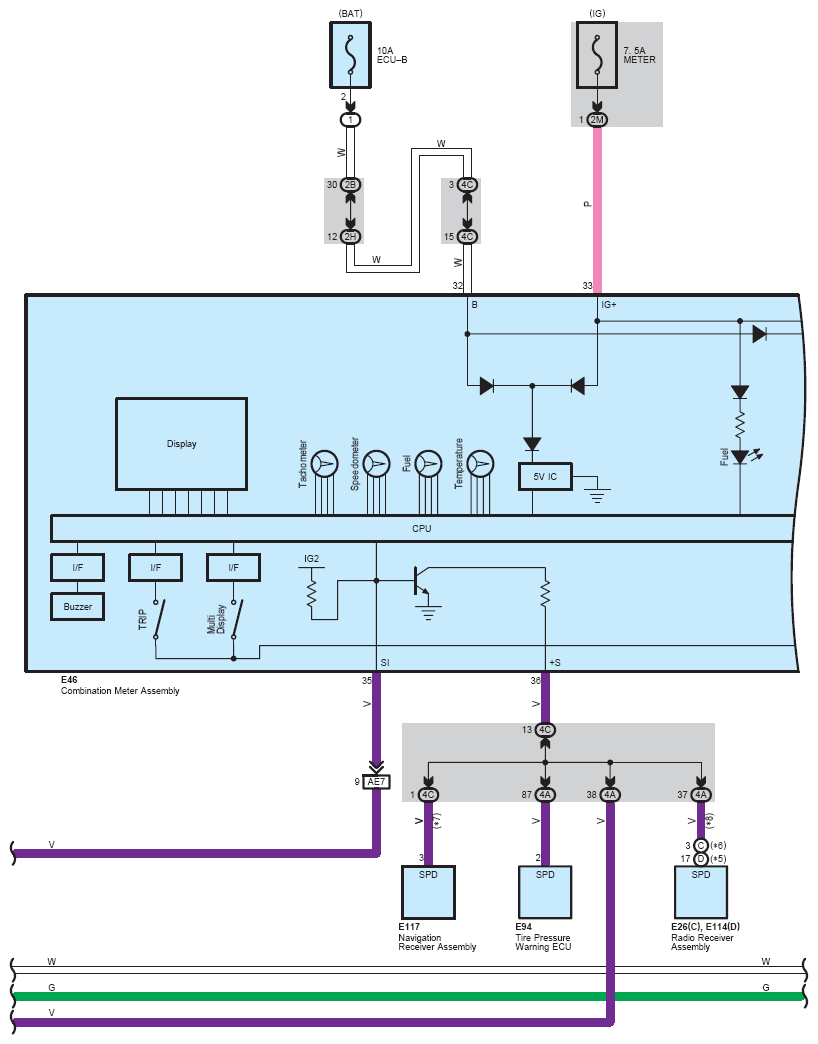

Fig 3: Combination Meter (TMC Made) System Wiring Diagram (3 Of 6)
G07115070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

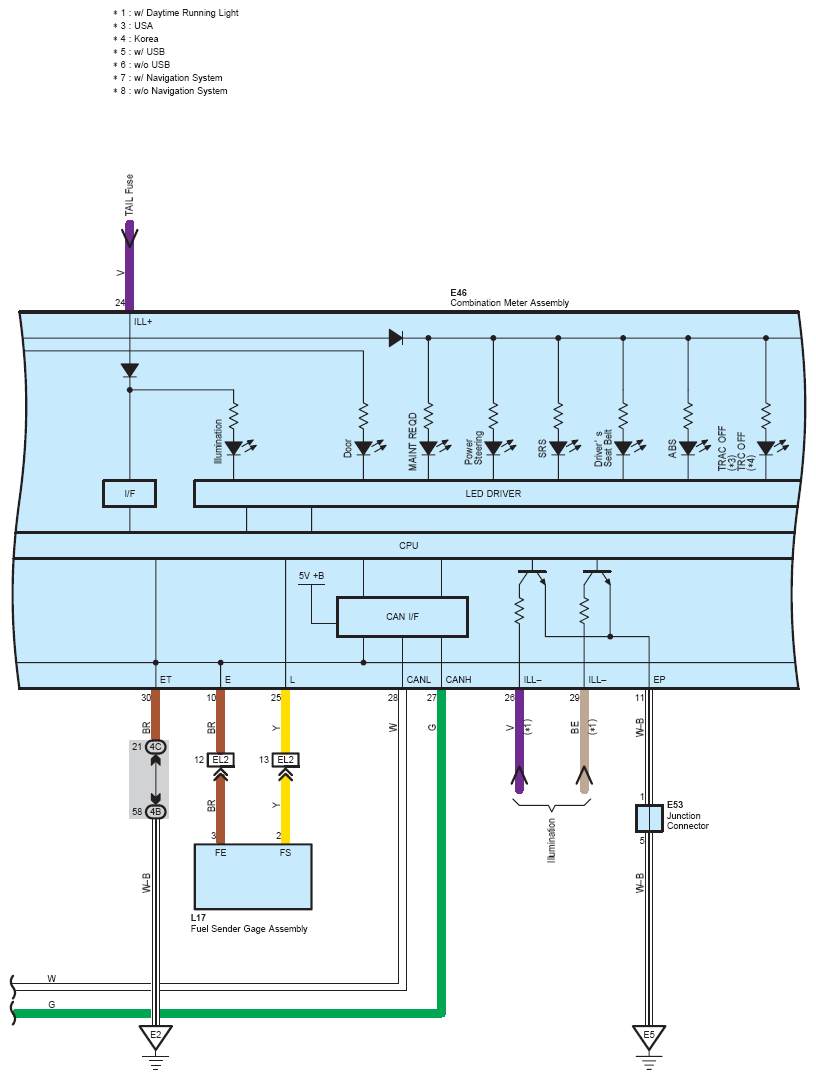

Fig 4: Combination Meter (TMC Made) System Wiring Diagram (4 Of 6)
G07115071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

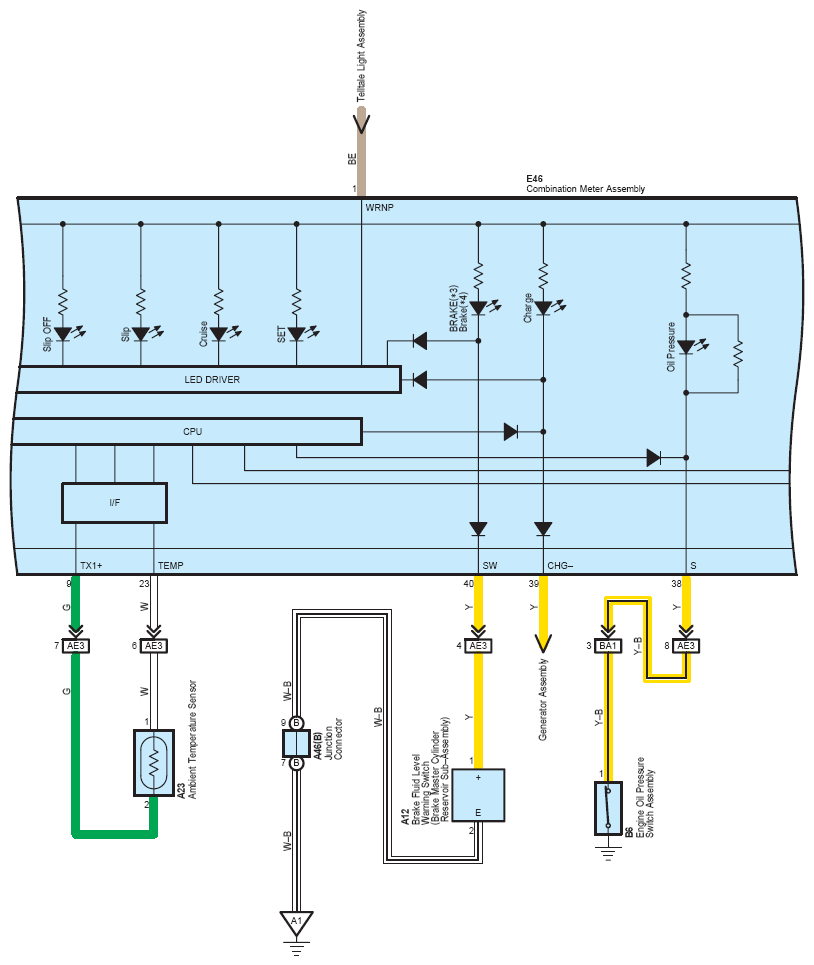

Fig 5: Combination Meter (TMC Made) System Wiring Diagram (5 Of 6)
G07115072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

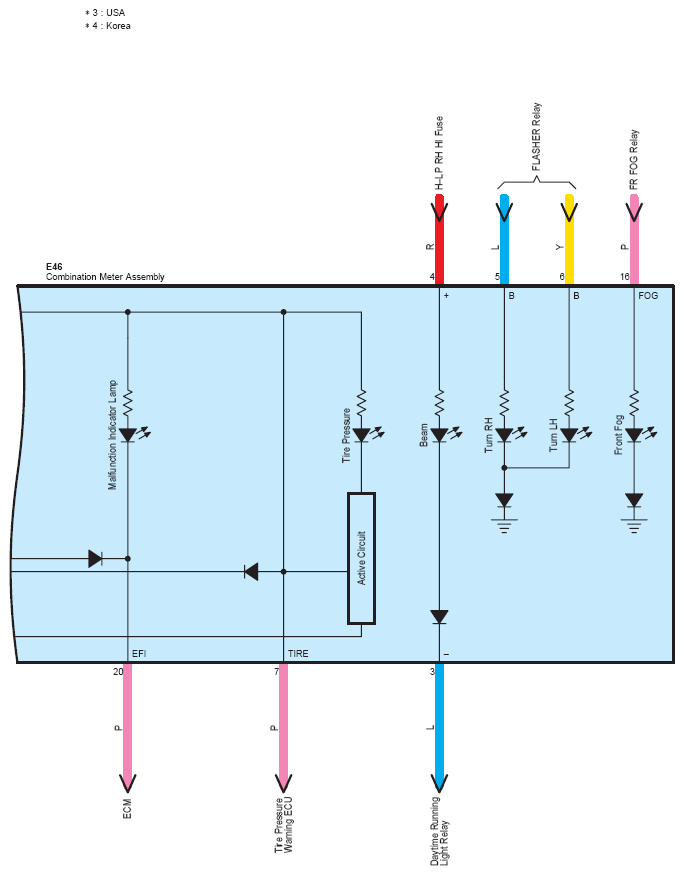

Fig 6: Combination Meter (TMC Made) System Wiring Diagram (6 Of 6)
G07115073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
