Smart Key System (Except TMC Made): Notes

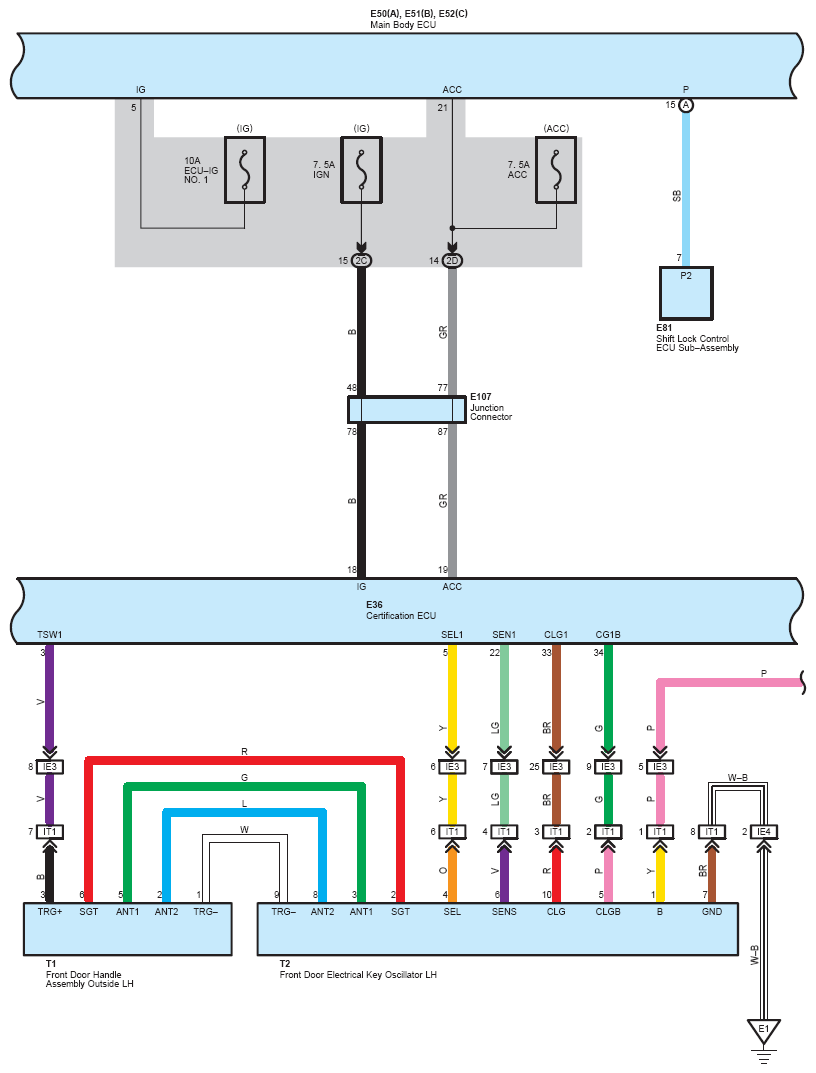

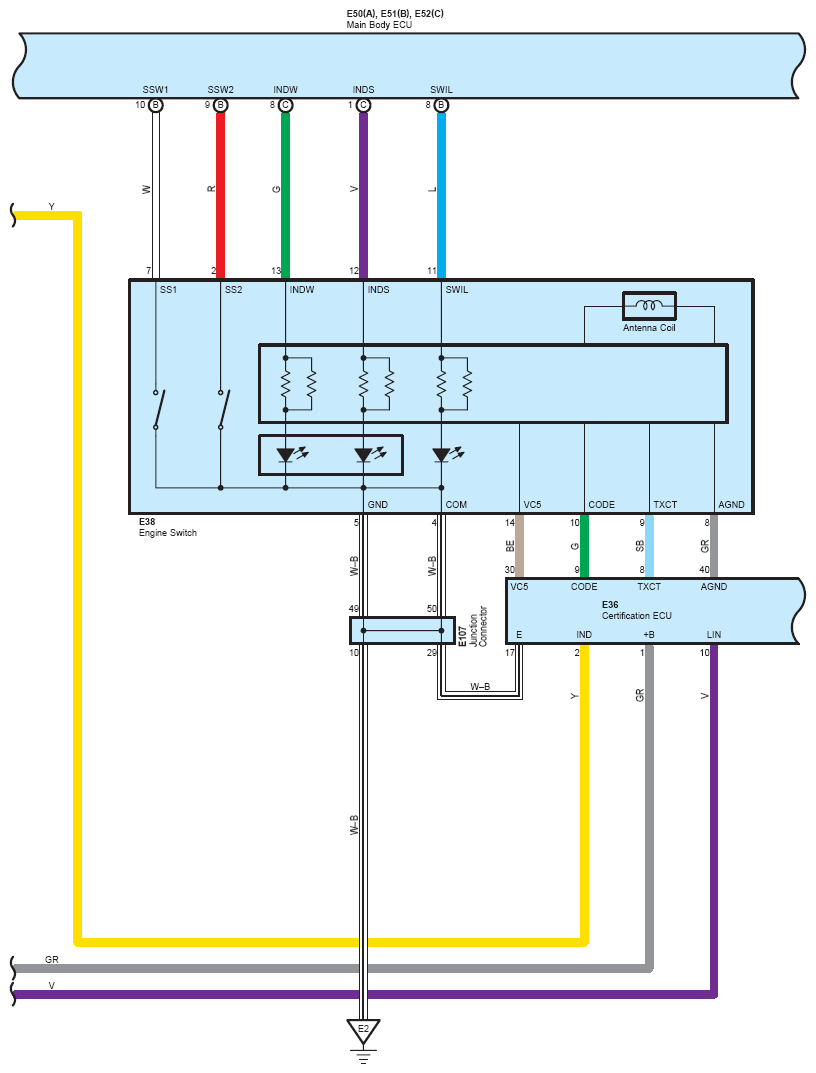

Fig 1: Smart Key System (Except TMC Made) Wiring Diagram (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

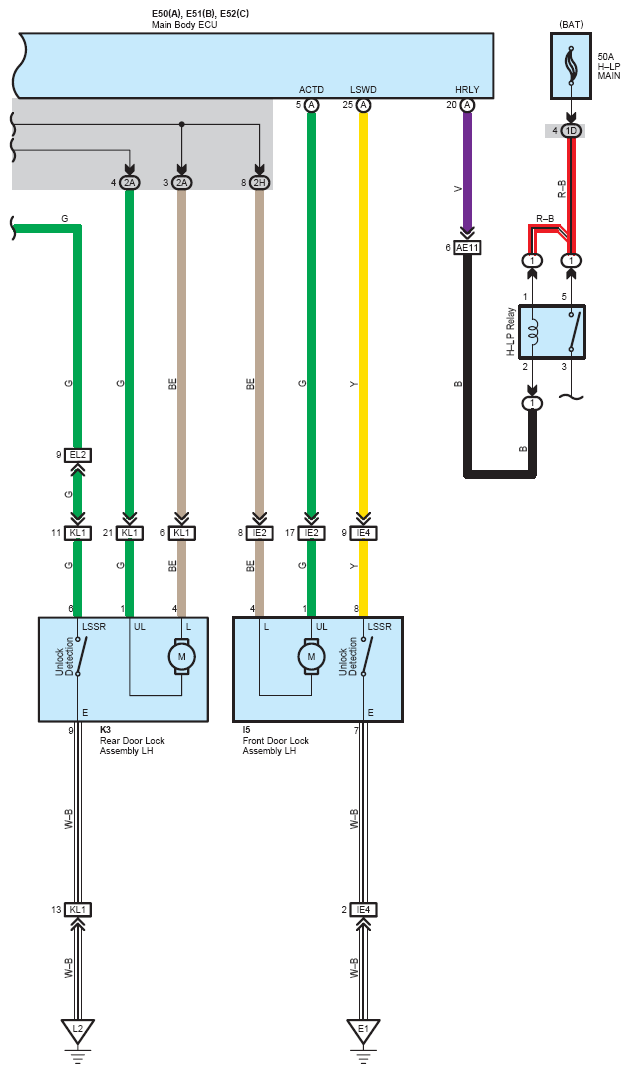

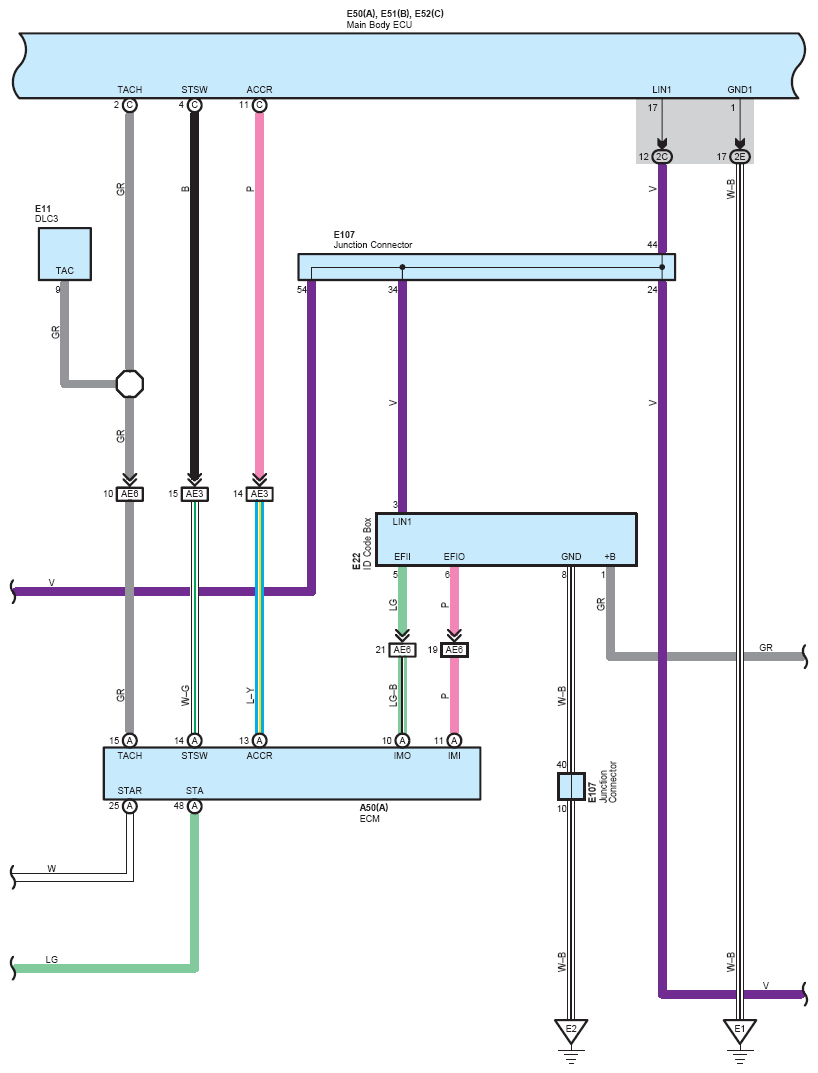

Fig 2: Smart Key System (Except TMC Made) Wiring Diagram (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

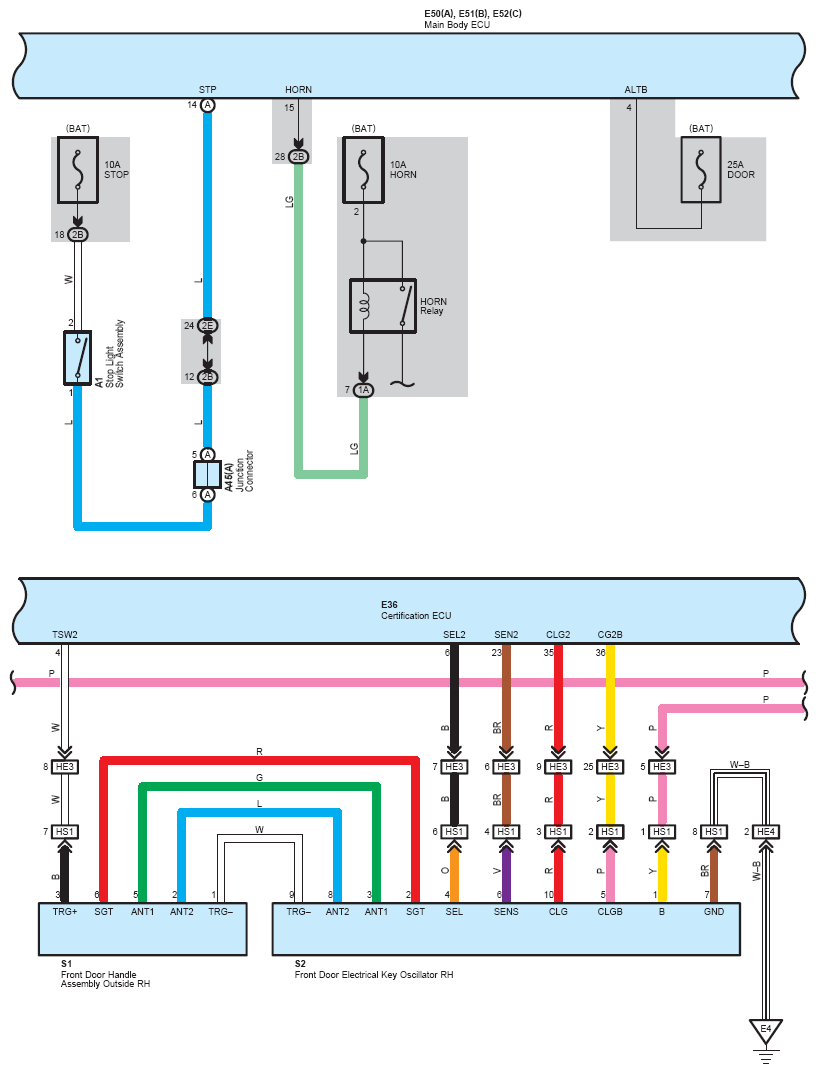

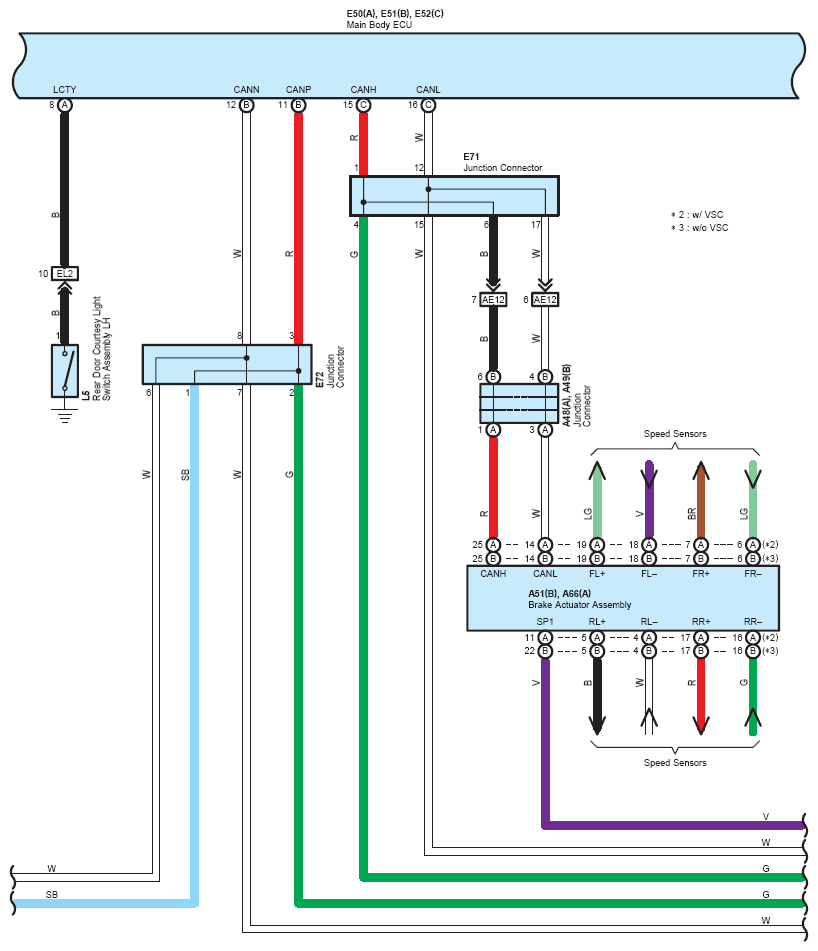

Fig 3: Smart Key System (Except TMC Made) Wiring Diagram (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

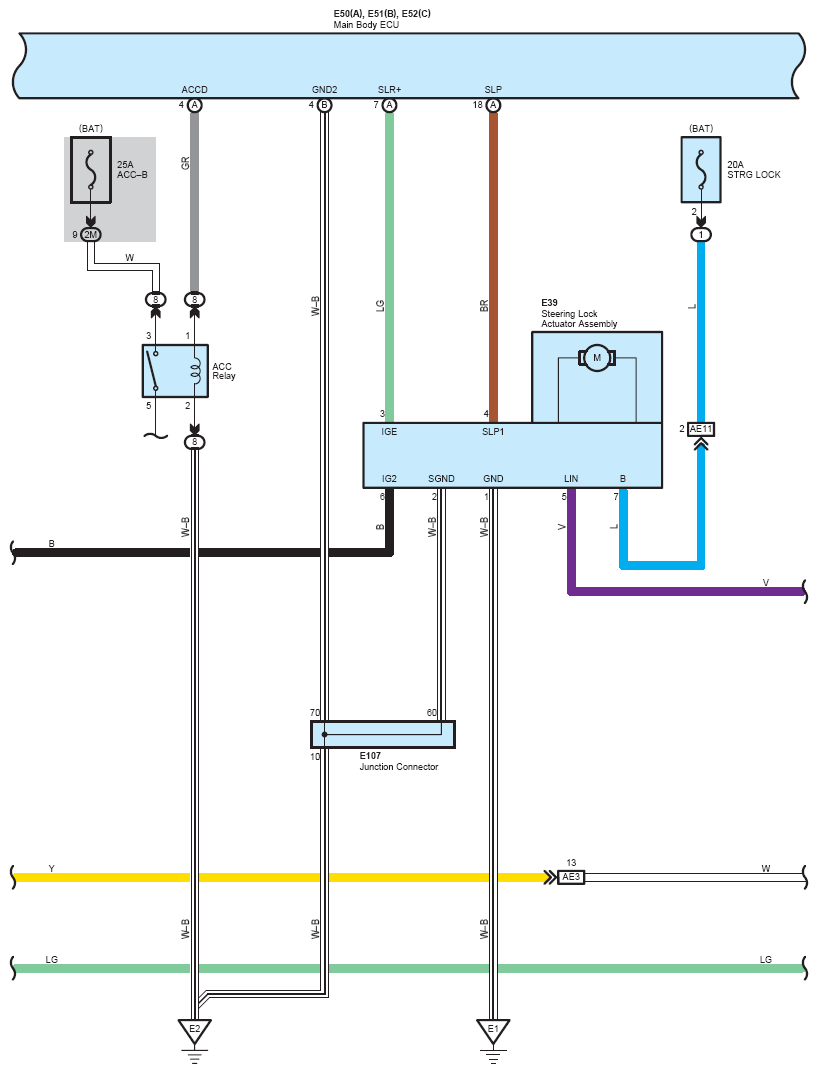

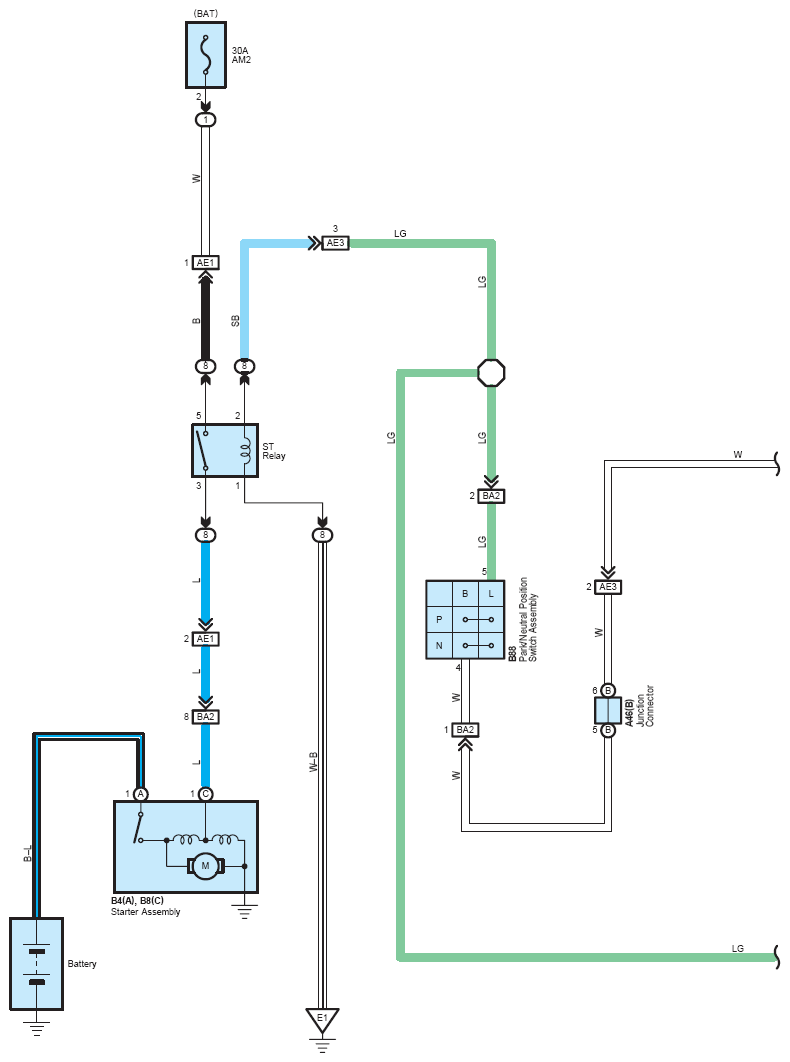

Fig 4: Smart Key System (Except TMC Made) Wiring Diagram (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

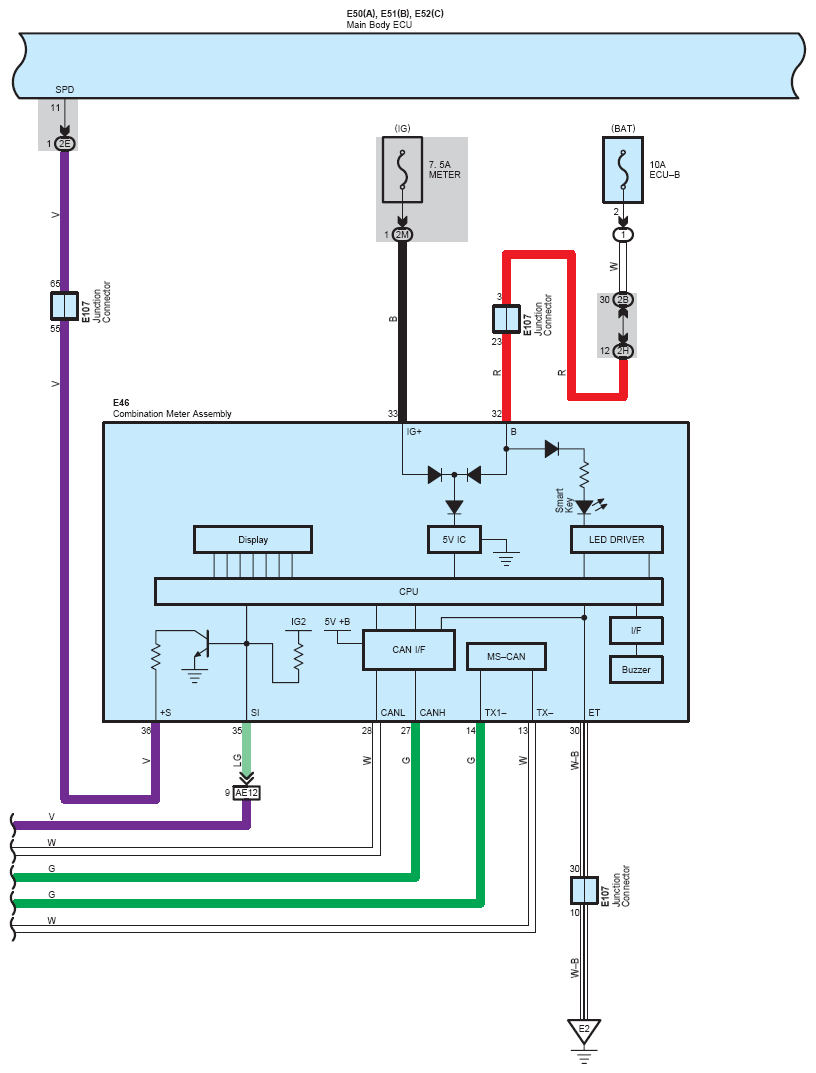

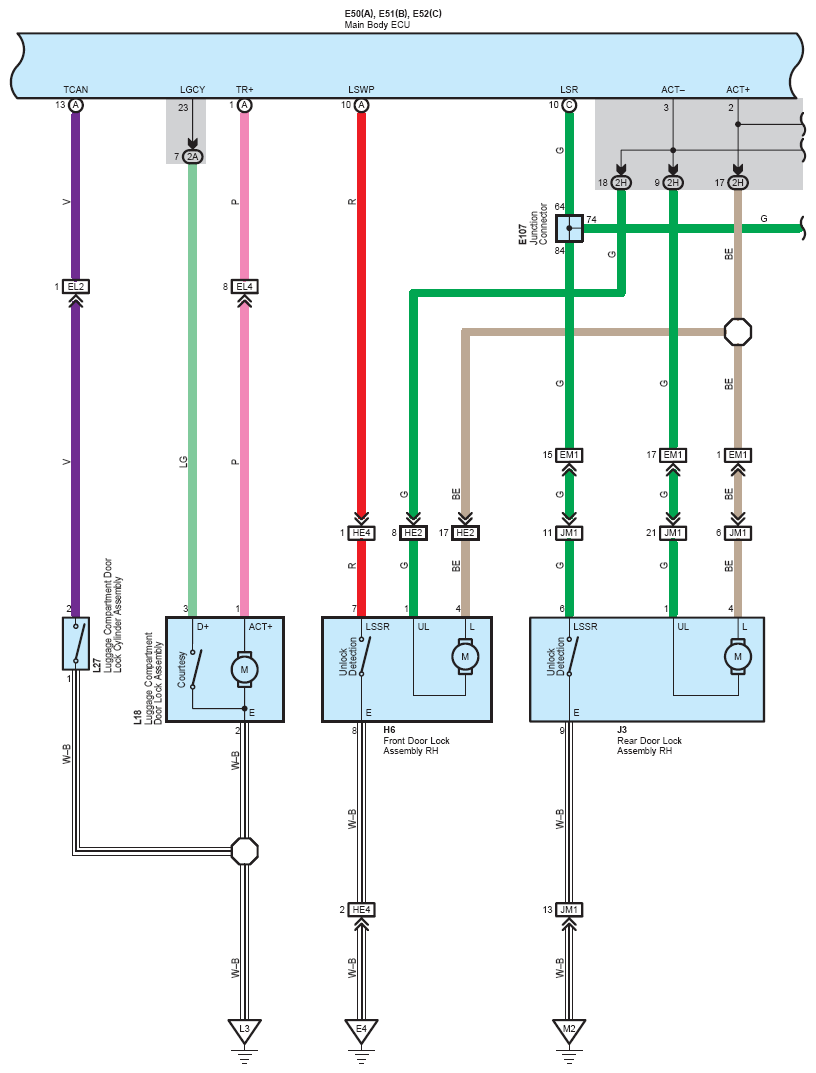

Fig 5: Smart Key System (Except TMC Made) Wiring Diagram (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

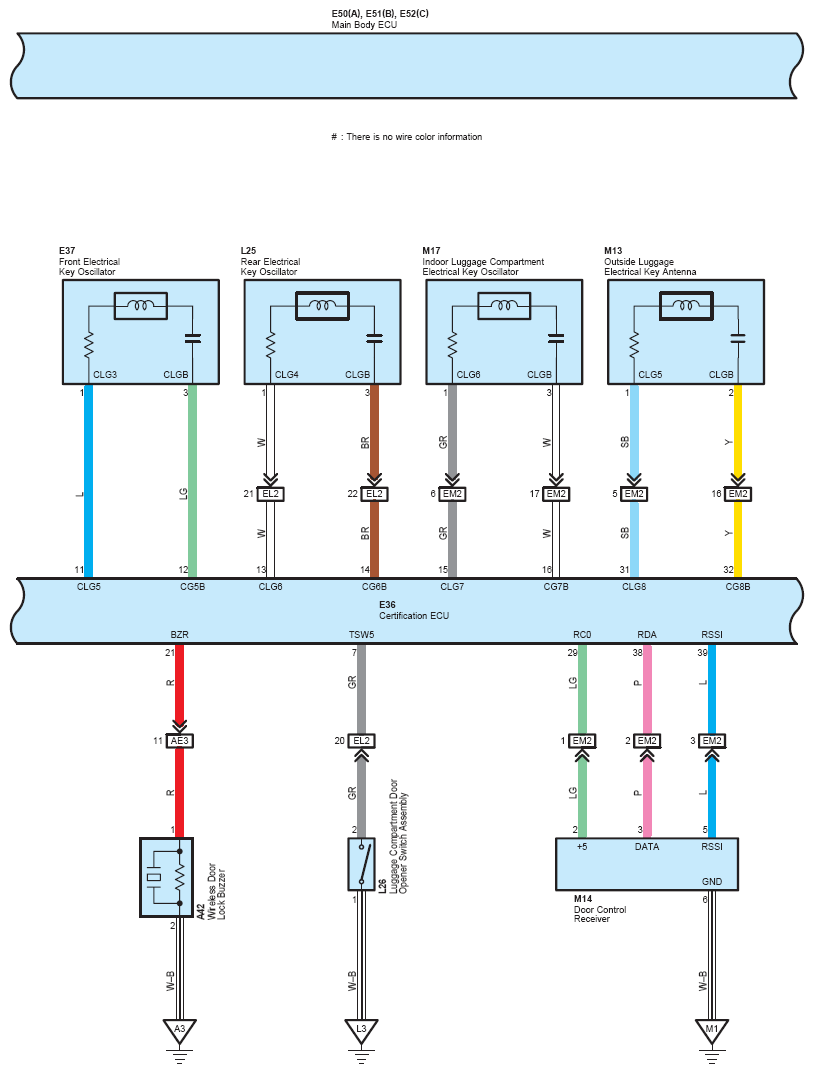

Fig 6: Smart Key System (Except TMC Made) Wiring Diagram (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

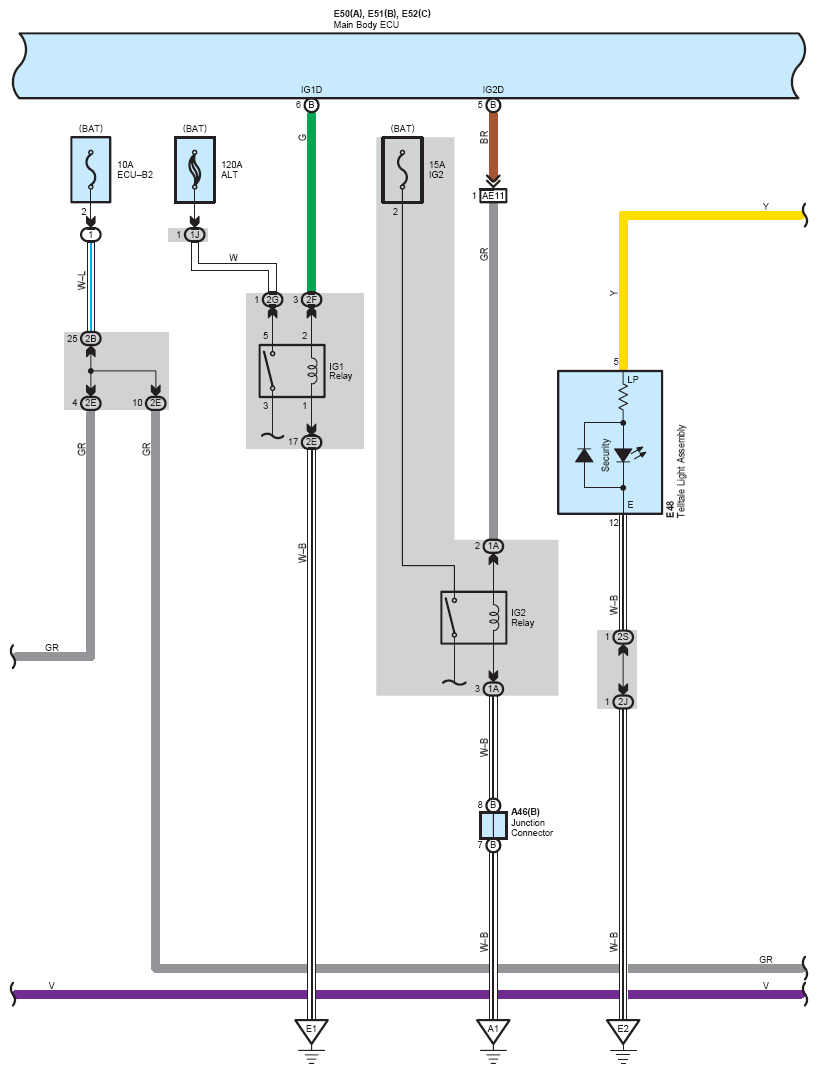

Fig 7: Smart Key System (Except TMC Made) Wiring Diagram (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

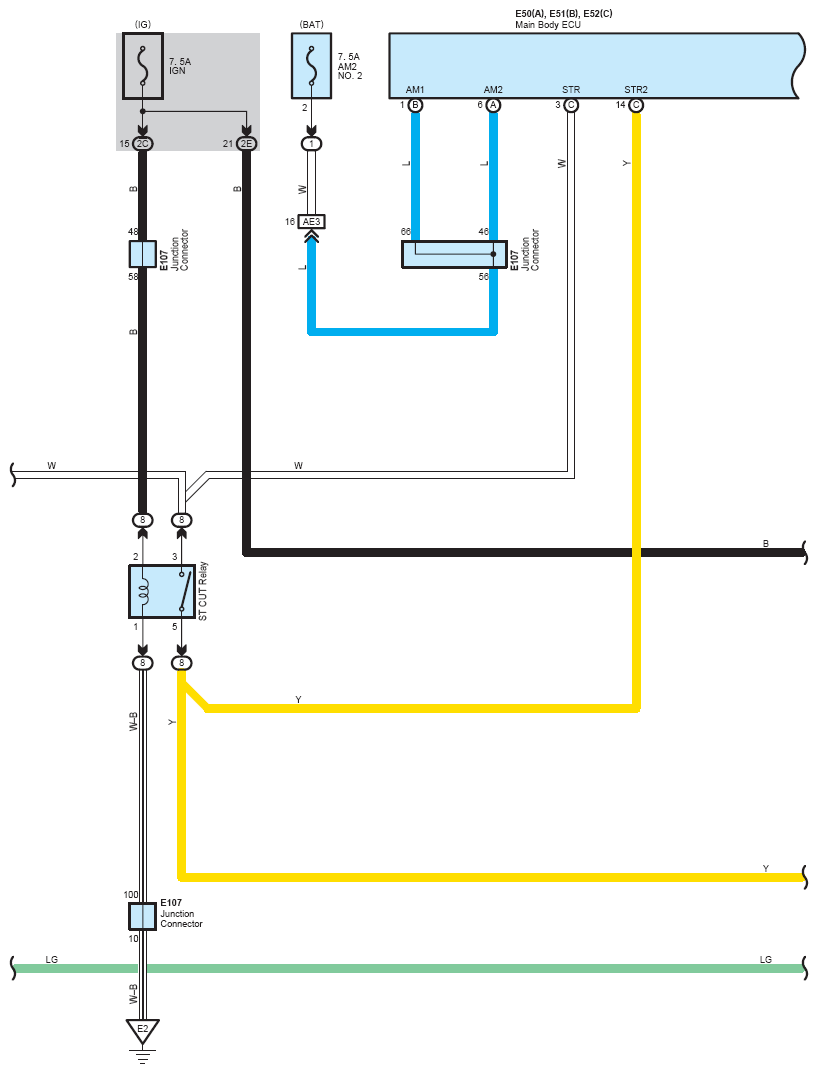

Fig 8: Smart Key System (Except TMC Made) Wiring Diagram (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Smart Key System (Except TMC Made) Wiring Diagram (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Smart Key System (Except TMC Made) Wiring Diagram (10 Of 14)

Fig 11: Smart Key System (Except TMC Made) Wiring Diagram (11 Of 14)

Fig 12: Smart Key System (Except TMC Made) Wiring Diagram (12 Of 14)

Fig 13: Smart Key System (Except TMC Made) Wiring Diagram (13 Of 14)

Fig 14: Smart Key System (Except TMC Made) Wiring Diagram (14 Of 14)
