Data Link Connector 3 (TMC Made): Notes

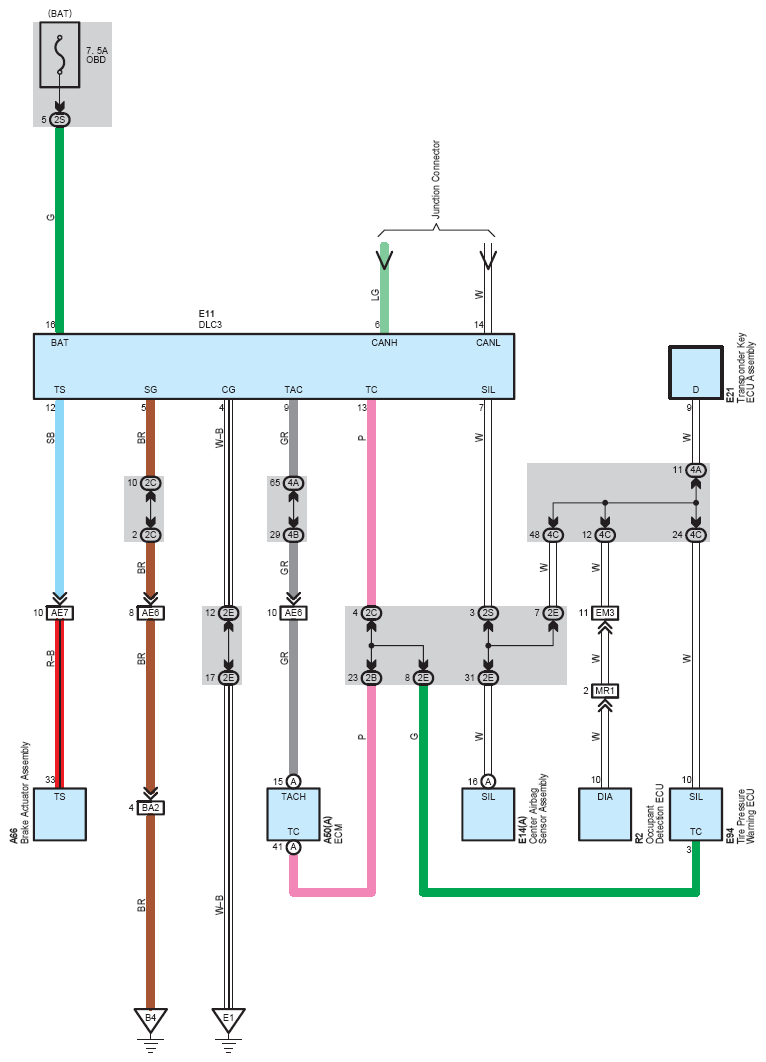

Fig 1: Data Link Connector 3 (TMC Made) Wiring Diagram
G07114986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
