EPS (Except TMC Made): Notes

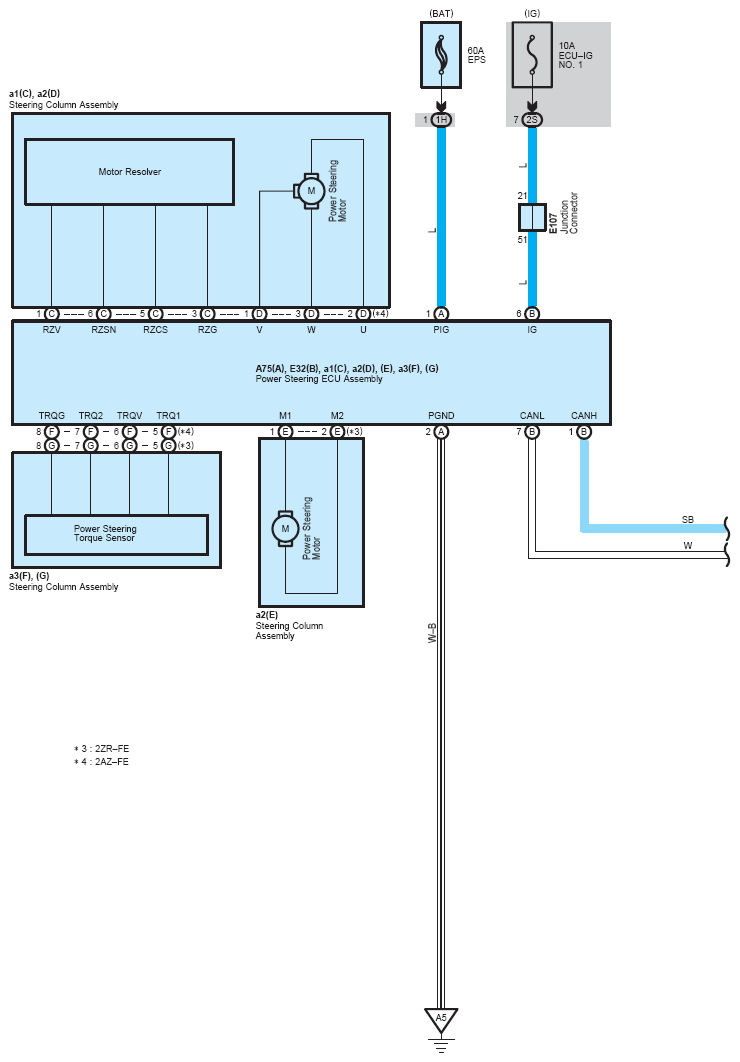

Fig 1: EPS (Except TMC Made) System Wiring Diagram (1 Of 4)
G07115229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

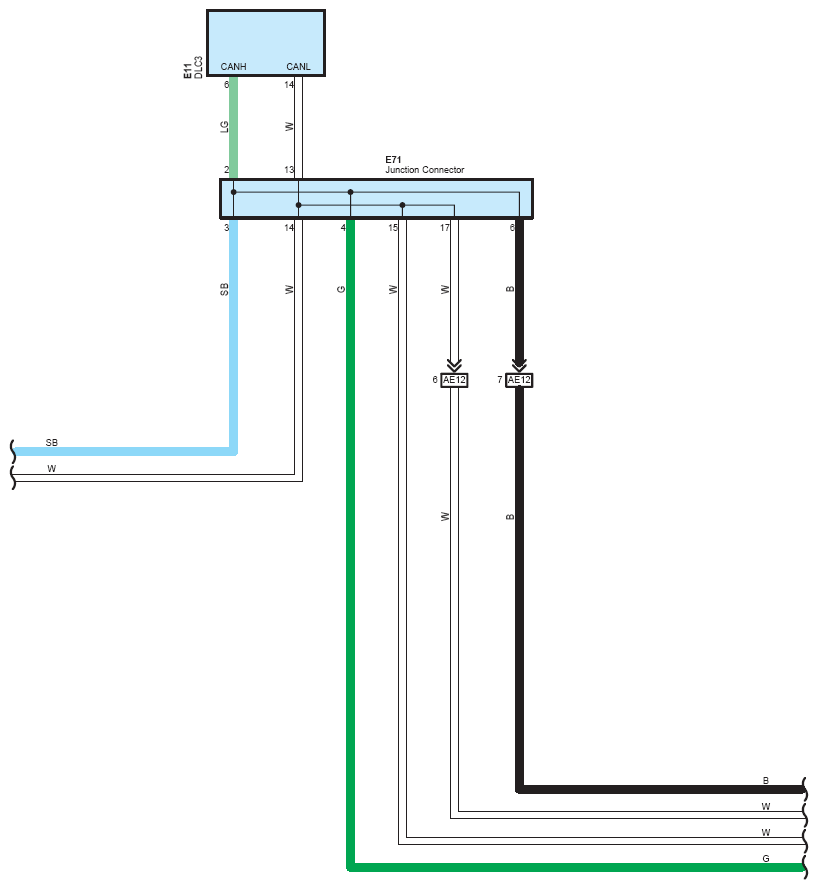

Fig 2: EPS (Except TMC Made) System Wiring Diagram (2 Of 4)
G07115230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

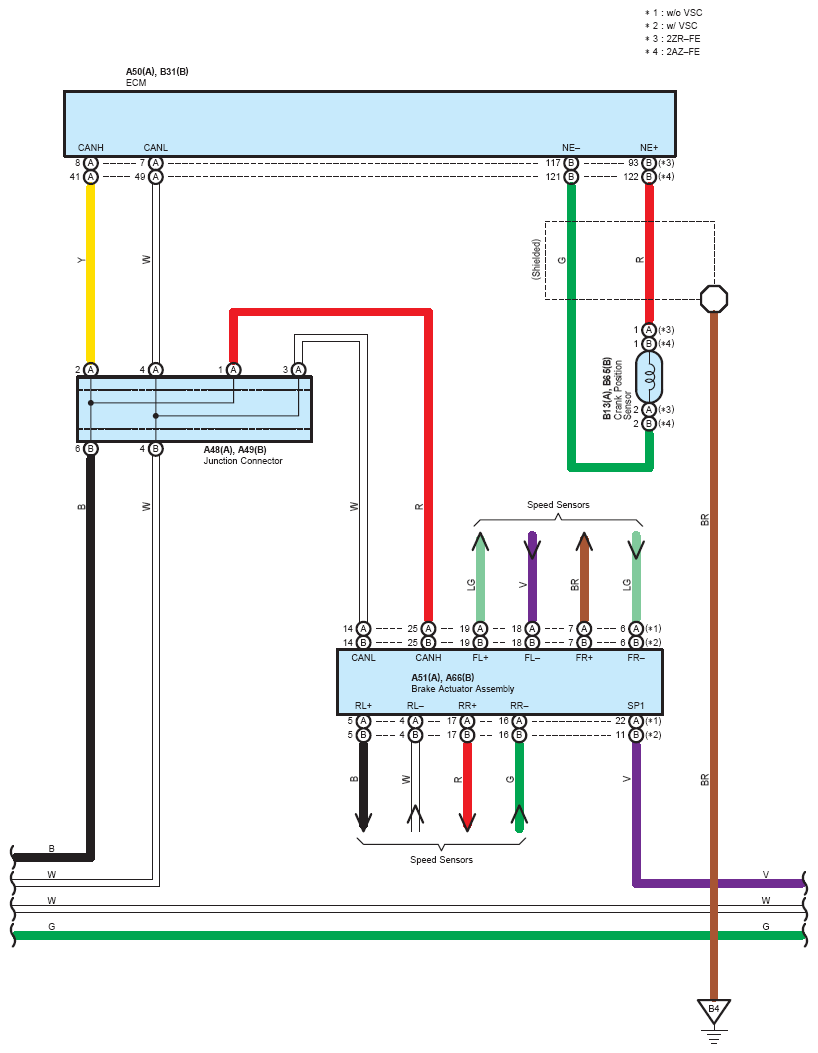

Fig 3: EPS (Except TMC Made) System Wiring Diagram (3 Of 4)
G07115231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

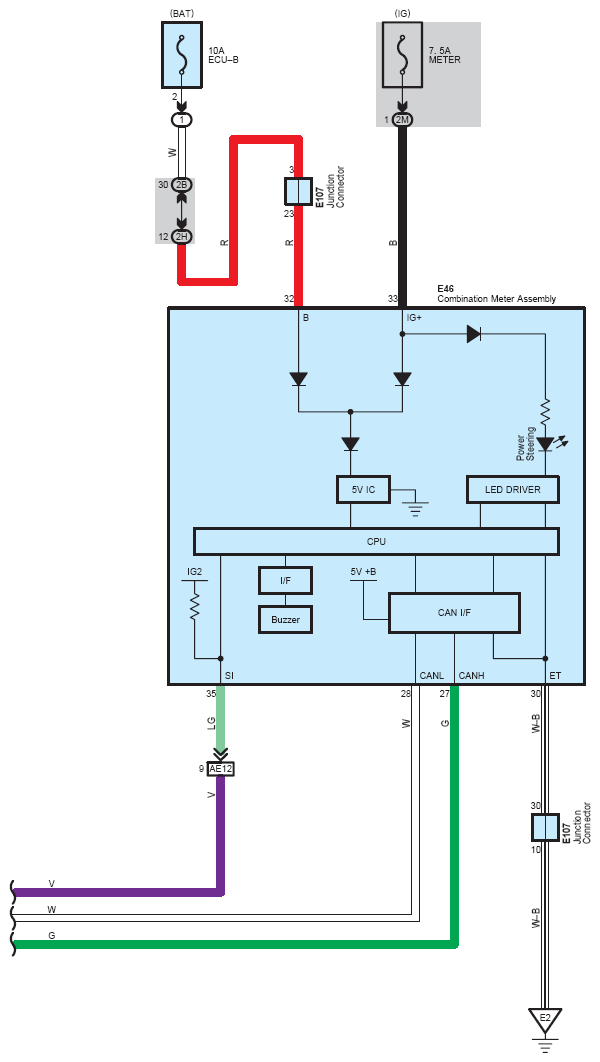

Fig 4: EPS (Except TMC Made) System Wiring Diagram (4 Of 4)
G07115232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
