Interior Light (Except TMC Made): Notes

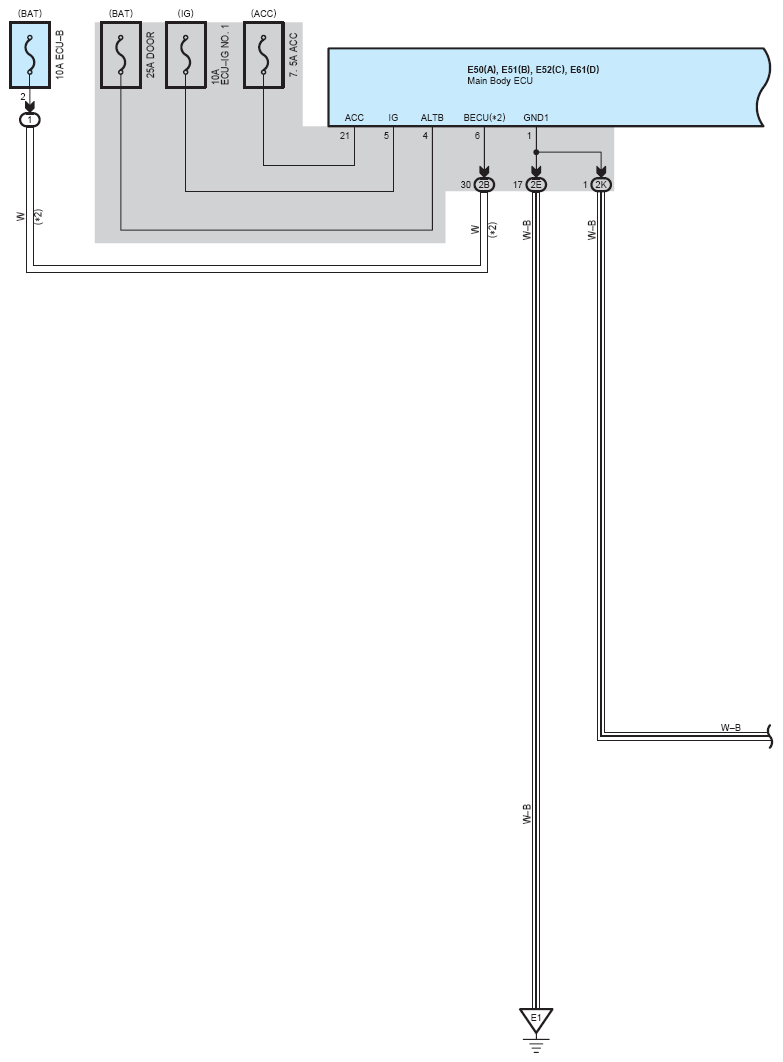

Fig 1: Interior Light (Except TMC Made) System Wiring Diagram (1 Of 5)
G07115149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

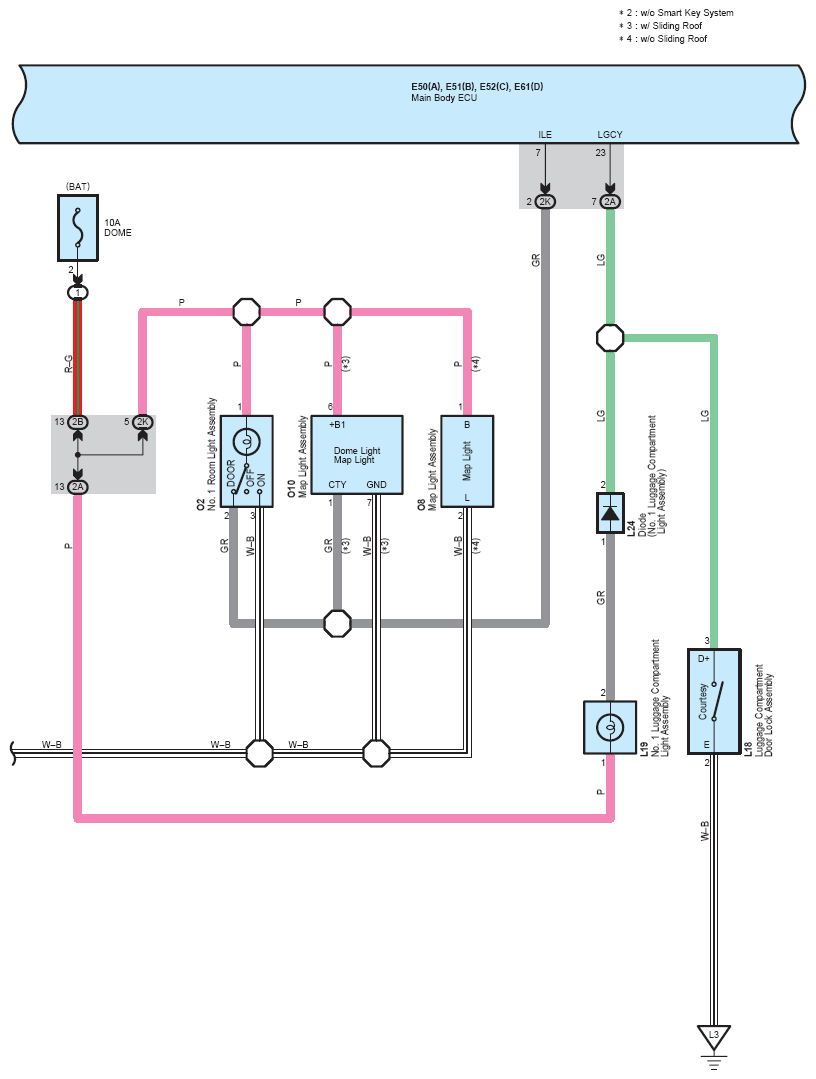

Fig 2: Interior Light (Except TMC Made) System Wiring Diagram (2 Of 5)
G07115150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

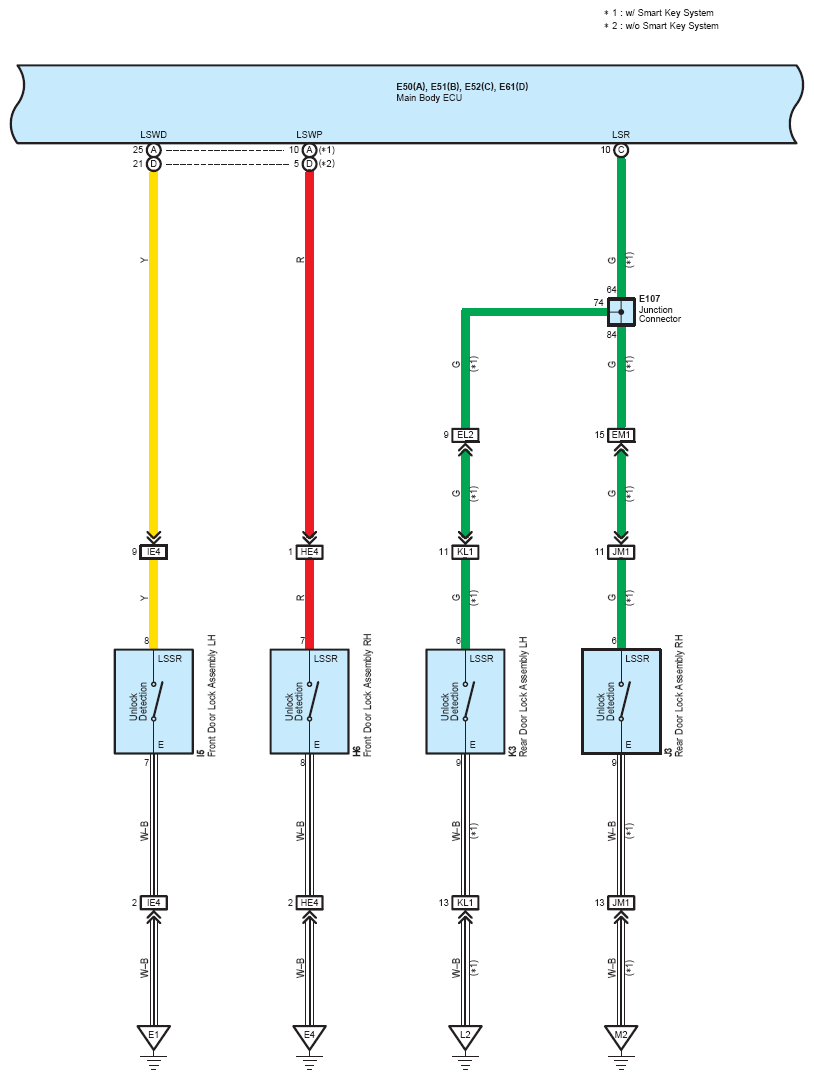

Fig 3: Interior Light (Except TMC Made) System Wiring Diagram (3 Of 5)
G07115151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

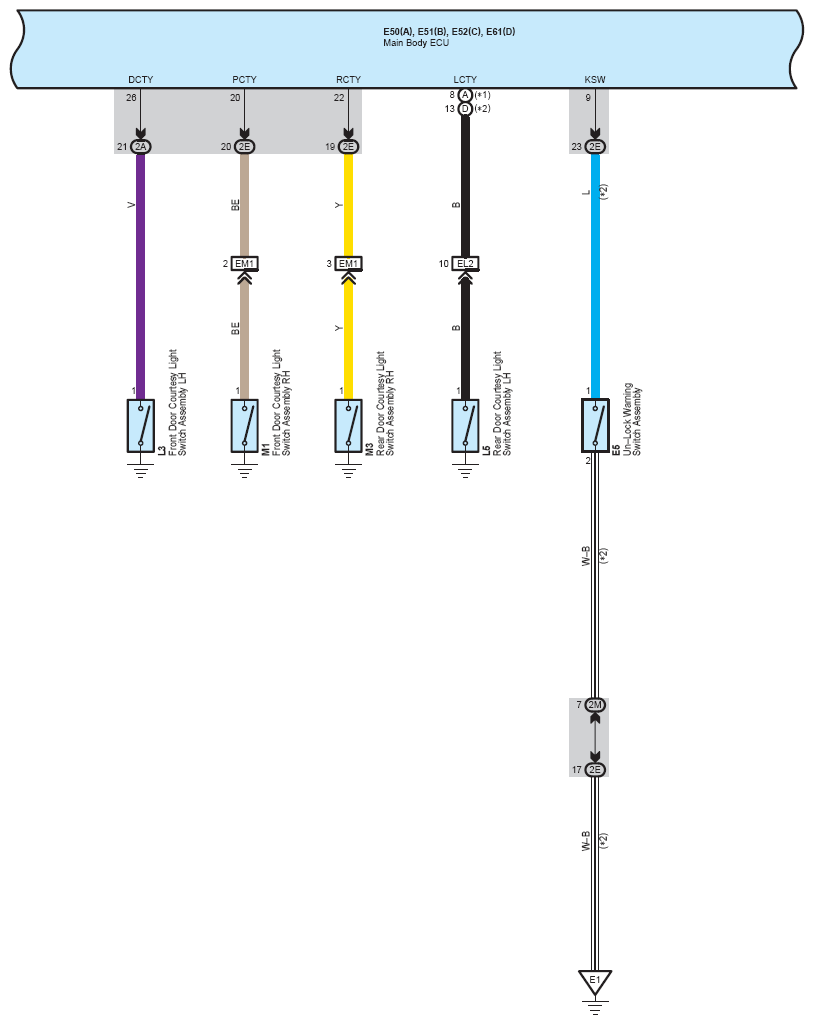

Fig 4: Interior Light (Except TMC Made) System Wiring Diagram (4 Of 5)
G07115152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

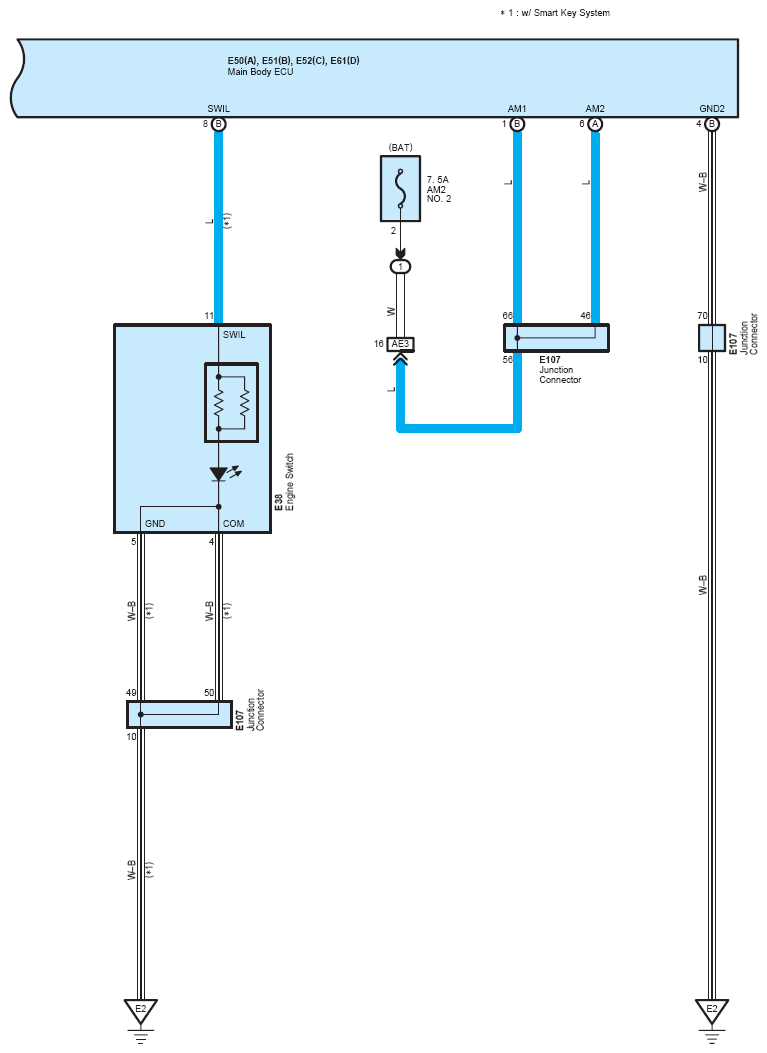

Fig 5: Interior Light (Except TMC Made) System Wiring Diagram (5 Of 5)
G07115153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
