Key Reminder (TMC Made): Notes

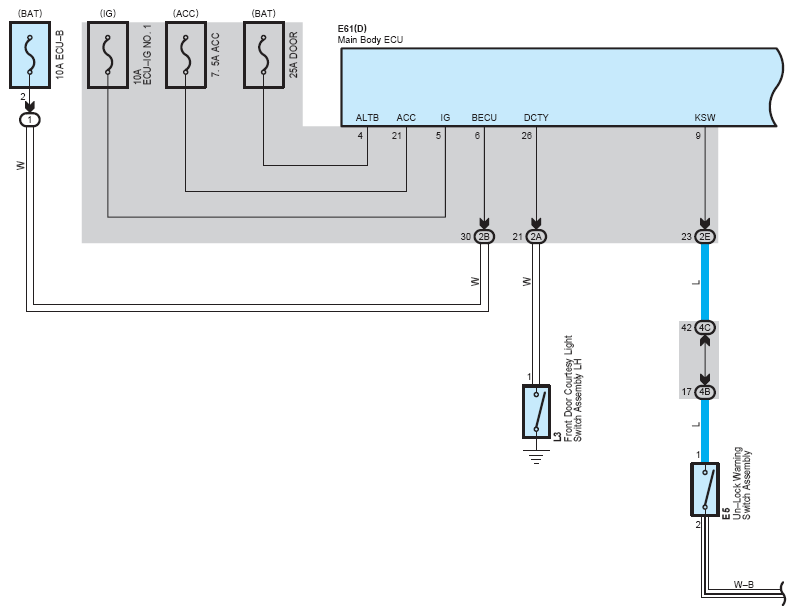

Fig 1: Key Reminder (TMC Made) System Wiring Diagram (1 Of 2)
G07115008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

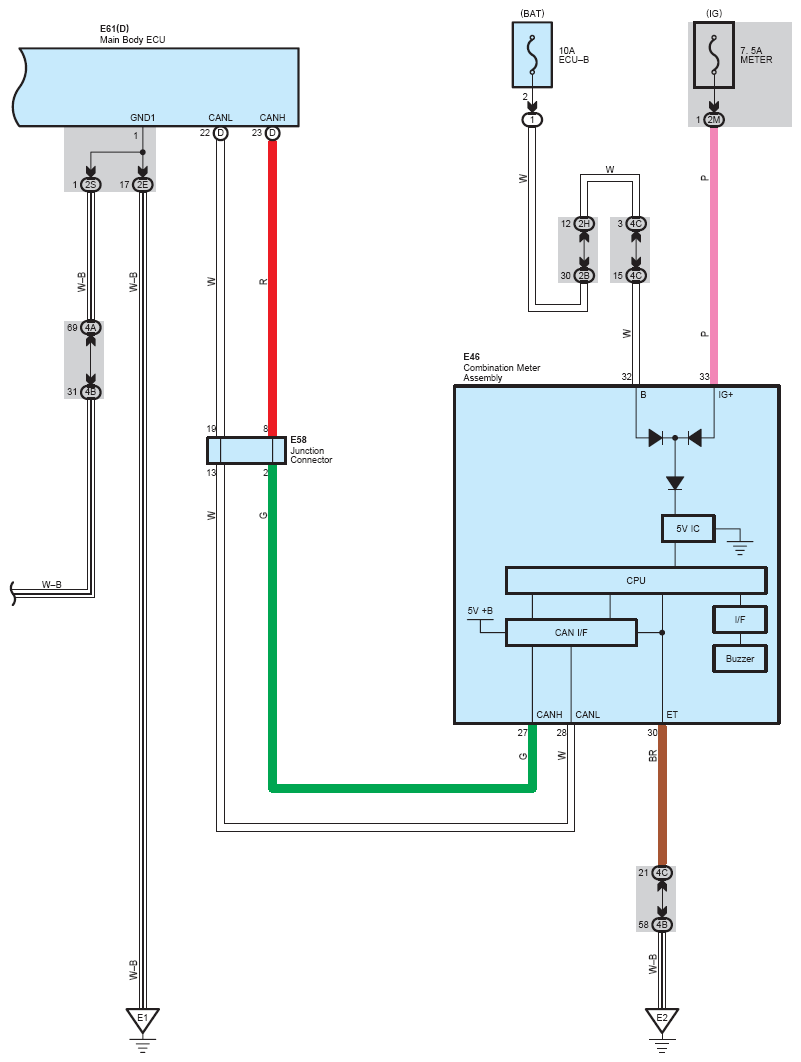

Fig 2: Key Reminder (TMC Made) System Wiring Diagram (2 Of 2)
G07115009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
