SRS (TMC Made): Notes

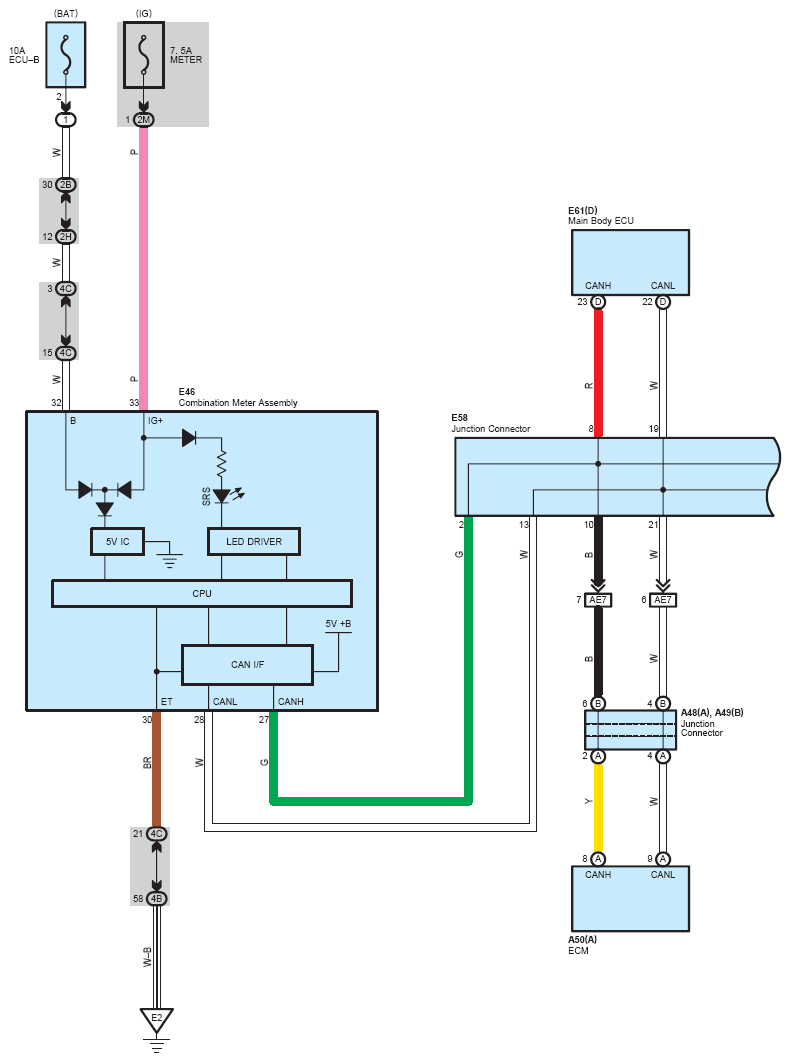

Fig 1: SRS (TMC Made) System Wiring Diagram (1 Of 5)
G07115027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

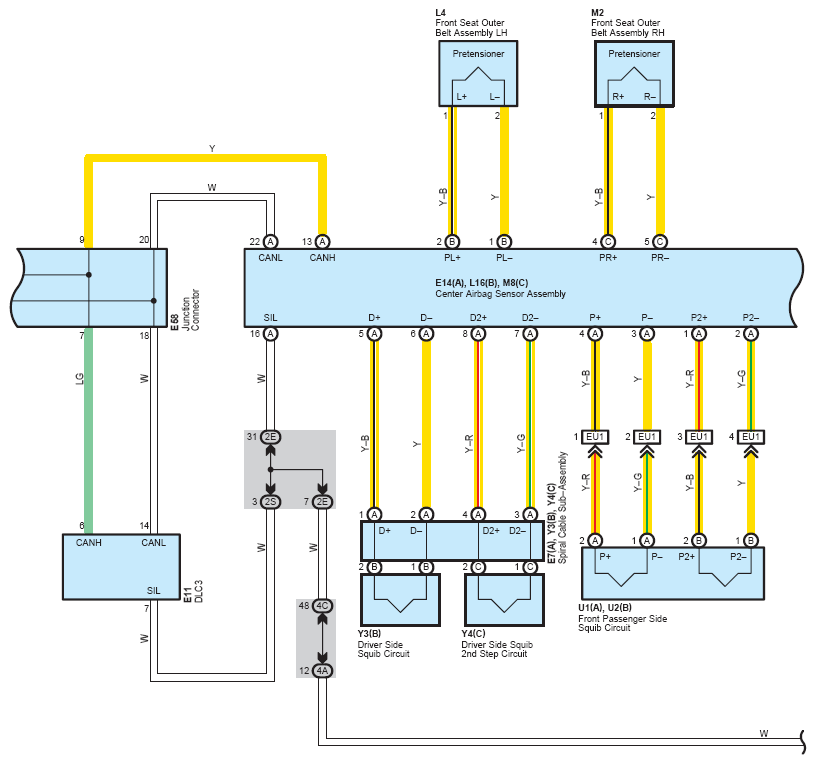

Fig 2: SRS (TMC Made) System Wiring Diagram (2 Of 5)
G07115028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

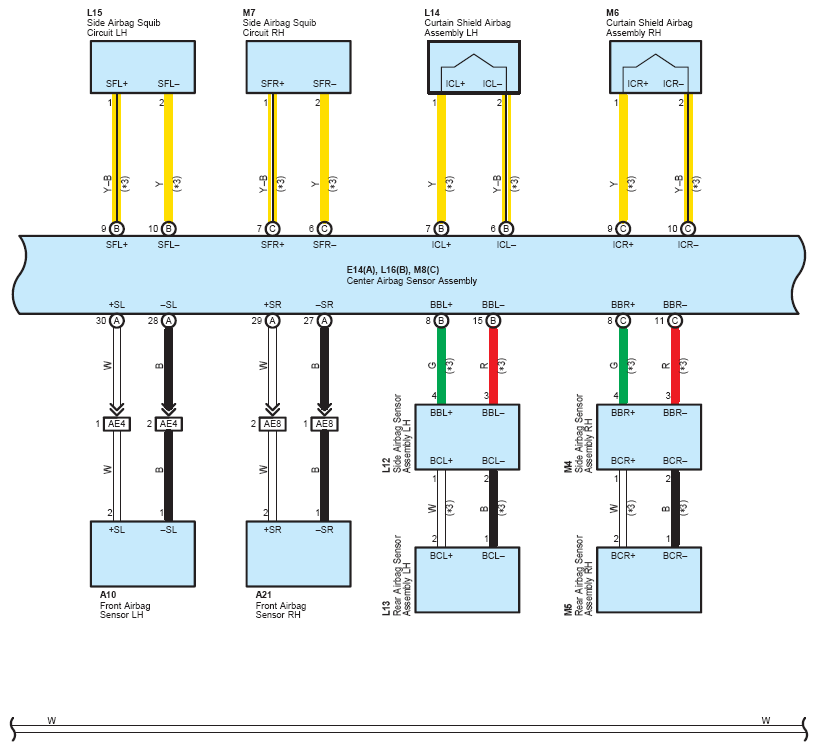

Fig 3: SRS (TMC Made) System Wiring Diagram (3 Of 5)
G07115029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

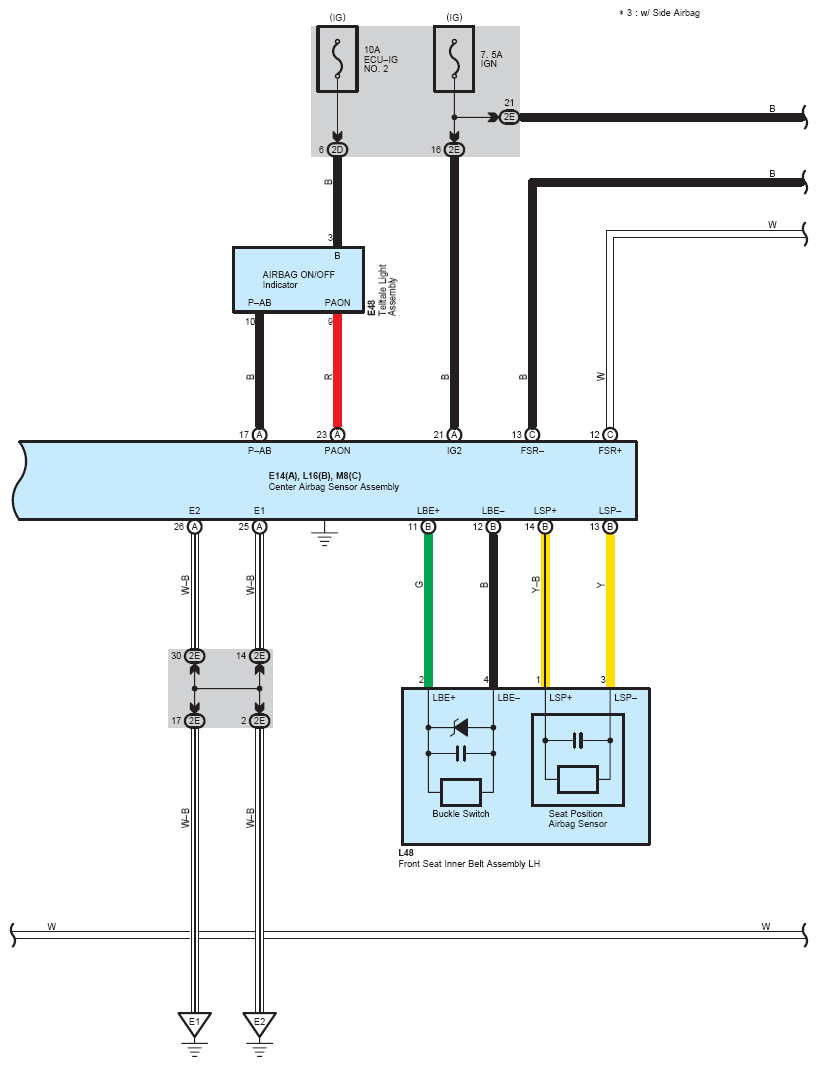

Fig 4: SRS (TMC Made) System Wiring Diagram (4 Of 5)
G07115030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

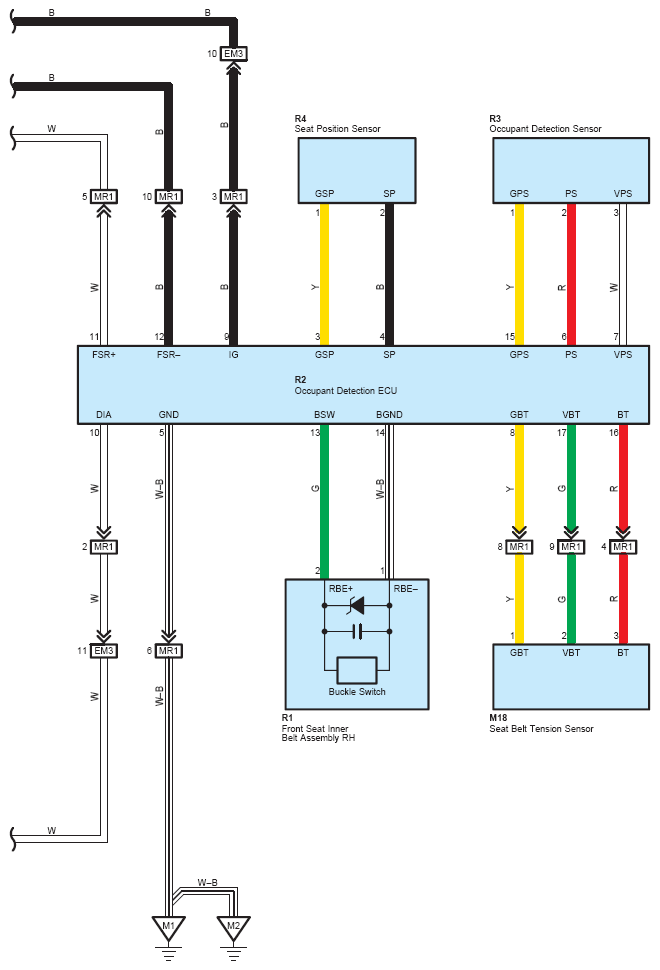

Fig 5: SRS (TMC Made) System Wiring Diagram (5 Of 5)
G07115031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
