Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH

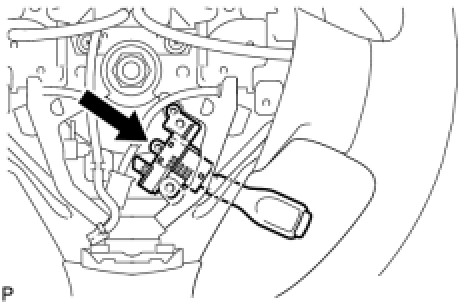

(a) Install the switch as shown in the illustration.

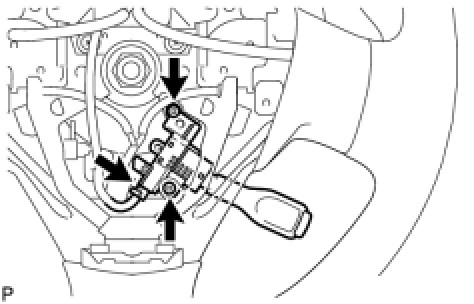

(b) Install the 2 screws.





(c) Connect the connector.

2. INSTALL STEERING PAD (w/o Front Spoiler) Installation

3. INSTALL STEERING PAD (w/ Front Spoiler) Installation

4. INSTALL LOWER NO. 3 STEERING WHEEL COVER (w/o Front Spoiler) Installation

5. INSTALL LOWER NO. 3 STEERING WHEEL COVER (w/ Front Spoiler) Installation

6. INSTALL LOWER NO. 2 STEERING WHEEL COVER (w/o Front Spoiler) Installation

7. INSTALL LOWER NO. 2 STEERING WHEEL COVER (w/ Front Spoiler) Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

9. INSPECT STEERING PAD Installation

10. INSPECT SRS WARNING LIGHT
