Starting (TMC Made): Notes

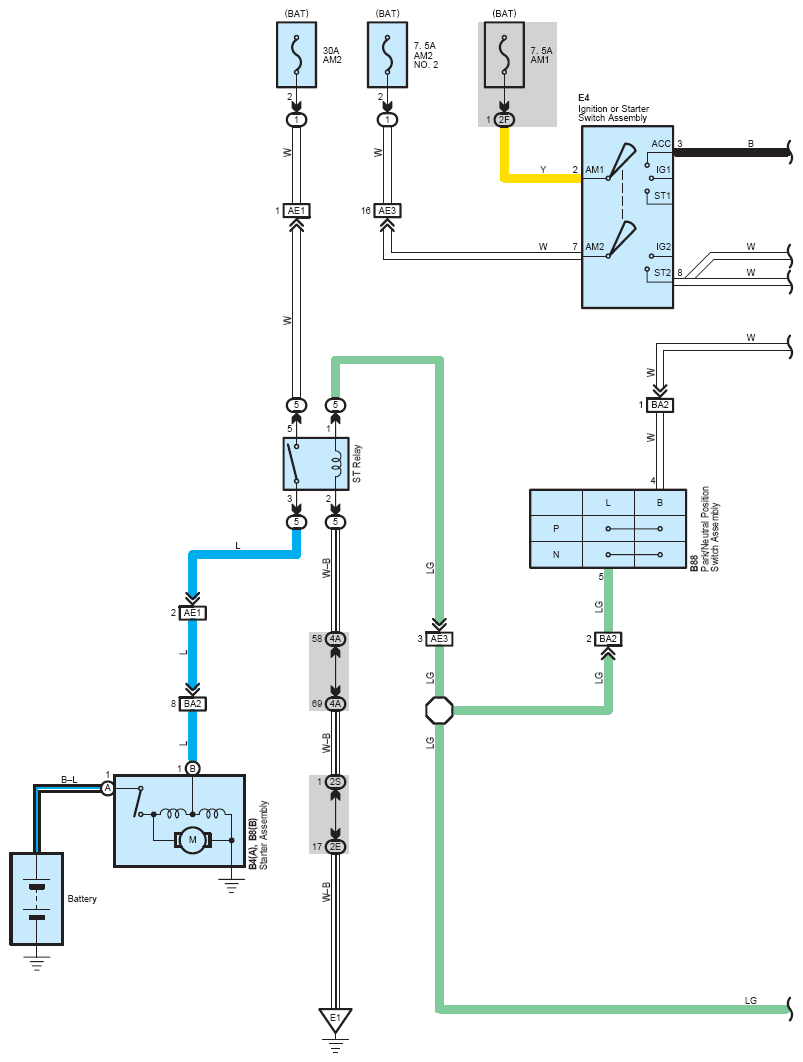

Fig 1: Starting (TMC Made) System Wiring Diagram (1 Of 2)
G07114968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

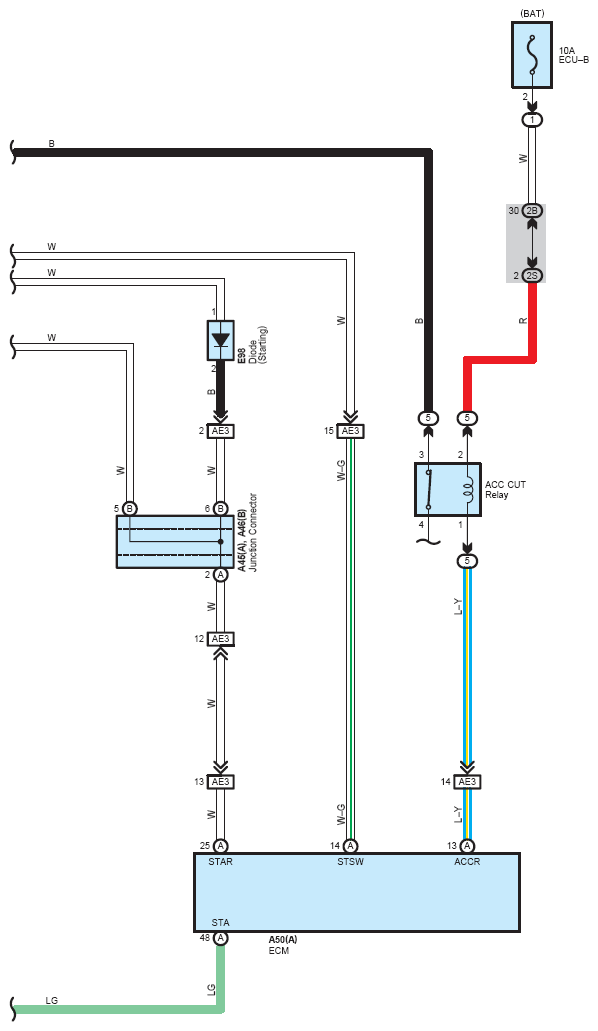

Fig 2: Starting (TMC Made) System Wiring Diagram (2 Of 2)
G07114969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
