FJ Cruiser 4WD, Part Time
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System (Inspection)
>>
Starting System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

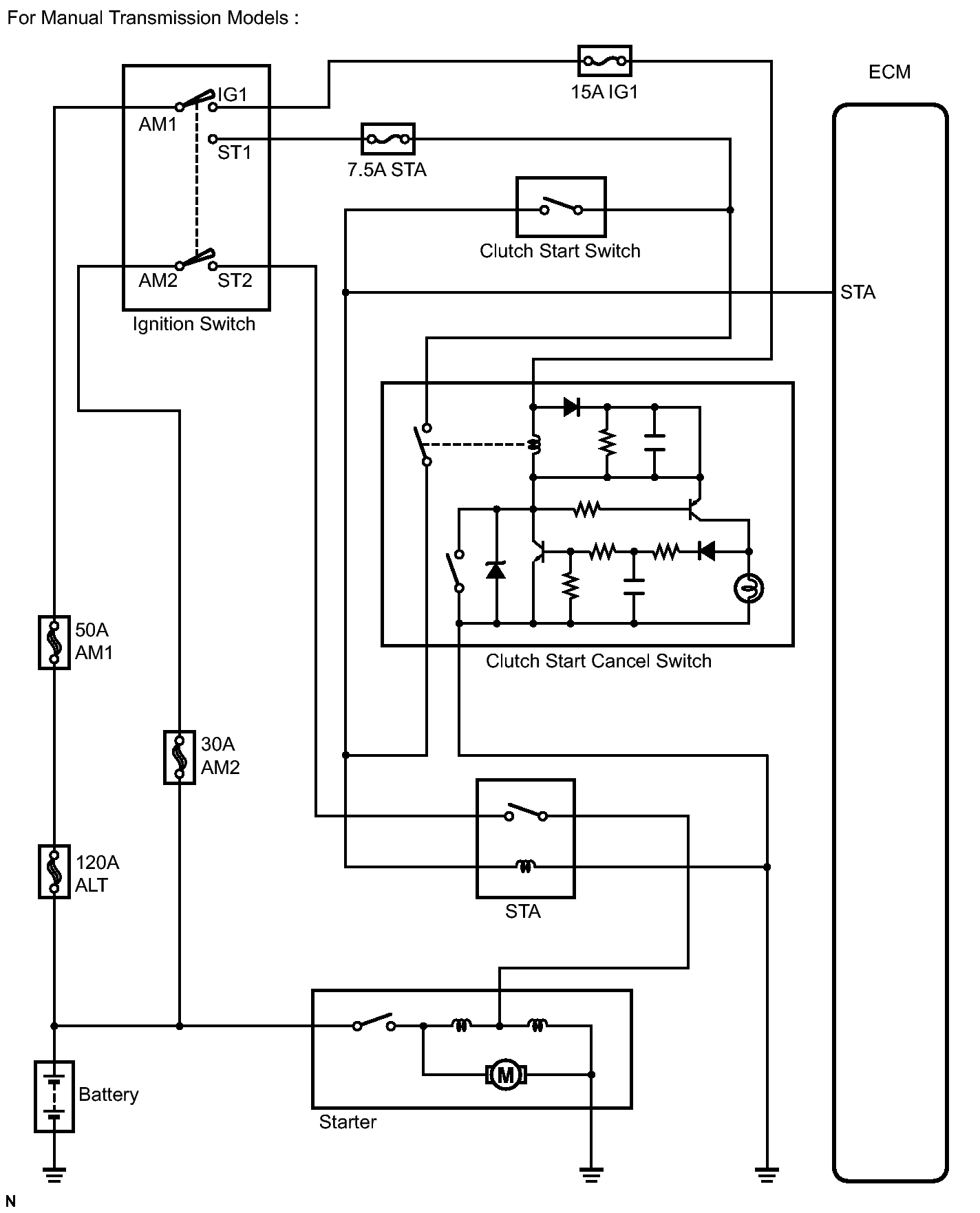

Fig 1: Identifying Starting Circuit Diagram (For Manual Transmission Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

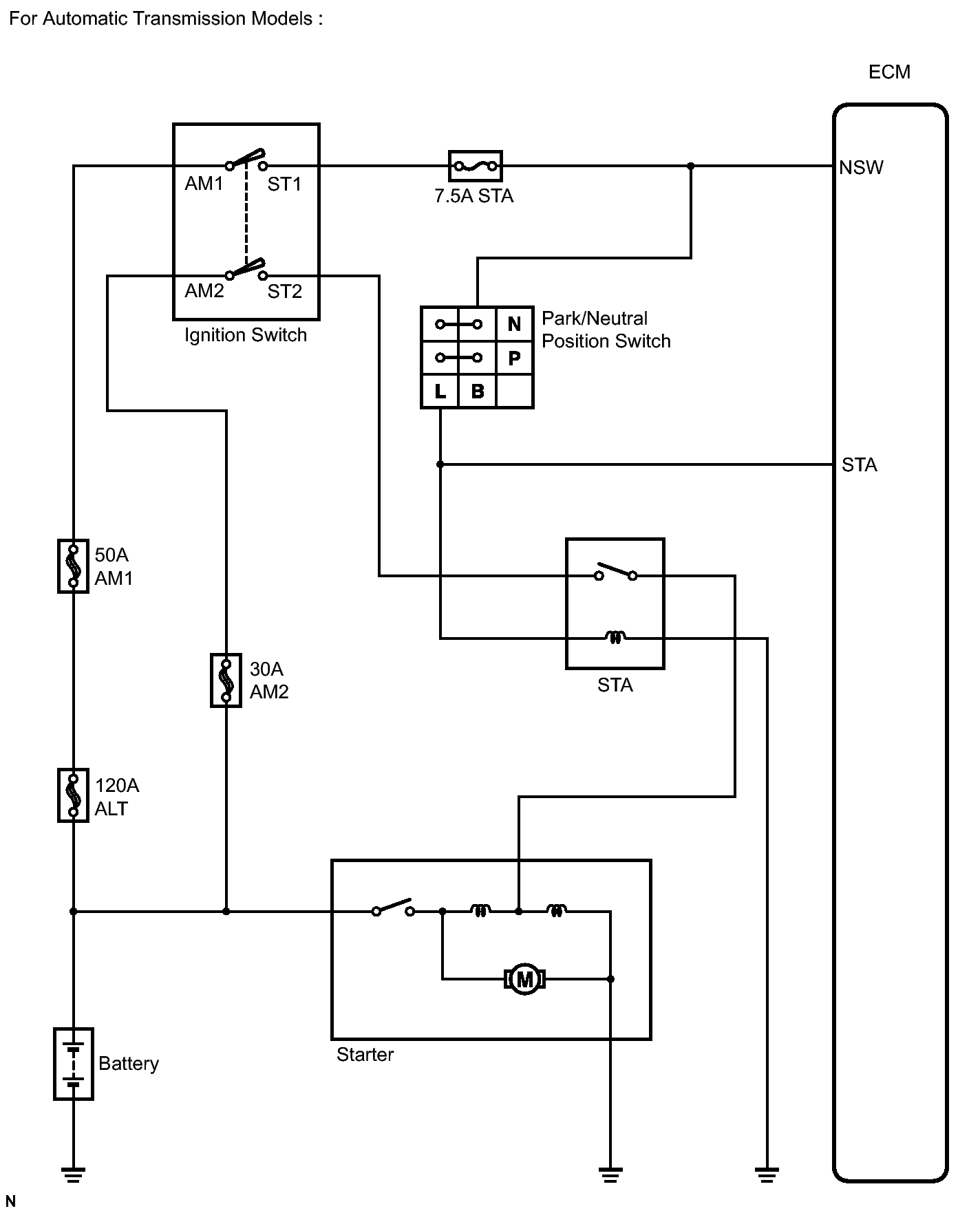

Fig 2: Identifying Starting Circuit Diagram (For Automatic Transmission Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
