Driver Side Power Window does not Operate with Power Window Master Switch: Procedure

  1. INSPECT POWER WINDOW MASTER SWITCH (DRIVER SWITCH)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 1: H8 Connector
      GTY187319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      8 (U) - 1 (E) - 4 (A) Auto UP Below 1 Ω
      8 (U) - 1 (E) Manual UP Below 1 Ω
      5 (D) - 1 (E) Manual DOWN Below 1 Ω
      4 (A) - 5 (D) - 1 (E) Auto DOWN Below 1 Ω

    NG → See step   5

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (MASTER SWITCH - MOTOR (DRIVER SIDE)
    1. Disconnect the H8 and H1 connectors.

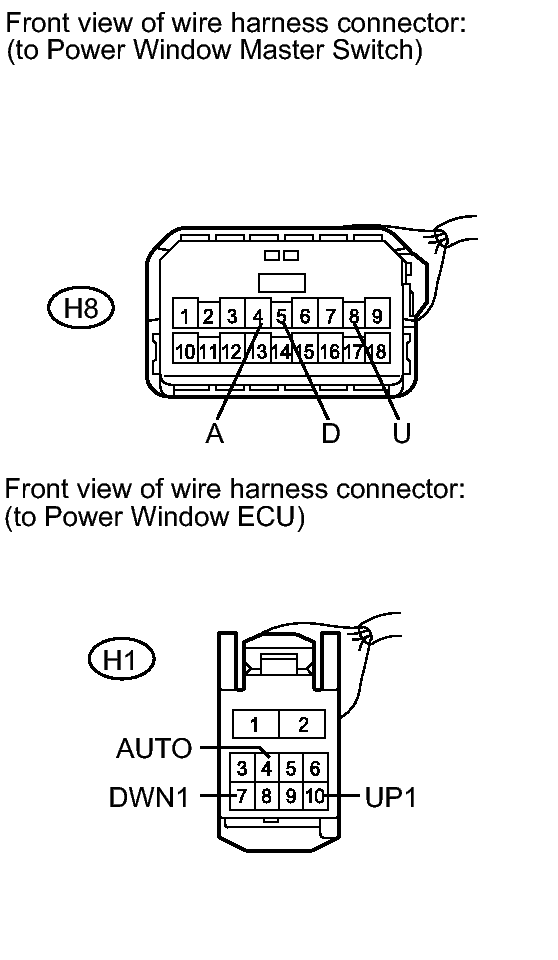

      Fig 2: H8 and H1 Connectors
      GTY177208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      H8-8 (U) - H1-10 (UP1) Always Below 1 Ω
      H8-4 (A) - H1-4 (AUTO) Always Below 1 Ω
      H8-5 (D) - H1-7 (DWN1) Always Below 1 Ω
      H8-8 (U) - Body ground Always 10 kΩ or higher
      H8-4 (A) - Body ground Always 10 kΩ or higher
      H8-5 (D) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Side)
    1. Remove the power window regulator motor, refer to REMOVAL .

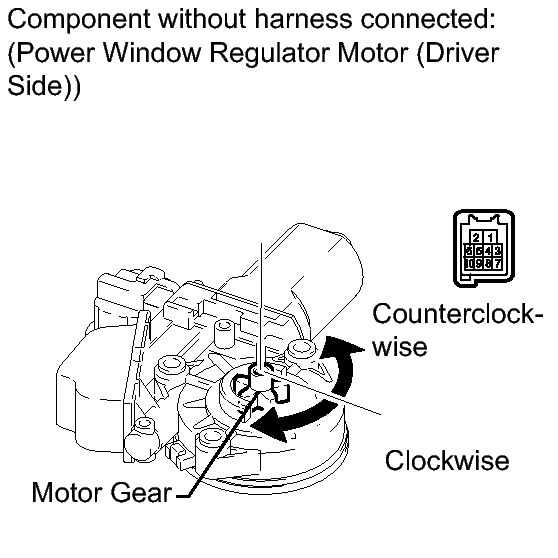

      Fig 3: Identifying Power Window Regulator Motor Assembly (For Driver Side)
      GTY199035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply battery voltage to the motor connector according to the table below.
        NOTE:

        Do not apply battery voltage to any terminals except terminals 1, 2, 4, 7, 9 and 10.

        OK

        Switch Condition Measurement Condition Specified Condition
        Manual Operation Battery positive (+) → Terminal 2 (B), 9 (LIN)
        Battery negative (-) → Terminal 1 (E), 7 (DWN1)
        Motor gear rotates counterclockwise
        Battery positive (+) → Terminal 2 (B), 9 (LIN)
        Battery negative (-) → Terminal 1 (E), 10 (UP1)
        Motor gear rotates clockwise
        Auto Operation Battery positive (+) → Terminal 2 (B), 9 (LIN)
        Battery negative (-) → Terminal 1 (E), 4 (AUTO), 7 (DWN1)
        Motor gear rotates counterclockwise
        Battery positive (+) → Terminal 2 (B), 9 (LIN)
        Battery negative (-) → Terminal 1 (E), 4 (AUTO), 10 (UP1)
        Motor gear rotates clockwise

    NG → See step   6

    OK → See step   4

  4. REPLACE POWER WINDOW MASTER SWITCH. Refer to  REMOVAL
  5. REPLACE POWER WINDOW MASTER SWITCH. Refer to  REMOVAL
  6. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Side). Refer to  REMOVAL
