Rear Speed Sensor: Components: Illustration

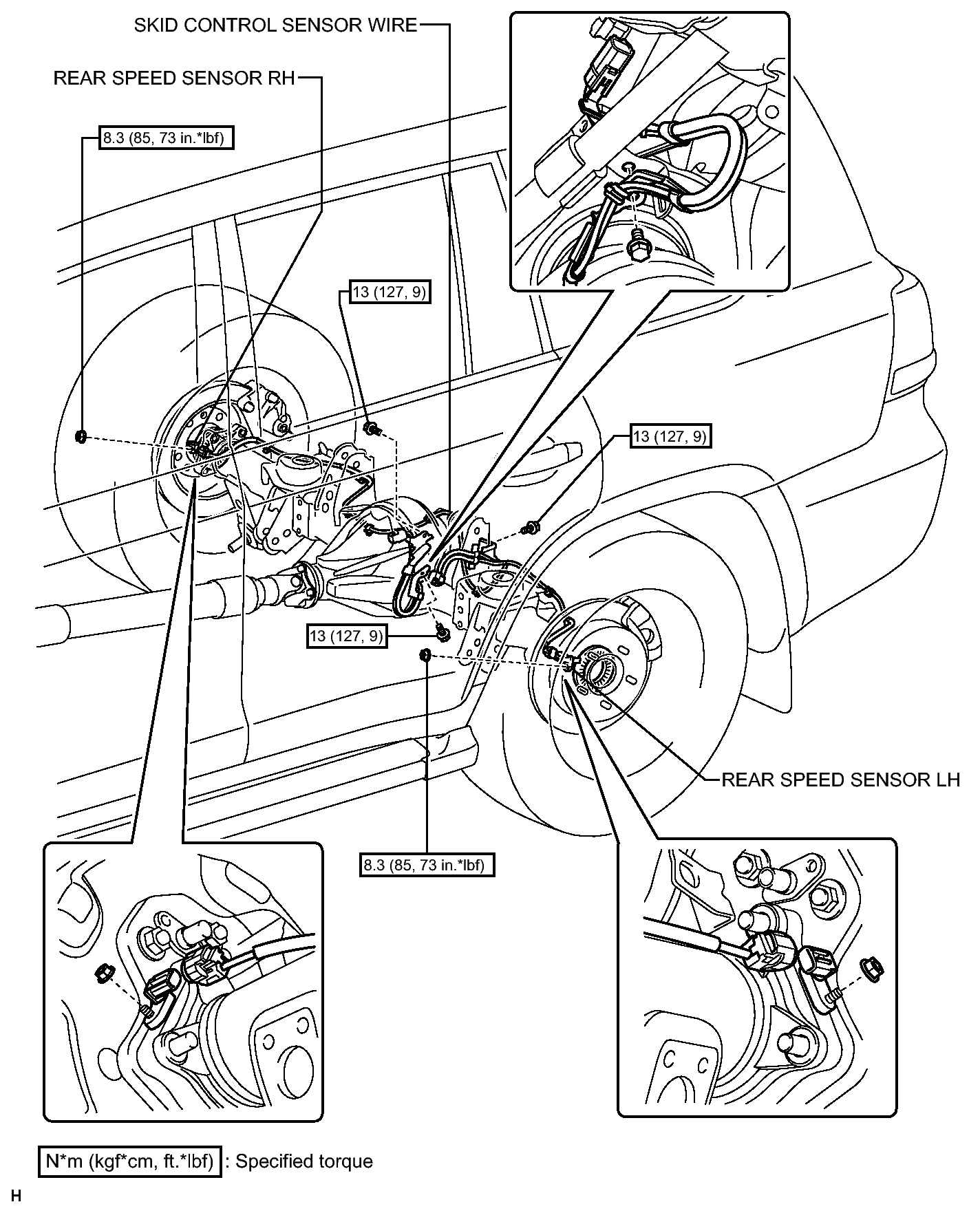

Fig 1: Identifying Rear Speed Sensor Components With Torque Specification
GTY244462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
