OEM System Circuits: SRS: Notes

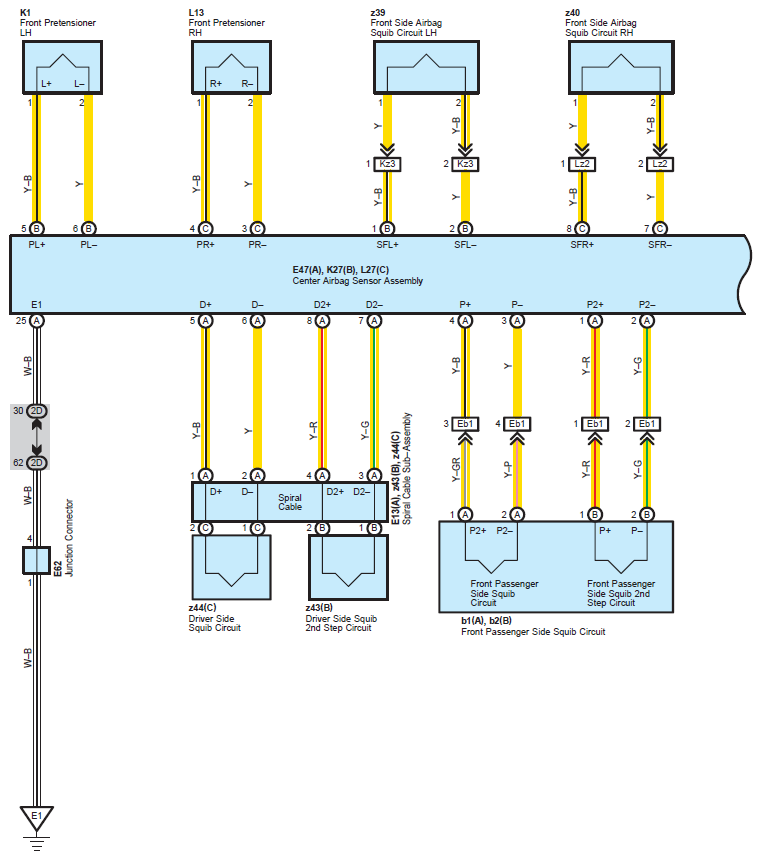

Fig 1: SRS System Wiring Diagram (1 Of 8)

G07116065

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

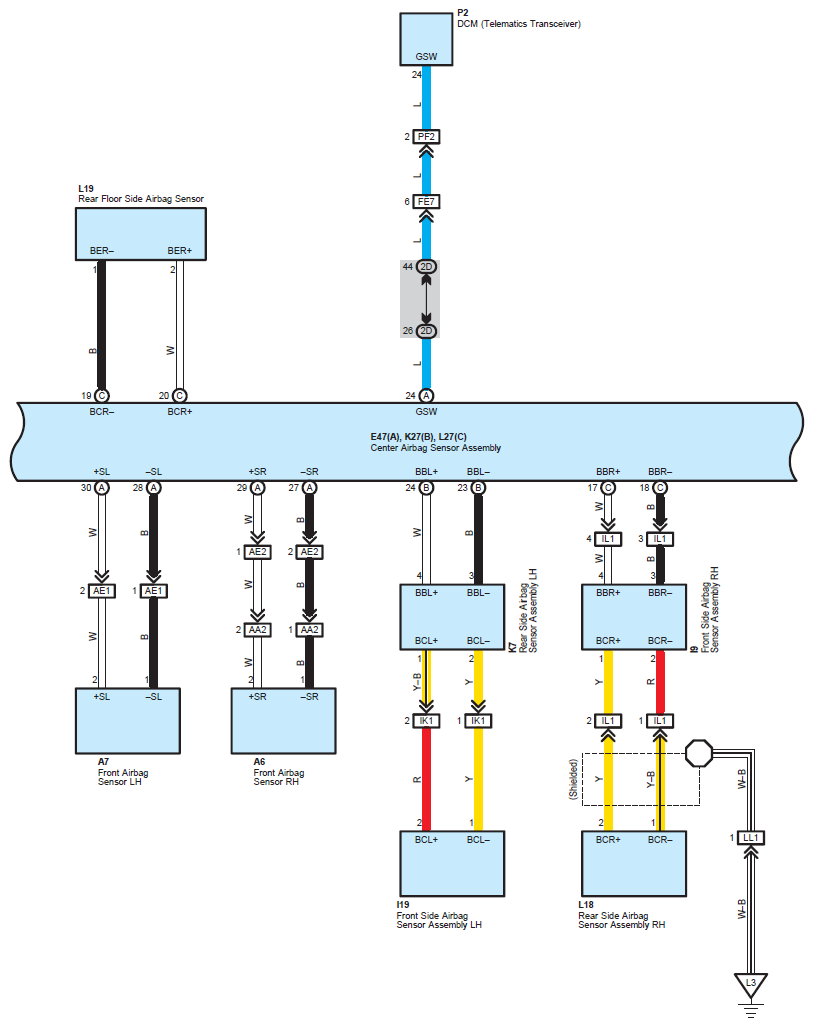

Fig 2: SRS System Wiring Diagram (2 Of 8)

G07116066

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

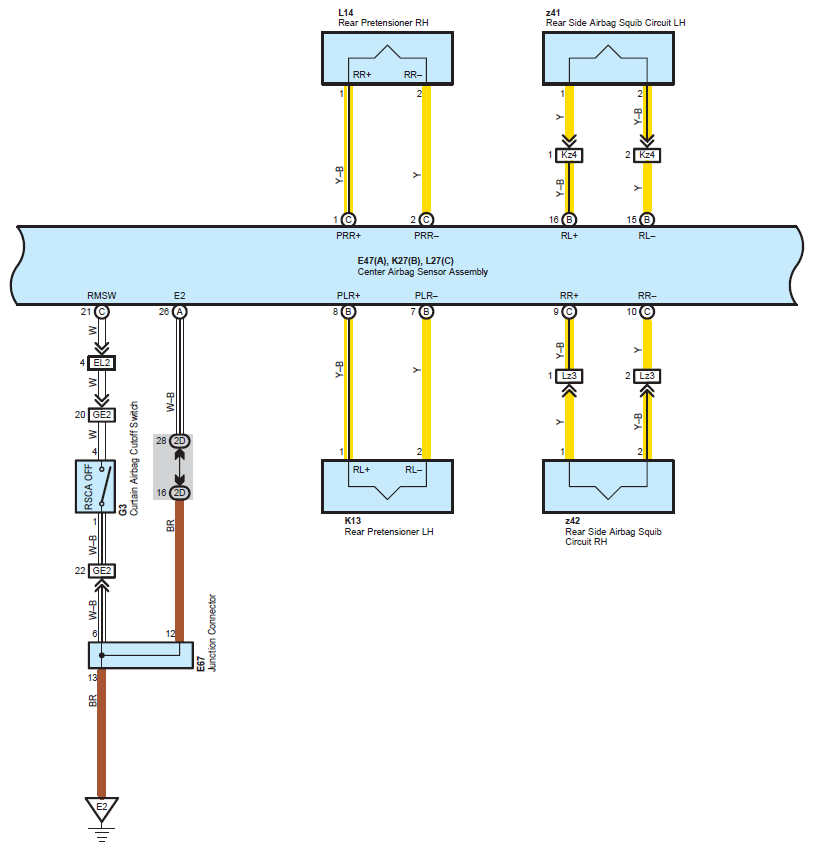

Fig 3: SRS System Wiring Diagram (3 Of 8)

G07116067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

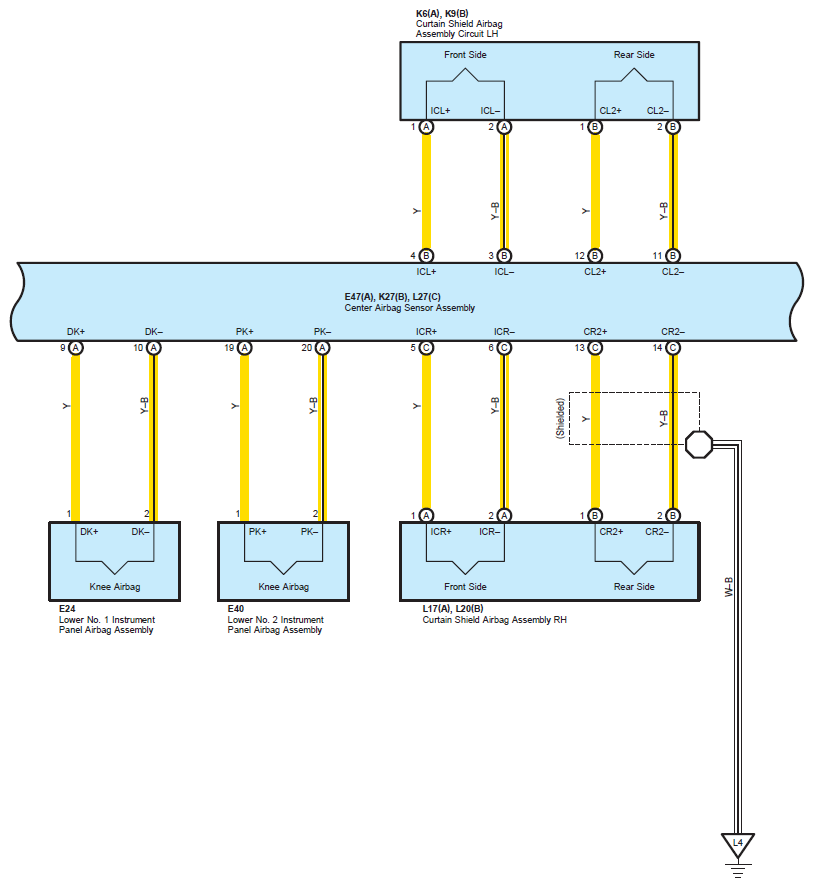

Fig 4: SRS System Wiring Diagram (4 Of 8)

G07116068

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

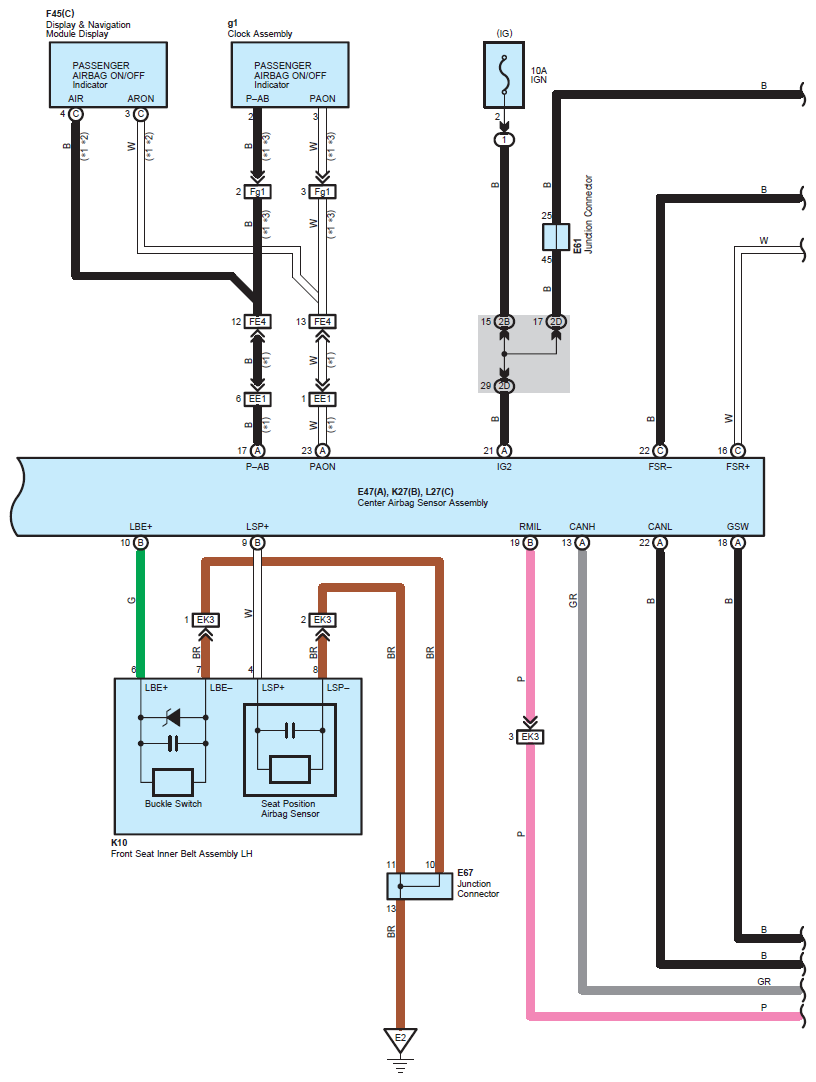

Fig 5: SRS System Wiring Diagram (5 Of 8)

G07116069

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

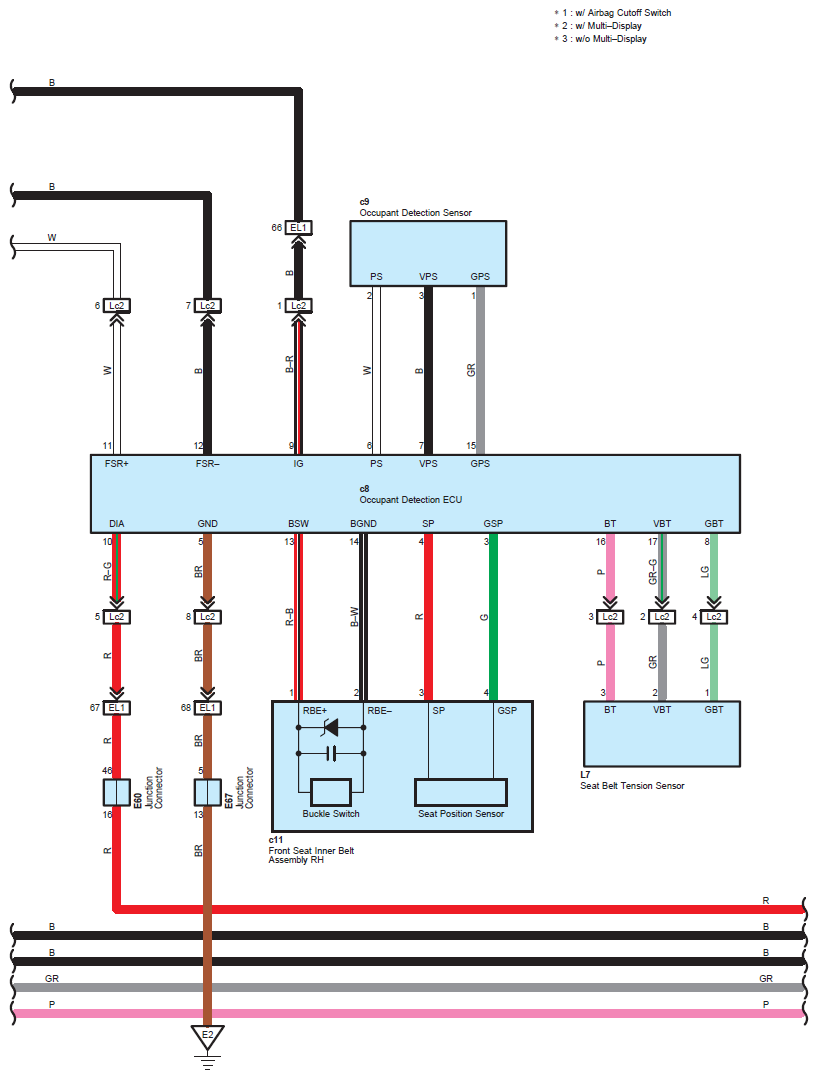

Fig 6: SRS System Wiring Diagram (6 Of 8)

G07116070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

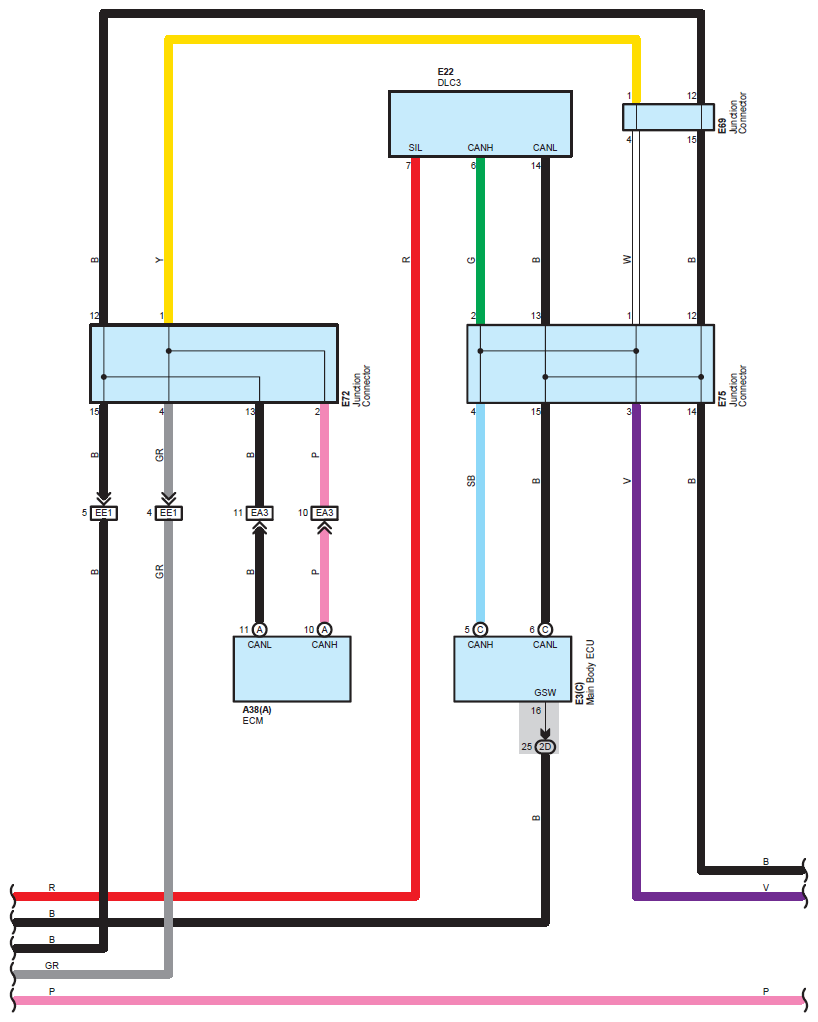

Fig 7: SRS System Wiring Diagram (7 Of 8)

G07116071

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

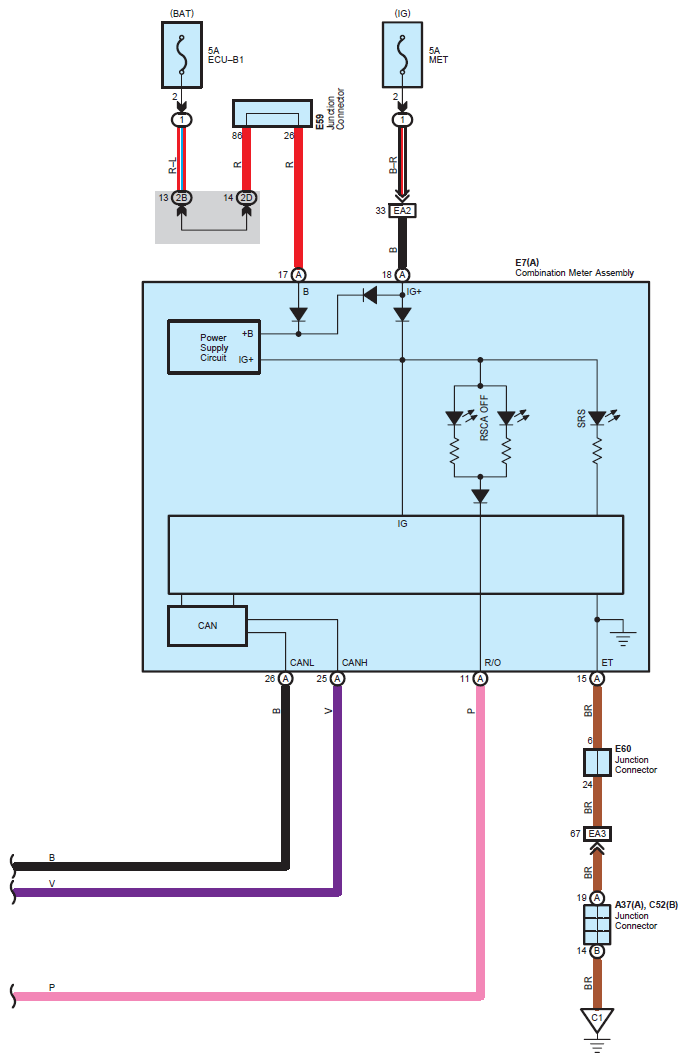

Fig 8: SRS System Wiring Diagram (8 Of 8)

G07116072

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
