Installation





DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSTALLATION

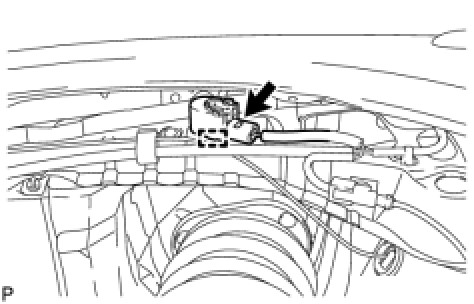

1. INSTALL WIRELESS DOOR LOCK BUZZER

(a) Install the wireless door lock buzzer with the clamp.





(b) Connect the connector.

2. INSTALL FRONT FENDER LINER Installation

3. INSTALL FRONT WHEEL Installation
