Radiator Cooling Fan Control Module: Locations

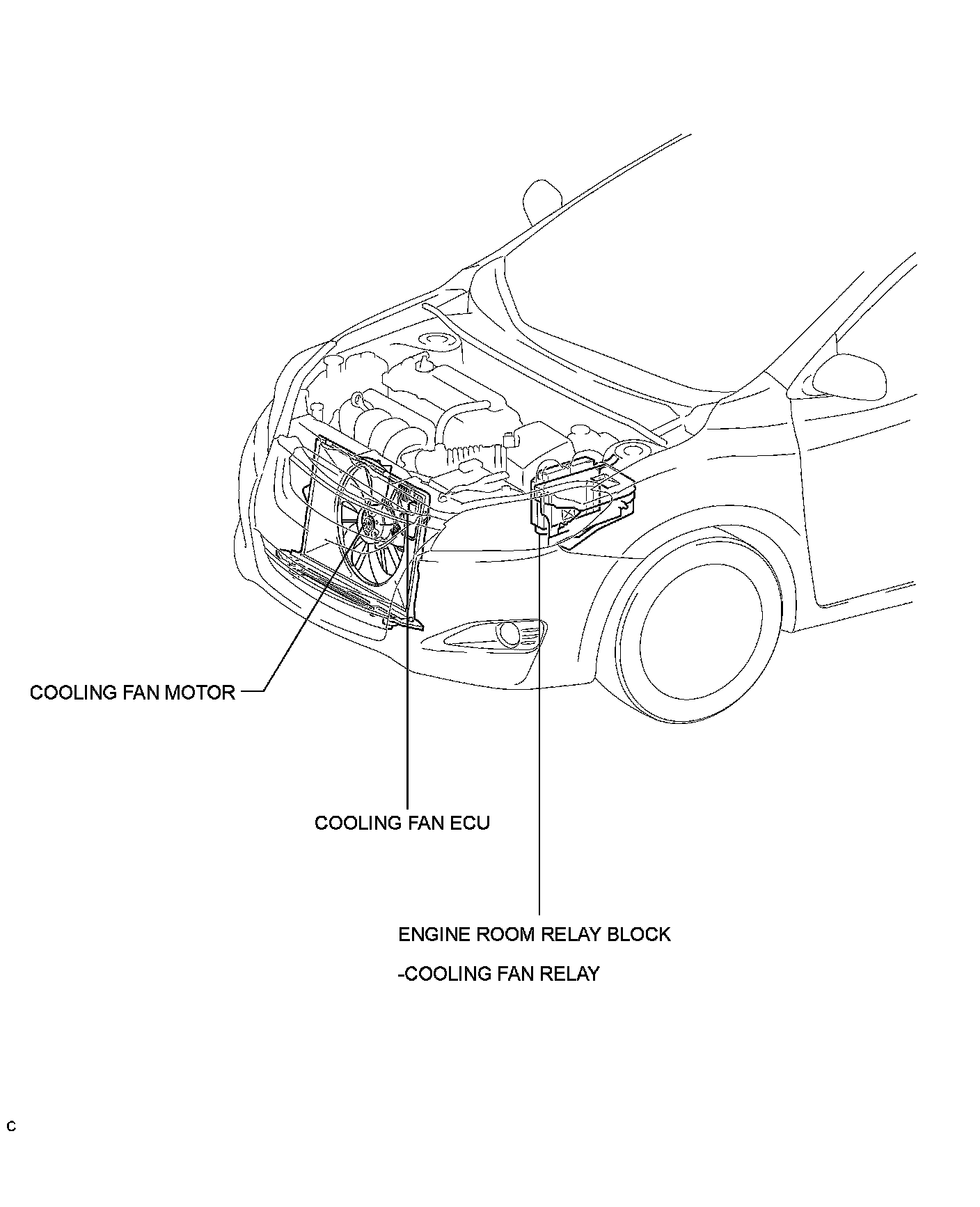

2ZR-FE COOLING: COOLING FAN SYSTEM: PARTS LOCATION

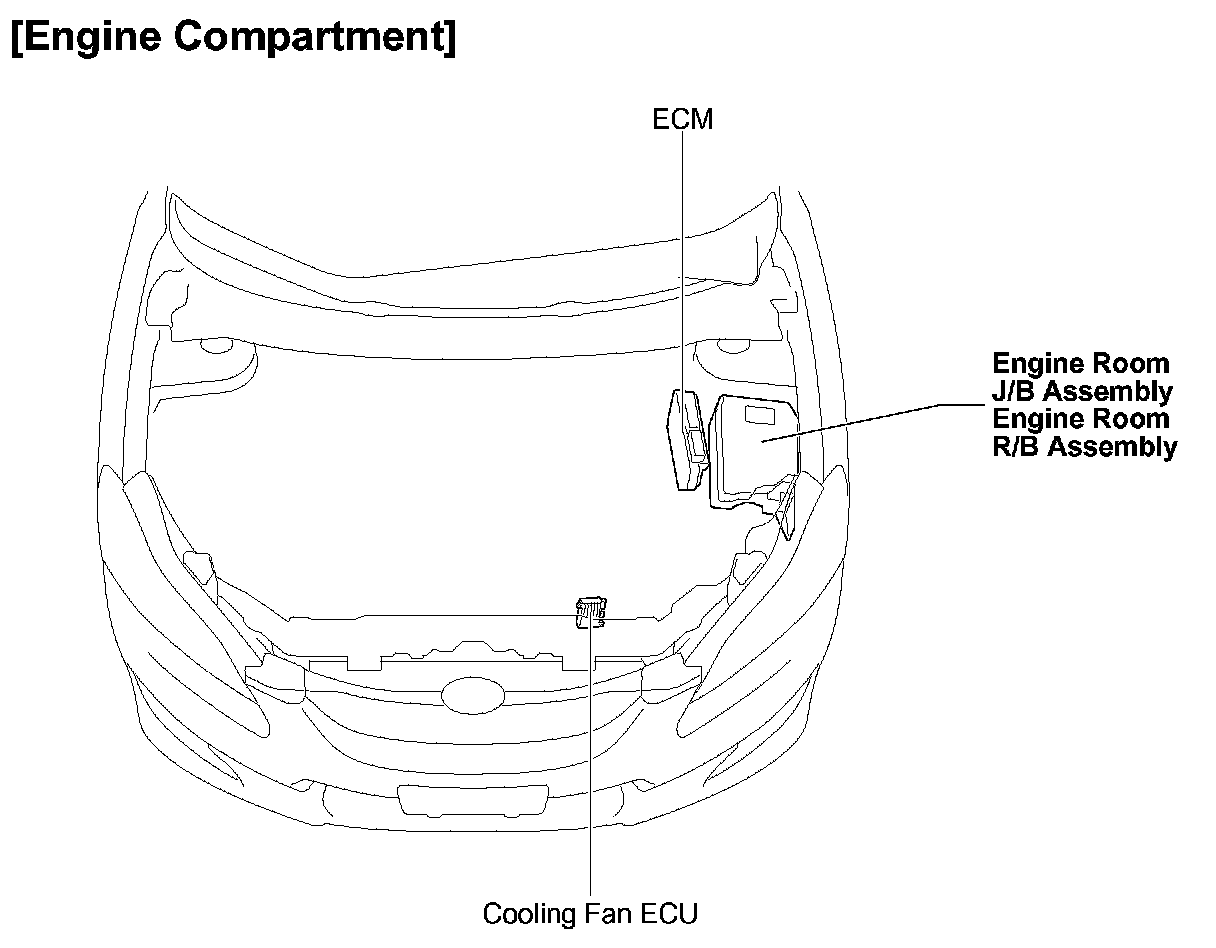

Engine Compartment:
