Flex Plate

DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)

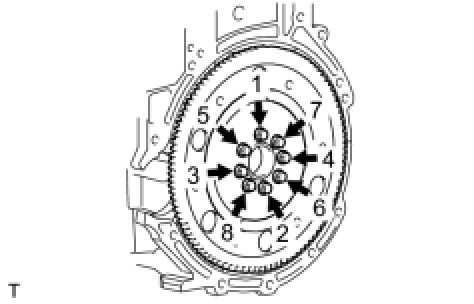

In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.






Torque 88 Nm (897 kgf-cm, 65 ft-lbf)
