Audio System (w/Navigation System), Navigation System and Parking Assist (Rear View Monitor w/Navigation System): Notes

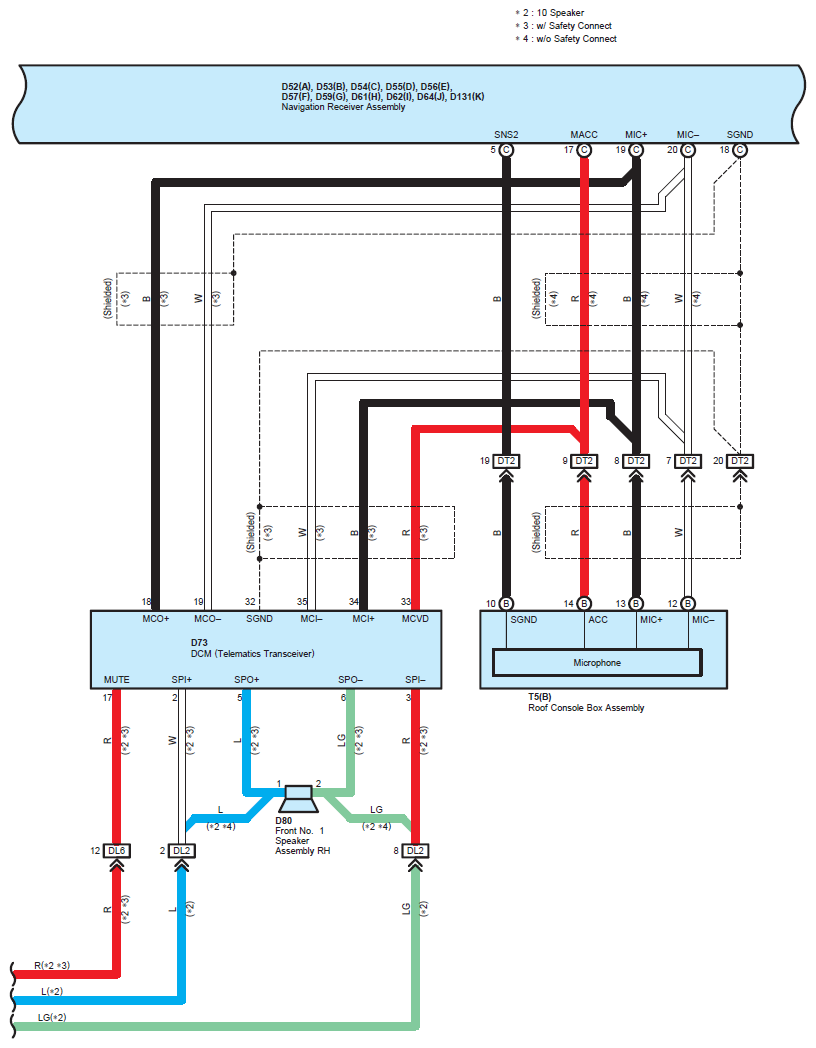

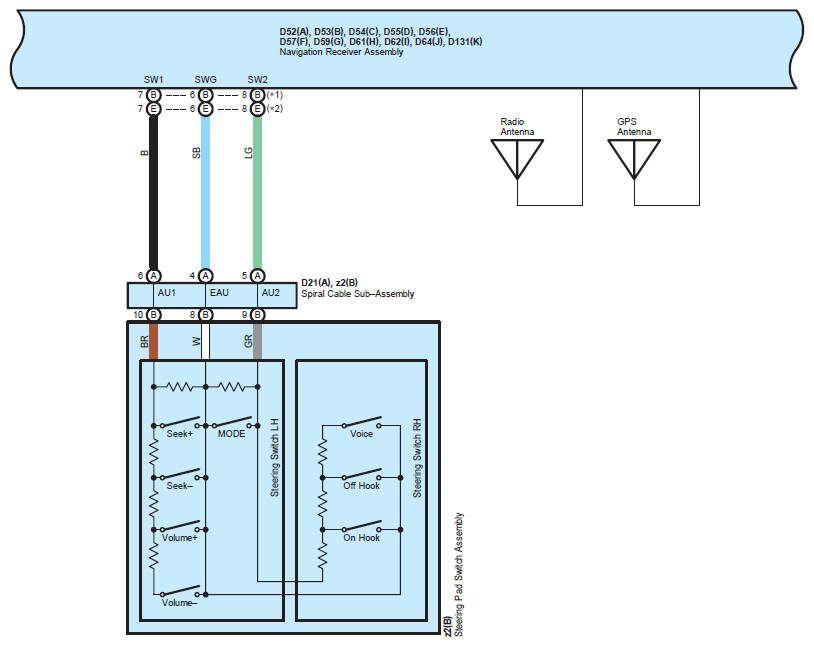

Fig 1: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

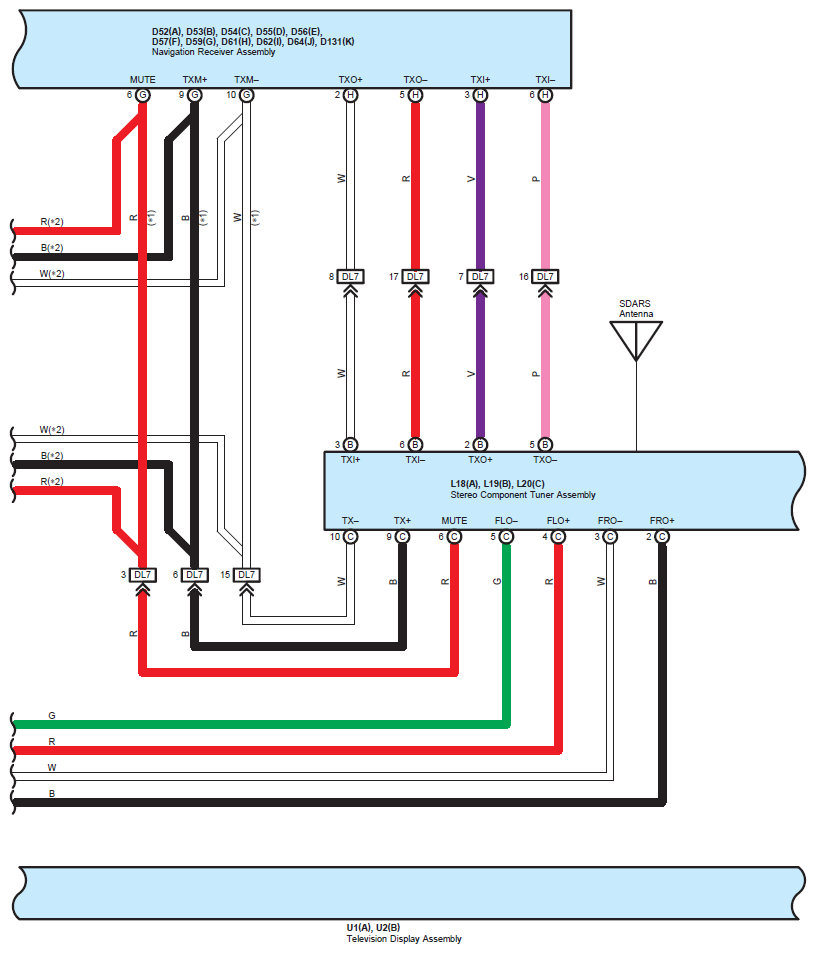

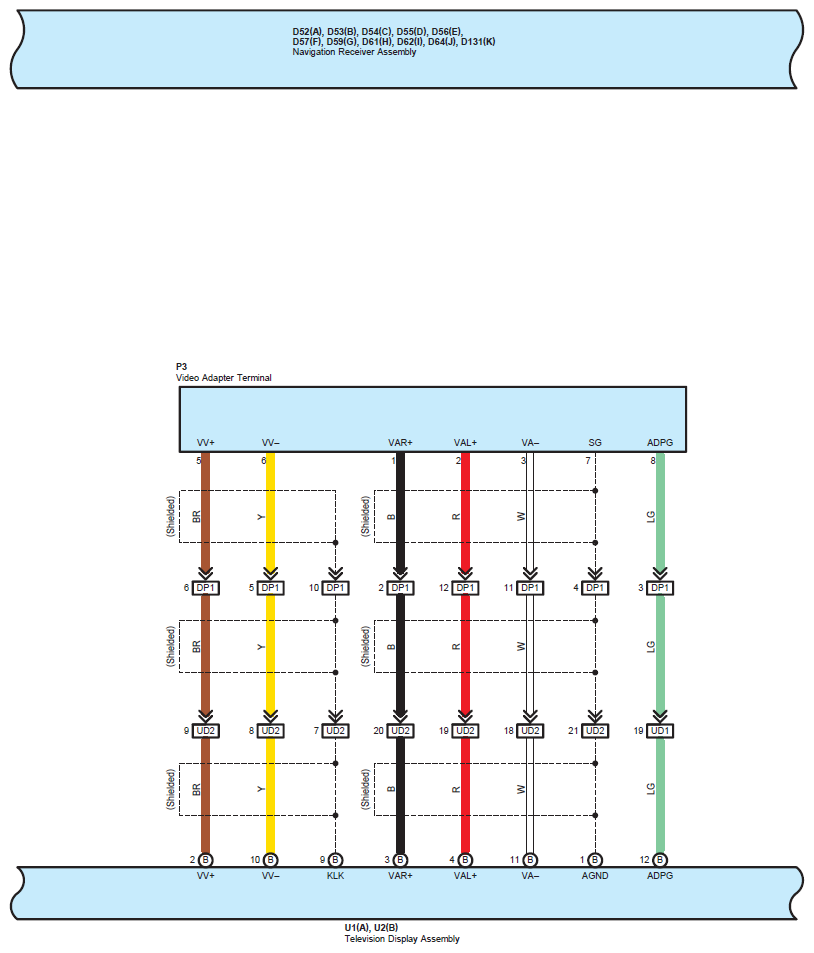

Fig 2: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

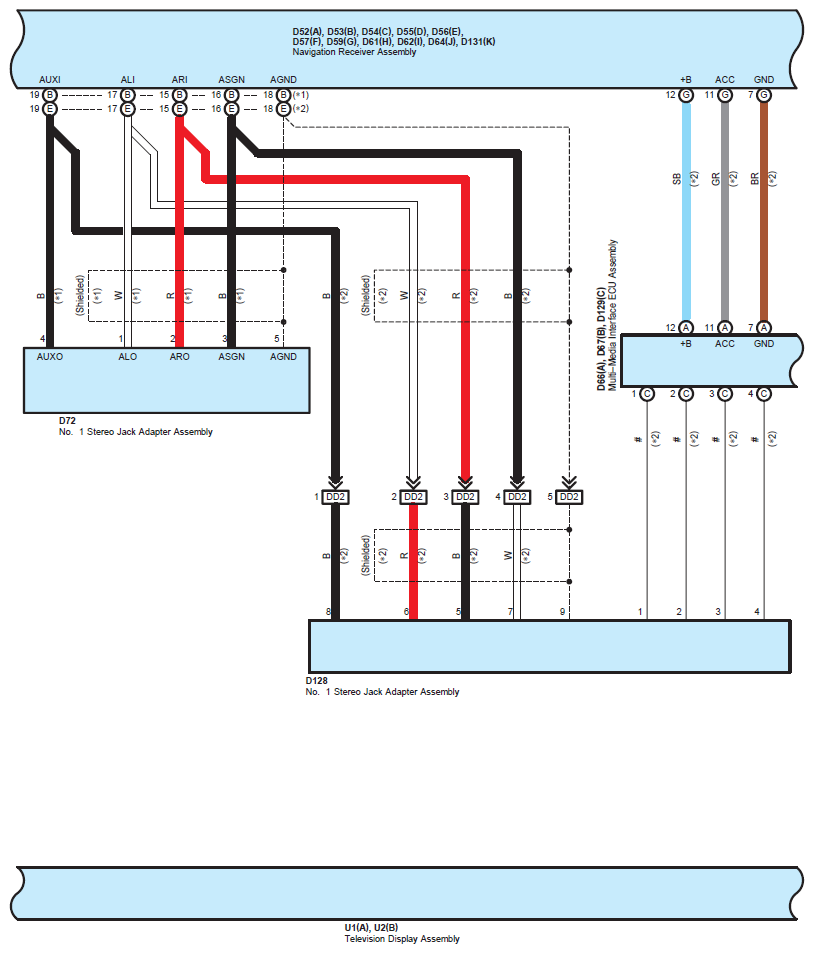

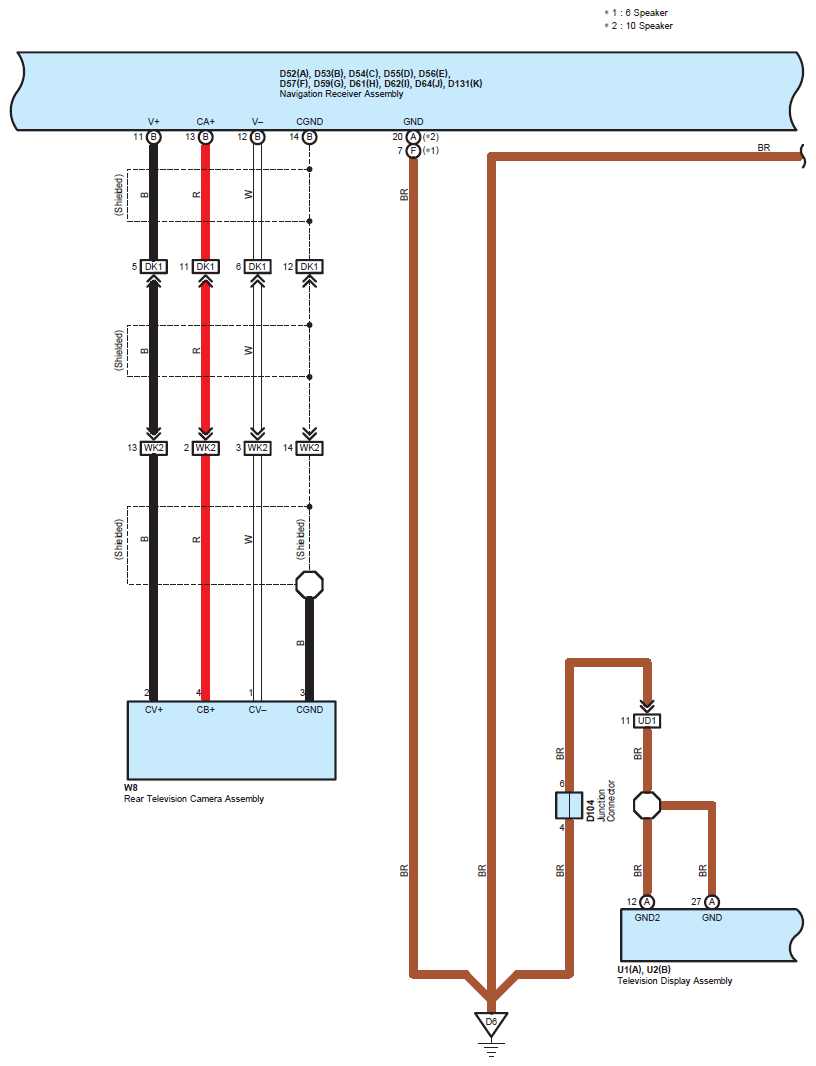

Fig 3: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

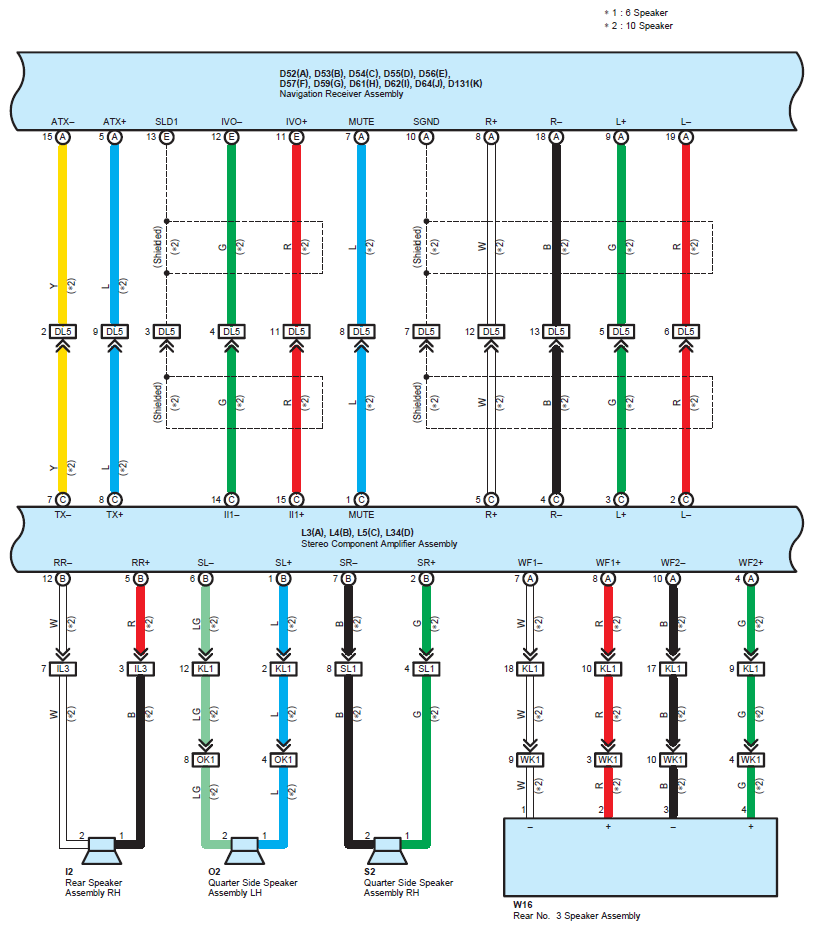

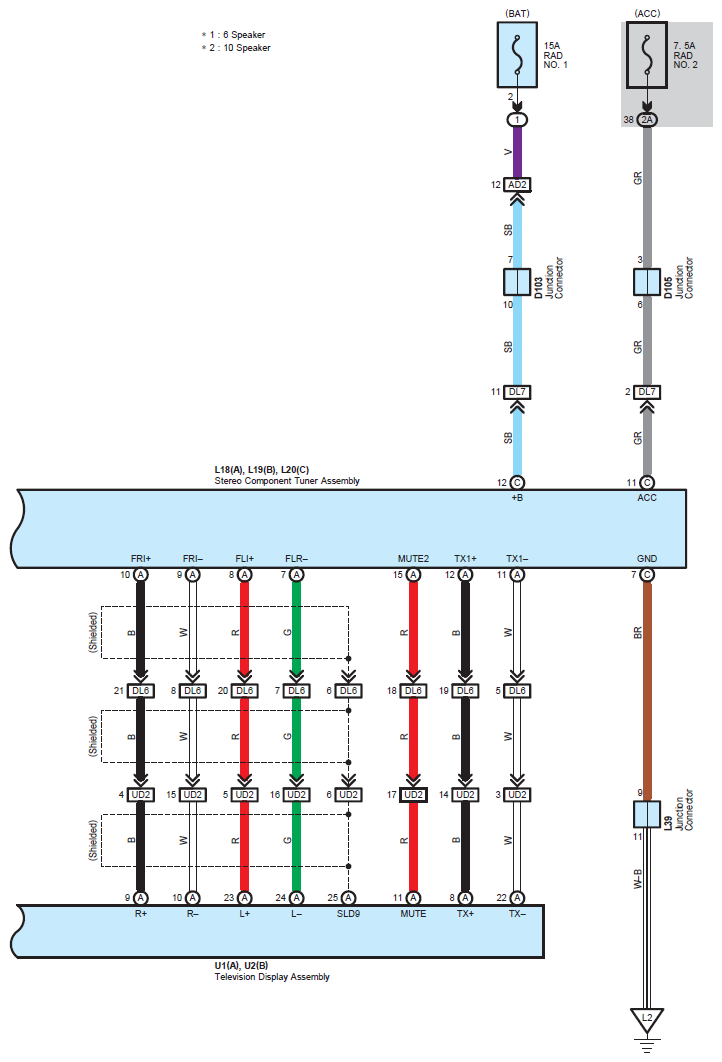

Fig 4: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

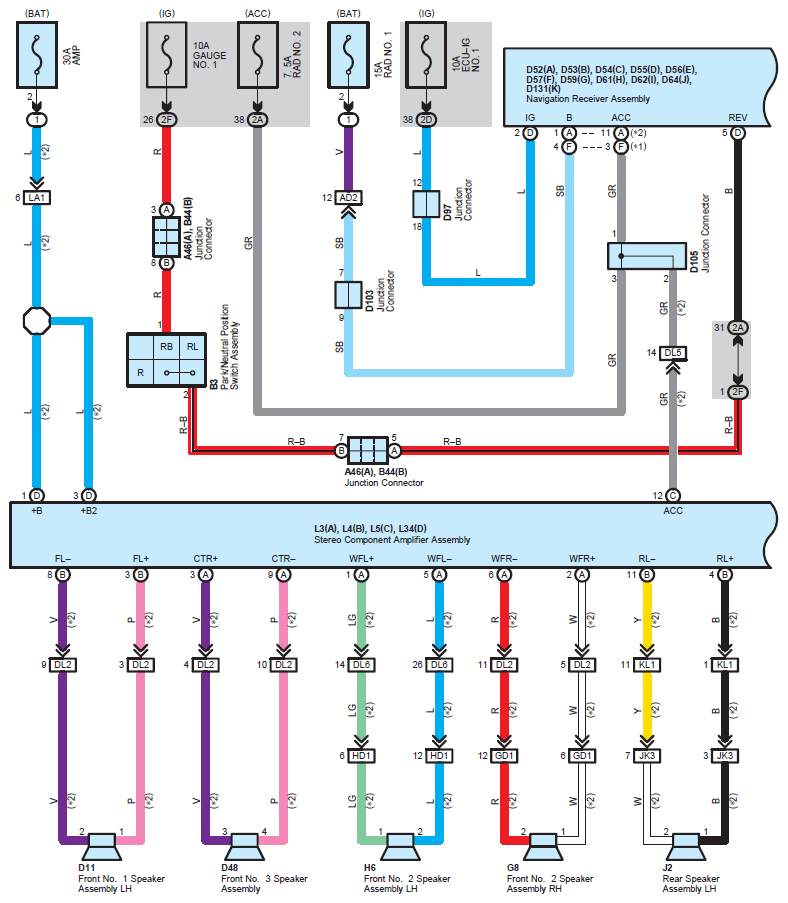

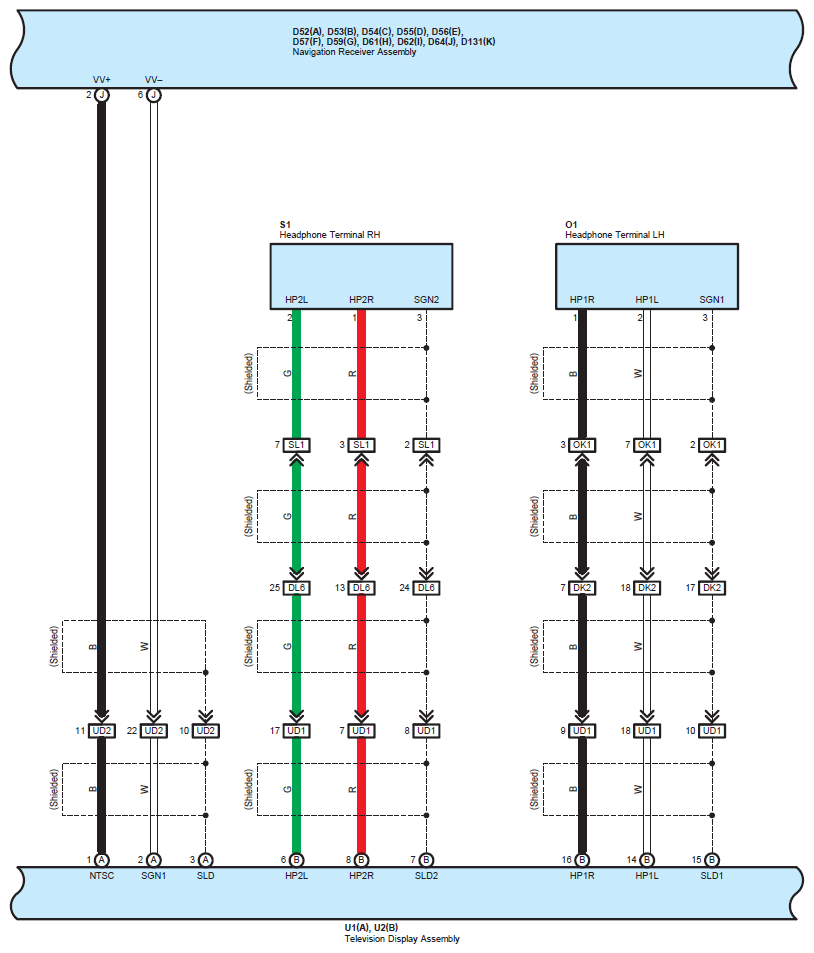

Fig 5: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

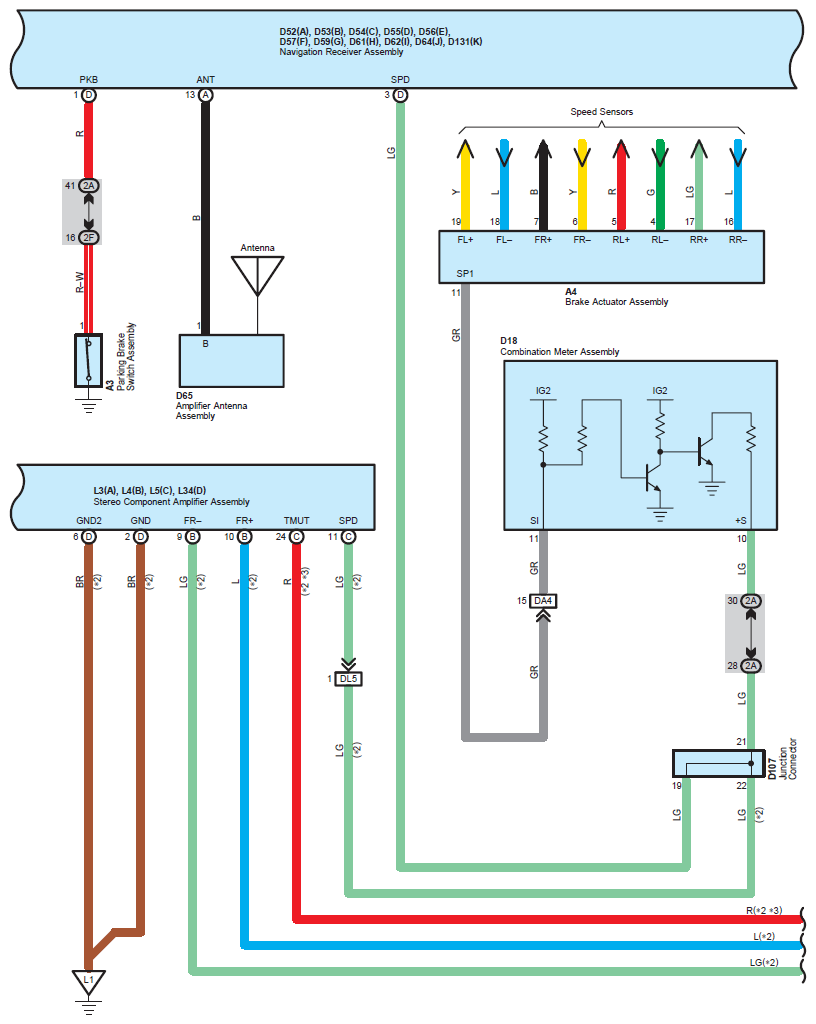

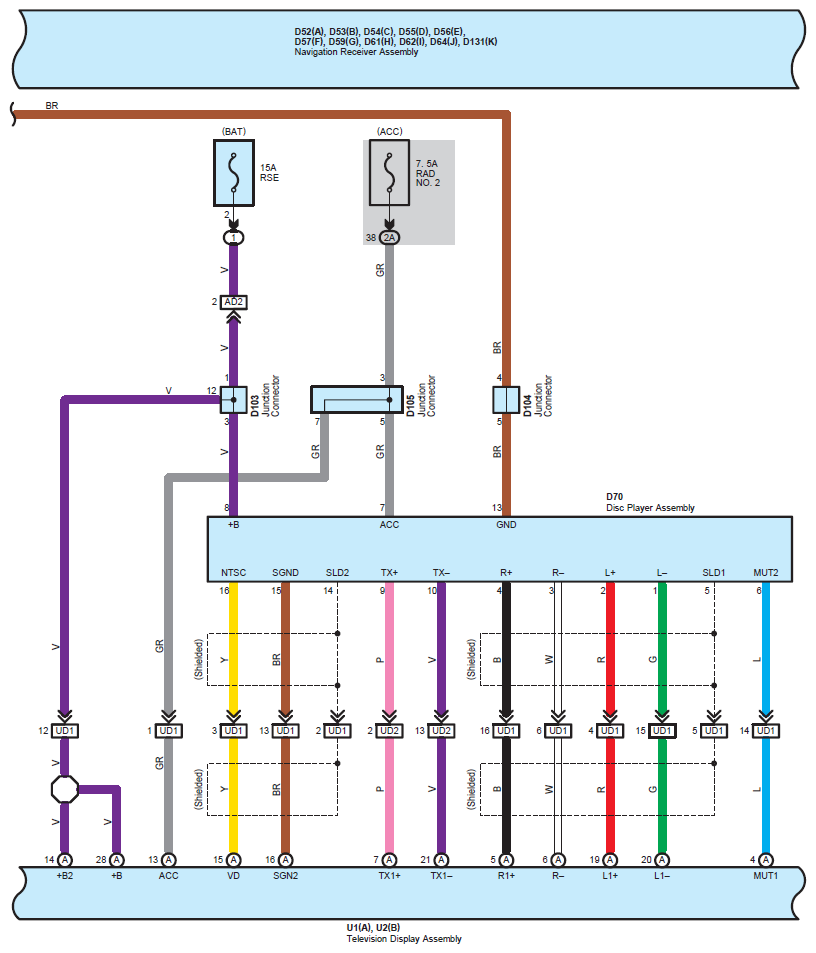

Fig 6: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

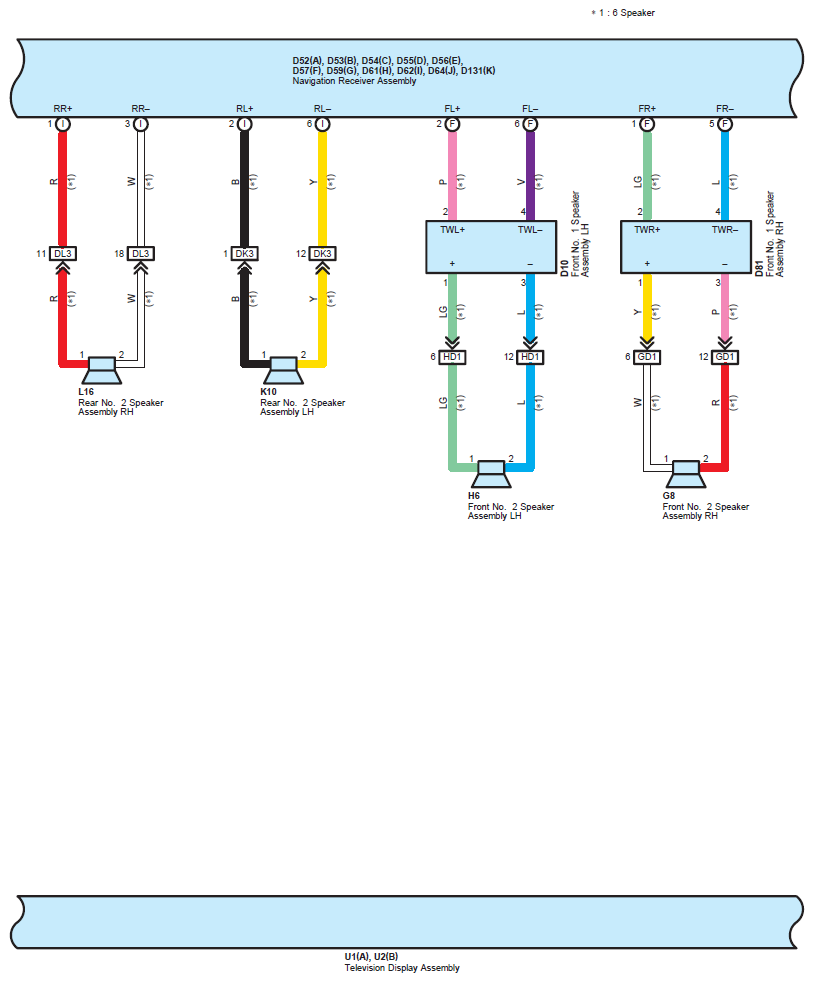

Fig 7: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

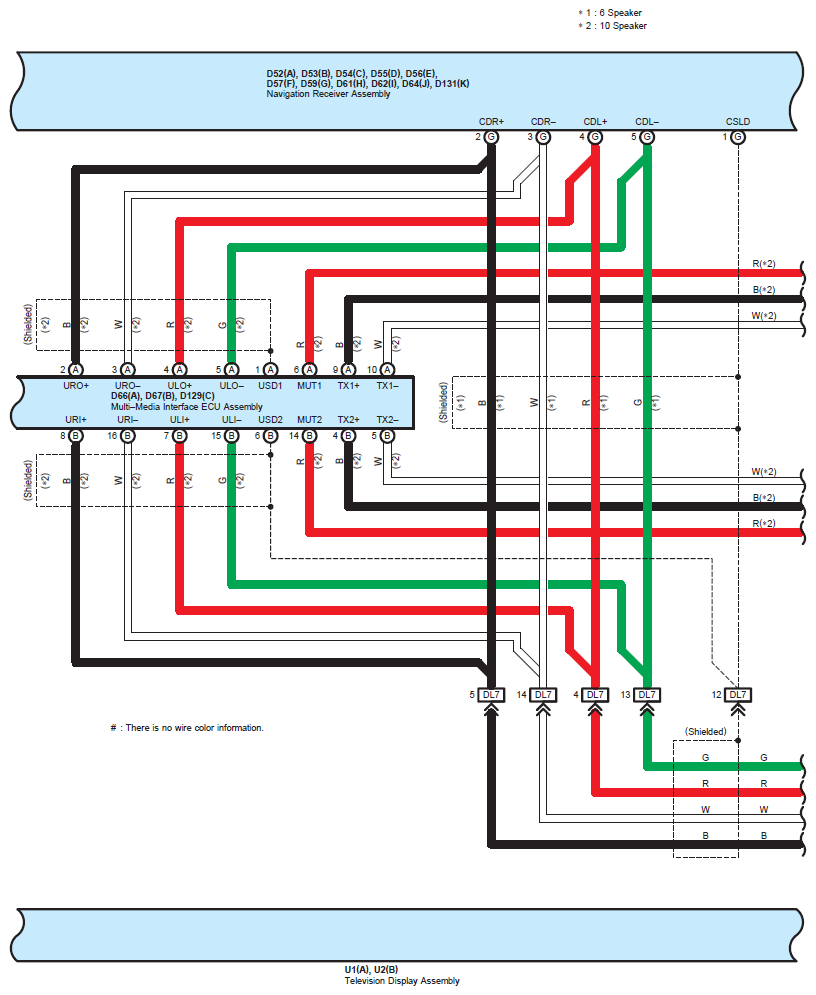

Fig 8: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (10 Of 14)

Fig 11: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (11 Of 14)

Fig 12: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (12 Of 14)

Fig 13: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (13 Of 14)

Fig 14: Audio System (w/Navigation System), Navigation System And Parking Assist (Rear View Monitor w/Navigation System) Wiring Diagram (14 Of 14)
