Power Back Door: Notes

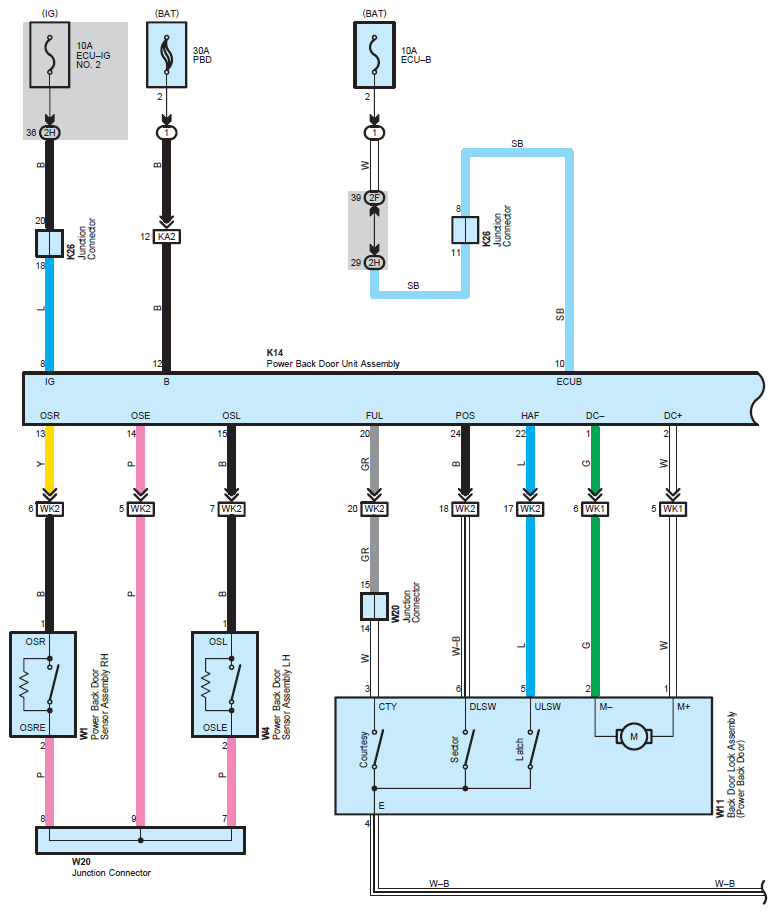

Fig 1: Power Back Door System Wiring Diagram (1 Of 5)
G07113018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

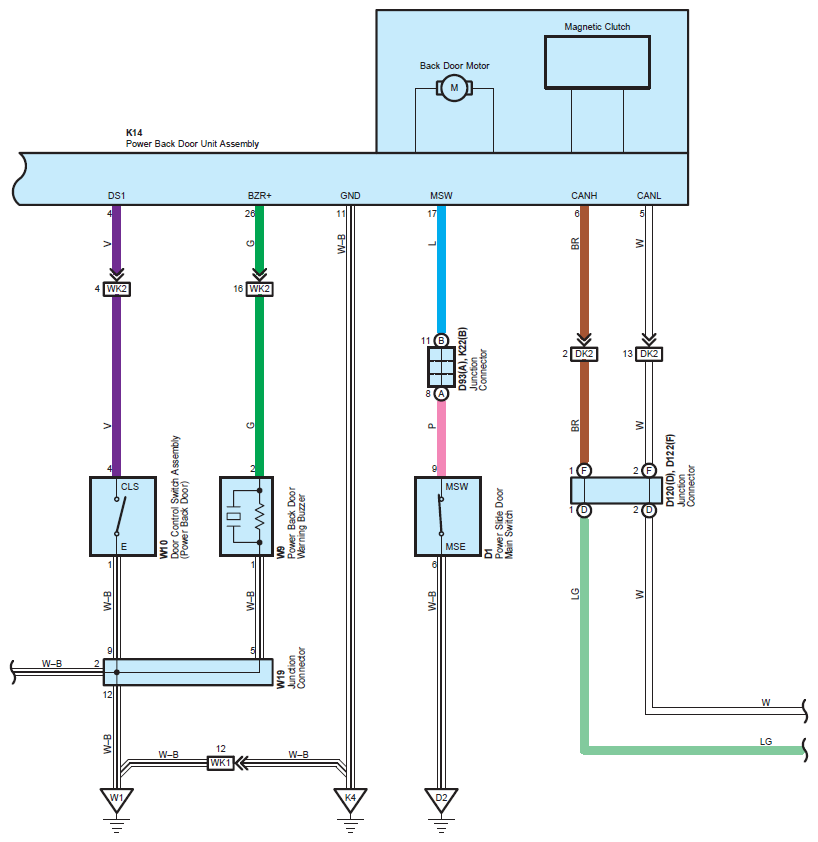

Fig 2: Power Back Door System Wiring Diagram (2 Of 5)
G07113019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

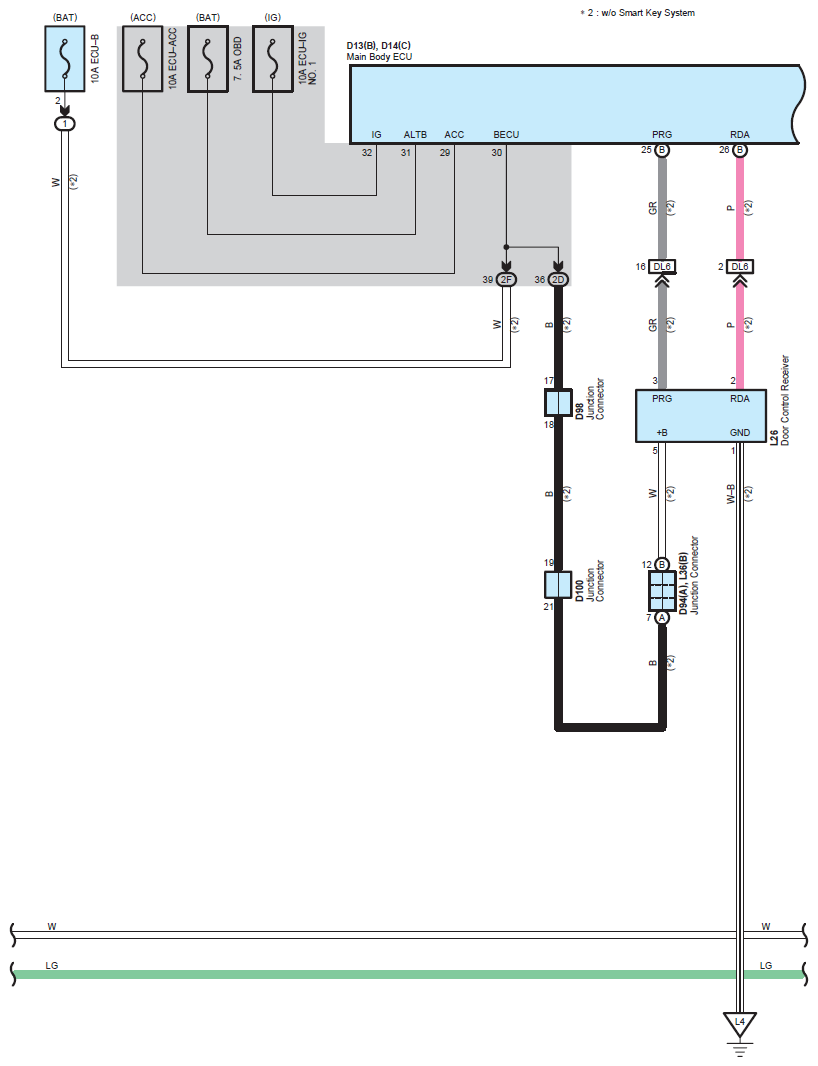

Fig 3: Power Back Door System Wiring Diagram (3 Of 5)
G07113020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

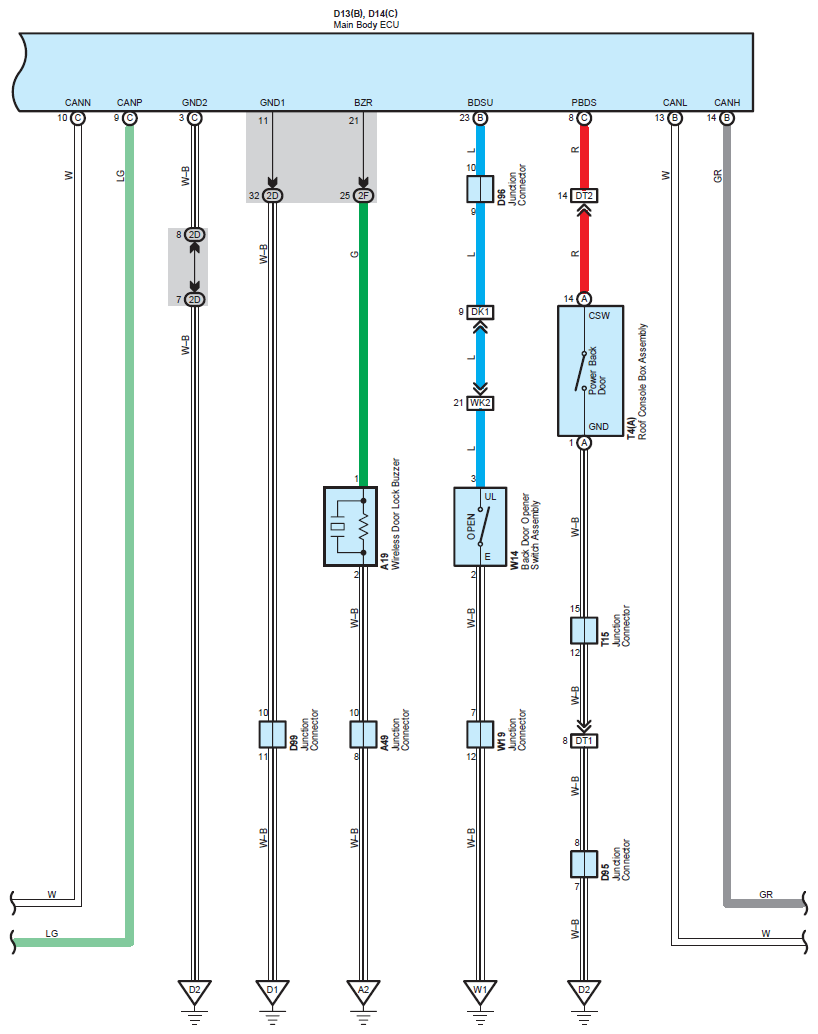

Fig 4: Power Back Door System Wiring Diagram (4 Of 5)
G07113021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

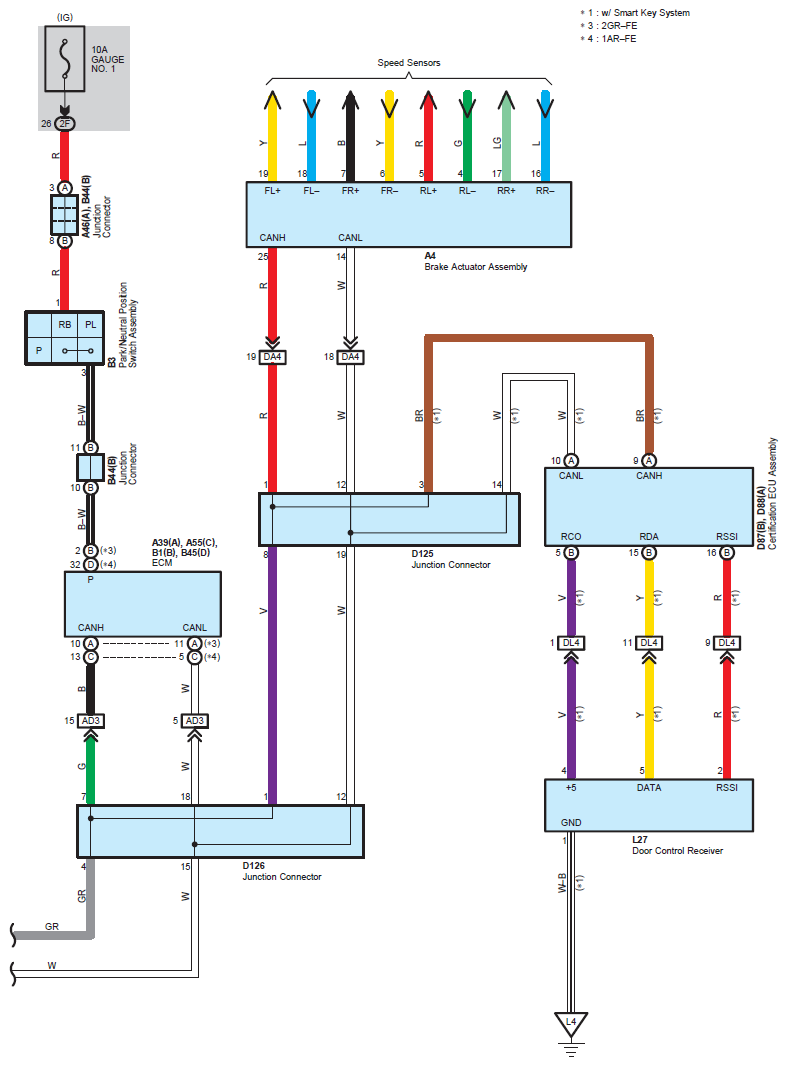

Fig 5: Power Back Door System Wiring Diagram (5 Of 5)
G07113022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
