Wireless Door Lock Control (w/o Smart Key System): Notes

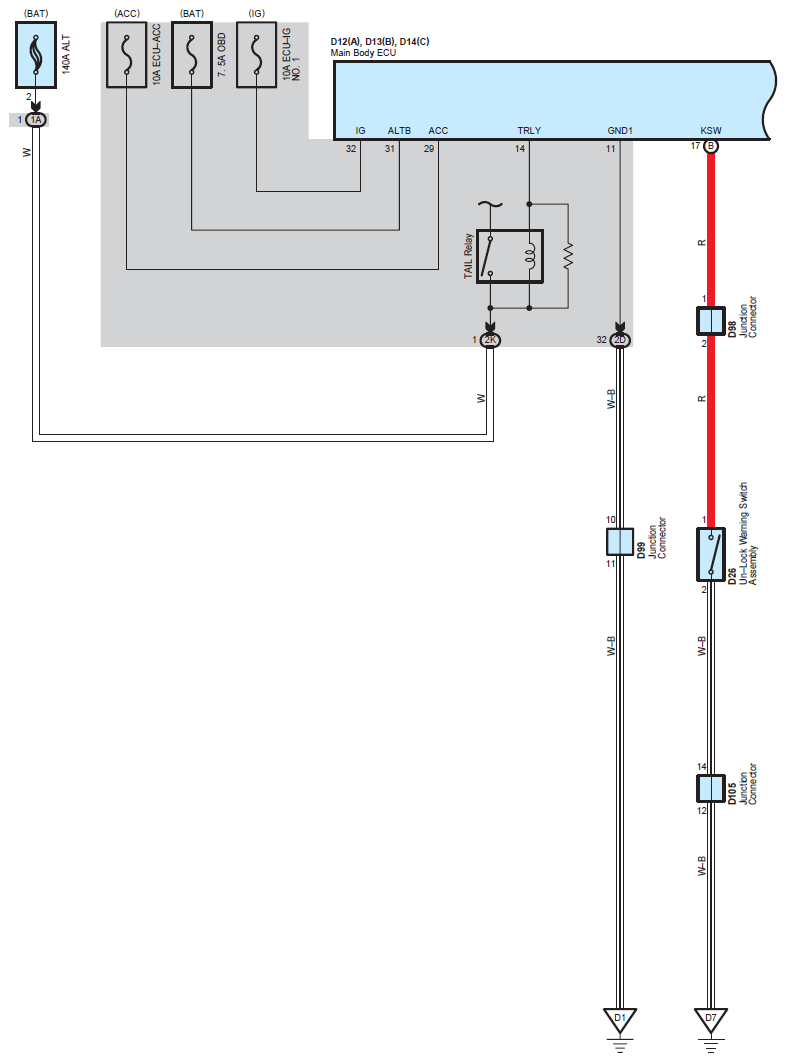

Fig 1: Wireless Door Lock Control (w/o Smart Key System) Wiring Diagram (1 Of 7)
G07113001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

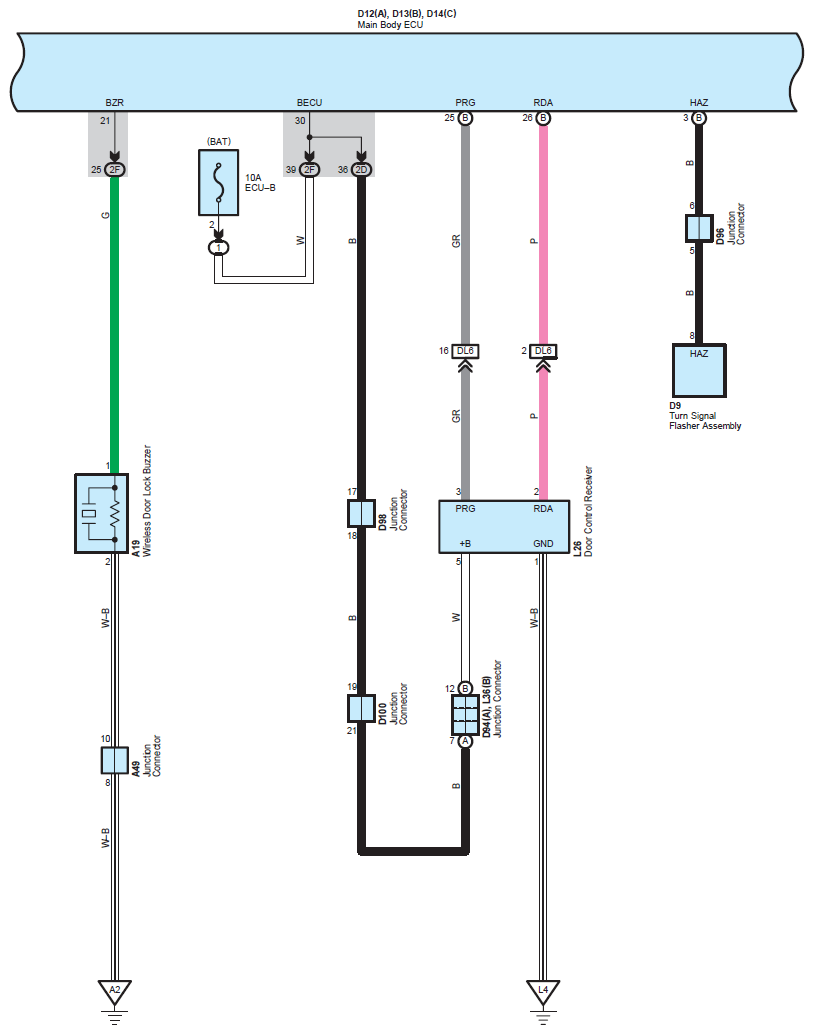

Fig 2: Wireless Door Lock Control (w/o Smart Key System) Wiring Diagram (2 Of 7)
G07113002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

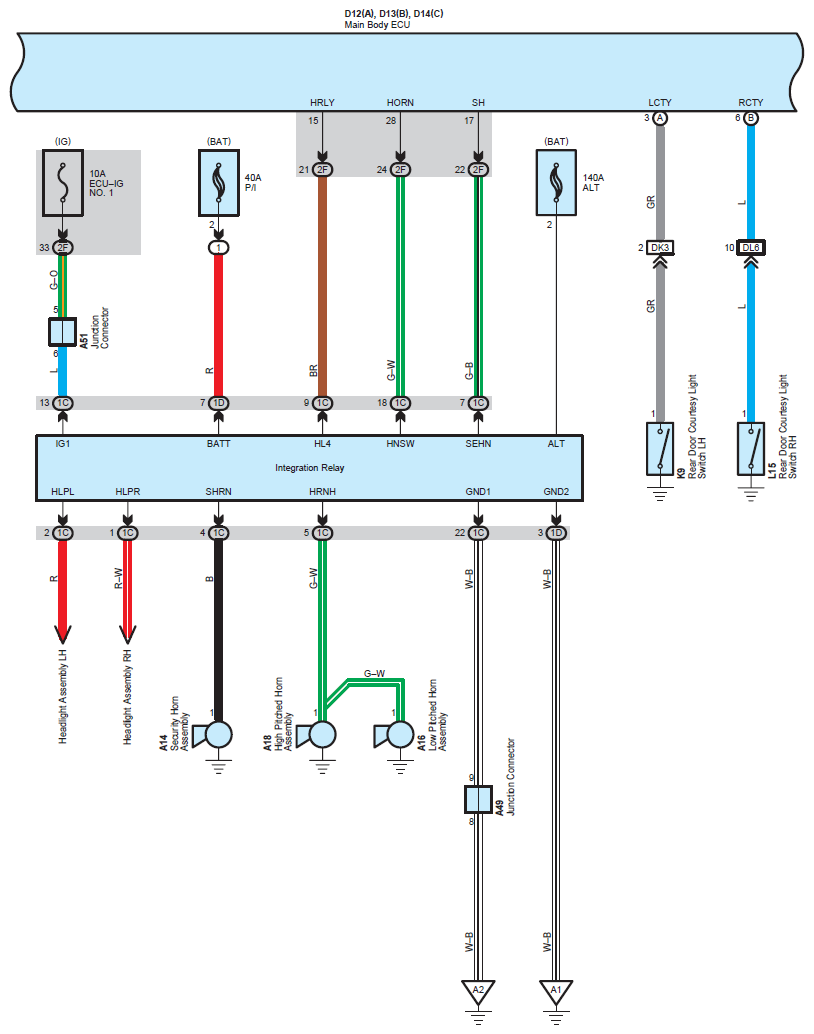

Fig 3: Wireless Door Lock Control (w/o Smart Key System) Wiring Diagram (3 Of 7)
G07113003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

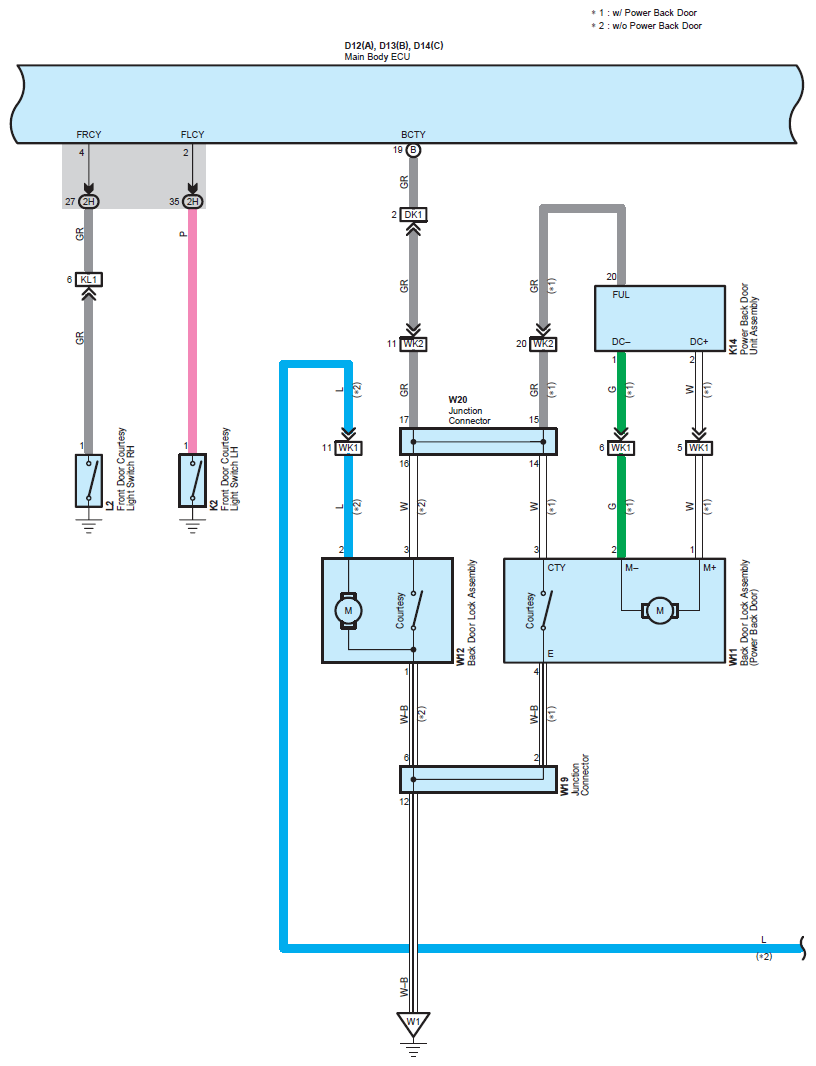

Fig 4: Wireless Door Lock Control (w/o Smart Key System) Wiring Diagram (4 Of 7)
G07113004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

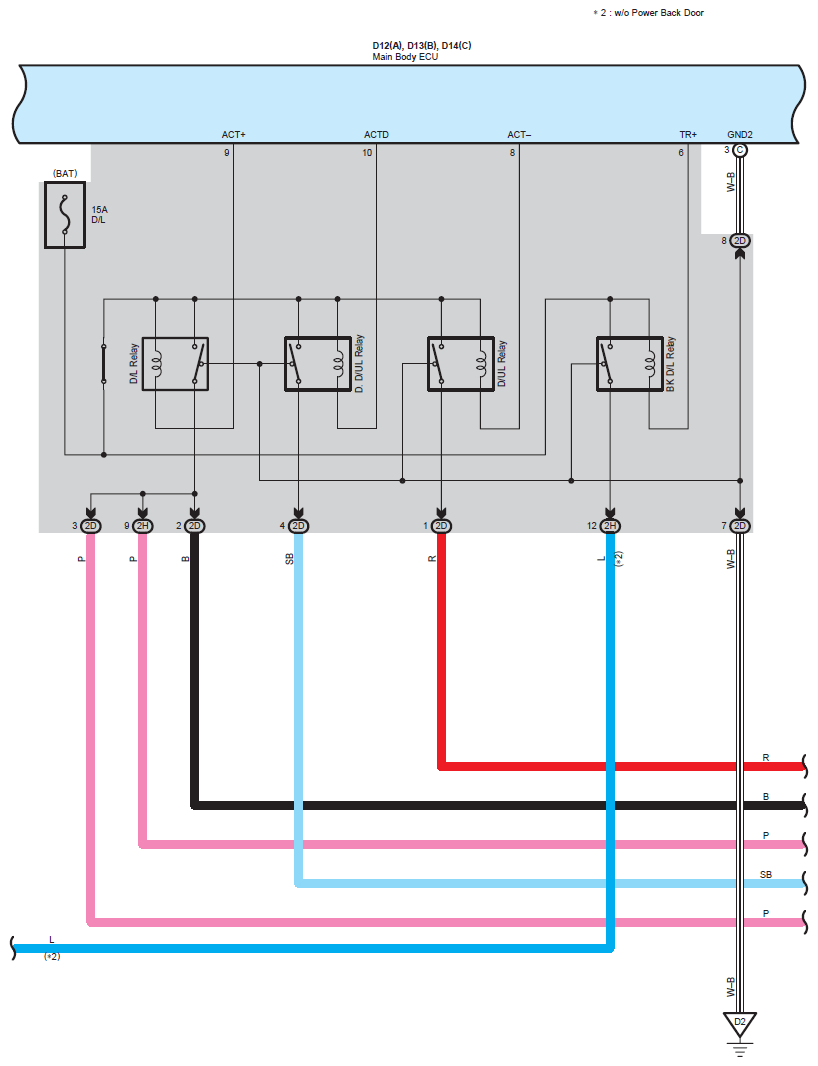

Fig 5: Wireless Door Lock Control (w/o Smart Key System) Wiring Diagram (5 Of 7)
G07113005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

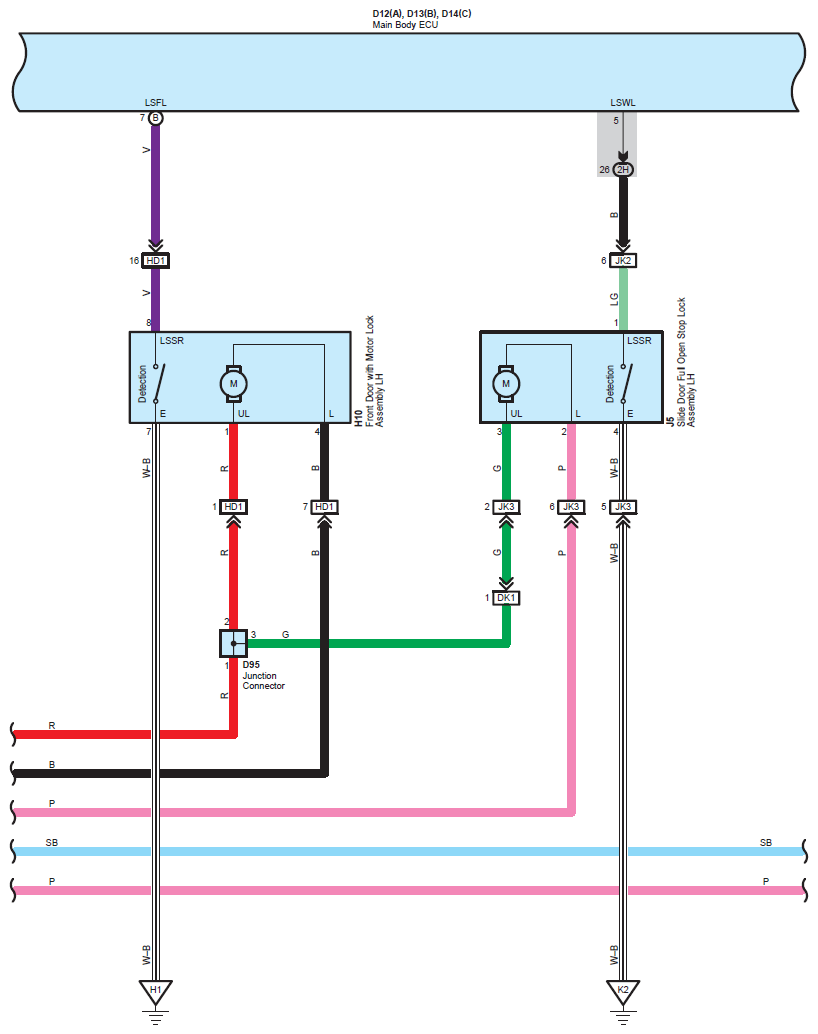

Fig 6: Wireless Door Lock Control (w/o Smart Key System) Wiring Diagram (6 Of 7)
G07113006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

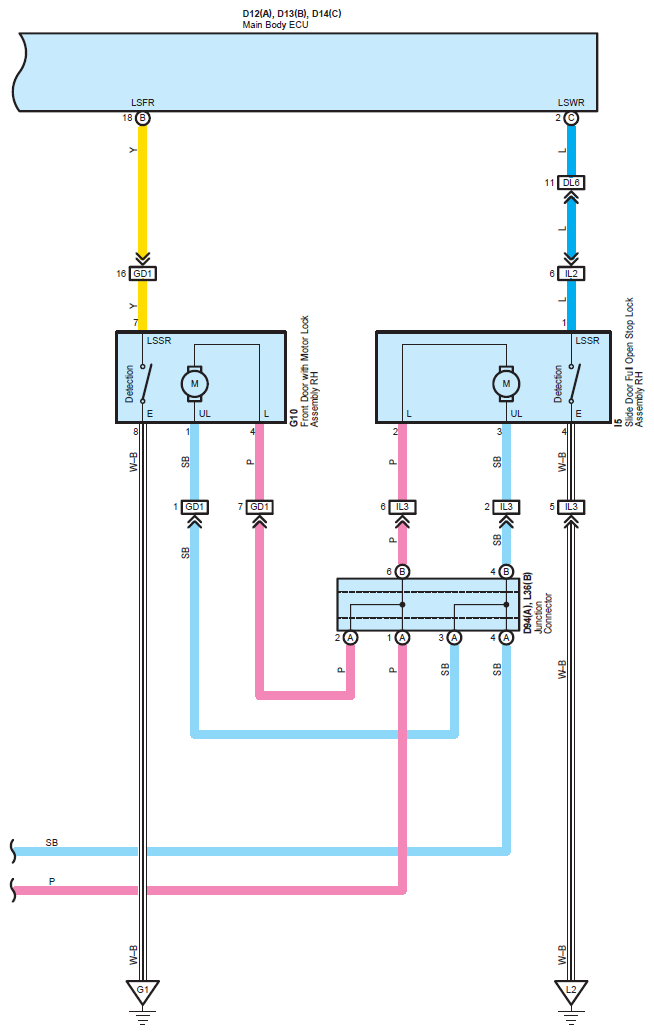

Fig 7: Wireless Door Lock Control (w/o Smart Key System) Wiring Diagram (7 Of 7)
G07113007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
