Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

Fig 1: Identifying Vehicle Identification Number Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
  A

  Vehicle Identification Number

  B

  Certification Label
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustration.
  A

  Engine Serial Number

  B

  Transmission Serial Number

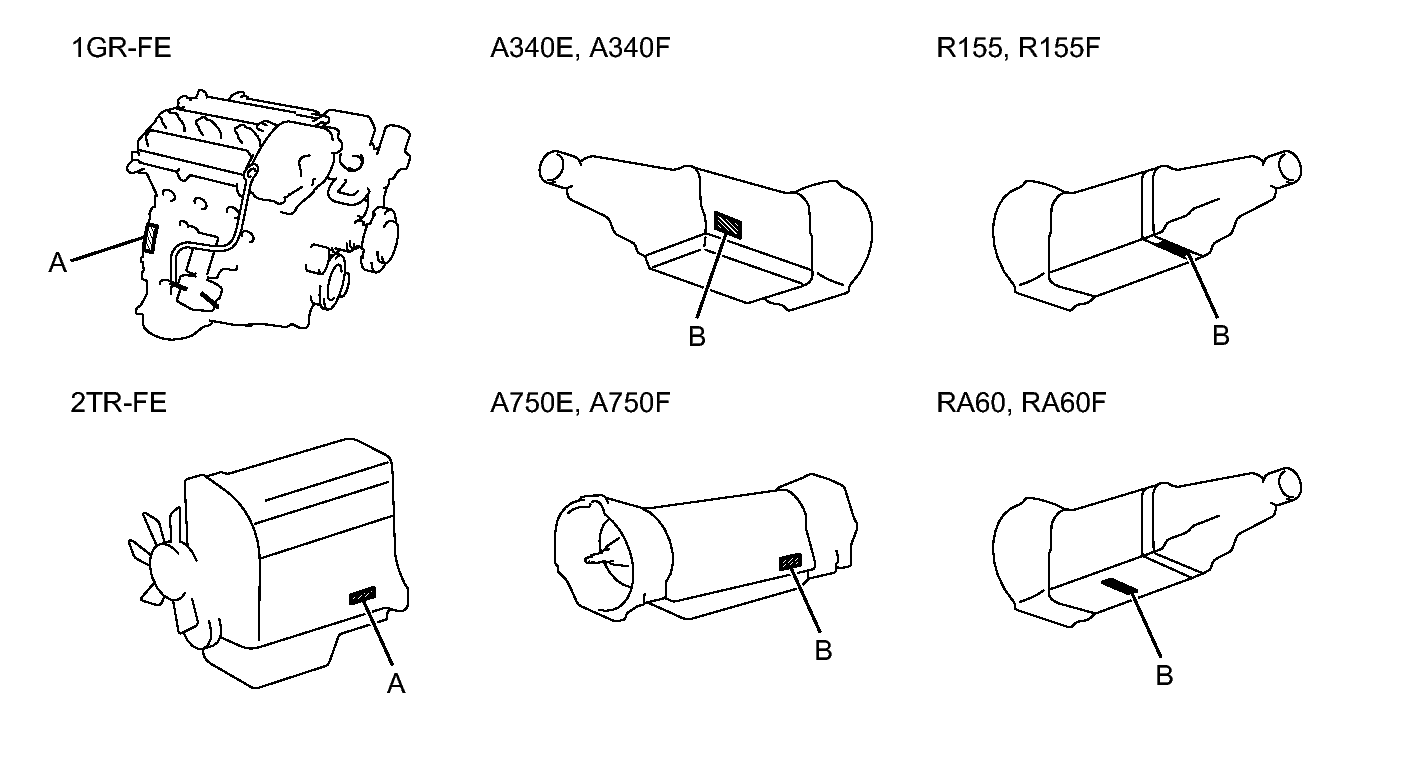

  Fig 2: Identifying Engine & Transmission Serial Numbers Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
