Cigarette Lighter or Power Outlet: Notes

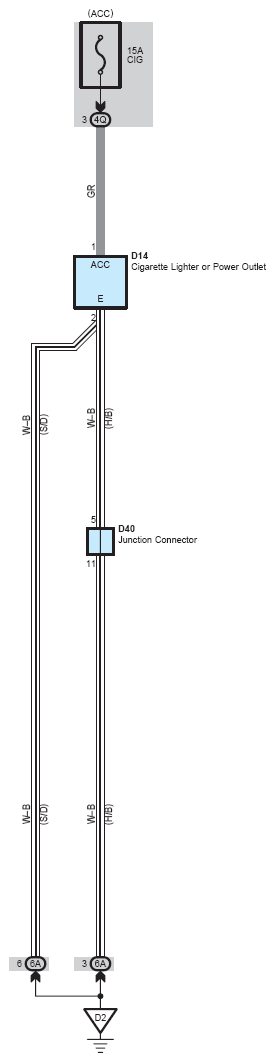

Fig 1: Cigarette Lighter Or Power Outlet System Wiring Diagram
G07124541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
