Parts Location: Illustration

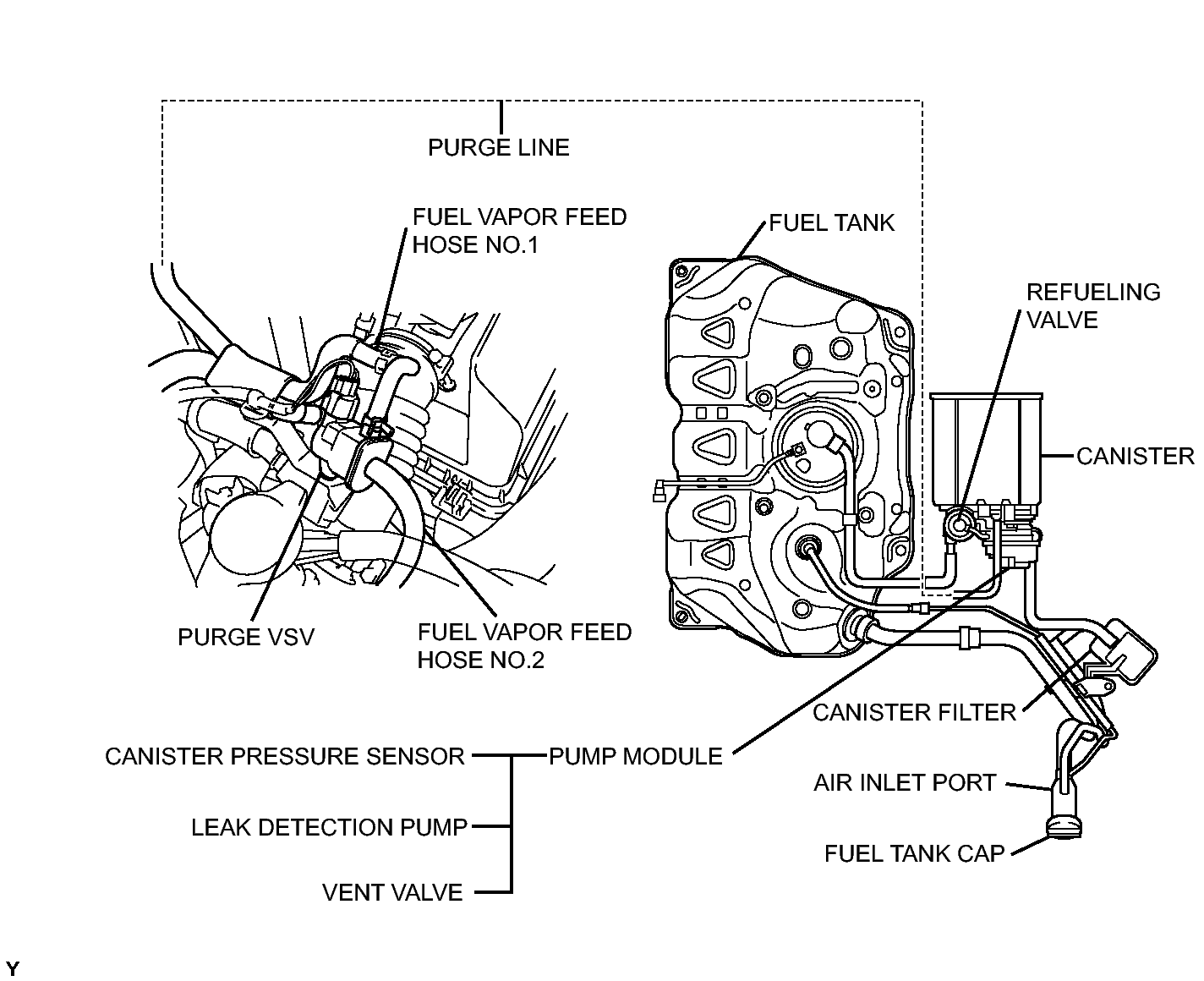

Fig 1: Identifying Emission Control System Components Location (1 Of 3)
GTY237354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
