Traction Off Switch: Installation: Installation

  1. INSTALL TRACTION CONTROL SWITCH (A-TRAC SWITCH)
    1. Attach the 2 claws to install the traction control switch (A-TRAC switch) to the map light assembly.

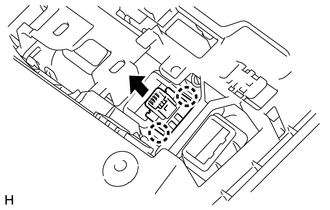

      Fig 1: Identifying Traction Control Switch And Map Light Assembly
      GTY212911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  2. INSTALL MAP LIGHT ASSEMBLY
    1. Attach the 2 clips to install the map light assembly.
    2. Install the screws.
  3. INSTALL DRIVE MONITOR SWITCH  See step  1
