Parking Assist (Rear View Monitor w/o Navigation System): Notes

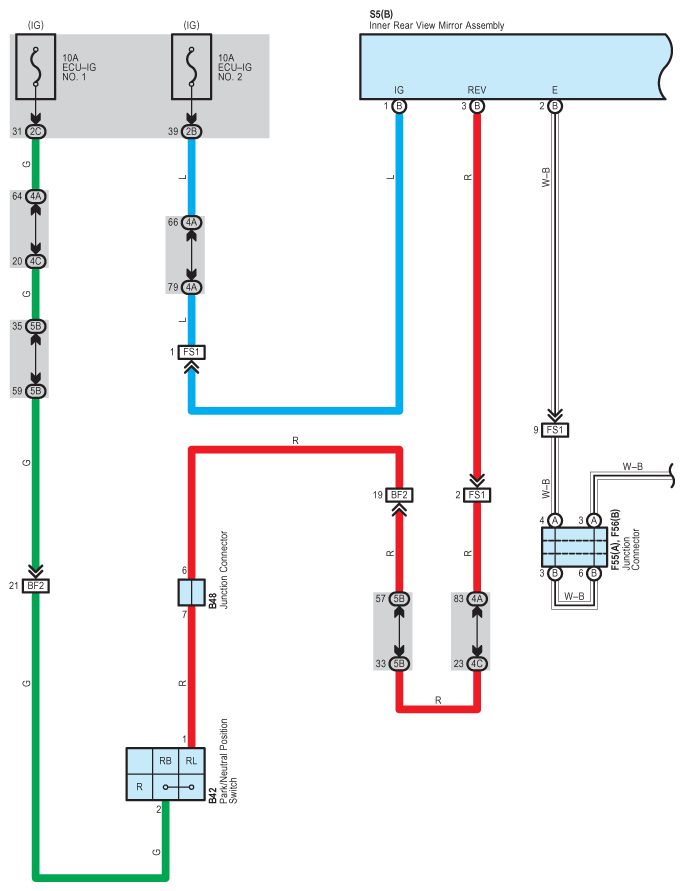

Fig 1: Parking Assist (Rear View Monitor W/O Navigation) System Wiring Diagram (1 Of 2)
G08792414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

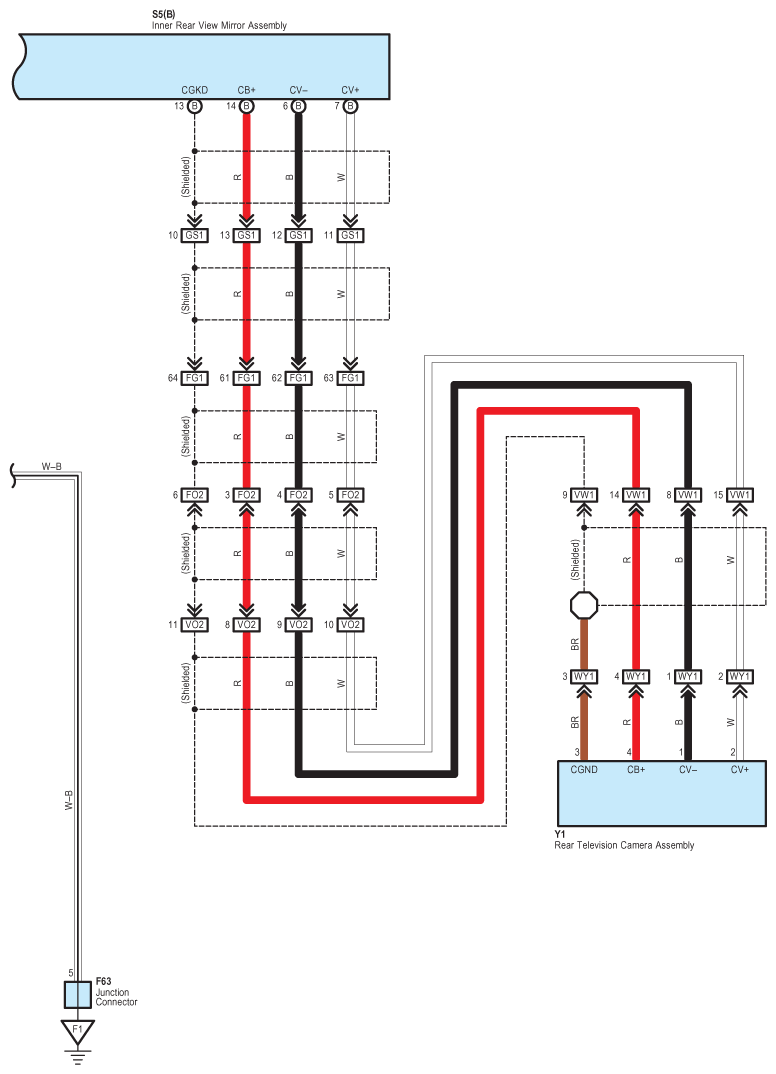

Fig 2: Parking Assist (Rear View Monitor W/O Navigation) System Wiring Diagram (2 Of 2)
G08792415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
