Avalon Base
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System (Inspection)
>>
Charging System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

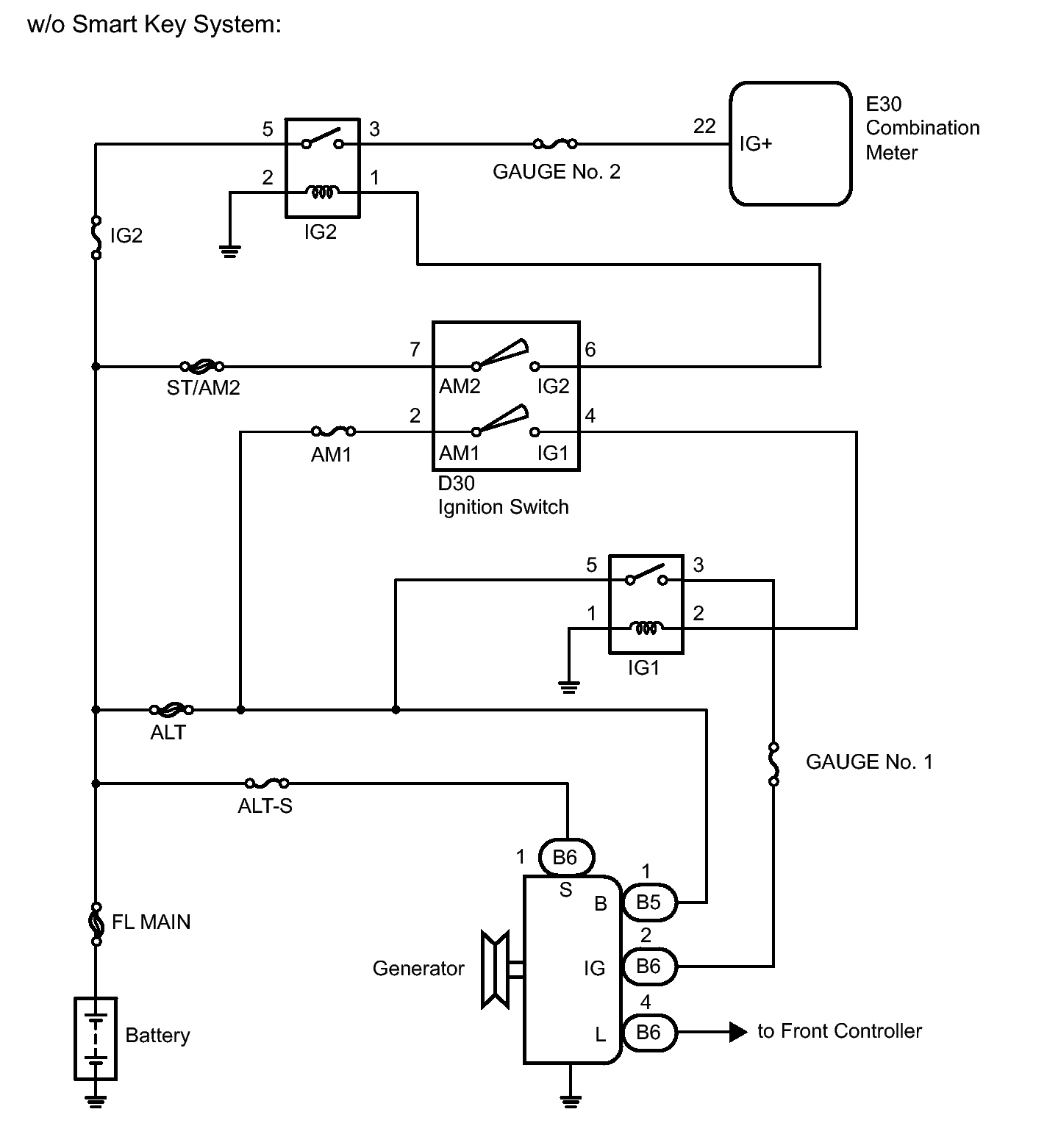

Fig 1: Charging System (w/o Smart Key System) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

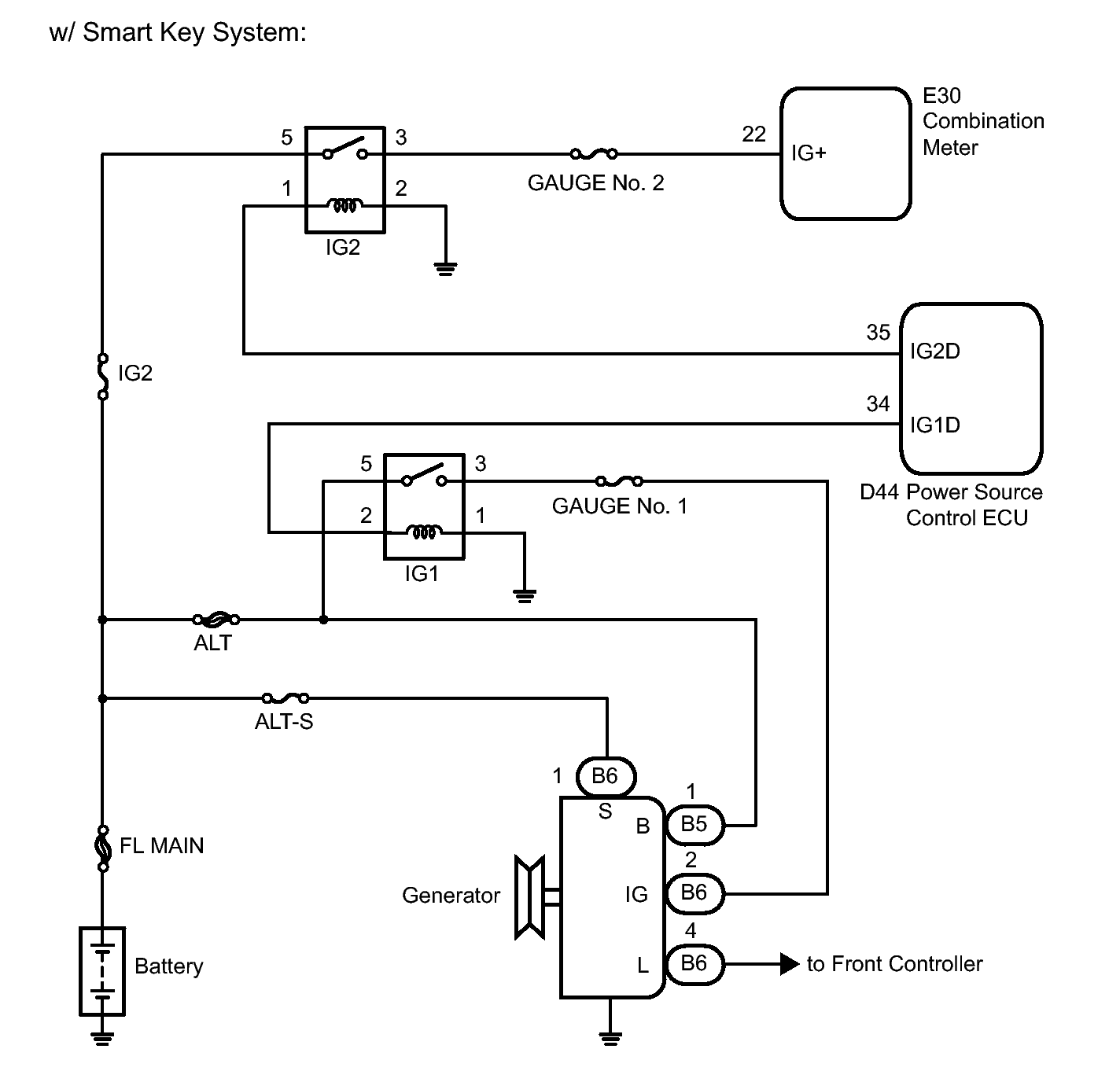

Fig 2: Charging System (w/ Smart Key System) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
