Installation

2AR-FE ENGINE CONTROL: CRANKSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR

(a) Clean and degrease the threads of the bolt for the crankshaft position sensor.

(b) Apply a light coat of engine oil to the O-ring of the sensor.

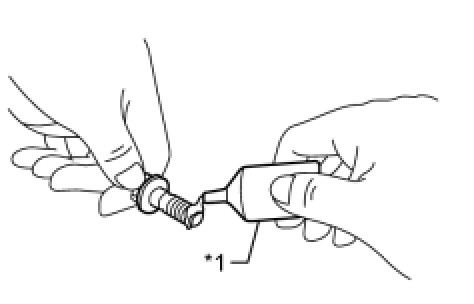

Text in Illustration

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent.

(d) Install the sensor with the bolt.

Torque : 6.5 Nm (66 kgf-cm, 58 in-lbf)

NOTICE:
Make sure that the O-ring is not cracked or does not jump out of position during installation.

(e) Connect the sensor connector.

2. INSPECT FOR OIL LEAK
