Removal

2AR-FE ENGINE CONTROL: KNOCK SENSOR: REMOVAL

1. REMOVE INTAKE MANIFOLD

Removal

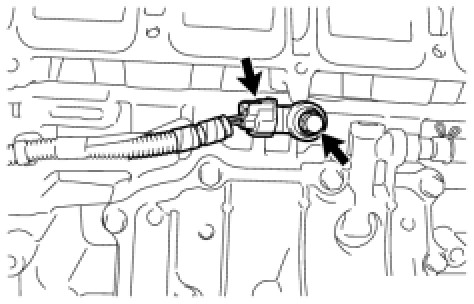

2. REMOVE KNOCK CONTROL SENSOR

(a) Disconnect the sensor connector.





(b) Remove the bolt and knock control sensor.
