Engine Control Part 21

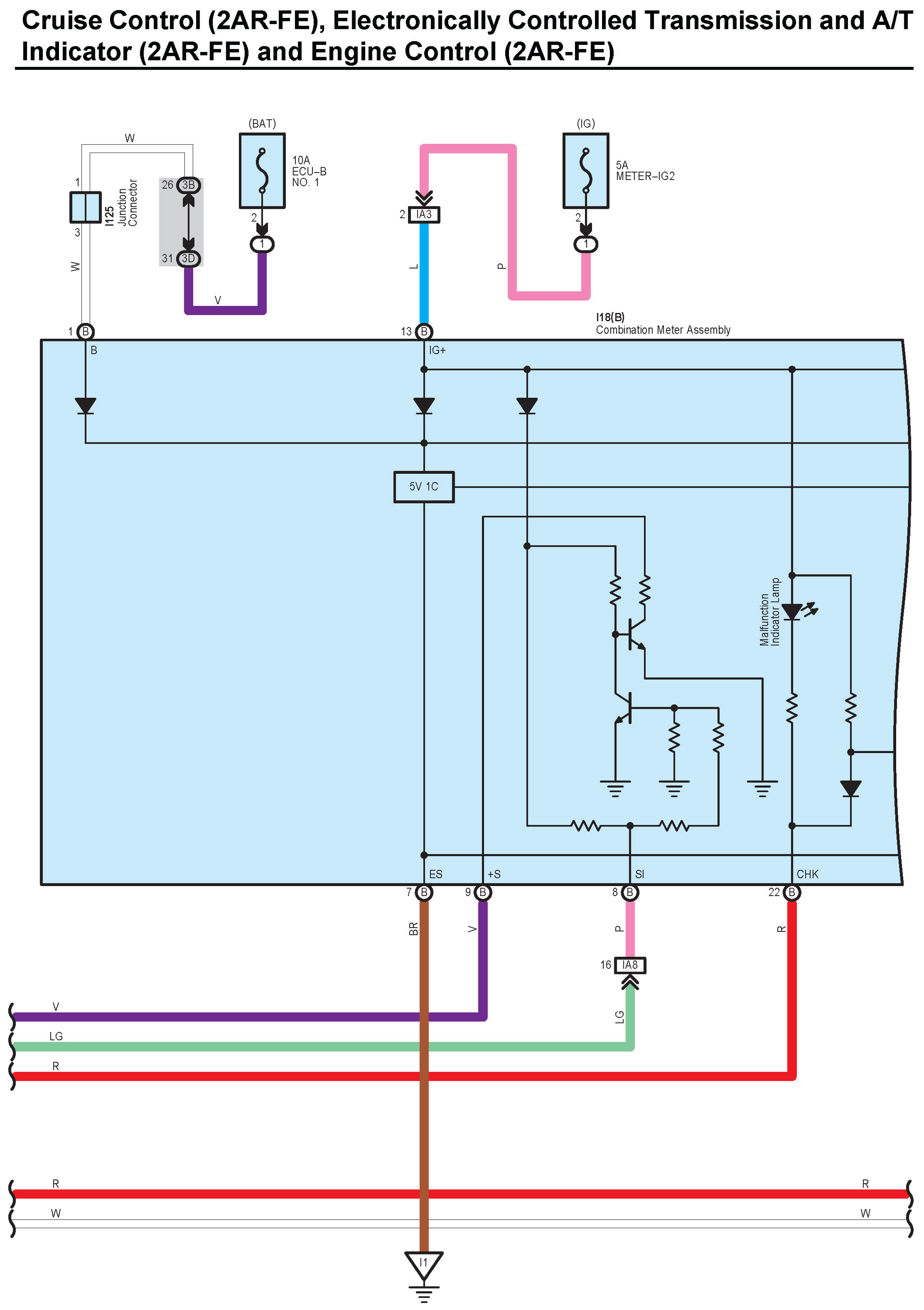

Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control Part 21:

Next Diagram Engine Control Part 22

Previous Diagram Engine Control Part 20

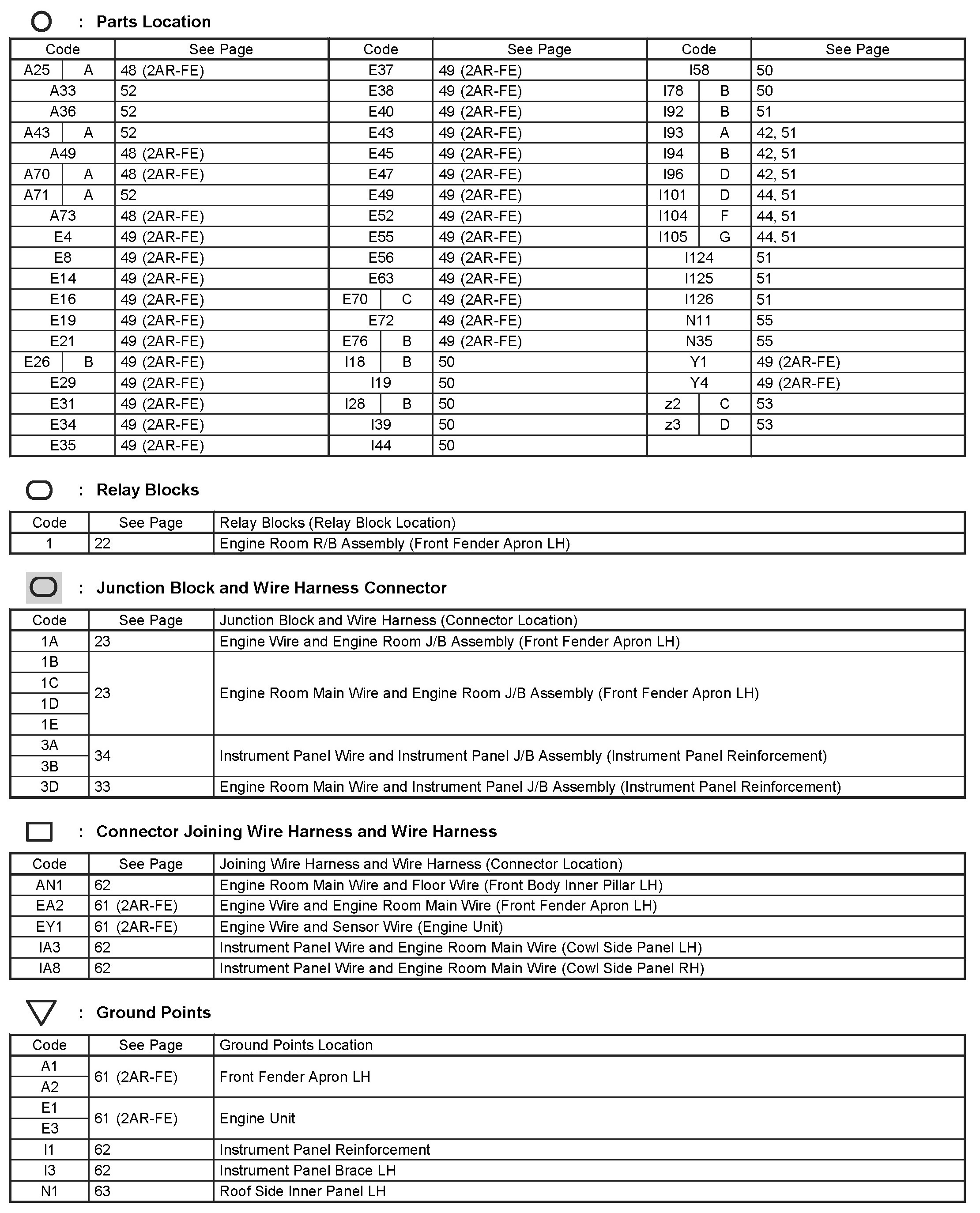

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
