Toyota
>>
2012
>>
Corolla Base, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Tune-Up
>>
Ignition System (Inspection) (2ZR-FE)
>>
Ignition System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

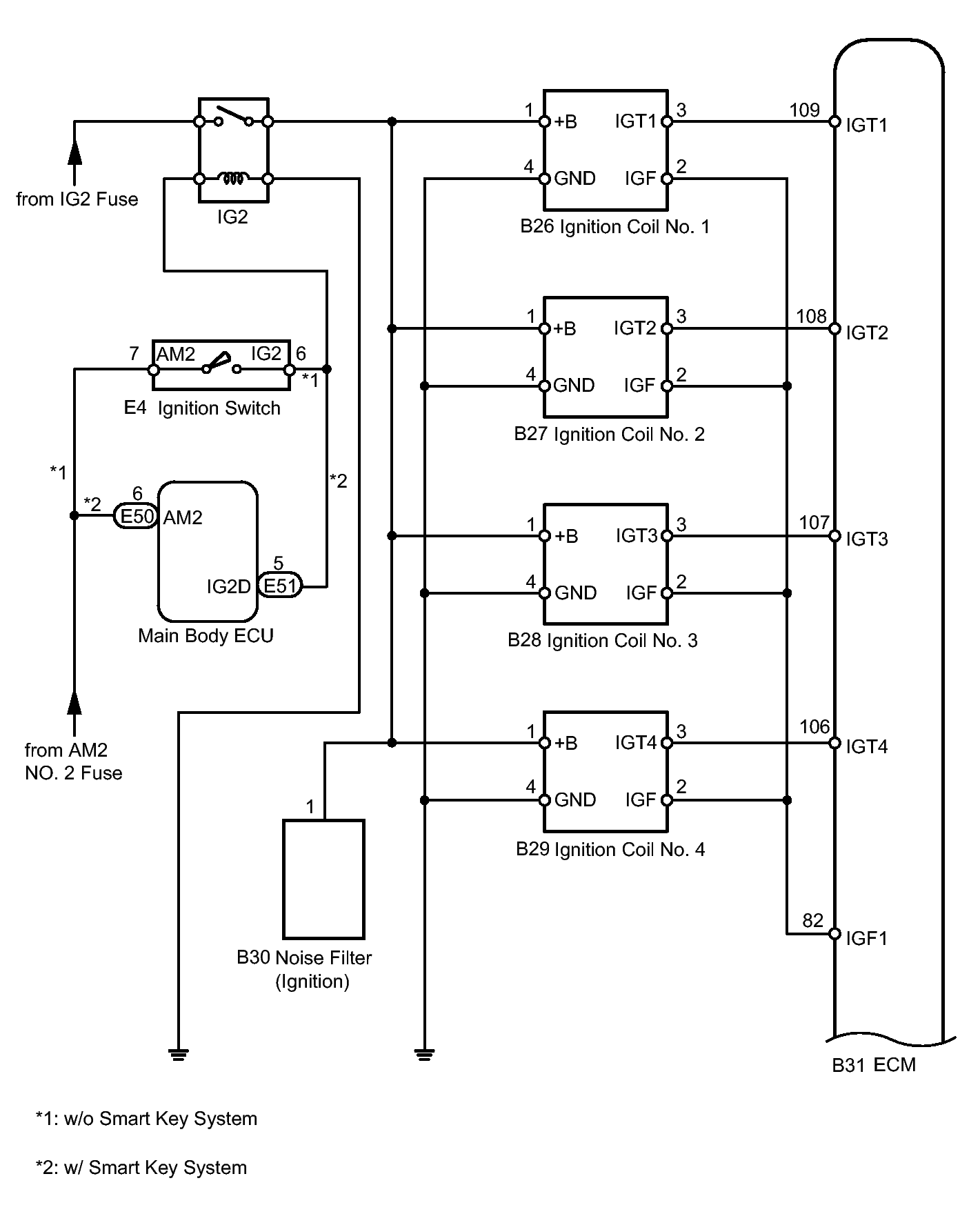

Fig 1: Identifying Ignition System Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Ignition System Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
