Wireless Door Lock Control System (w/ Smart Key System)

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System): CUSTOMIZE PARAMETERS

HINT
The following items can be customized.

NOTICE:
* After confirming whether the items requested by the customer are applicable or not for customization, perform customizing operations.
* Be sure to record the current settings before each customization.
* When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization (Example: If the wireless function does not operate, first check that the wireless function is not set to "OFF", then perform troubleshooting).

1. CUSTOMIZE

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (ACC).

(c) Turn the Techstream on.

(d) Enter the following menu:

Customize Setting

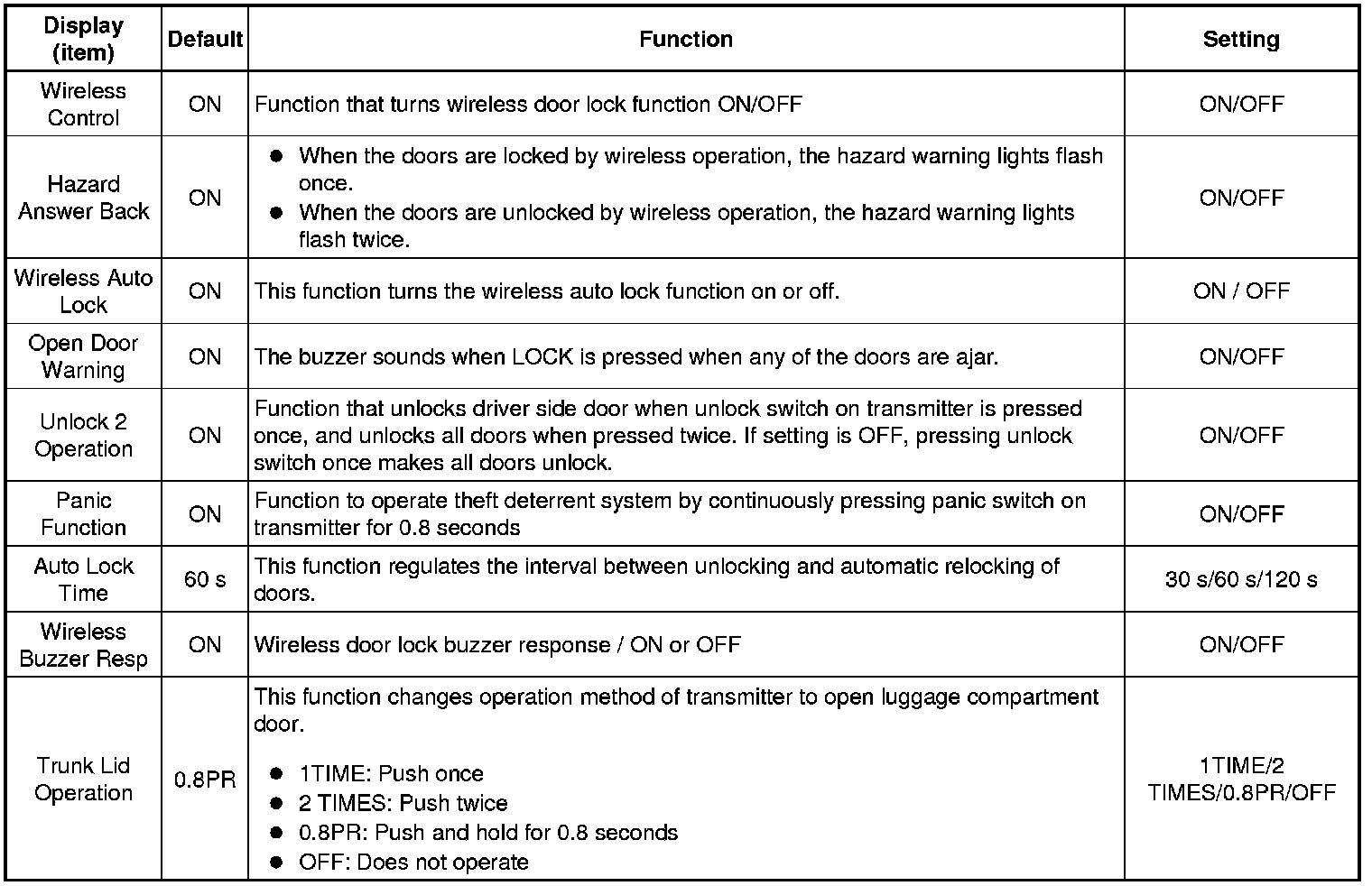

(e) Select the setting by referring to the table below.

Wireless Door Lock Control System
