Removal

DOOR LOCK: DOOR CONTROL TRANSMITTER (w/o Smart Key System): REMOVAL

1. REMOVE TRANSMITTER BATTERY

NOTICE:
Special caution should be taken for handling each component as they are precision electronic components.

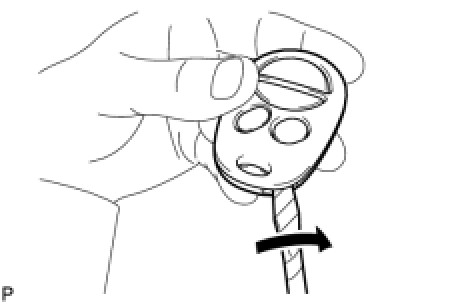

(a) Using a screwdriver with its tip wrapped in protective tape, pry open the transmitter housing cover.





NOTICE:
Do not forcibly pry the cover.

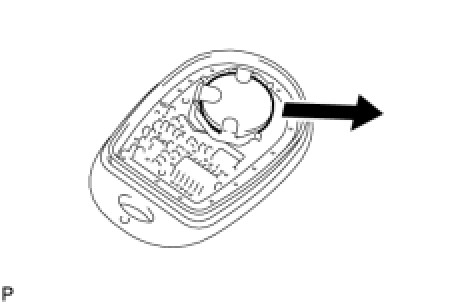

(b) Remove the battery (lithium battery).





NOTICE:
* Do not push the terminals with your finger.
* Do not forcibly pry up the battery. The terminals may become damaged.
* Do not touch the battery with wet hands. Water may cause rust.
* Do not touch or move any components inside the transmitter. It may cease to work.
